0.2ml~2000ml Ultrasonic Homogenizer Solutions Processor Disruptor
- Category: >>>
- Supplier: Ningbo Sjia Instrument Co. Ltd.
Share on (1132166623):
Product Overview
Description
Product Description
150W-2200WUltrasonic Homogenizer / ultrasonicator/ultrasonic processor
Ultrasonic homogenizer series is designed for applying a cavitation effect in a liquid by meas of ultrasonic waves.it can be used to disintegrate cells of various of animals and plants,viruses,bacteria,tissues as well as to reshape inorganic substances.It can also be used in emulsification ,separation ,distribution ,collection cleaning and nano-material preparation,dispersion acceleration of chemical reactions.etc. It has wide application in teaching,researching, and manufacturing in many fields such as biology,microbiology ,physics,zoology,agriculture and pharmacology and been used by some labs .
FULL AMPLITUDE CONTROL
Amplitude (intensity) is controlled from 1-100% giving a greater degree of resolution and the ability to pinpoint the amplitude needed to effectively process your sample.
PROGRAMMABILITY
Parameters including processing times, pulse on/off and power output ,it can be saved to memory and run by the touch of a button.This new system can restore more than 50 custom program.
PULSE MODE
Adjustable pulse On and Off times to reduce the heat gain in temperature sensitive samples.
AUTO TUNING
The Sonicator digitally tracks frequency changes in theconverter/ tip assembly caused by load and temperature
changes and maintainelectrical efficiency at all times.Manual tuning is unnecessary.
TEMPERATURE MONITORING
An optional temperature probe is available for those customers who wish to monitor the temperature of their sample. If the temperature limitis reached, sonication shuts down toprevent overheating
Amplitude (intensity) is controlled from 1-100% giving a greater degree of resolution and the ability to pinpoint the amplitude needed to effectively process your sample.
PROGRAMMABILITY
Parameters including processing times, pulse on/off and power output ,it can be saved to memory and run by the touch of a button.This new system can restore more than 50 custom program.
PULSE MODE
Adjustable pulse On and Off times to reduce the heat gain in temperature sensitive samples.
AUTO TUNING
The Sonicator digitally tracks frequency changes in theconverter/ tip assembly caused by load and temperature
changes and maintainelectrical efficiency at all times.Manual tuning is unnecessary.
TEMPERATURE MONITORING
An optional temperature probe is available for those customers who wish to monitor the temperature of their sample. If the temperature limitis reached, sonication shuts down toprevent overheating
* 4.3 inch large screen LCD touch screen display.
* Microcomputer control, which can store 20 sets of work data.
* Ultrasonic time, ultrasonic power can be set.
* Automatic detection of ultrasonic power to prevent the change of ultrasonic power as the
* temperature of the sample is changed.
* Integrated temperature control to prevent sample overheating.
* Automatic frequency tracking, automatic fault alarm.
* Single ultrasound time: 0.1-99.9S
* Single interval time: 0.1-99.9S
* Total working time: 1S-99H59M59S(touch type to 99hours)
* Mode of work: clearance or continuity
* frequency: 19.5-20.5KHz
* Can select computer online function
* Microcomputer control, which can store 20 sets of work data.
* Ultrasonic time, ultrasonic power can be set.
* Automatic detection of ultrasonic power to prevent the change of ultrasonic power as the
* temperature of the sample is changed.
* Integrated temperature control to prevent sample overheating.
* Automatic frequency tracking, automatic fault alarm.
* Single ultrasound time: 0.1-99.9S
* Single interval time: 0.1-99.9S
* Total working time: 1S-99H59M59S(touch type to 99hours)
* Mode of work: clearance or continuity
* frequency: 19.5-20.5KHz
* Can select computer online function

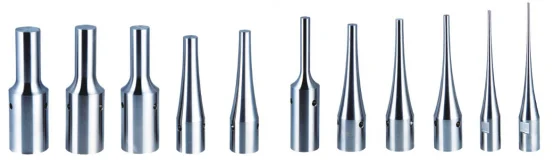

Standard Probes
Choosing the appropriate horn is extremely important.
Choosing the appropriate horn is extremely important.
Probes are made fromtitanium and machined to specific sizes and shapes. When driven at their resonant frequency, they expand and contract longitudinally. This mechanical vibration is amplified and transmitted down the length of the probe. In liquid, the probe causes cavitation which constitutes the main mechanism for sample processing.
The sample volume to be processed is directly related to the tip diameter.

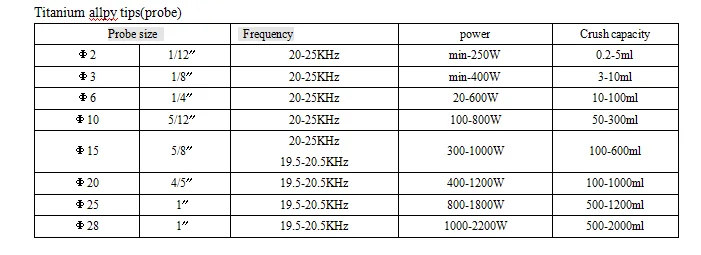

Probe Parameters
Application:
Sonication is an ideal tool for lysing bacteria, yeast and tissue cells for the extraction of protein,DNA, RNA, and cellular
components. DNA shearing (ChIP Assay) is a very common application.
Pharmaceutical
Cell disruption is common in analytical, quality control, and R & D labs to perform numerous functions from mixing and degassing of analytical samples, to cracking open tablets for dissolution tests. Liposomes and emulsions are easily formed by Sonication for microencapsulation purposes in the production of creams and lotions.
Chemical
Sonication accelerates both physical and chemical reactions, creating new fields of research.Major advances in sonochemistry include chemical synthesis of catalysts and new alloys, catalyzing organo-metallic reactions, micro encapsulation of protein and hydrolyzing esters. The use of sonication provides greater yields, increases overall efficiency, and saves energy.
Industrial
Industrial uses include forming emulsions, catalyzing reactions, extracting compounds, and reducing particle size. Continuous, in-line Flocells and special ultrasonic horns are available for processing larger volumes. Sonication is being used in the Paint and Pigment industry to disperse dyes and inks and in the Ceramic industry to degas slips and create denser castings.
Environmental
Sonication is used by environmental testing labs to process soil and sediment samples.Sonication takes just 8-10 minutes per sample versus 4-18 hours by soxhlet extraction, it uses half the solvent and improves contaminant yields. Both single and dual horn systems are available. If the sample load is high, then a Dual Horn system is recommended because it allows you to process two samples simultaneously.
