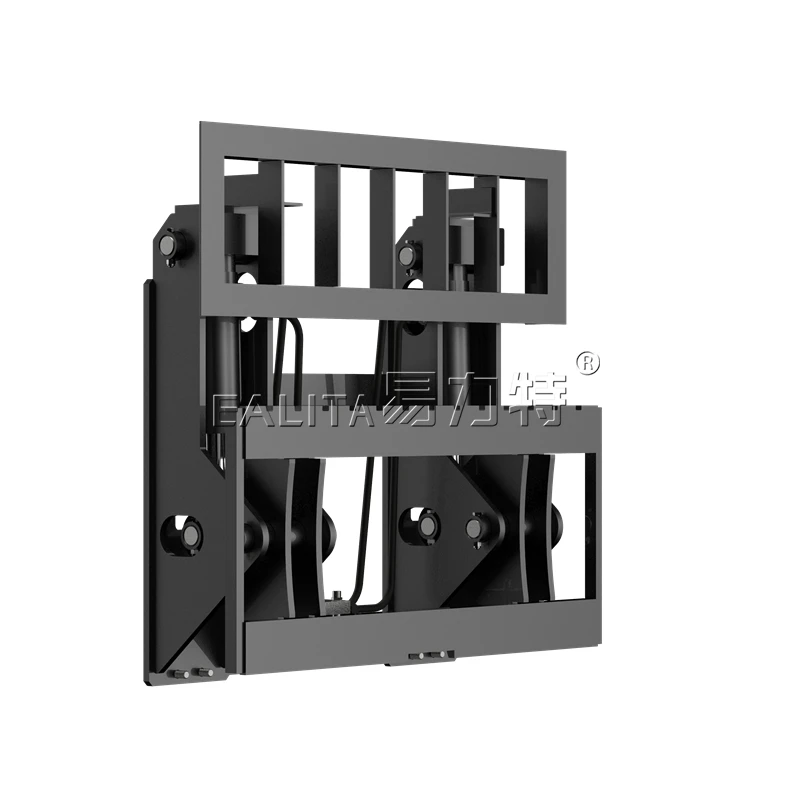

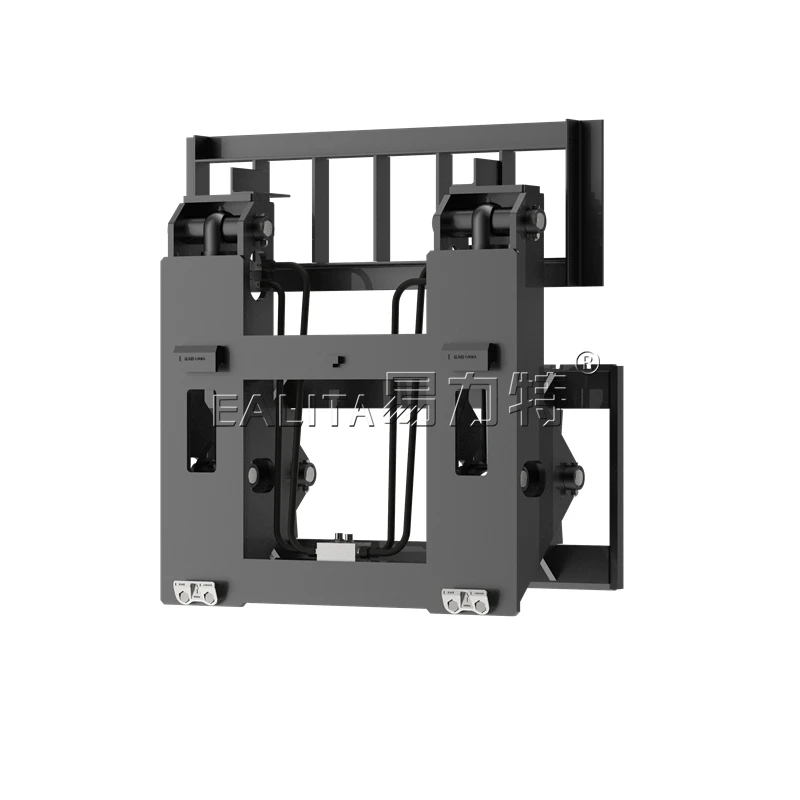

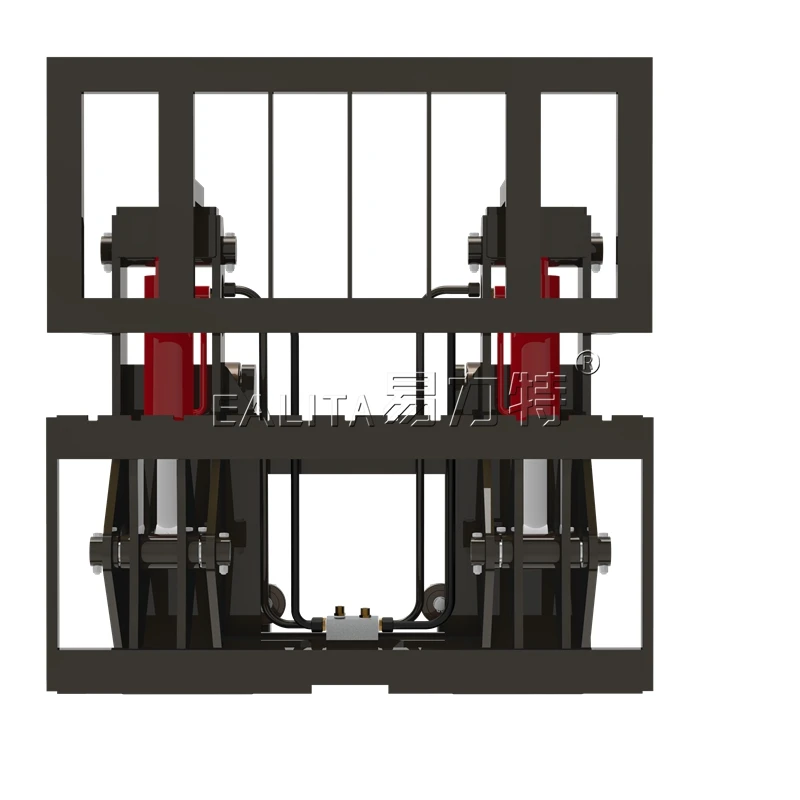

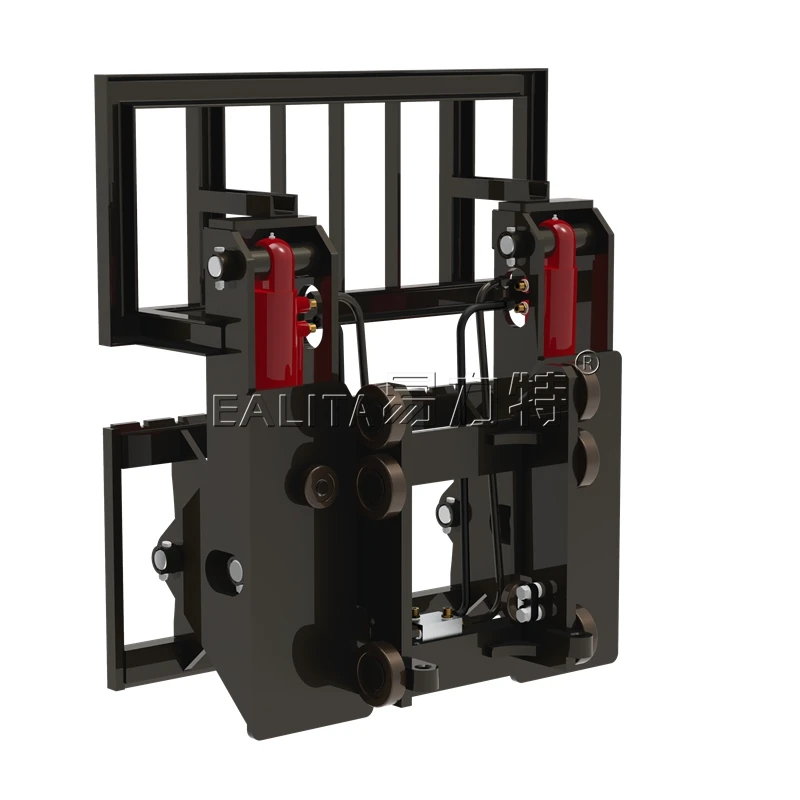

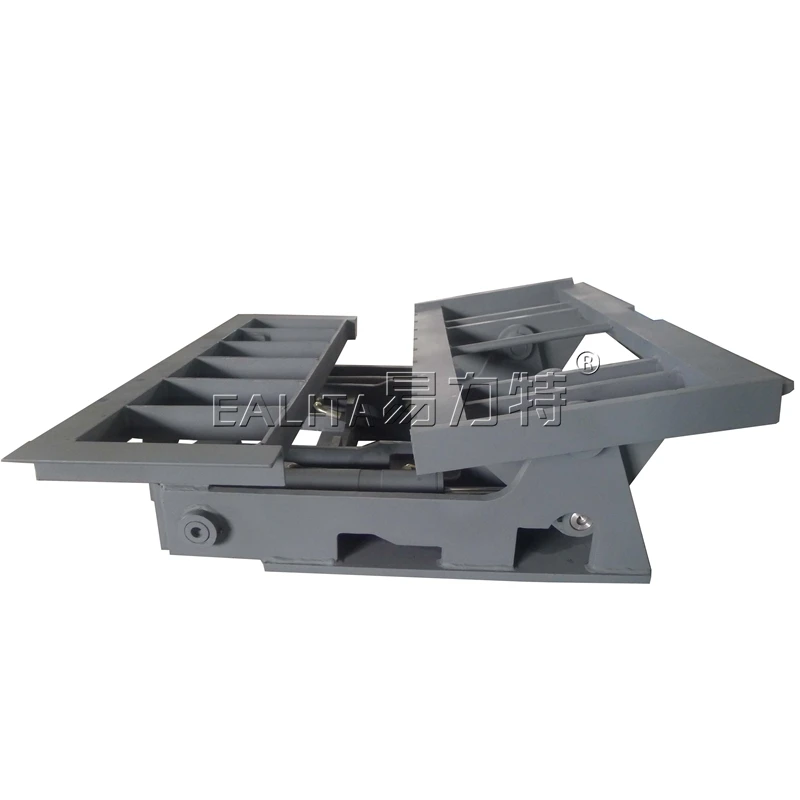

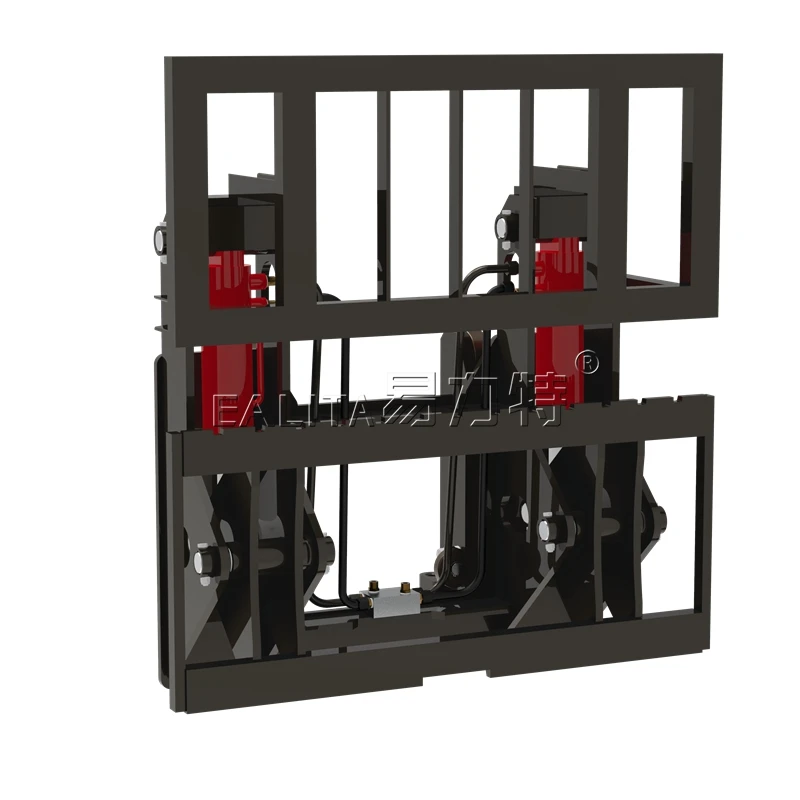

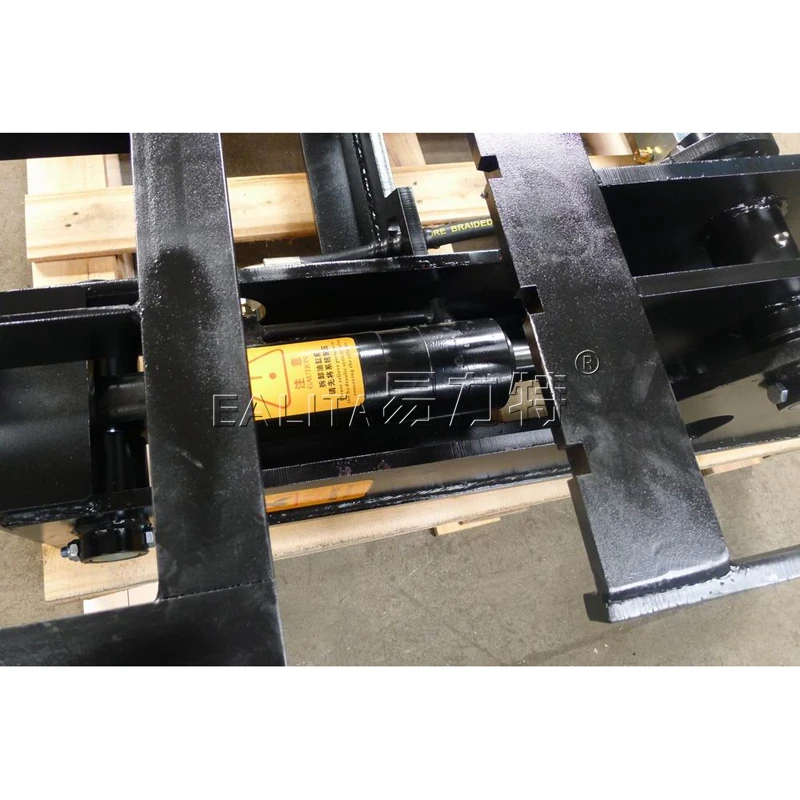

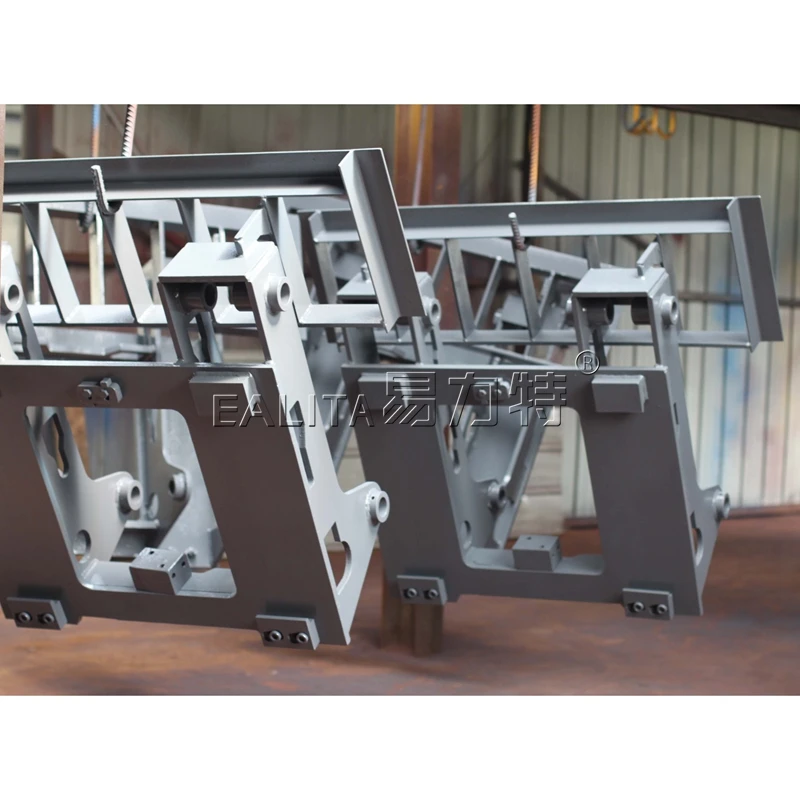

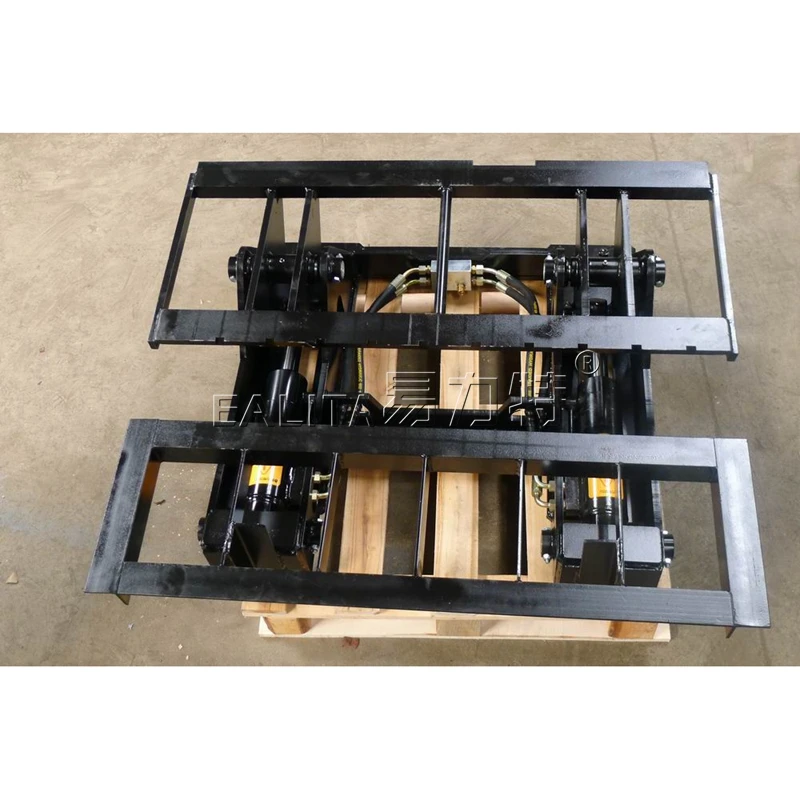

Double Oil Cylinder Hinged Fork for Forklift F QFC2A20

Product Overview

Description

Hinged Forks For Forklift



Made of high strength steel plate, reasonable design, compact structure, excellent driving vision. The double oil cylinder can make the cargo more stable when it is turned over. The oil cylinder seals are all imported products, which can achieve 45° forward tilt and 25° backward tilt. Another can be configured to use the bucket, the operation function is more comprehensive. It able to carry sand, coal, grain, fertilize, soil and other loose goods.

Please obtain the actual loac capacity of the forklift / attachment from the forklift manufacturer.

Requires an additional oil circuit for the forklift.

Other size available on request.



Type	Class	No.of Cylinders	Carriage Width	Carriage Height	Height	Lost Load	Tilt-forward/Tilg-backward	HCG	Weight	Suit Forklift
QFC2A20	II	2	1040mm	395mm	1000mm	300mm	45°/25°	155mm	300kg	2-2.5t
QFC3A30	III	2	1100mm	508mm	1095mm	350mm	45°/25°	155mm	305kg	3-3.5t
QFC3A38	III	2	1200mm	508mm	1100mm	370mm	45°/25°	173mm	405kg	3.5-3.8t
QFC3A40	III	2	1350mm	508mm	1100mm	370mm	45°/25°	178mm	430kg	4-4.5t
QFC4A50	IV	2	1500mm	635mm	1122mm	385mm	45°/25°	185mm	590kg	5-5.5t
QFC4A70	IV	2	1850mm	635mm	1333mm	415mm	45°/25°	205mm	685kg	7t
