Infrared Sensor Multi Touch Screen 65 inch digital frame photo and video

Share on (1134350201):


Price:

Quantity:


Product Overview

Description


Infrared Sensor Multi Touch Screen 65 inch


 _20190225160741HOT SALE PRODUCT INFORMATION, don't miss !!



Product Description









 Features



  • Dust and water proofing, anti-vandal;

  • Stable and no drift;

  • No light spots;

  • High durability and quick response to touch of any opaque object;

  • Wide range of temperature;

  • Transparency and high-resolution;

  • ROHS, CE,FCC compatible




Advantages



  • Multi-point write with peace,precise multi-point touching.

  • USB interface, Intelligent automatic calibration, drive-free and maintenance-free.

  • Longevity of service , maintenance free.

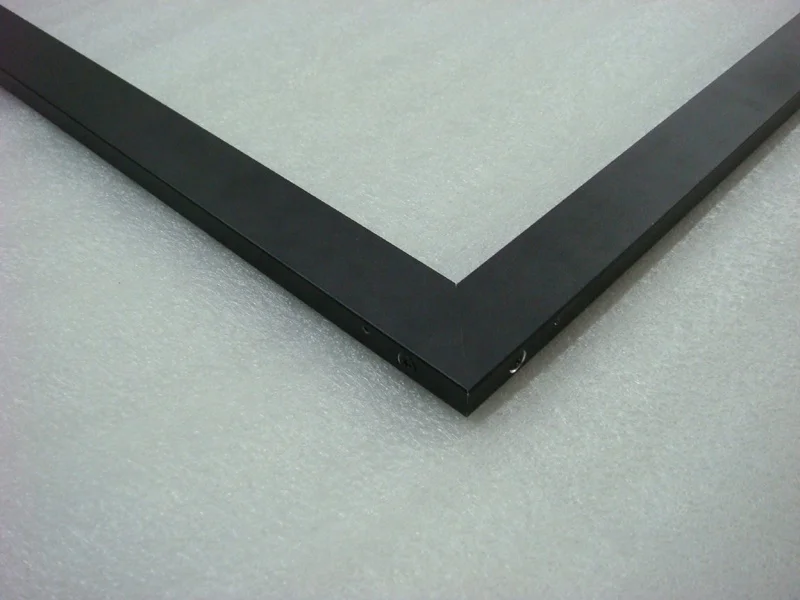

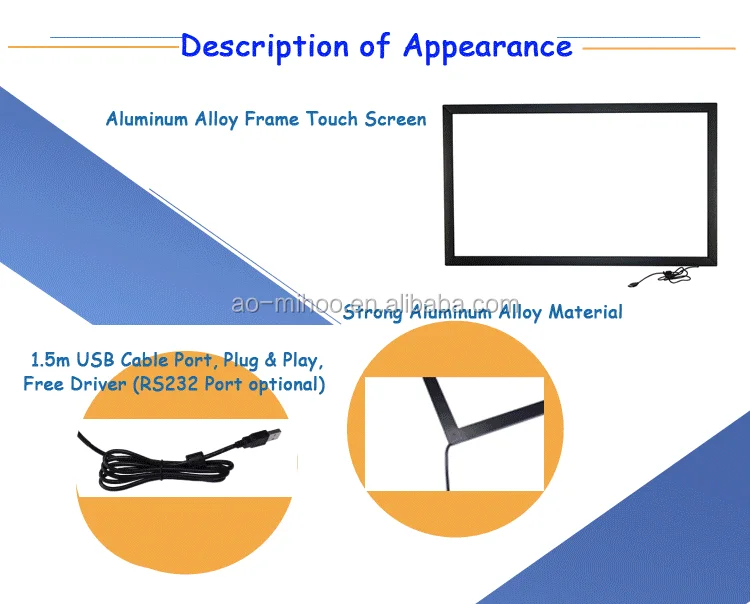

  • Aluminum alloy shell with strong stability.

  • Tempered glass with high light transmittance and true color rendition.

  • Without driver ,supporting plug and play.

  • Adapt to internal and external linked environment

  • No touching tools,no special touching pen is required, only your finger.

  • Fast response(less than 16 ms), no blind area,breakpoints, jump points, pause and other

  • undesirable phenomena.

  • Compatiblewith multiple systems


Specification:

















































































































































Size

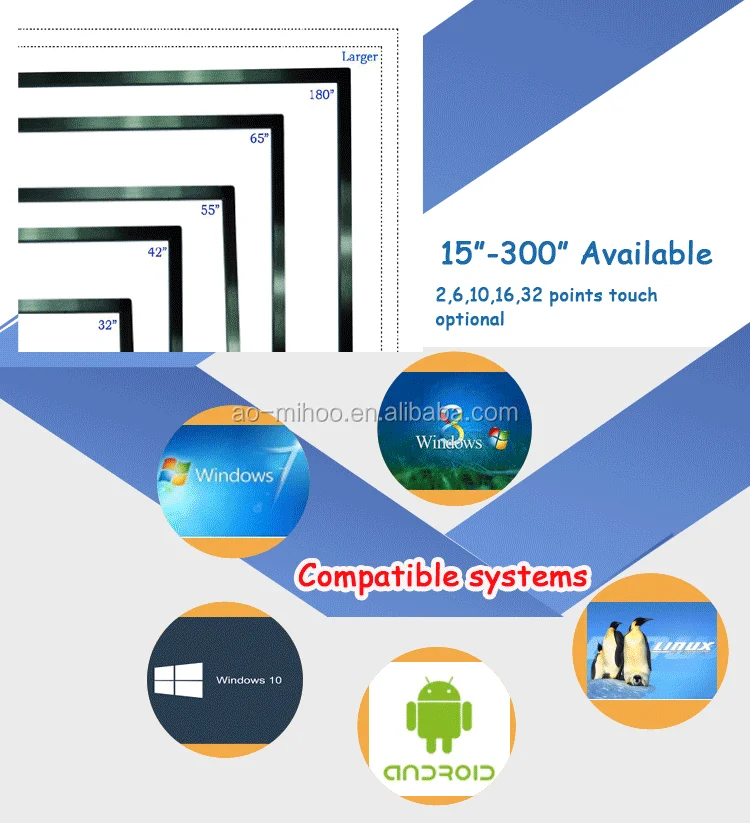

General Size15 inch to 200 inch
Fit in withPanel display device
Performance
Touch modeSingle-point touch,Multi-touch, drag, draw-line, rotate, zoom in/out
Linearity Error <1.5mm
Response Speed <15ms
Vandaproof  Steel Ball (Diameter 63.5mm 1040g Weight) drop from 1040mm, No break
Scanning Speed 50scans/s
Mechanical
Input Method Finger or gloved hand (rubber, cloth or leather)
Touch Activation Force No minimum touch activation force is required
Touch TimesOver 6,000,000 Single Point Touch
Minimum Touch Object >3mm
Vandal-proof  No break by 1-pound steel ball dropping from 130 cm high
Surface DurabilitySurface durability is that of glass,Mohs\\' hardness rating of 7
Environmental
Environmental TemperatureOperating: -20°C ~ 70°C
Storage:    -40°C ~ 85°C
Relative HumidityOperating Range:0%~90% RH (no dew falls)
Storage Range: 0% to 95% RH (no dew falls)
Altitude  Up to 3,000m
Ambient Light Direct sunlight 90°to  30°to the display surface Touch detection operational
Direct sunlight all angles to display surface Free of false touch reports
Electrical
Power Supply Size under 82”(include 52”)USB or PS/2 Interface, power ripple max.200mV rms
Size above 82”(82” not included): external AC-DC power adaptor
InterfaceFull Duplex USB 2.0 (Full Speed) Plug and play compatible
Serial RS-232. Baud Rate: 9600, 8 Data Bits,1 Stop Bit, No Parity
CurrentTypical 150MA@+5VDC;350mA, maximum
Power <2W, operating current<300mA
Electrostatic Protection15 kV air / 8 kV contact discharges (EN61000-4-2,1995 :Level 4)
ControllerIntegration inside touch panel
Life time 7 Years
Operating System
Support SystemWindows2000\\XP\\2003\\vista\\7\\CE\\Linux\\Windows 8\\Linux\\Android
Support SoftwareOffer SDK.

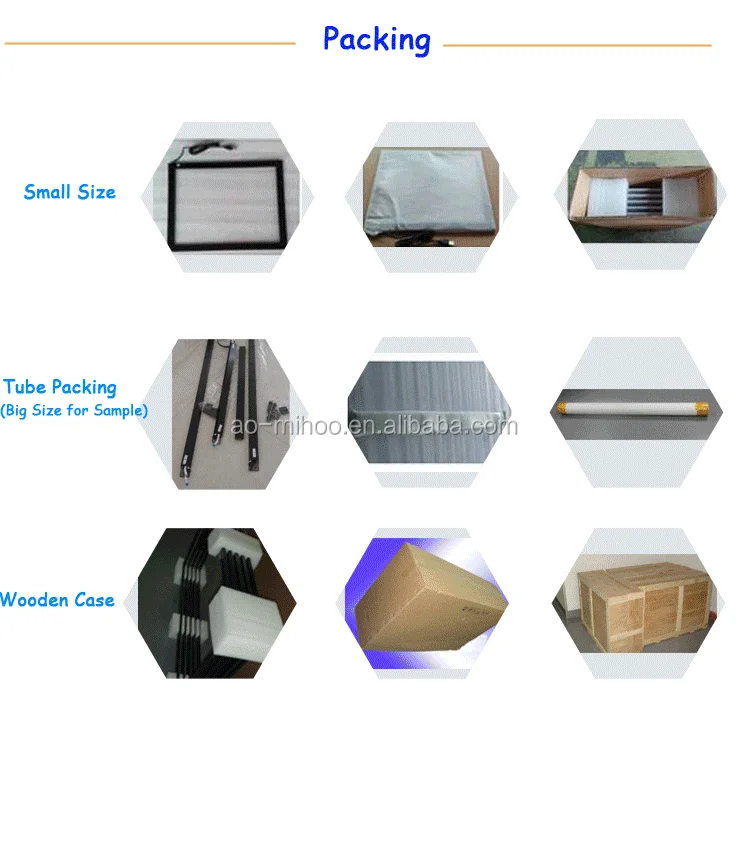

Packaging & Shipping










Company Information


Company information:HTB1xM9oGXXXXXapXXXXq6xXFXXXZ

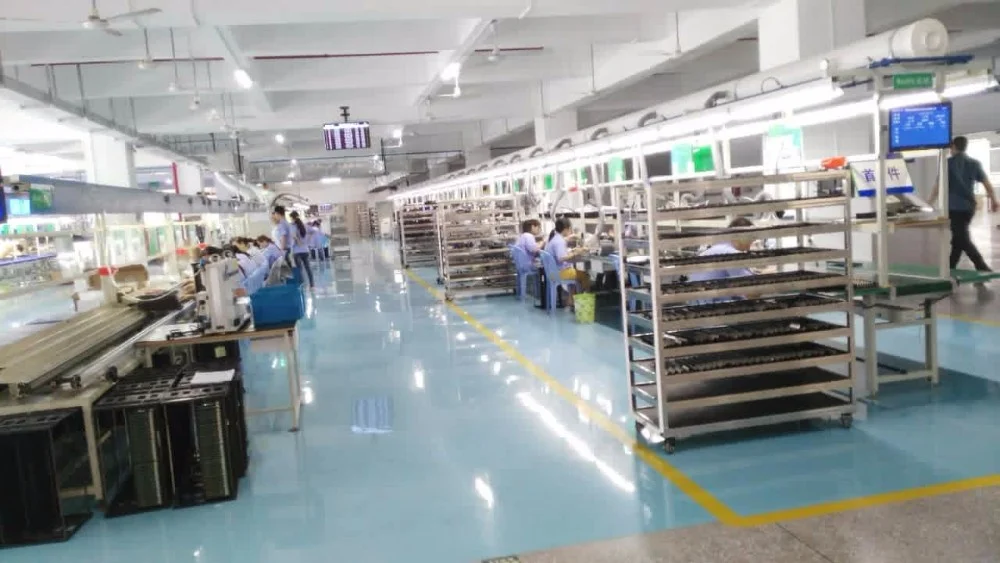

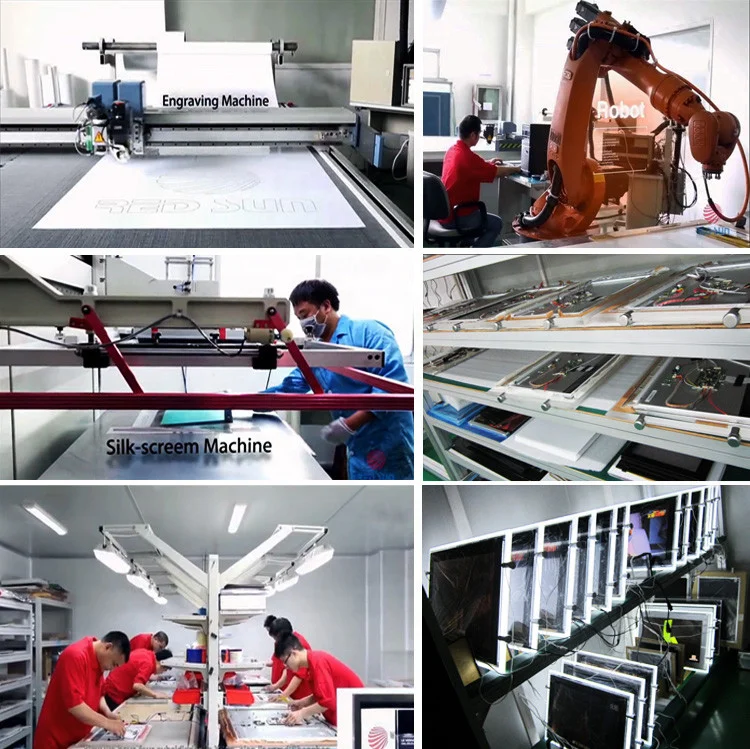

Shenzhen AoMIHOO Electronics Co., Ltd was founded in 2006 for integrating R&D, production and offering infrared touch and liquid crystal display devices.Our team has been to maturing technology and perfecting quality  to related products as infrared touch screen, touch display, touch computer all in one, Android touch all in one , LCD advertising player (single type, Internet type), interactive touch kiosk .LCD TV (9)LCD TV (8) In terms of technology, AMH has obtained a number of national patents and is in the leading position in the industry; and has many certifications covering CE FCC ROHS, etc. AOMIHOO have established longterm strategic partnerships with large domestic and foreign enterprise groups, such as LG, KENWOOD, Skyworth, Konka, Philips and  IC R&D companies.





 invitation letters Touch Global Fair D




Certifications


QQ20190112161710





Our Services


Our service:


1. We not only offer device, our own R&D teams is including shape design, and also covering software development. Any questions about our machines, we could provide you relievable question-solutions and after service.


2. During our guarantee, we will take the responsibility for any defects our products.


3. Some parts is available to be separated offered.


4. OEM/ODM


5. Any certificates needed please keep us informed, we will try our best to meet your demands.


 HT15mLtFR0bXXagOFbXf





FAQ


Are you a factory?


Yes,100% pure factory,you're welcome to visit and audit us anytime.OEM/ODM order is welcome!


What's your minimum order?


1pcs Sample.


Could you give me better price&service?


Better price and service always for you! Win-win make us go for long!


What about your After-Sale Service?


1.Supply OEM&ODM order,independent QC department,more times testing and checking well


2.100% QC pass checking and testing before shipping.
3.13 months of warranty.
4.CE,RoHs,FCC.


What is your advantage?


1.We can design for you.


2.We can open customers own mold for you.
3.We can offer high quality product & reasionable price for you.
4.We can offer a good after-sale service for you.


5.We have strong and powerful design team.


6.We have quick delivery and small order also welcome.
