JAC Gallop 4*2 Mobile Stage Truck

Product Overview

Description



JAC Gallop 4*2 Mobile Stage Truck

Product Notes:



1 JAC Gallop 4*2 chassis
2 Yuchai 180hp or Xichai 160hp or 180hp
3 Simple and safe operation
4 Professional, practical



Main Technical parameter of JAC Gallop 4*2 Mobile Stage Truck



Main Technical Parameter
Product Name	JAC Stage Truck	Product Brand	CLW
Overall Dimension(mm)	9980×2495×3995	Curb Weight (kg)	14775
Wheelbase (mm)	5300	Number of Axles	2
F/R Suspension(mm)	1530/3150	F/R axle load(Kg)	5980/9970
Appr/Dep Angle(º)	20/9	Max Speed(km/h)	80
Cab Allowed Persons	3	Cab type	Semi-high proof
Chassis Technical Parameter
Chassis Model	HFC1162K2R1T	Chassis Manufacturer	ANHUI JAC Automobile Co., Ltd
Gear Box	6 speed forward and 1 reverse	Transmission type	Manual
Steering Type	LHD(Power steering)	Brake System	Air brake
Leaf Spring No.	9/9+7	Number of Tire	6 with a spare
Drive Type	4x 2	Tire Spec.	9.00R20
Engine Technical Parameter
Engine Model	YC6J180-33	Engine Brand	GUANGXI YUCHAI
Fuel Type	Diesel	Emission Standard	Euro 2/Euro 3
Displacement ( ml )	6494	Power (KW)	132(180hp)
Superstructure Equipments & parameter
1. Don’t open at the top of truck, adopt truss structure, can lift freely;
2. Composition from proof, side, floor plate , and proof ,side plate is controlled by four hydraulic cylinder
3. DC24V electric system, 220v lighting power
4 Outside is aluminum plate, inner is waterproof plywood, stage plate is special skid plate

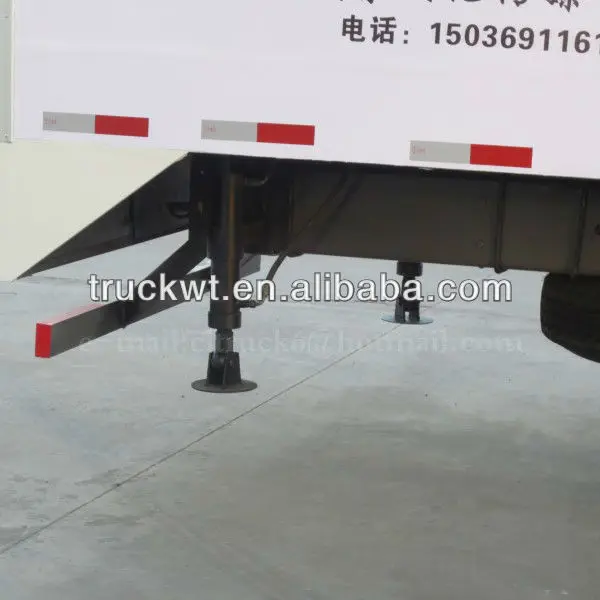

5 The mobile stage plate can be folded inside the compartment, chassis frame section have four support legs
Warranty	12 months, from the date of supply

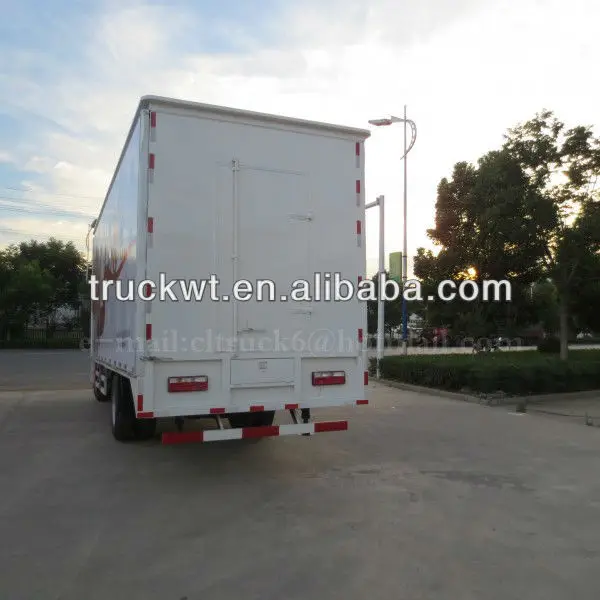

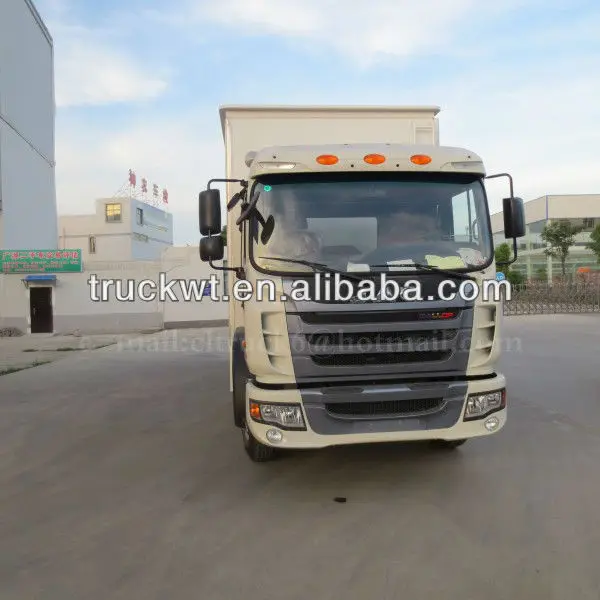

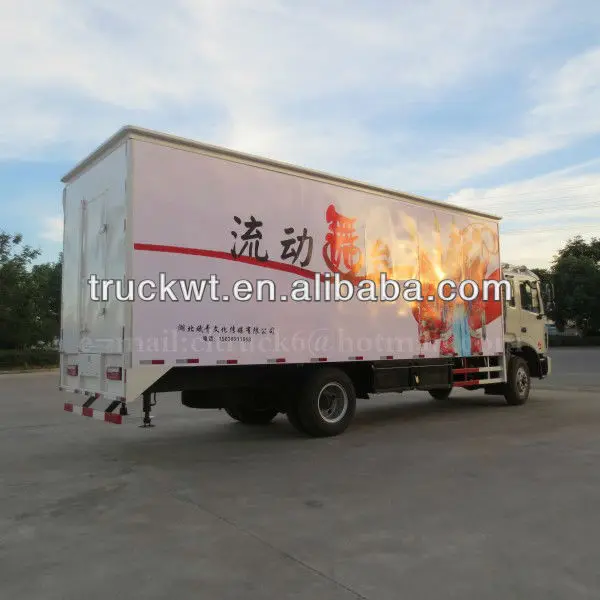

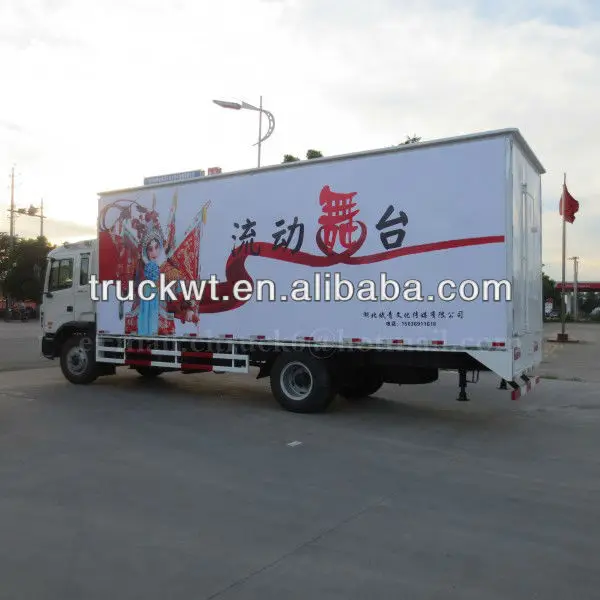

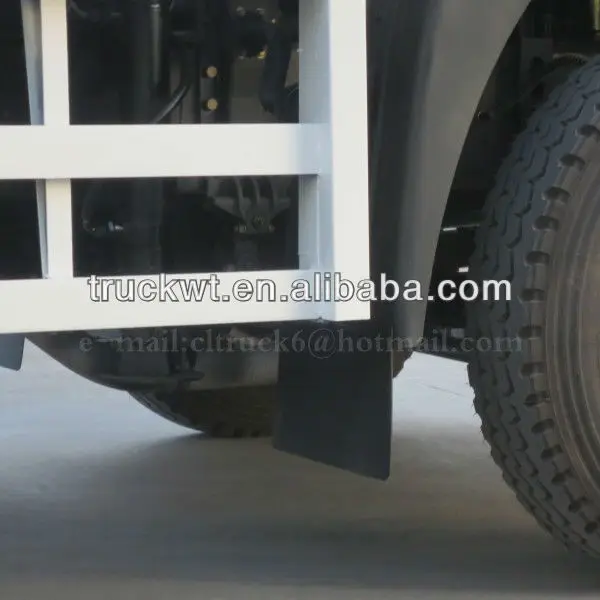

 More picture of Stage Truck show as the following:

















Brief Introduciton of Company:



             Our company, ChengLi Special Automobile Co., Ltd , which is appointed by the Ministry of Industry and Information Technology of China, is a big manufacturer producing all kinds of special trucks. Our leading productions include more than 300 types of trucks such as Water truck, Fecal suction truck, sewage suction truck, Garbage truck, Road sweeper, Fuel tank truck, Van truck, Chemical liquid truck, Concrete mixer truck, Pressure vessel, etc.We have registered trademark "CHENLIWEI" and the products code is “CLW”. We have solid technology, flawless inspection, advanced equipments, reliant quality and flexible modes of operation. What's more, we have roundly passed the certificaton of ISO 9001-2008, the 3C Certification(China Compulsory Certification) and other certifications that export needed.



             Since our company was established in Sep.2004, we always strives for the survival by the quality, pursue of development by efficiency. In the past about ten years, we had 30% market share of the sanitation trucks in China market. From 2004 year, we have entered the international market. And we have established long-term cooperative relationship with many countries. In Kyrgyzstan, Papua New Guinea, Libya and Niger, you can find out many fuel trucks, LPG tankers and dump trucks made by our company. In Sudan, Nigeria, Congo and West Africa, you can find out many water trucks, garbage trucks and crane trucks made by our company. In North America, Ghanaian, Kazakhstan and Mongolia, you can find out many dump trucks, crane trucks and freezer trucks made by our company. Tomorrow, we hope we can find out our trucks in your country.

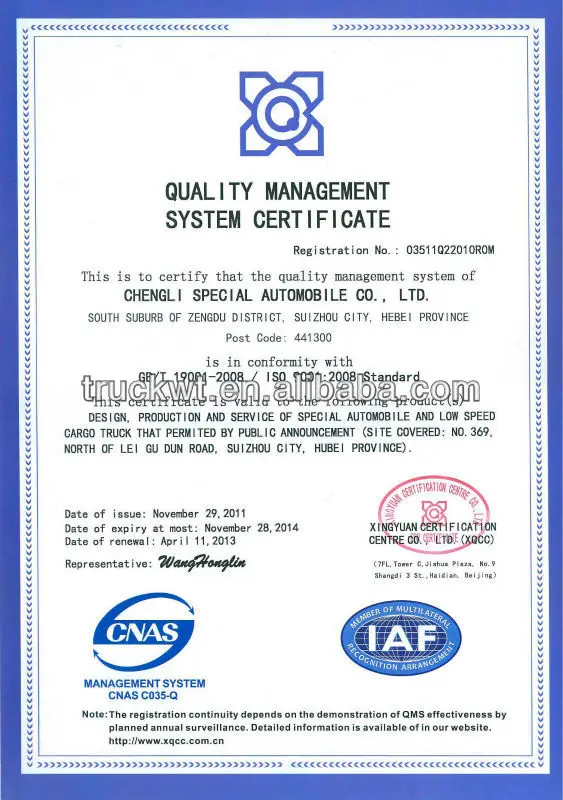

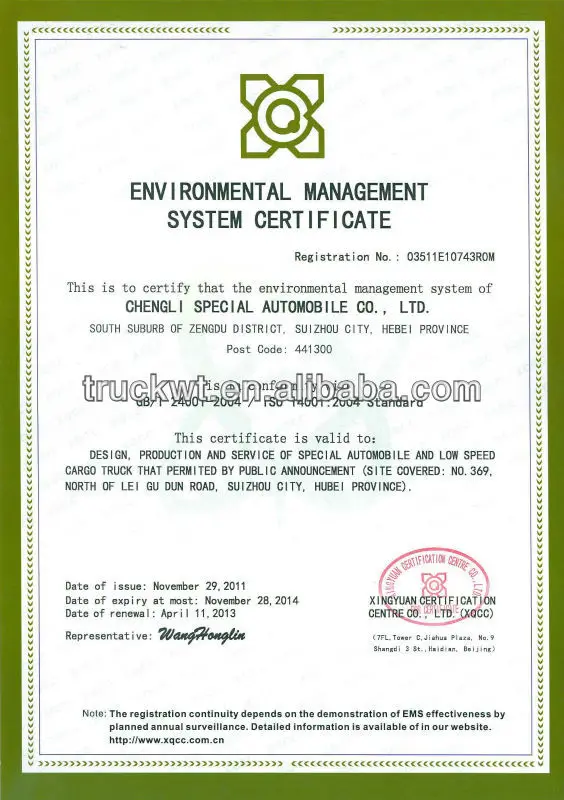

Our Certificates:







 Our Production catalogue:





1. Tank / Tanker / Vessel truck



A. Water sprinkler truck/water wagon/water transport truck/spray truck /Milk Truck



B. Oil/fuel tank truck (diesel, gasoline/petrol)



C. Sewage suction truck



D. Fecal sucking truck



E. Chemical liquid transporter / truck



F. Liquefied gas transport truck



G. Bulk cement truck/ powder material tank/transport truck



H. Bitumen/ asphalt truck



I. Concrete mixer truck



K. High pressure cleaning truck







2. LPG storage tank & semi trailer



3. Fire truck/ fire fighting truck



4. Semi trailer Series



5. Truck mounted crane/truck with crane



6. Aerial working truck / high- altitude operation truck



7. Dump truck / tipper/dumper



8. Van truck/refrigerator truck/explosion proof truck



9. Wrecker



10. Garbage truck/refuse compactor truck



11. Tractor



12. Sweeper truck/Road sweeper truck



13. Flatbed transport truck/flatbed truck





                 The above information is just for your reference, we can custiomize the truck according to your detailed request. For more truck picture or information, please feel free to contact with me as the following:
