Waterproof plastic enclosure IP67 South Korea ABS control box Project box electronic enclosure Distribution Box

Product Overview

Description

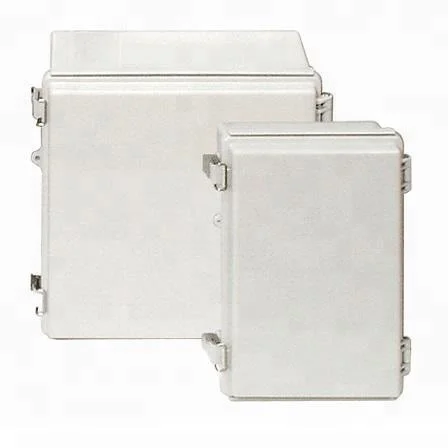

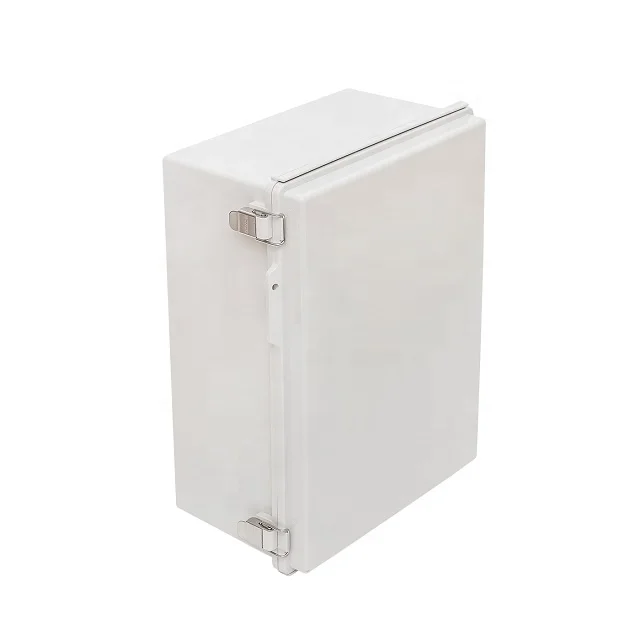

<P series>-Molded hinge type&latch type

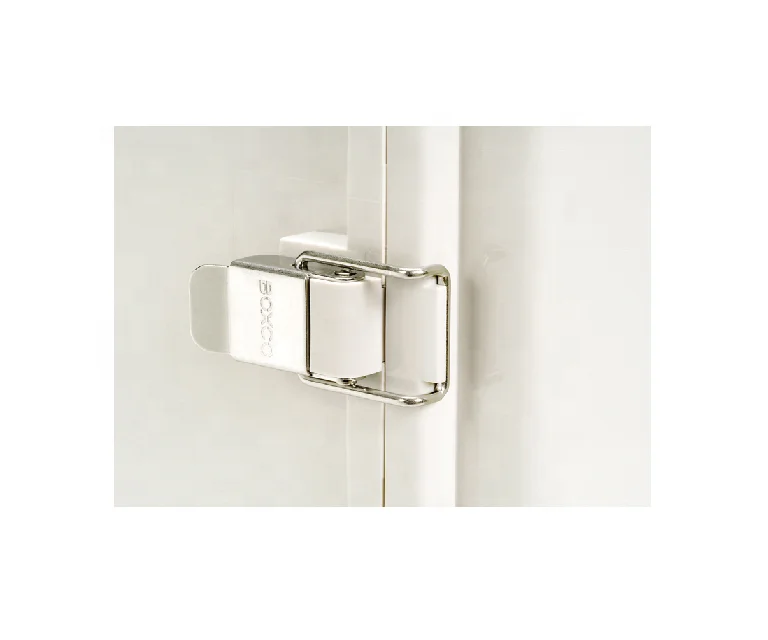

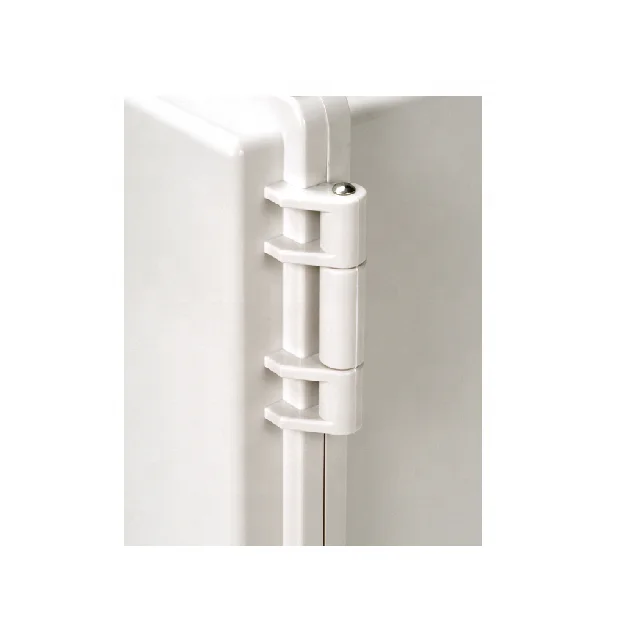

1. Molded hinge&latch design is easy to separate the cover from the base for printing or processing holes&cutting.
2. It protects inner components from dirt, dust, oil, water by roof guard on top&cover gasket.
3. Type 4X&IP67 for indoor&outdoor application by neoprene gasket seal

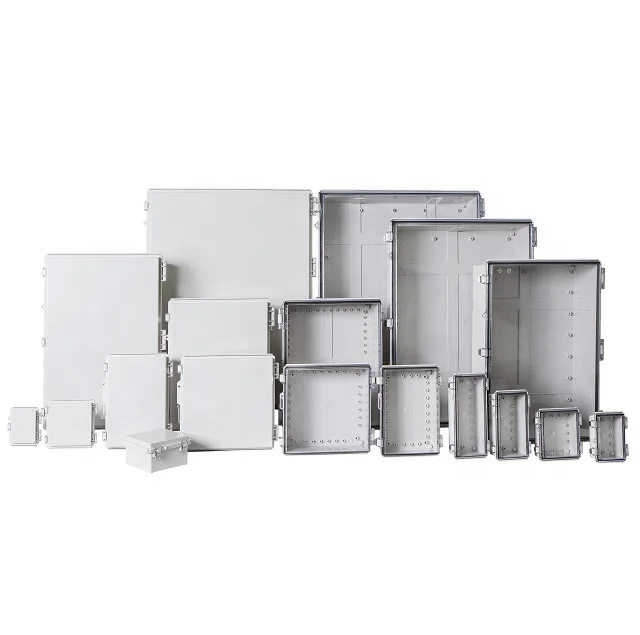

4. Available 50 kind sizes from 90x120x70 mm to 630x830x285 mm
5. Selectable gray or clear cover
6. Available stainless steel wall mounting bracket



Plastic enclosure, Electric Distribution Box, Electrical and Electronics box, Switch box, Control box, Terminal box, Terminal block box, Aluminium enclosure, IP66/67 enclosure, Distribution box, Junction box, Telecommunication box, High quality enclosure, Project box electronic enclosure, Plastic housing.



		Model
W1×L1×H1	W1×L1×H1	ABS	ABS	PC	PC
(mm)	(mm)	Grey cover	Transparent cover	Grey cover	Transparent cover
90×120×70	3.54×4.72×2.76	BC-AGP-091207	BC-ATP-091207	BC-CGP-091207	BC-CTP-091207
90×120×85	3.54×4.72×3.35	BC-AGP-091208	BC-ATP-091208	BC-CGP-091208	BC-CTP-091208
100×150×70	3.94×5.91×2.76	BC-AGP-101507	BC-ATP-101507	BC-CGP-101507	BC-CTP-101507
100×150×85	3.94×5.91×3.35	BC-AGP-101508	BC-ATP-101508	BC-CGP-101508	BC-CTP-101508
110×210×75	4.33×8.27×2.95	BC-AGP-112107	BC-ATP-112107	BC-CGP-112107	BC-CTP-112107
110×210×100	4.33×8.27×3.94	BC-AGP-112110	BC-ATP-112110	BC-CGP-112110	BC-CTP-112110
110×260×75	4.33×10.24×2.95	BC-AGP-112607	BC-ATP-112607	BC-CGP-112607	BC-CTP-112607
110×260×100	4.33×10.24×3.94	BC-AGP-112610	BC-ATP-112610	BC-CGP-112610	BC-CTP-112610
135×155×85	5.31×6.10×3.35	BC-AGP-131508	BC-ATP-131508	BC-CGP-131508	BC-CTP-131508
135×185×85	5.31×7.28×3.35	BC-AGP-131808	BC-ATP-131808	BC-CGP-131808	BC-CTP-131808
135×185×100	5.31×7.28×3.94	BC-AGP-131810	BC-ATP-131810	BC-CGP-131810	BC-CTP-131810
150×150×90	5.91×5.91×3.54	BC-AGP-151509	BC-ATP-151509	BC-CGP-151509	BC-CTP-151509
150×150×120	5.91×5.91×4.72	BC-AGP-151512	BC-ATP-151512	BC-CGP-151512	BC-CTP-151512
160×210×100	6.30×8.27×3.94	BC-AGP-162110	BC-ATP-162110	BC-CGP-162110	BC-CTP-162110
160×210×130	6.30×8.27×5.12	BC-AGP-162113	BC-ATP-162113	BC-CGP-162113	BC-CTP-162113
160×260×100	6.30×10.24×3.94	BC-AGP-162610	BC-ATP-162610	BC-CGP-162610	BC-CTP-162610
160×260×130	6.30×10.24×5.12	BC-AGP-162613	BC-ATP-162613	BC-CGP-162613	BC-CTP-162613
170×220×100	6.69×8.66×3.94	BC-AGP-172210	BC-ATP-172210	BC-CGP-172210	BC-CTP-172210
170×220×110	6.69×8.66×4.33	BC-AGP-172211	BC-ATP-172211	BC-CGP-172211	BC-CTP-172211
170×270×110	6.69×10.63×4.33	BC-AGP-172711	BC-ATP-172711	BC-CGP-172711	BC-CTP-172711
190×280×100	7.48×11.02×3.94	BC-AGP-192810	BC-ATP-192810	BC-CGP-192810	BC-CTP-192810
190×280×140	7.48×11.02×5.51	BC-AGP-192814	BC-ATP-192814	BC-CGP-192814	BC-CTP-192814
200×300×130	7.87×11.81×5.12	BC-AGP-203013	BC-ATP-203013	BC-CGP-203013	BC-CTP-203013
200×300×150	7.87×11.81×5.91	BC-AGP-203015	BC-ATP-203015	BC-CGP-203015	BC-CTP-203015
200×300×180	7.87×11.81×7.09	BC-AGP-203018	BC-ATP-203018	BC-CGP-203018	BC-CTP-203018
210×210×100	8.27×8.27×3.94	BC-AGP-212110	BC-ATP-212110	BC-CGP-212110	BC-CTP-212110
210×210×130	8.27×8.27×5.12	BC-AGP-212113	BC-ATP-212113	BC-CGP-212113	BC-CTP-212113
250×350×150	9.84×13.78×5.91	BC-AGP-253515	BC-ATP-253515	BC-CGP-253515	BC-CTP-253515
250×350×180	9.84×13.78×7.09	BC-AGP-253518	BC-ATP-253518	BC-CGP-253518	BC-CTP-253518
280×280×130	11.02×11.02×5.12	BC-AGP-282813	BC-ATP-282813	BC-CGP-282813	BC-CTP-282813
280×380×130	11.02×14.96×5.12	BC-AGP-283813	BC-ATP-283813	BC-CGP-283813	BC-CTP-283813
300×300×150	11.81×11.81×5.91	BC-AGP-303015	BC-ATP-303015	BC-CGP-303015	BC-CTP-303015
300×300×180	11.81×11.81×7.09	BC-AGP-303018	BC-ATP-303018	BC-CGP-303018	BC-CTP-303018
300×400×120	11.81×15.75×4.72	BC-AGP-304012	BC-ATP-304012	BC-CGP-304012	BC-CTP-304012
300×400×150	11.81×15.75×5.91	BC-AGP-304015	BC-ATP-304015	BC-CGP-304015	BC-CTP-304015
300×400×180	11.81×15.75×7.09	BC-AGP-304018	BC-ATP-304018	BC-CGP-304018	BC-CTP-304018
350×350×150	13.78×13.78×5.91	BC-AGP-353515	BC-ATP-353515	BC-CGP-353515	BC-CTP-353515
350×350×180	13.78×13.78×7.09	BC-AGP-353518	BC-ATP-353518	BC-CGP-353518	BC-CTP-353518
350×450×120	13.78×17.72×4.72	BC-AGP-354512	BC-ATP-354512	BC-CGP-354512	BC-CTP-354512
350×450×160	13.78×17.72×6.30	BC-AGP-354516	BC-ATP-354516	BC-CGP-354516	BC-CTP-354516
350×450×200	13.78×17.72×7.87	BC-AGP-354520	BC-ATP-354520	BC-CGP-354520	BC-CTP-354520
400×500×160	15.75×19.69×6.30	BC-AGP-405016	BC-ATP-405016	BC-CGP-405016	BC-CTP-405016
400×500×200	15.75×19.69×7.87	BC-AGP-405020	BC-ATP-405020	BC-CGP-405020	BC-CTP-405020
400×600×180	15.75×23.62×7.09	BC-AGP-406018	BC-ATP-406018	BC-CGP-406018	BC-CTP-406018
400×600×230	15.75×23.62×9.06	BC-AGP-406023	BC-ATP-406023	BC-CGP-406023	BC-CTP-406023
530×630×185	20.87×24.80×7.28	BC-AGP-506018	BC-ATP-506018	BC-CGP-506018	BC-CTP-506018
530×630×255	20.87×24.80×10.04	BC-AGP-506025	BC-ATP-506025	BC-CGP-506025	BC-CTP-506025
530×730×185	20.87×28.74×7.28	BC-AGP-507018	BC-ATP-507018	BC-CGP-507018	BC-CTP-507018
530×730×255	20.87×28.74×10.04	BC-AGP-507025	BC-ATP-507025	BC-CGP-507025	BC-CTP-507025
630×830×185	24.80×32.68×7.28	BC-AGP-608018	BC-ATP-608018	BC-CGP-608018	BC-CTP-608018
630×830×285	24.80×32.68×11.22	BC-AGP-608028	BC-ATP-608028	BC-CGP-608028	BC-CTP-608028
