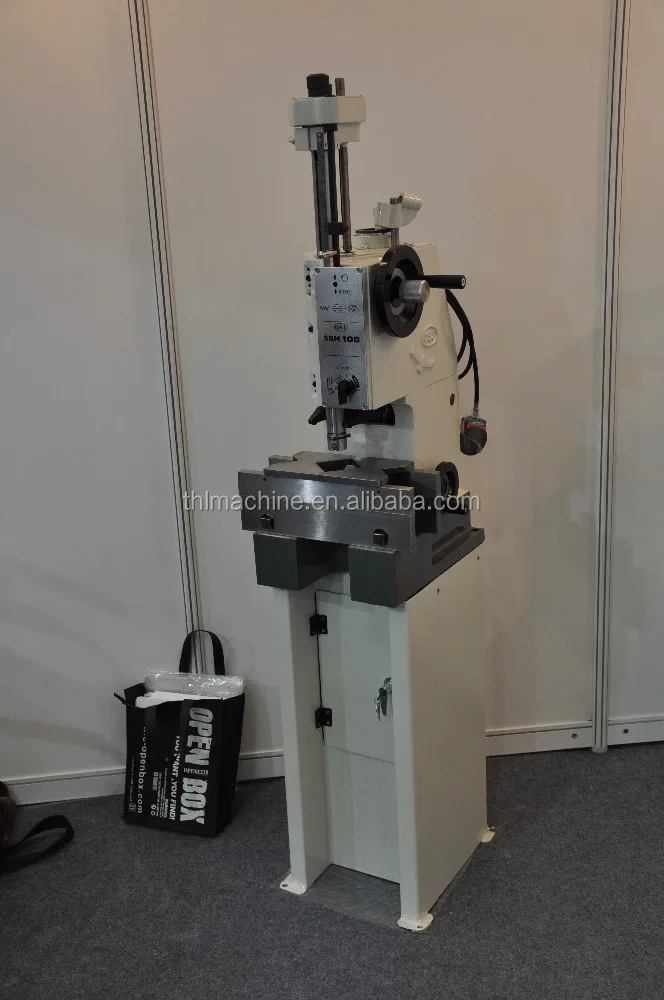

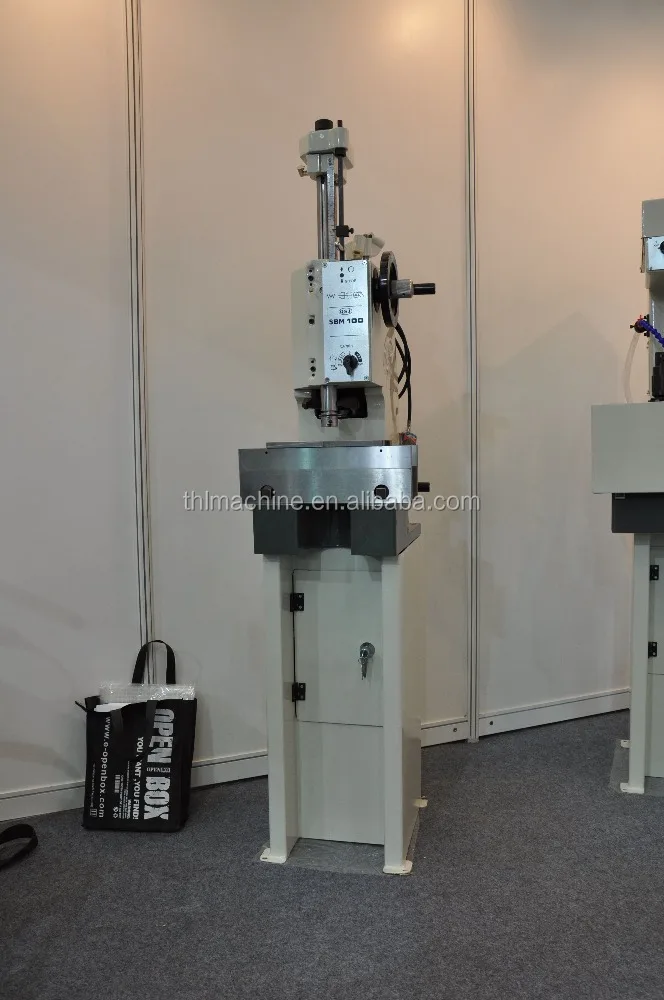

Motorcycle Cylinder Boring Machine SBM100
- Category: Boring Machines >>>
- Supplier: Shanghai THL Machine Tool Co. Ltd.
Share on (1138544538):
Product Overview
Description
study from Berco APM100 SR100

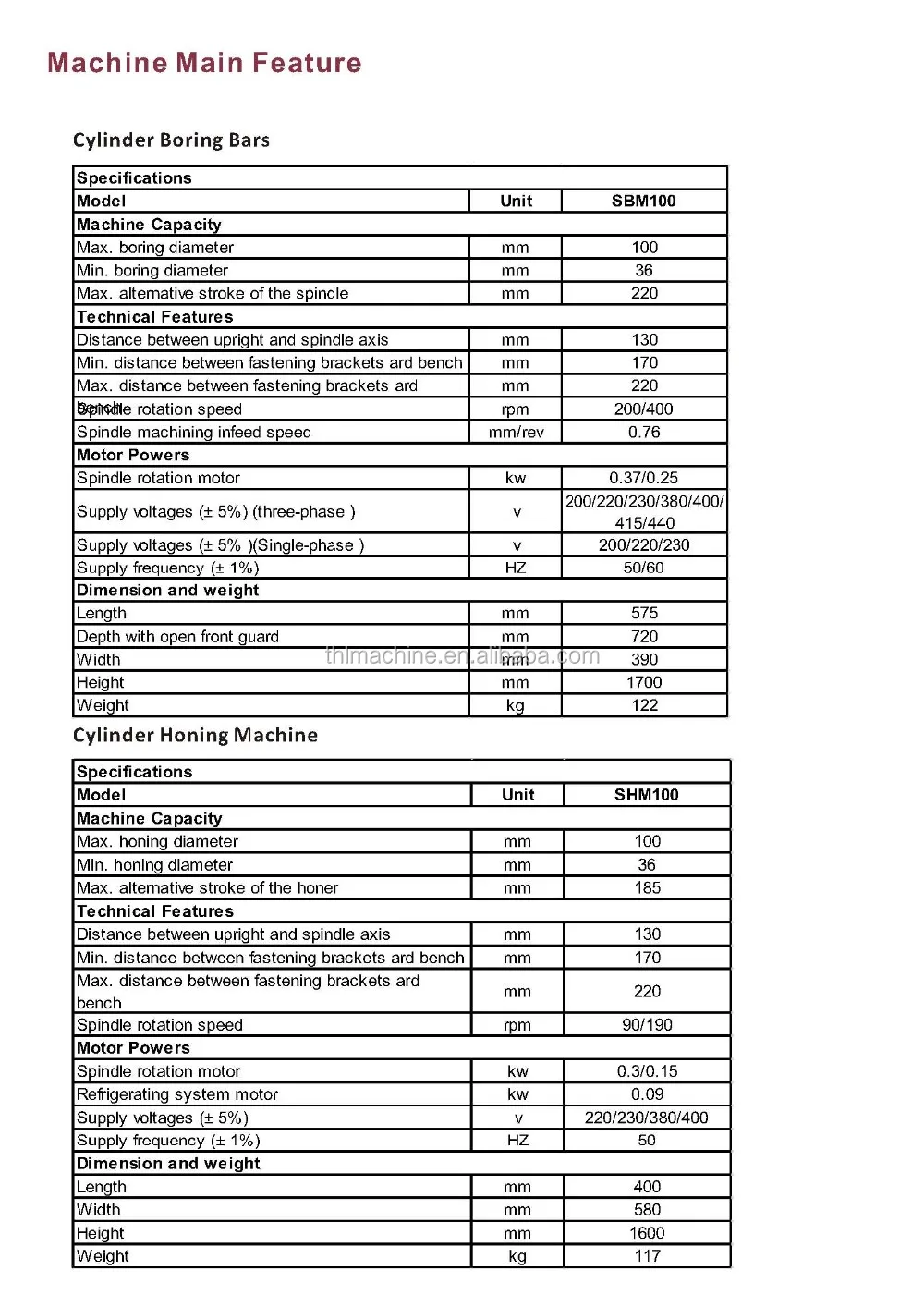

| Model | Unit | SBM100 |
| Machine Capacity | ||
| Max. boring diameter | mm | 100 |
| Min. boring diameter | mm | 36 |
| Max. alternative stroke of the spindle | mm | 220 |
| Technical Features | ||
| Distance between upright and spindle axis | mm | 130 |
| Min. distance between fastening brackets ard bench | mm | 170 |
| Max. distance between fastening brackets ard bench | mm | 220 |
| Spindle rotation speed | rpm | 200/400 |
| Spindle machining infeed speed | mm/rev | 0.76 |
| Motor Powers | ||
| Spindle rotation motor | kw | 0.37/0.25 |
| Supply voltages (± 5%) (three-phase ) | v | 200/220/230/380/400/415/440 |
| Supply voltages (± 5% )(Single-phase ) | v | 200/220/230 |
| Supply frequency (± 1%) | HZ | 50/60 |
| Dimension and weight | ||
| Length | mm | 575 |
| Depth with open front guard | mm | 720 |
| Width | mm | 390 |
| Height | mm | 1700 |
| Weight | kg | 122 |
