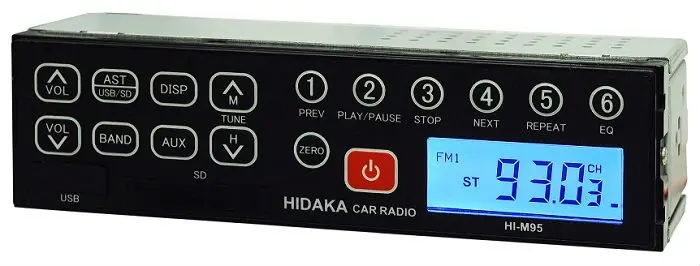

HIDAKA Japan Engineering USB SD Volvo S60nxc90 Excavator Car Radio

Product Overview

Description

Volvo S80 Car Radio



1) Features

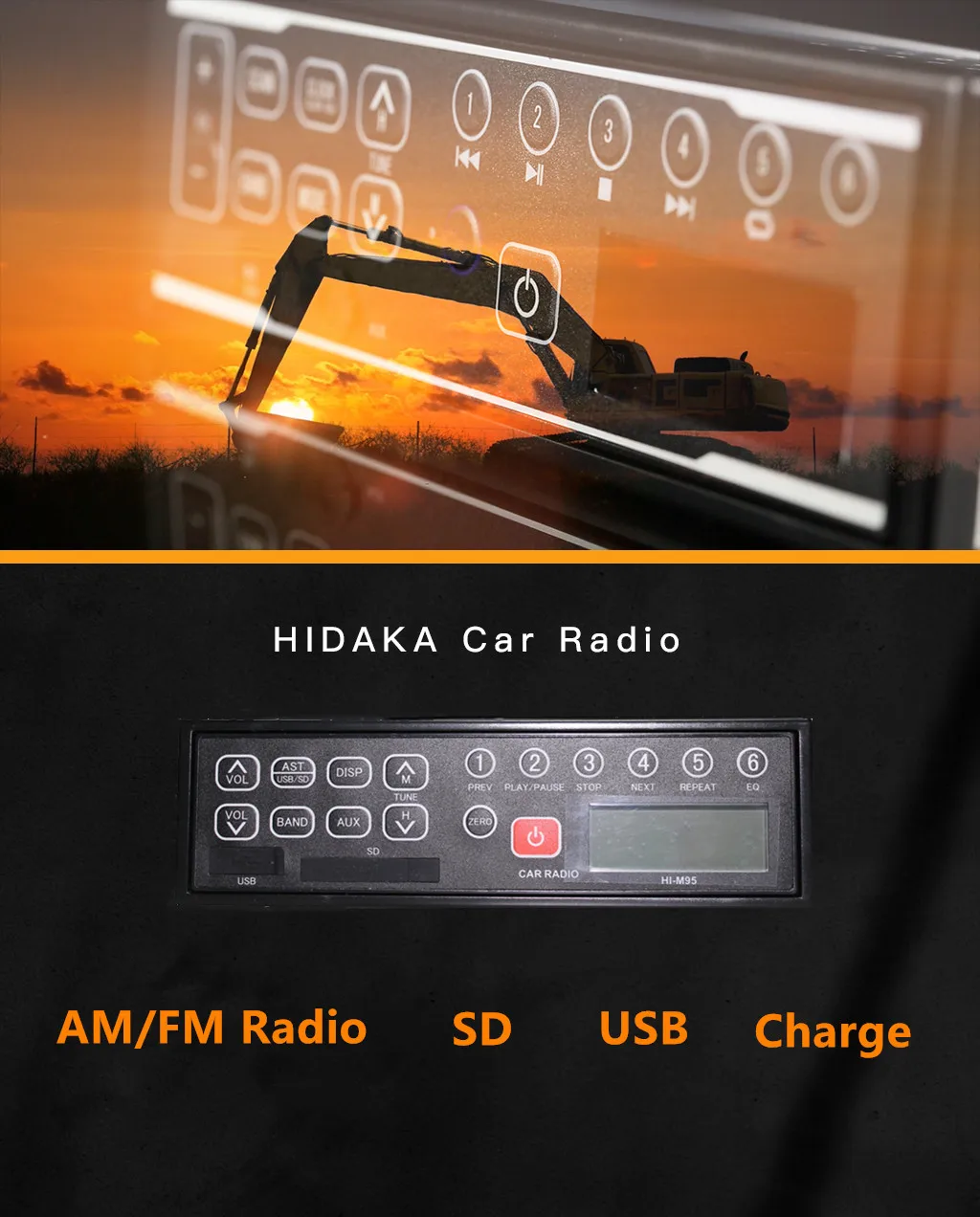

• USB/SD


• remote type


• can set up it at any place

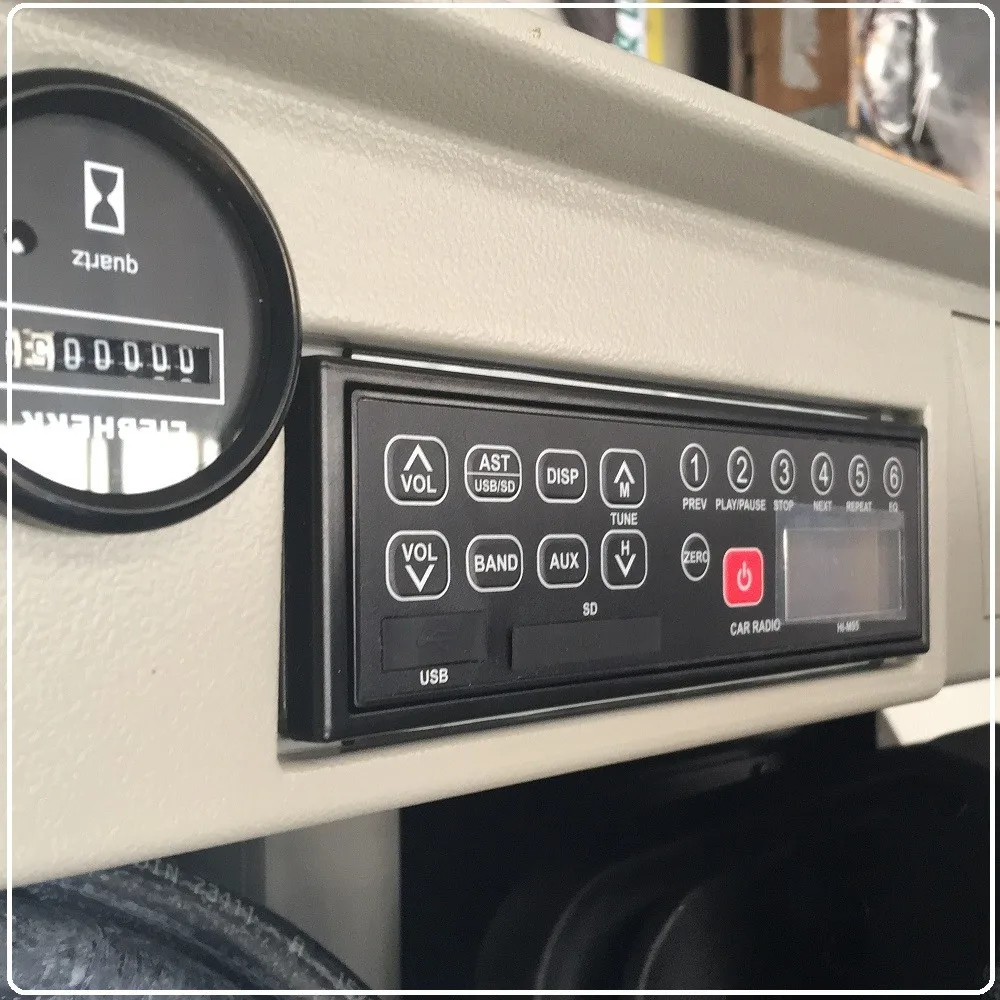

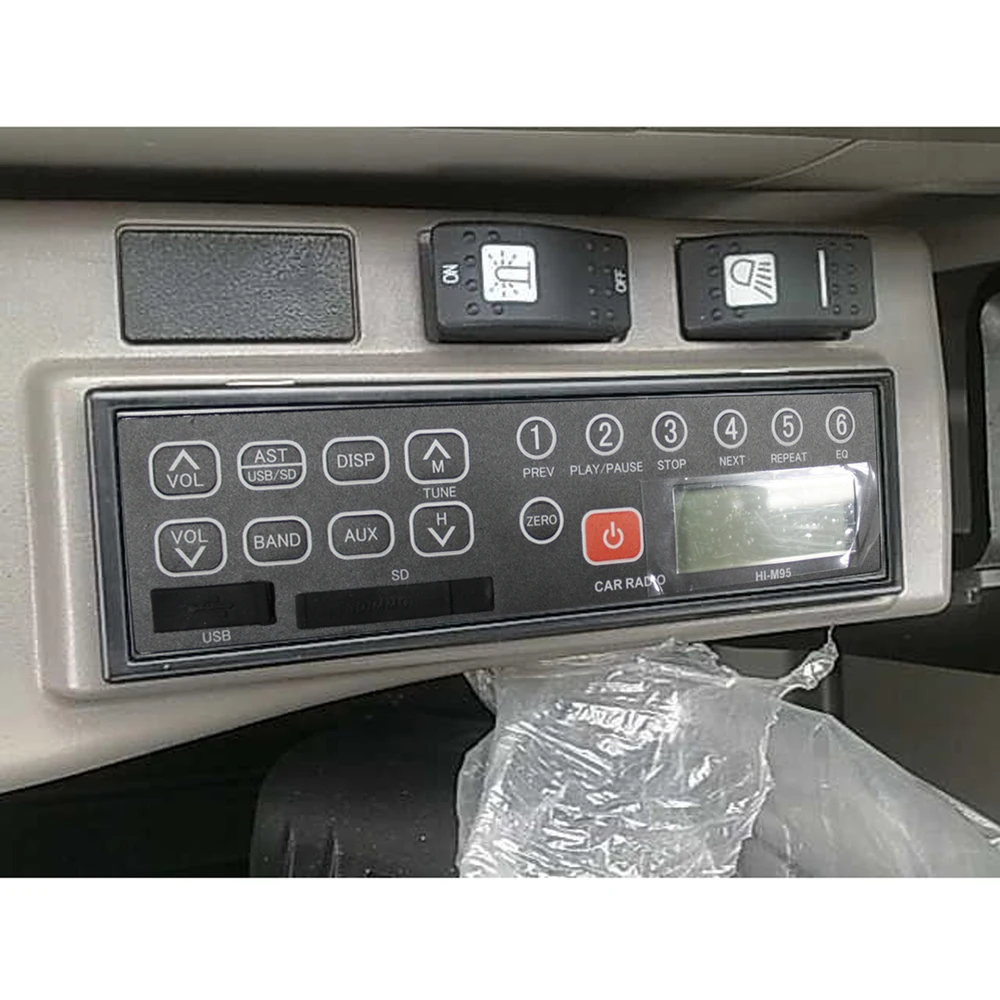

• suitable for excavator, kart, loader,grader,earth moving machine and can be widely installed in:Sumitomo,Komatsu,Hitachi,Kato,Case,Sanyo,Kobelco and other famous brand machines.


• thunder-proof, aseismic and waterproof design, also have a higher resistance to vibration than other radios


• AM/FM band but without CD due to dust problem, 12V/24V automatically interchangeable by radio


• Worldwide frequency, just need to press some buttons to choose different countries' frequency for shipment(fixed frequency), it will be very easy to company purchase management, and we have got patent for this in China and Japan


• Dimension : 18.5*8.5*5.5cm(with trim plate)


• Output : 5W-28W (at your requirement )


• User can select Europe FM frequency or USA FM frequency through software


• User can listen to music through car speaker


• Standard din size with small body


• FM/AM band , LCD display


• USA/EU function control by panel


• LCD display/real time clock


• Waterproof and dustproof front panel : waterproof test :JIS DO203RI standard


• Dustproof test : JIS DO207FI standard


• 12v/24v automatically interchangeable by radio


• Dielectric Strength Test


• Anti-seismic grade: Grade 13 (Japan JISD 1601 grades,67z ,70m/s2,6.8G )


• Advanced international level equipment and machinery



2)Specification



Power Source:DC12V-24V (Negative Ground)

Power consumption:5A

Rated output power:20W+20W(DC28V),5W+5W(DC12V)

Dimension:178(W)*50(H)*92(D)mm(Radio Only)

Weight:0.7KG/pcs

Receiving frequency range: MW(AM)522-1629kHz,FM:87.5-108MHz

Practical sensitivity: MW(AM)32dB(S/N 20dB) , FM 7dB7dB(S/N 30dB)

S/N::FM 50dB , MW50dB



3) SAFETY AND GENERAL INFORMATION



1.Users are not permitted to make changes or modify the device in anyway. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.



2. You will be charged for repairs under the following conditions:



*Product without guarantee.

*The problem was caused by wrong operation, disassembling the unit, trying to repair and change function of the product.

*The problem was caused by an accident e.g. dropping the product. The problem was caused by a natural disaster i.e, fire, earthquake, storm, thunder, power surge etc.



HIDAKA warrants product (“product”) against defects in materials and workmanship under normal consumer user for 1year from data of purchase.

To obtain information, please e-mail to service center.



4) Contact Information



HIDAKA(H.K.)CO.,LTD

Hidaka Corporation

Add: 2F,Right 1 bulding,Jialian Industrail Zone ,Silianlu, Henggang, Shenzhen, China 518119

Tel: 86-0755-28886866

Contact: Kirsty  (sales  @hidaka.cn )

QQ: 2

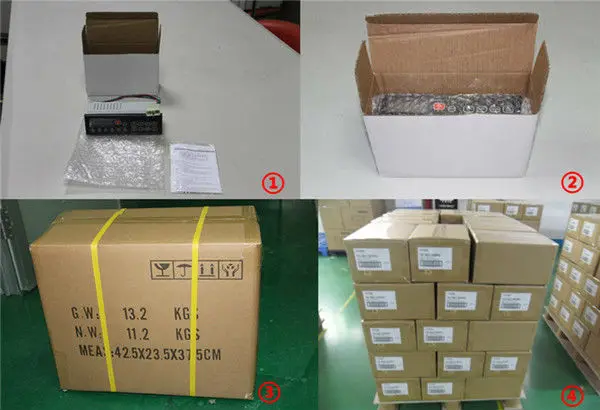

5) Package Details: 20sets/carton; Carton Size: 42*25.5*37.5cm; G.W: 15.2KG; N.W: 13.2KG

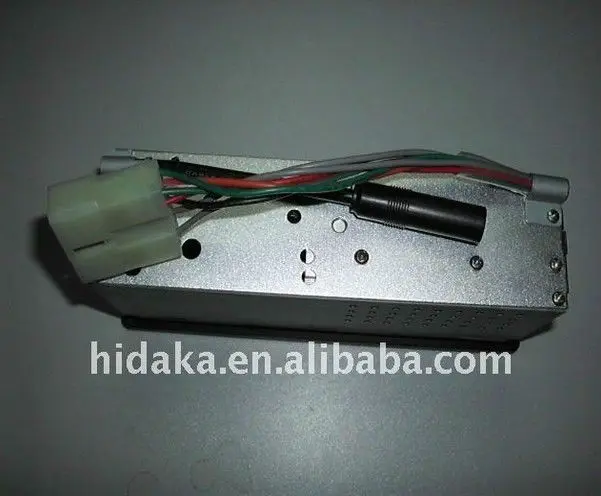

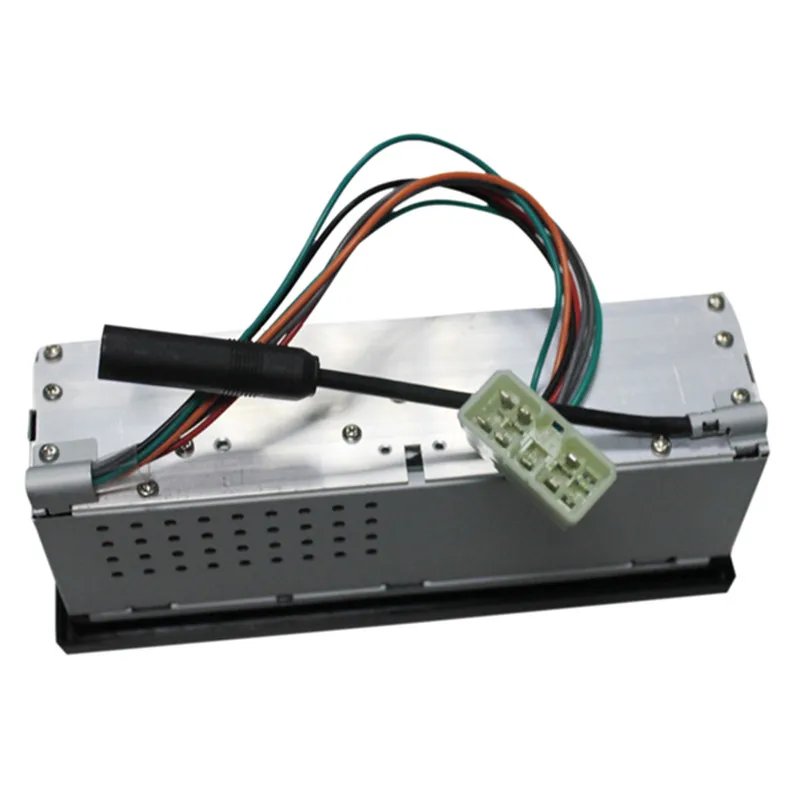

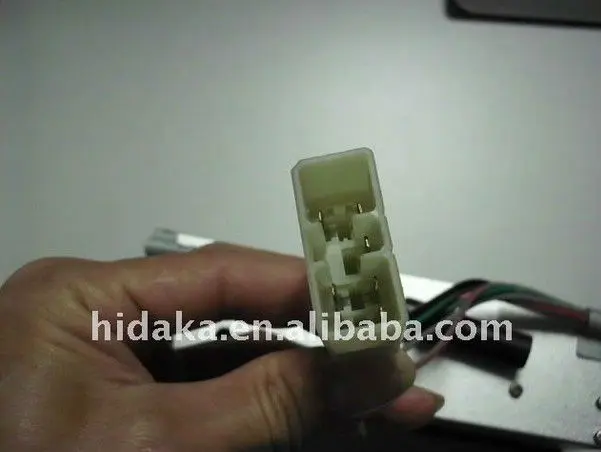

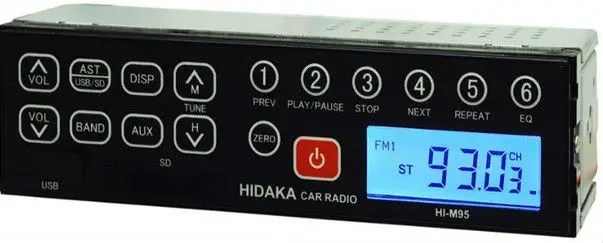

6) Pictures
