Description

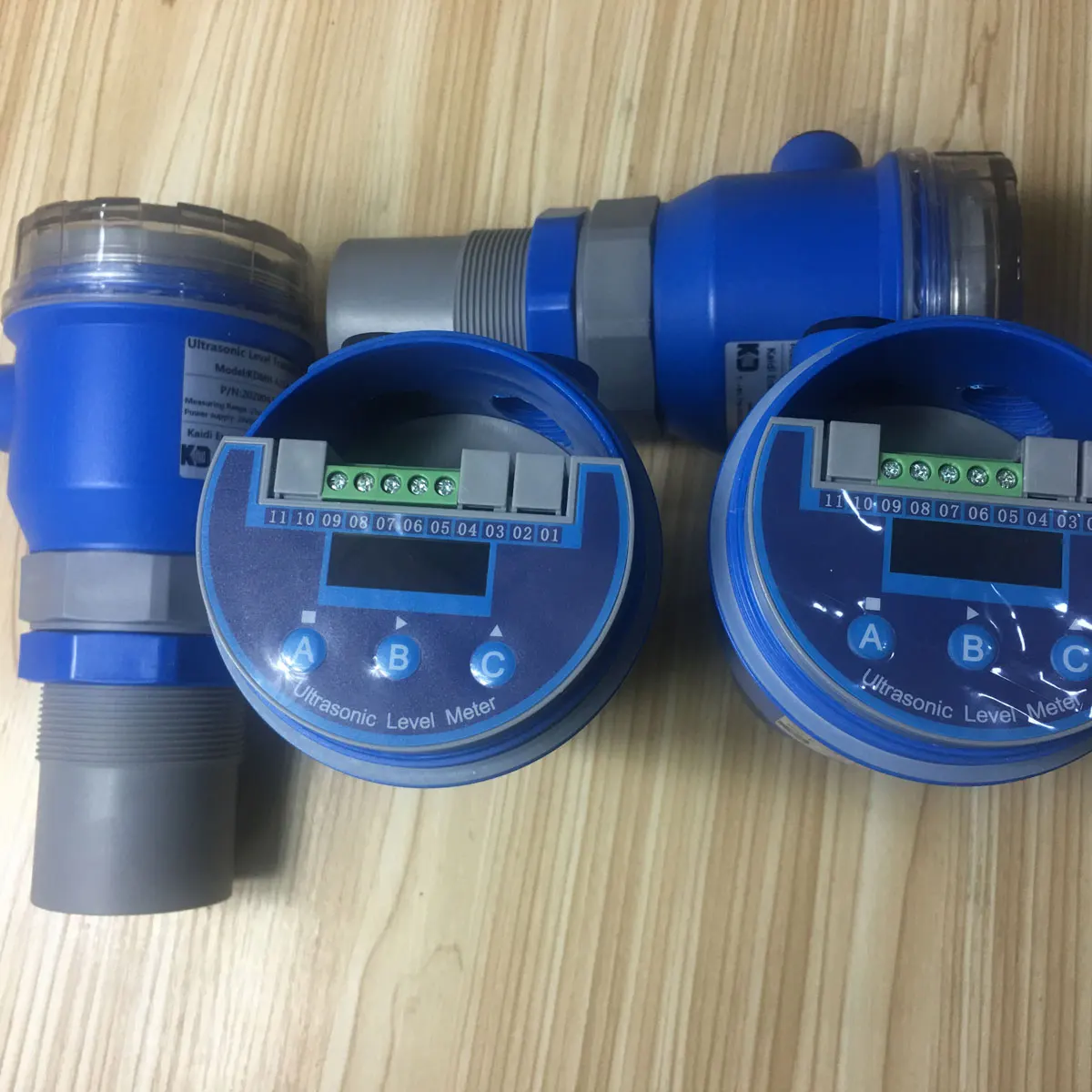

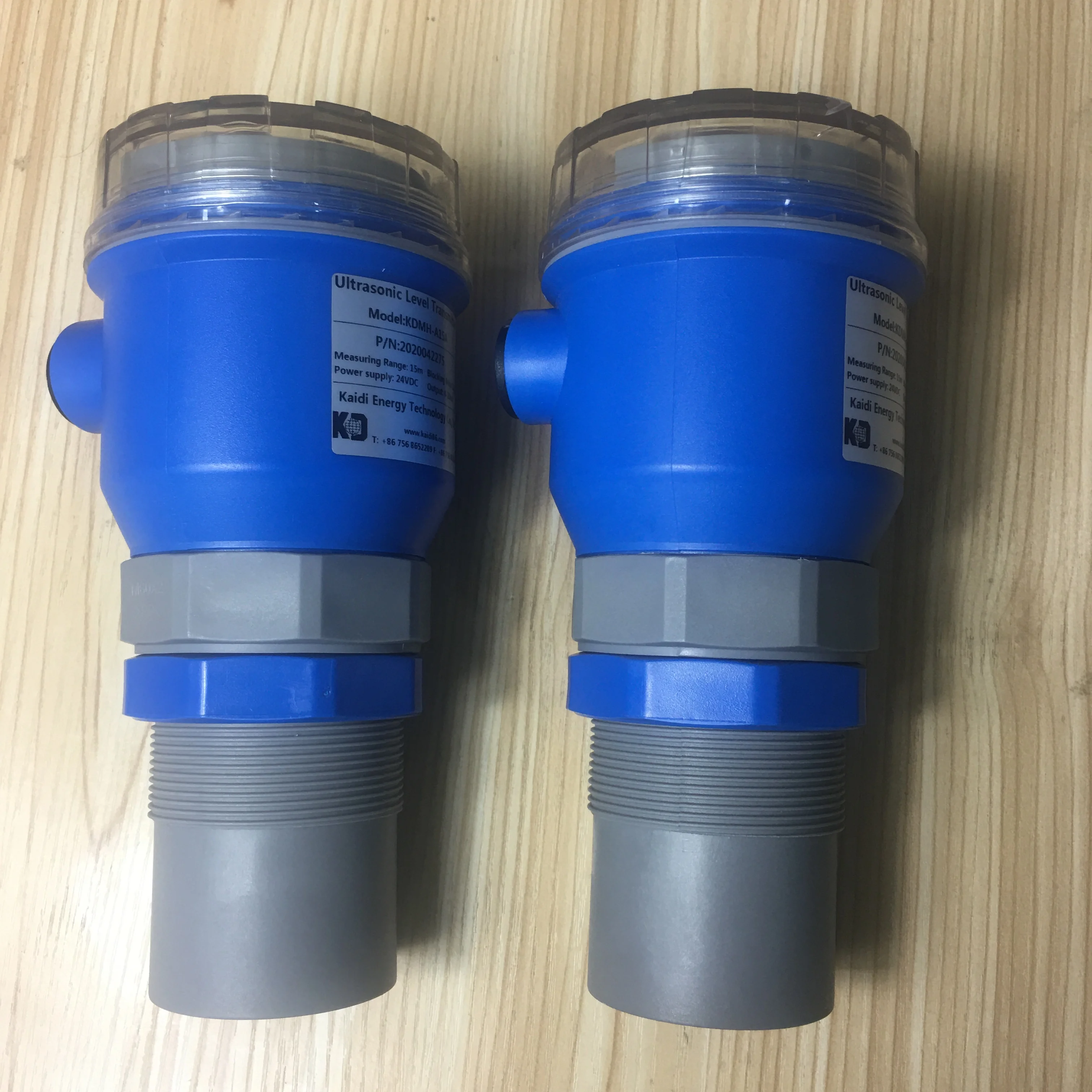

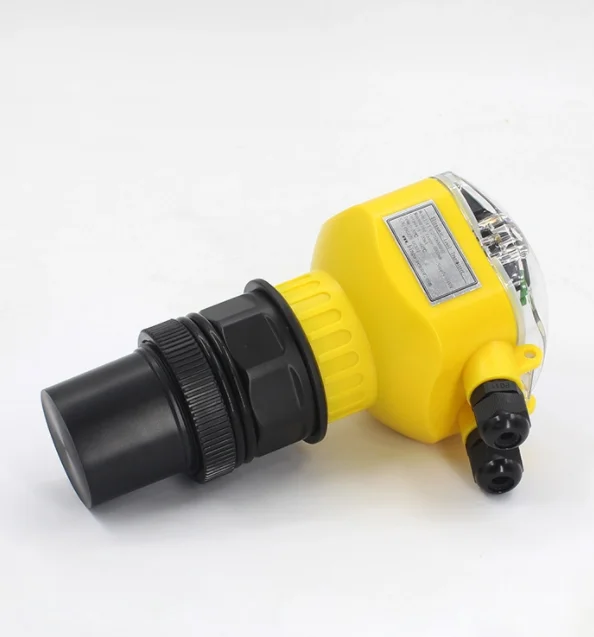

Ultrasonic level transmitter KDMH-AX water tank level sensor





Ultrasonic liquid level switches are used in a wide variety of applications to detect the location of level in a process or storage vessel. These switches can be used in virtually any liquid. A complete offering of materials and mounting configurations are available to meet your application needs.



Features:

• Not reliant on chemical properties of the liquid


• No moving parts


• Simple installation with no calibration necessary


• Available in a wide variety of materials and process connections


• Remote Self-test to verify operation of the electronics and sensor


• Auto gain control, auto power control


• over-voltage/over-current protection



Specification:

Range	30m
Blind	0.25 ~ 0.8m
Accuracy (in air)	0.3% of full scale
Display resolution	0.01m
Current output	4 ~ 20mA
Output Resolution	0.03% of the actual range
Temperature range	-40-- +70 Degrees Celsius
Relay Output	Upper and lower control
Relay Specifications	10A AC250V/DC30V

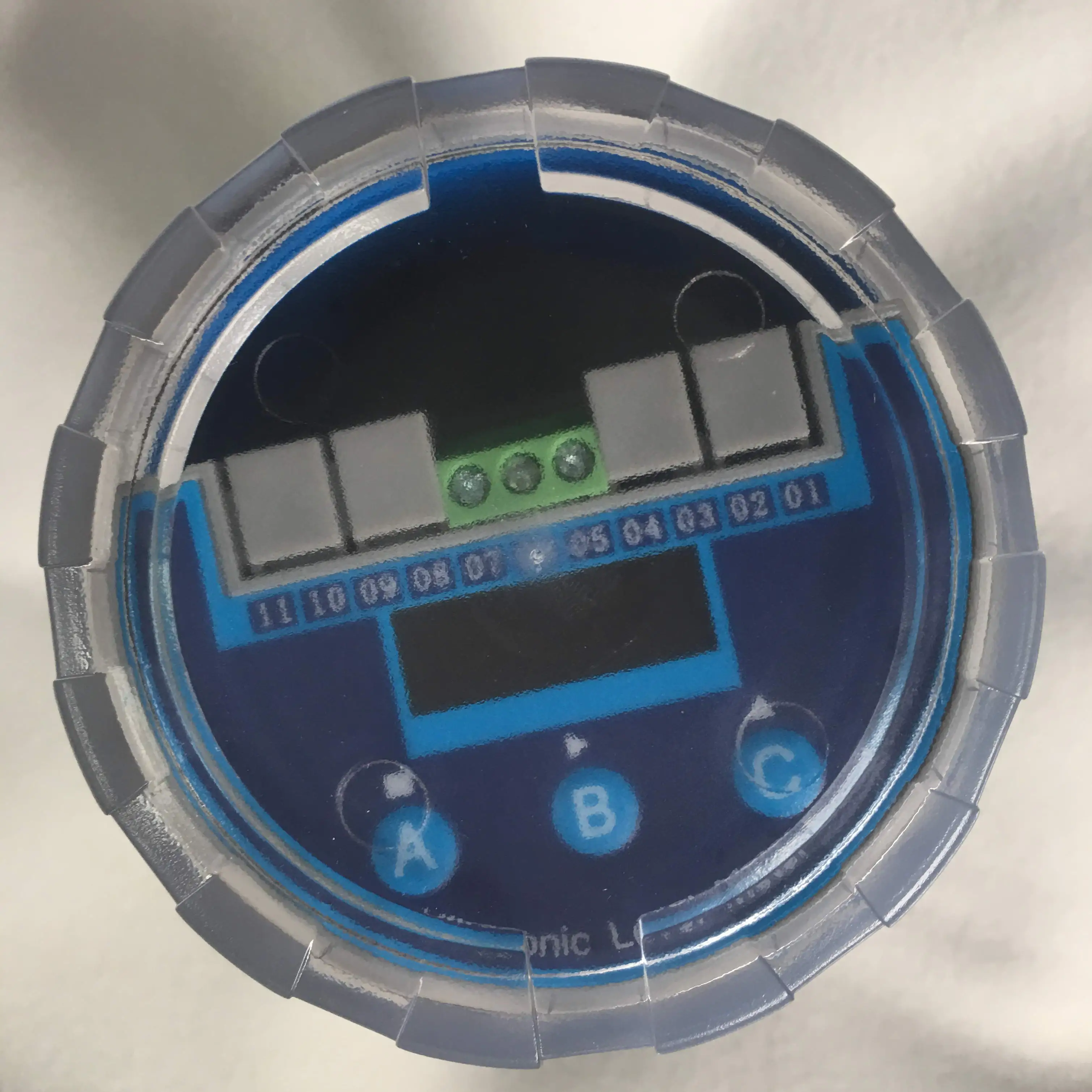

Parameter settings	3 felt buttons
Temperature compensation	Full Range Auto
Testing cycle	1 sec
Installation	Flange or bracket
Sound beam angle	8o (3db)
Pressure range	0.04Mp special general 0.5Mp
