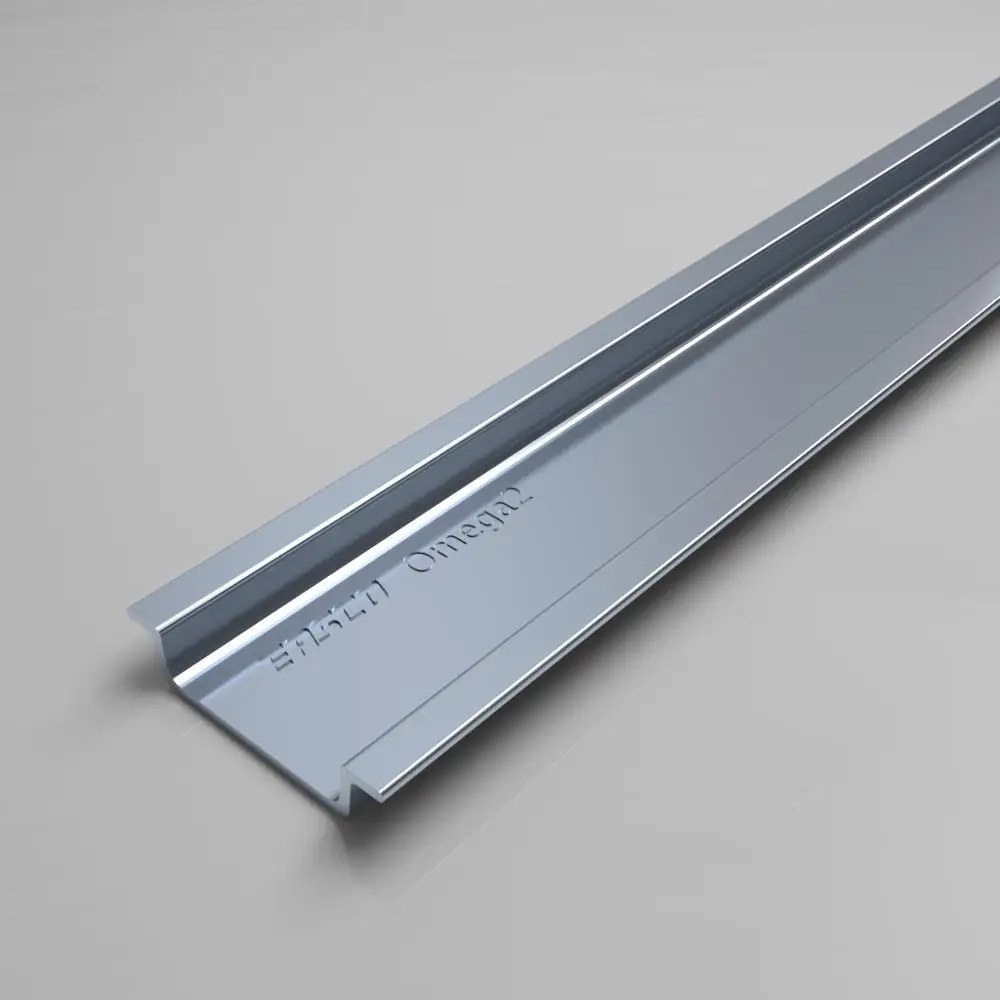

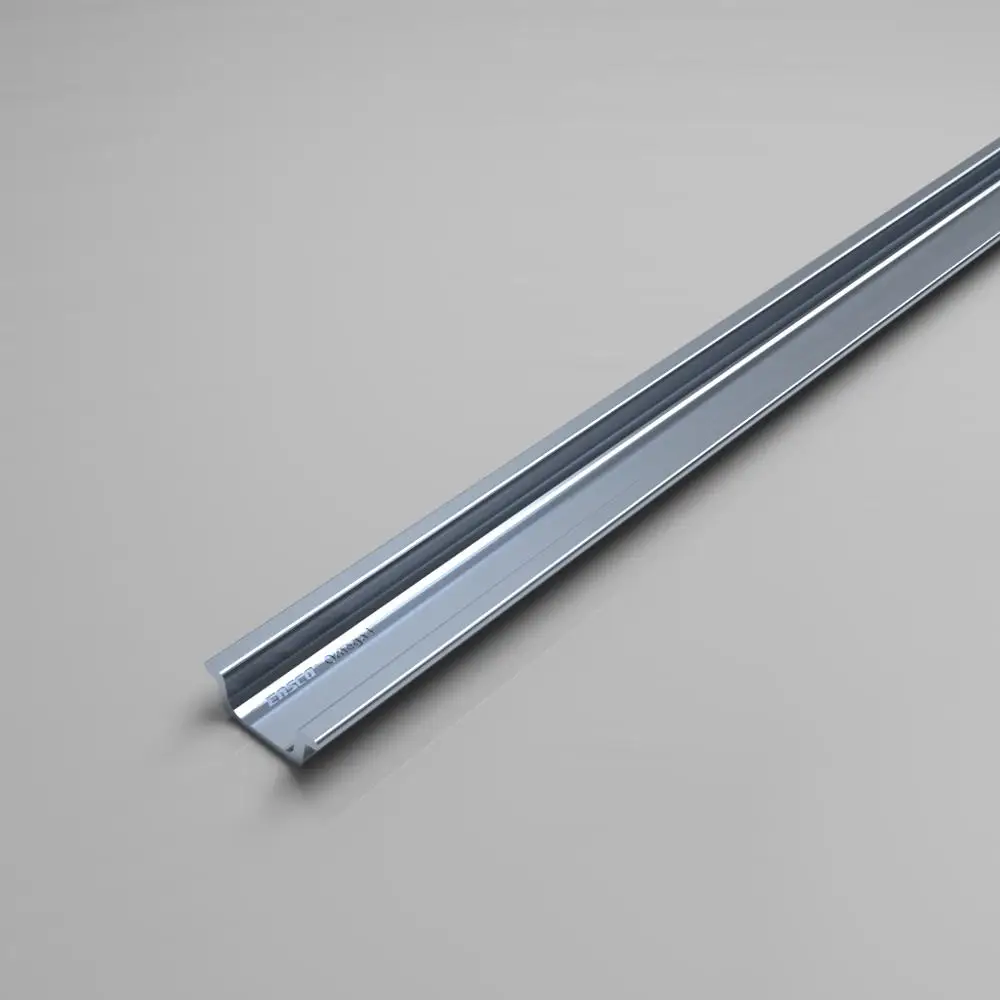

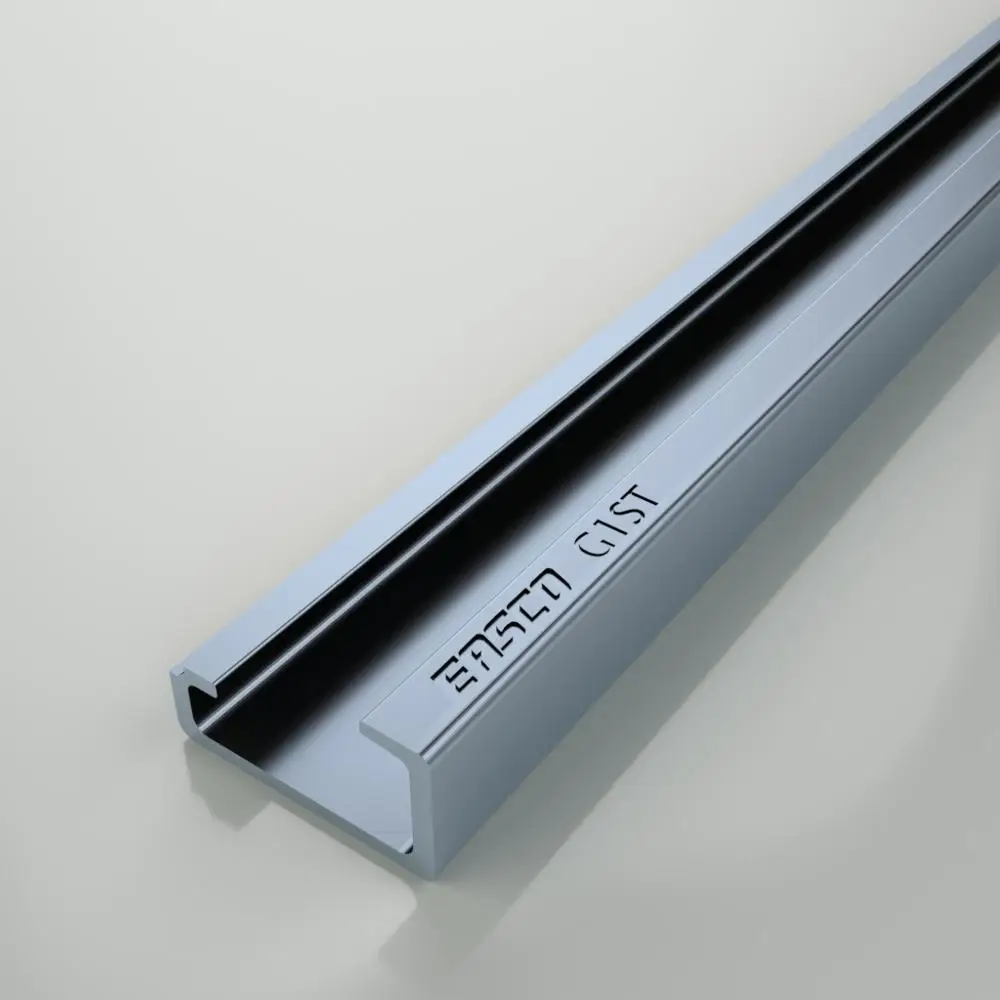

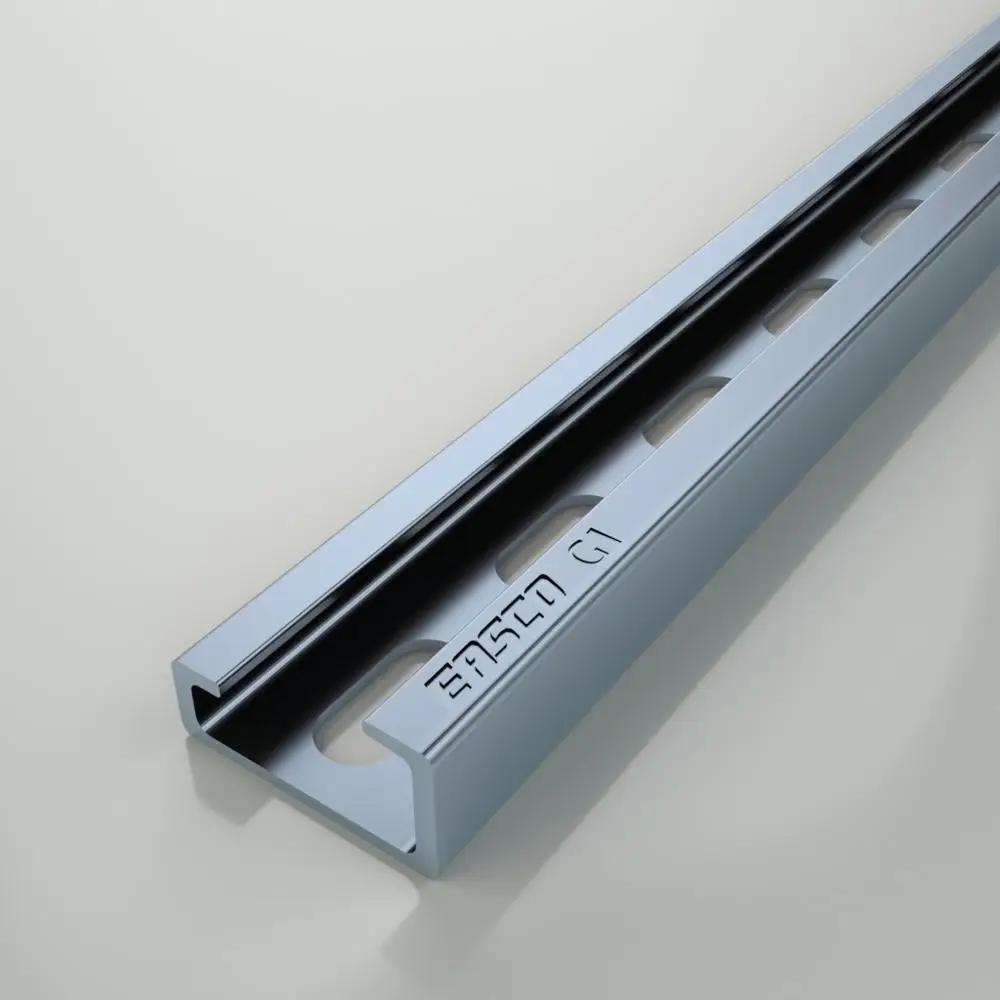

EASCO Steel Din Rail Perforated Slotted Steel Rail

Product Overview

Description

EASCO Steel Din Rail Perforated Slotted Steel Rail

Steel design Din Rail

Available with 1 or 2 Meters Length

Perforated or Un-perforated by request

Treated with galvanic zinc plating and passivation
Available with 1 or 2 Meters Length.
Electrolitically plated according to 2002/95 EC RoHS Directive

No Markings On Rail

EASCO offers the most comprehensive range of Gavanic Zinc Plated Steel Din Rail.

UN-PERFORATED, NON SLOTTED STEEL DIN RAIL
Article-No.		Item No.	Length		Specification (Inch/mm)					Packing
					A	B	C	D	E
4101-00001		G1	1m & 2m		1.25"(32mm)	0.594"(15mm)	0.656"(16.5mm)	0.236"(6mm)	0.059"(1.5mm)	30Pcs
4101-00003		Omega2	1m & 2m		1.4"(35mm)	0.3"(7.5mm)	1.138"(27mm)	0.039"(1.0mm)	0.039"(1.0mm)	50Pcs
4101-00005		Omega3	1m & 2m		1.4"(35mm)	0.594"(15mm)	1.138"(27mm)	0.059"(1.5mm)	0.039"(1.0mm)	30Pcs
4101-00007		Omega4	1m & 2m		0.594"(15mm)	0.217"(5.5mm)	0.336"(8.5mm)	0.039"(1.0mm)	0.039"(1.0mm)	30Pcs
PERFORATED, SLOTTED STEEL DIN RAIL
Article-No.	Item No.	Length	Specification (Inch/mm)								Packing
			A	B	C	D	E	F	G	H
4101-00002	G1ST	1m & 2m	32mm	15mm	16.5mm	6mm	1.5mm	25mm	15mm	6.2mm	30Pcs
			1.25"	0.594"	0.656"	0.236"	0.059"	0.984"	0.594"	0.245"
4101-00004	Omega2ST	1m & 2m	35mm	7.5mm	27mm	1mm	1mm	25mm	15mm	6.2mm	50Pcs
			1.4"	0.3"	1.138"	0.039"	0.039"	0.984"	0.594"	0.245"
4101-00006	Omega3ST	1m & 2m	35mm	15mm	27mm	1.5mm	1mm	25mm	15mm	6.2mm	30Pcs
			1.4"	0.594"	1.138"	0.059"	0.039"	0.984"	0.594"	0.245"
4101-00008	Omega4ST	1m & 2m	15mm	5.5mm	8.5mm	1mm	1mm	25mm	12mm	4.2mm	30Pcs
			0.594"	0.217"	0.336"	0.039"	0.039"	0.984"	0.475"	0.165"

Factory 26+ years manufacturing experience, Alibaba 7 yrs gold supplier -------- EASCO

EASCOprovides solutions to wire & cable management in the fields of industrial electrical accessories, our product categories: wiring duct made of rigid self-extinguishing PVC material and hardness lead-free PVC material, flexible conduit, nylon tie, wrapping band, electrical din rail, cable clip, cable clamp, cable gland, cable connector, bushing, cable marking, terminal, and wiring accessories. To meet the needs of users worldwide, Easco complies with the international Quality Standard Management ISO9001 as well as Environmental management ISO14001, with more products certified by UL, CE, RoHS, REACH, etc.
