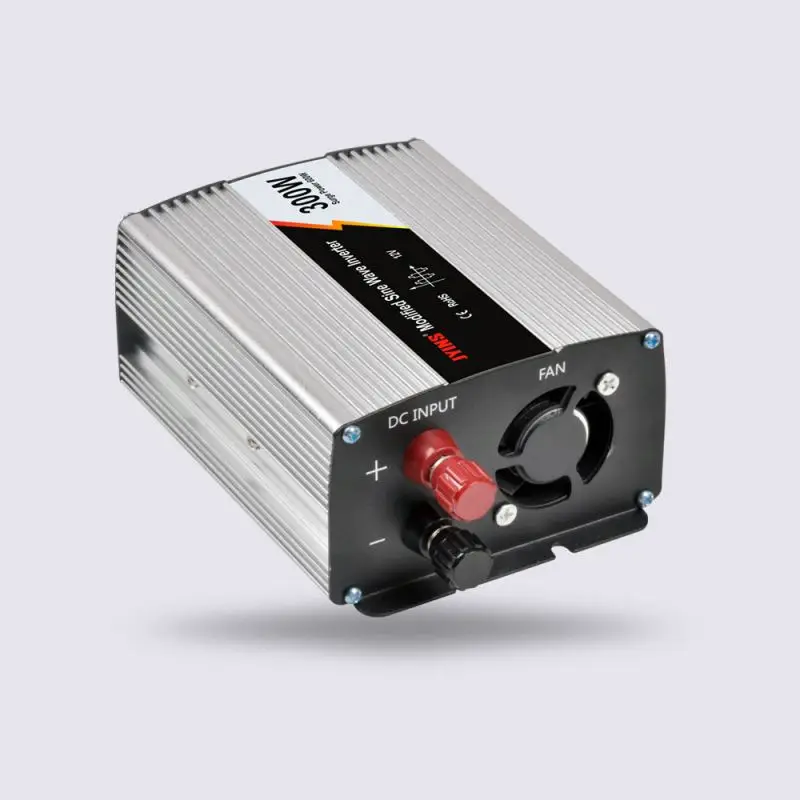

Pretty Price off grid tie inverter 300W modified sine wave inverter

Share on (1145146941):


Price:$11.50 - $13.08

Quantity:


Product Overview

Description



Pretty Price off grid tie inverter 300W modified sine wave inverter




Product Description


Pretty Price off grid tie inverter 300W modified sine wave inverterPretty Price off grid tie inverter 300W modified sine wave inverterPretty Price off grid tie inverter 300W modified sine wave inverterPretty Price off grid tie inverter 300W modified sine wave inverterPretty Price off grid tie inverter 300W modified sine wave inverterPretty Price off grid tie inverter 300W modified sine wave inverterPretty Price off grid tie inverter 300W modified sine wave inverterPretty Price off grid tie inverter 300W modified sine wave inverter








Technical Parameters

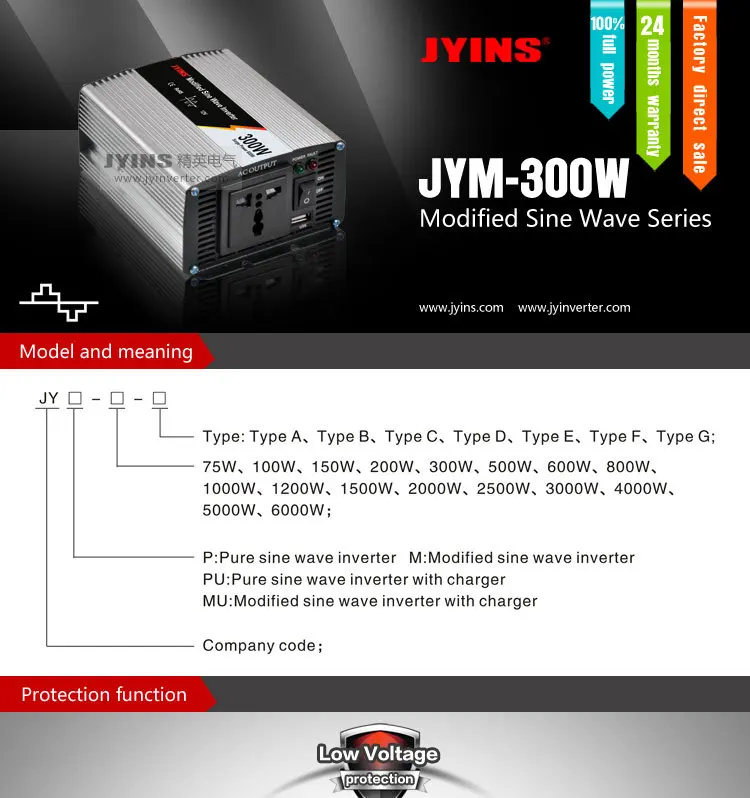

ModelJYM-0.3K-1JYM-0.3K-1JYM-0.3K-1JYM-0.3K-2JYM-0.3K-2JYM-0.3K-2
Rated power300W
Peak power600W
Input voltageDC12VDC24VDC48VDC12VDC24VDC48V
Output voltage100VAC or 110VAC or 120VAC±5%220VAC or 230VAC or 240VAC±5%
Unload current less than0.3A0.1A0.1A0.3A0.1A0.1A
Output frequency50Hz±0.5Hz or 60Hz±0.5Hz
Output waveformModified  Sine Wave

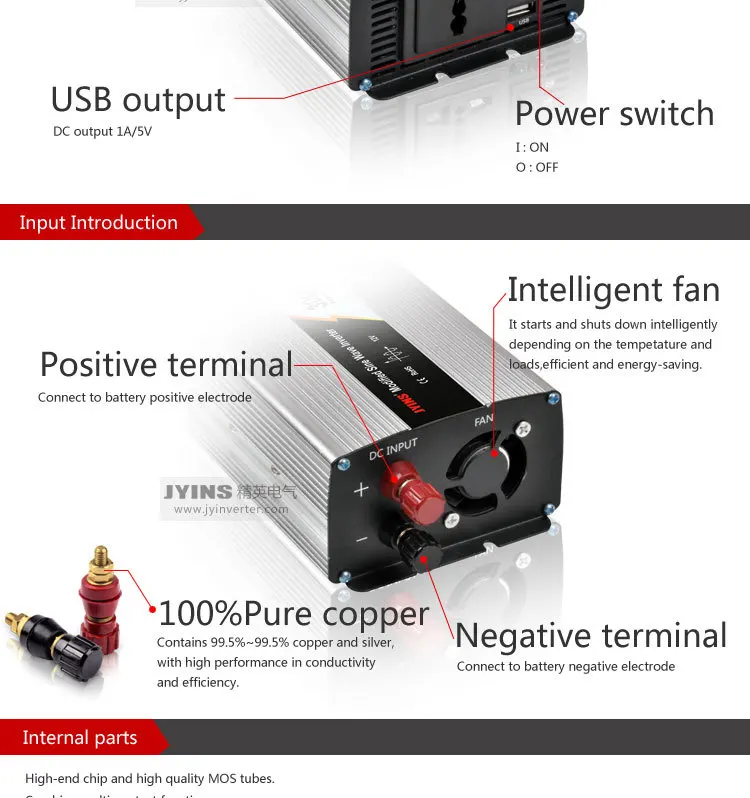

USB port5V 1A
Max.efficiency90%
Input voltage range10-15.5V20-31V40-61V10-15.5V20-31V40-61V
Low voltage alarm10.5±0.5V21±0.5V42±1V10.5±0.5V21±0.5V42±1V
Low voltage protection10±0.5V20±0.5V40±15V10±0.5V20±0.5V40±15V
Over voltage protection15.5±0.5V31±0.5V61±1V15.5±0.5V31±0.5V61±1V
Low voltage recover13±0.5V24±0.5V48±1V13±0.5V24±0.5V48±1V
Over voltage recover14.8V±0.5V29.5V±0.5V59V±1V14.8V±0.5V29.5V±0.5V59V±1V

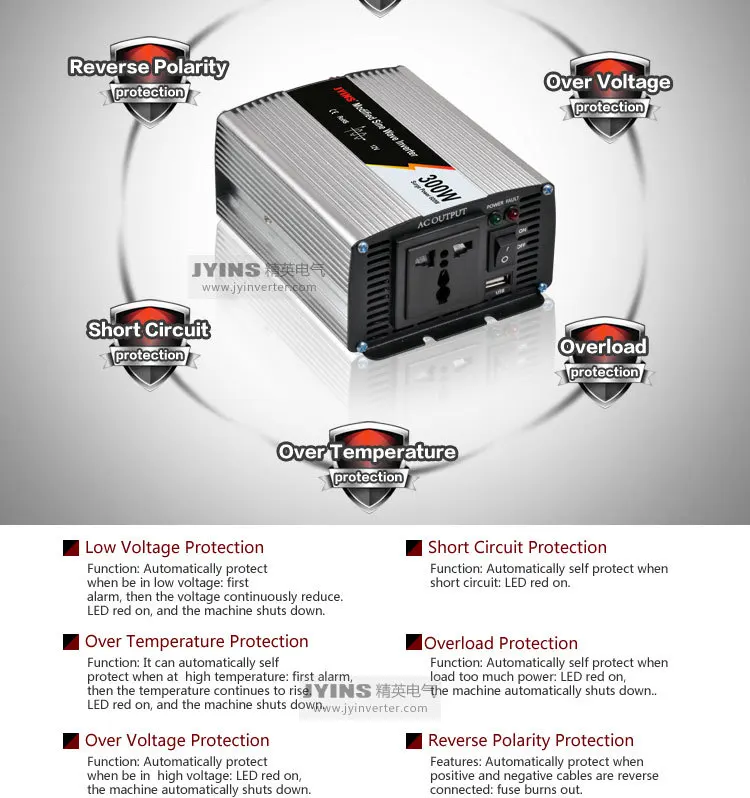

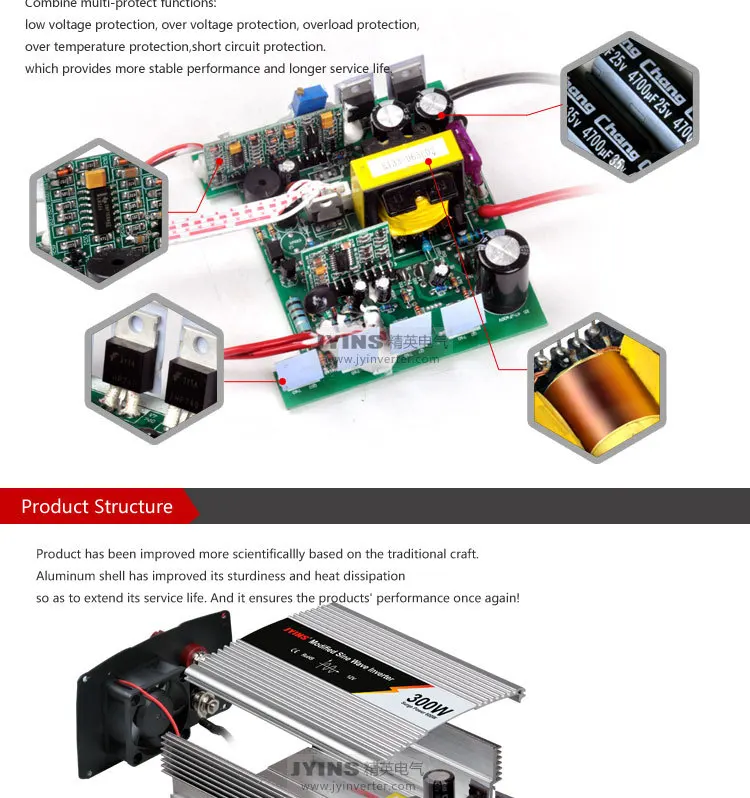

Protection functionLow voltageAlarm at first, voltage continously reduce. LED Red light on & shut sown.
Over voltageLED Red light on, shut down
Over loadLED Red light on, shut down
Over temperatureAlarm at first, tempurature continously rise.LED Red light on & shut sown
Short circuitLED Red light on
Input reverse polarityFuse burn-out
Working temperature-10°- +50°
Storage temperature-30°- +70°

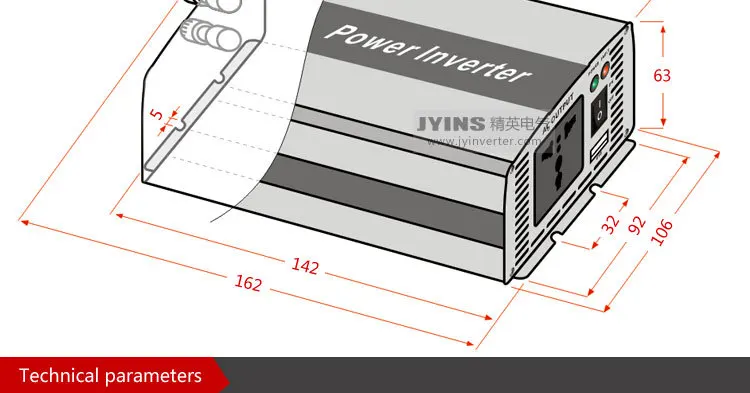

Dimension(mm)162x106x63 mm
Packing(mm)210x143.5x82 mm
Net./gross weight(g)515g/730g
QTY/Ctn20 Pcs
Meas./Ctn(mm)45.5x31x39mm
Gross weight/Ctn(g)16kgs
Warranty2 years
ConfigurationStandard
Cooling methodIntelligent air cooling

Note: Our products update constantly.The technical parameter is for reference only.Please refer to our real product.







About us


Pretty Price off grid tie inverter 300W modified sine wave inverterPretty Price off grid tie inverter 300W modified sine wave inverterPretty Price off grid tie inverter 300W modified sine wave inverterPretty Price off grid tie inverter 300W modified sine wave inverter





Why choose us


Pretty Price off grid tie inverter 300W modified sine wave inverter





FAQ


1,Q:Why your quotation is higher than other suppliers?
A:In domestic market, the high and low inverter brands are mixed together. There are many low-cost inverter is actually some assembled small unlicensed workshops, it crudely, to reduce costs and use of substandard components for assembly, there is a very big security risk! In order to protect the pro personal and property safety, please do not covet low
price, be sure to choose a reliable inverter!
..............................................................................................................................................................
2,Q:How many categories does it have according to the output waveform ?
A:Type one: JYM Modified Sine Wave inverter, which uses PWM pulse width modulation to generate modified sine wave. Due to the usage of intelligent dedicated circuit and high power field effect tube, it greatly reduces the power loss and increases the soft-start function, effectively ensuring the reliability of the inverter. If the power quality is not highly demanded,  it is able to meet the needs of most electrical equipment. But it still exists 20% harmonic distortion problems when running sophisticated equipment, can also cause high-frequency interference to radio communications equipment. This kind of inverter can meet the basic needs of most of our power, high efficiency, small noise, moderate price, and thus become the mainstream products in the market.
   Type two: JYP Pure Sine Wave inverter, which adopts isolated coupling circuit design, high efficiency, high stability of the output waveform, high-frequency technology, small in size, suitable for all kinds of load, can be connected to any common electrical devices and inductive load devices (such as refrigerators, electric drill, etc.) without any interference (eg: buzz and TV noise). The output of pure sine wave inverter is the same as the grid tie power we daily used, or even better, because it does not exist grid tie electromagnetic pollution.
..............................................................................................................................................................
3,Q:Is the output voltage of our inverter stable ?
A:Absolutely. Our inverter is designed with a good regulator circuit. You can even check it when measuring the true value by a multimeter. Actually the output voltage is quite stable. Here we need make a especial explanation : many customers found it is unstable when using conventional multimeter to measure voltage. We can say the operation is incorrect. Ordinary multimeter can only test pure sine waveform and calculate datas.
..............................................................................................................................................................

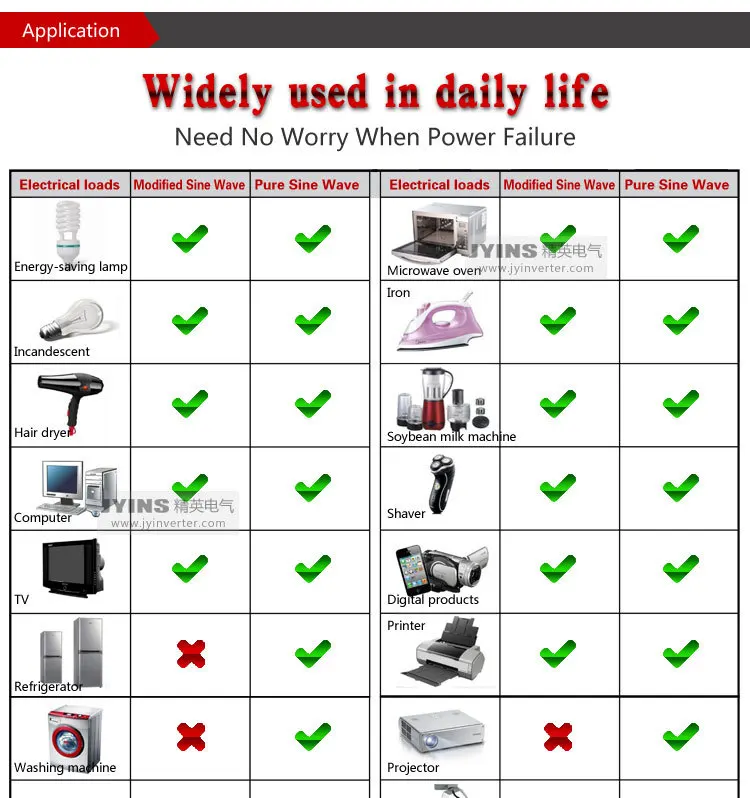

4,Q:What is a resistive load appliances?
A:Generally speaking, appliances like mobile phones, computers, LCD TVs, incandescents, electric fans, video broadcast,  small printers, electric mahjong machines, rice cookers etc. All belong to resistive loads. Our modified sine wave inverters can drive them successfully.
..............................................................................................................................................................

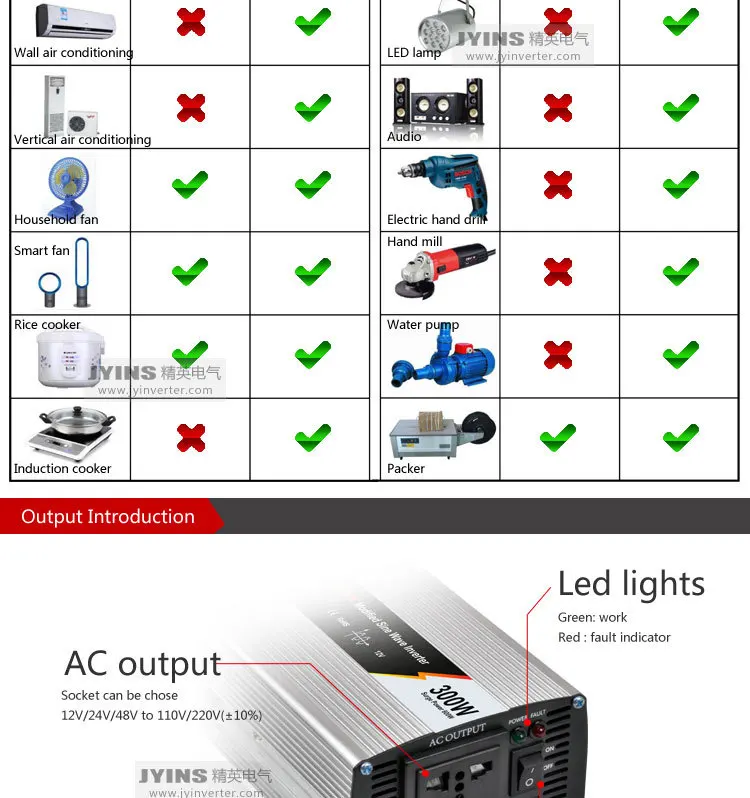

5,Q:What is the inductive load appliances?
A:It refers to the application of electromagnetic induction’s principle, produced by high-power electrical products, such as motor type, compressors, relays, fluorescent lamps, electric stove, refrigerator, air conditioner, energy saving lamps, pumps, etc. These products’power are far more than the rated power (about 3-7 times) when start. So only pure sine wave inverter is available to them.
..............................................................................................................................................................

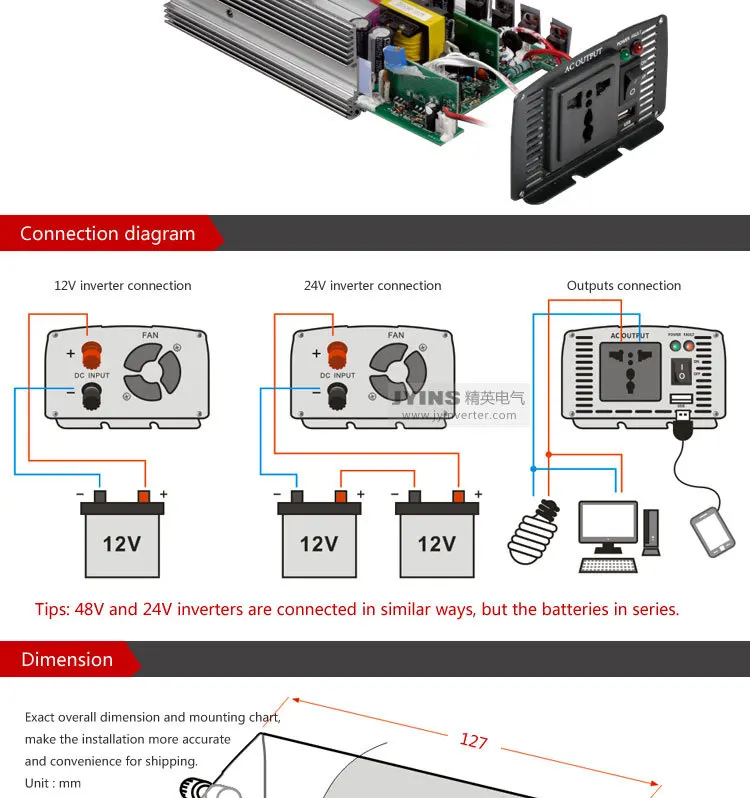

6,Q:What should be noticed when installing inverter?
A:Put the product in a place where is well ventilate,cool, dry and water-proof. Pls do not stress and do not put foreign objects into the inverter.Rember to turn on the inverter before turn on the appliance.
