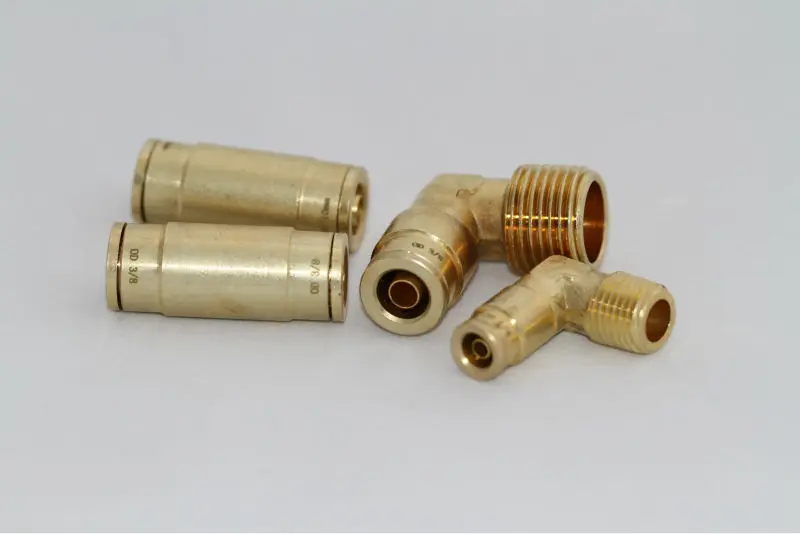

DOT fittings push in fittings air brake fitting elbow series DOT HL

Product Overview

Description













DOT-HL   Elbow,male
PART NO.	Thread	Tube O.D.*I.D.	D2	L1	L2
DOT-HL-06-R01	R1/8	6*4	12.7	22	20
DOT-HL-06-R02	R1/4	6*4	12.7	22	23
DOT-HL-08-R01	R1/8	8*6	15	25	23
DOT-HL-08-R02	R1/4	8*6	15	25	24
DOT-HL-08-R03	R3/8	8*6	15	27	26
DOT-HL-10-R02	R1/4	10*8	17.5	28	25
DOT-HL-10-R03	R3/8	10*8	17.5	28	25
DOT-HL-10-R04	R1/2	10*8	17.5	31	31
DOT-HL-12-R02	R1/4	12*9	19.5	31	26
DOT-HL-12-R03	R3/8	12*9	19.5	31	26
DOT-HL-12-R04	R1/2	12*9	19.5	31	31
DOT-HL-IN02-N01	NPT1/8	6.35*4.3	12.7	22	23
DOT-HL-IN02-N02	NPT1/4	6.35*4.3	12.7	22	23
DOT-HL-IN03-N02	NPT1/4	9.52*6.38	17.5	25	25
DOT-HL-IN03-N03	NPT3/8	9.52*6.38	17.5	27	25
DOT-HL-IN04-N02	NPT1/4	12.7*9.55	19.5	31	27
DOT-HL-IN04-N03	NPT3/8	12.7*9.55	19.5	31	27
