Product Overview

Description


DN20  pre insulated solar hose pipe for solar water heater





ItemDN20  pre insulated solar hose pipe for solar water heater
SizeDN20(connection fittings size 1" )
OD&ID25mm*20mm
Wall thick13mm,20mm
MaterialStainless steel
MOQ100meters
BrandGD-FLEX
OriginalChina







Introduction



GD-FLEX pre insulated solar hose pipe only require 1 step to finish the Solar Water Heater Pipe Installation.



GD-FLEX pre insulated solar hose only require 1 step to finish the Solar Water Heater Pipe Installation. Our pre-insualted flexible stainless steel Solar Hose with high temperature EPDM insulation pipe ,Strong Jacketing protection and 2-core temperature sensor cable pre-assembled , it is an ideal choice for your solar thermal system. It realizes the fast pipe connection among solar collectors, the pump station and the water tank. Non-welding required! The system is light weight and space saving, which is easy to handle, even in confined spaces. Flow and return pipes are marked clearly and can be easily distinguished. Smart Design- Break Point does good to installer separate twin pipes into 2 pipes without any destroy of the jacketing protection, meeting the installation demand very well.



Application



Piping systems for solar hot water, heating, heat pumps and air conditioning technology indoor, outdoor or underground piping system.







Structure

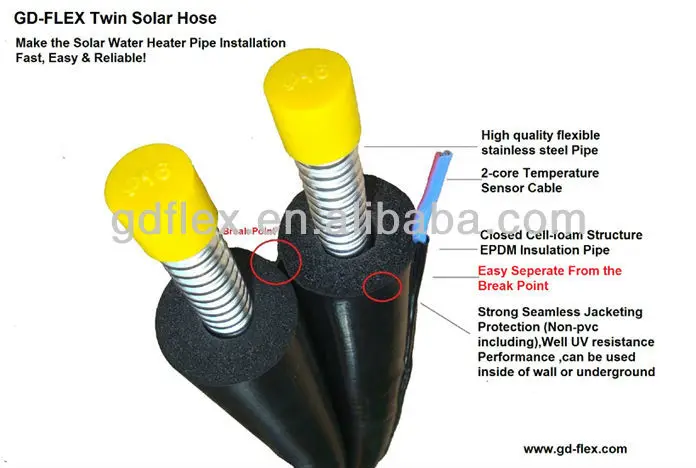

Twin pipe: It consisting of high temperature resistance EPDM insulation, 2 x flexible corrugated stainless steel tubes (feed and return), UV-resistant, Silicone-sensor line, seamless jacketing protection.



Single pipe It Consisting of high temperature resistance EPDM insulation, 1 x flexible corrugated stainless steel tube, UV-resistant, seamless jacketing protection.



Single pipe with  Temperature Sensor Cable It Consisting of high temperature resistance EPDM insulation, 1 x flexible corrugated stainless steel tube  (feed and return), UV-resistant, Silicone-sensor line, seamless jacketing protection.







Twin Solar Hose Features





Specifically designed for solar thermal panels.:

  1. Each coil includes both the feed and return pipes. Easy to distinguish the feed pipe and return pipe. Our Sensor cable is on one side of the twin pipe, which is easy to distinguish the feed pipe and return pipe line
  2. . Flexible high-grade stainless steel tube 316L(or 304).Maximum pressure up to 17.5 bar, Rated burst pressure 200 bar
  3. 100% Genuine EPDM insulation pipe. Light, flexible, closed cell, synthetic caoutchouc; free of PVC and non- CFC.Very good ozone resistance, UV-resistant. Work Temperature range from -200°C to 150°C,Max to 175°C
  4. Seamless UV resistant Jacketing coated on the insulation pipe is with a super high density water proof polyolefin copolymer foil. have excellent performance of UV-resistance , of strong tenacity performance, water proof , Machinery destroy-Protective and bird peck-Protective
  5. Coil length is available in 10, 15,20,30,60 meters. Other length is available upon customer's request
  6. Save money. Easy connection, no soldering required, Saves installation time, reduction costs.
  7. Each Twin pipe can be separated from the joint point into 2 complete single pipes according to the installation requirements.

       8.Save time, Save space ,Save labor cost           Realize the fast , easy and reliable solar pipes installation









I)          Our  corrugated stainless steel pipe is made of high quality SUS304 & SUS316L material.







II)        Our corrugated Stainless steel pipe has well annealed heating treatment, with well performance of flexibility and durability, anti-corrosion performance.







III)          The EPDM insulation pipe +175 °Chigh temperature resistance







IV)    All our jacketing use strong UV-Resistance PE-HD protection, very well protect the insulation from been bird-pecking or any mechanical destroy, thus very well protect the thermal performance of the Insulation , keep stable thermal performance of the Insulation.







V)      All our Jacketing is seamless jacketing







VI)      The sensor cable of the twin pipe, it is on one side of one pipe, thus very easy to distinguish the feed pipe from return pipe









GD-FLEX twin pipe -GD-FLEX insulated flexible stainless steel piping - 1pallet-gdflexsolar flexible pipe container2

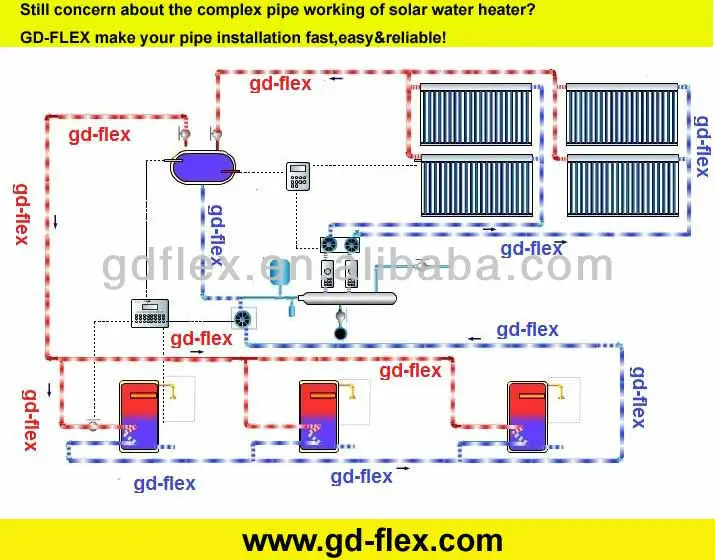

pipe installationGD-FLEX MAKE IT EASY
