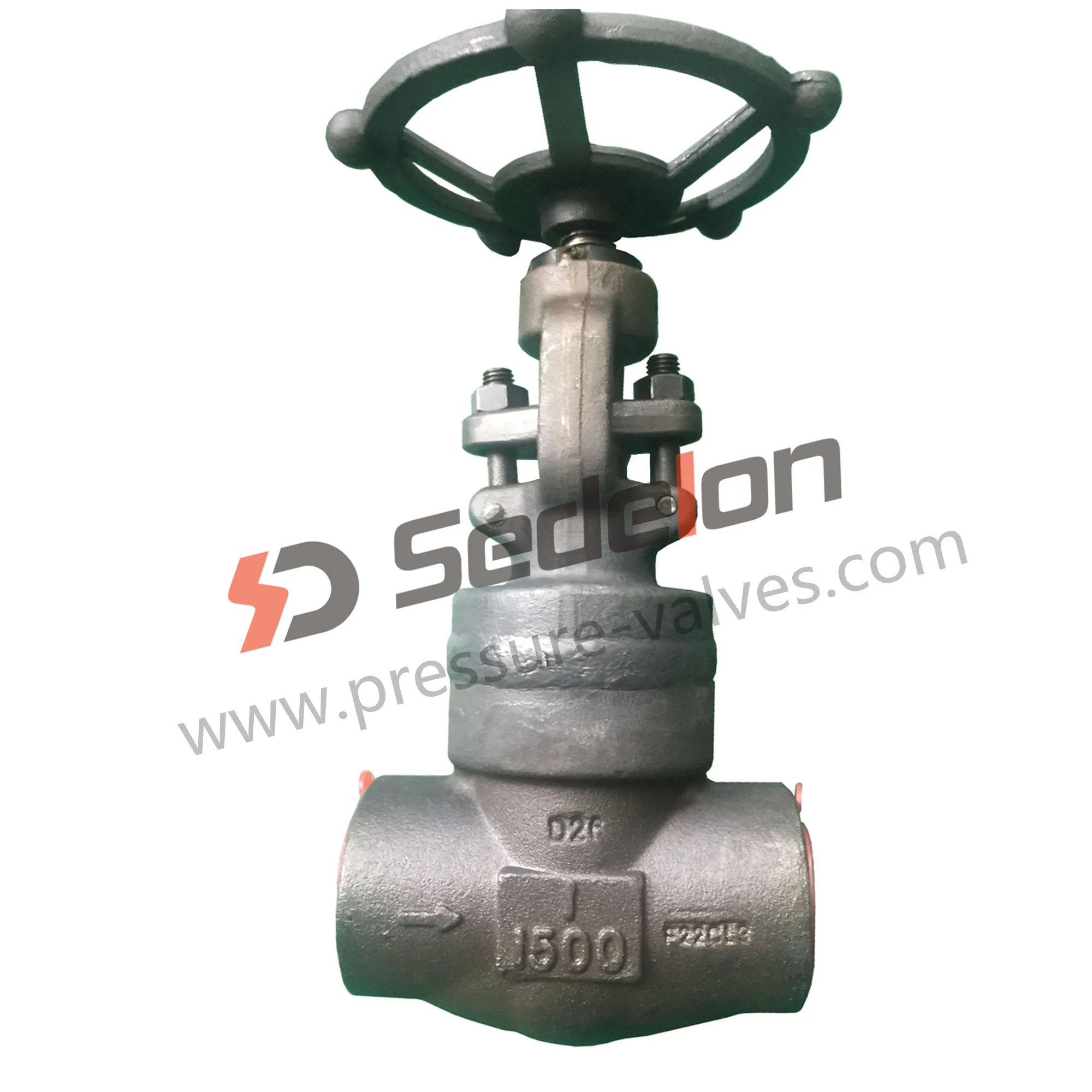

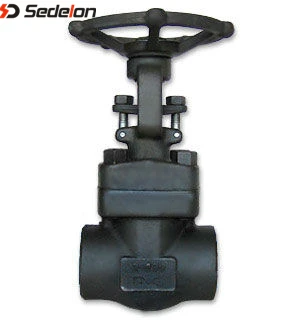

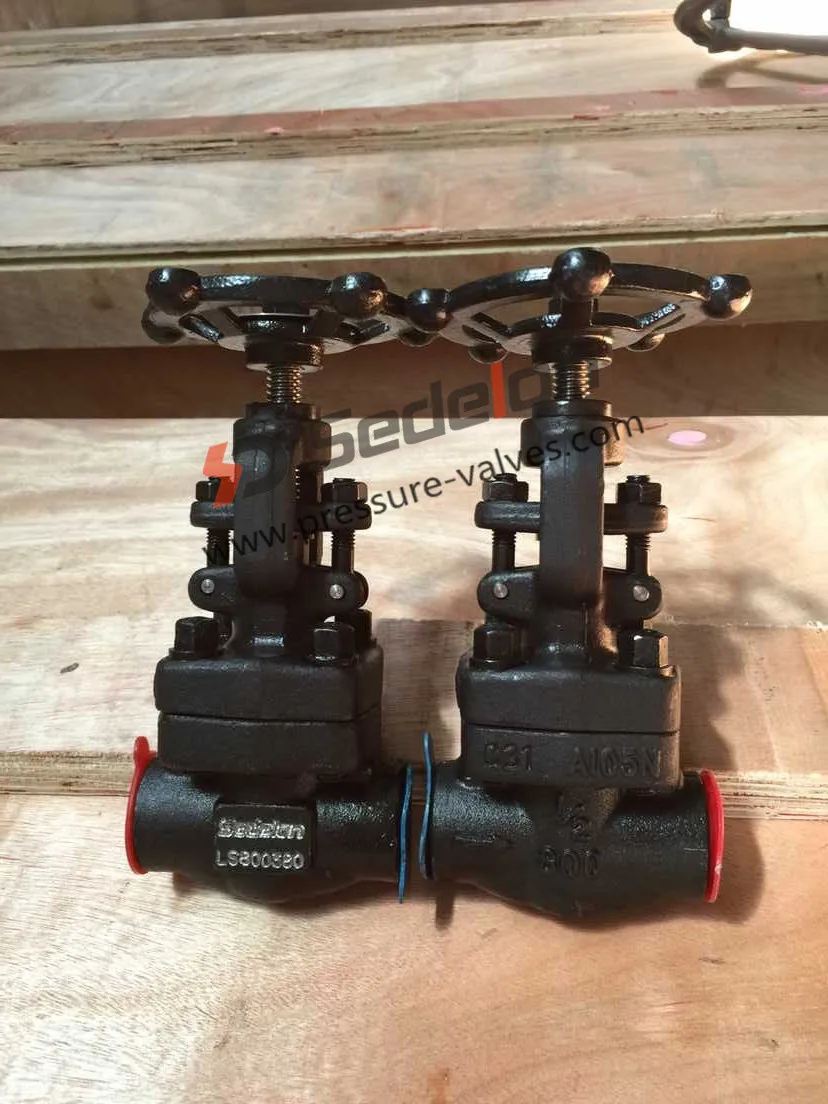

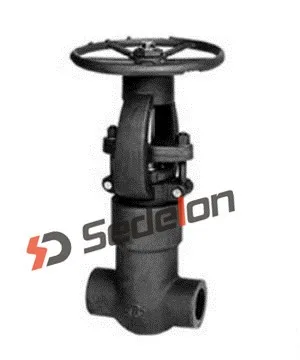

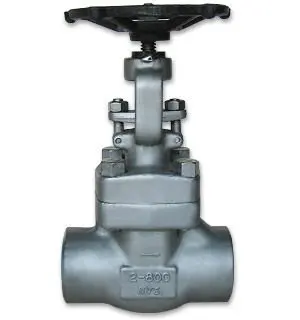

Butt Weld /Socket weld A105N Gate Valves
- Category: >>>
- Supplier: Sedelon Valve Co. Ltd.
Share on (1146003290):
Product Overview
Description
Butt Weld /Socket weld A105N Gate Valves
Product Description
Standards:
Design and Manufacture: ANSIB16.34, API600 API6D, API603,BS1414
Face to face(end to end): ANSIB16.10, API6D
Flanged connection: 2″~24″to ANSIB16.5,
26″~36″to MSS-SP-44 to API605 on Request
Test and inspection: API598,API6D
Butt welded end: ANSIB16.5
| Class 150- 2500# Flexible Wedge gate valve | |||||
| NO. | Part Name | WCB | LCB | WC6 | WC9 |
| 8 | Bolt and Nut | B7 / 2H | L7 / 4 | B16 / 4 /7 | B16 / 4/7 |
| 7 | Gland and packing | Graphite | Graphite | Graphite | Graphite |
| 6 | Gasket | Soft Iron | Soft Iron | SS304 | SS304 |
| 5 | Thrust Ring | A105 | A182 F304 | A182 F11 | A182 F22 |
| 4 | Back up Ring | A105 A182 | F304 | A182 F11 | A182 F11 |
| 3 | Yoke | WCB | LCB | WC6 | WC9 |
| 2 | Bonnet | WCB | LCB | WC6 | WC9 |
| 1 | Body | WCB | LCB | WC6 | WC9 |
| NO. | Part Name | C5 | C12 | CF8 | CF8M |
| 8 | Bolt and Nut | B7 / 2H | B16 / 4/7 | B8 / 8 | B8M / 8M |
| 7 | Gland and packing | Graphite | Graphite | Graphite | Graphite |
| 6 | Gasket | SS304 | SS304 | SS304 | SS316 |
| 5 | Thrust Ring | A182 F22 | A182 F22 | A182 F304 | A182 F316 |
| 4 | Back up Ring | A182 F22 | A182 F22 | A182 F304 | A182 F316 |
| 3 | Yoke | C5 | C12 | CF8 | CF8M |
| 2 | Bonnet | C5 | C12 | CF8 | CF8M |
| 1 | Body | C5 | C12 | CF8 | CF8M |
