Raw material smooth aluminium slugs for lipstick tube

Share on (1149438896):


Price:RUB 213,980.13 - RUB 356,633.55

Quantity:


Product Overview

Description

Raw material smooth aluminium slugs for lipstick tube

Product Description



Product Name aluminum slug
Color silver
Material ultra-pure aluminium
Al Content (%) >99.7%
Material Quality

no scrap, no burr,no broken

tension level ,flat,free of defects like oil stain,roll marks,waves ,dents ,scrath

Alloy Grade 1050,1060,1070
Temper soft annealed-O
Annealing Temper 450-460℃
Thickness 2mm-40mm
Diameter 6mm-90mm
Hardness 16-21HB
Tensile Strength (MPa)≥75
Dffset yield Strength (MPa)≥35

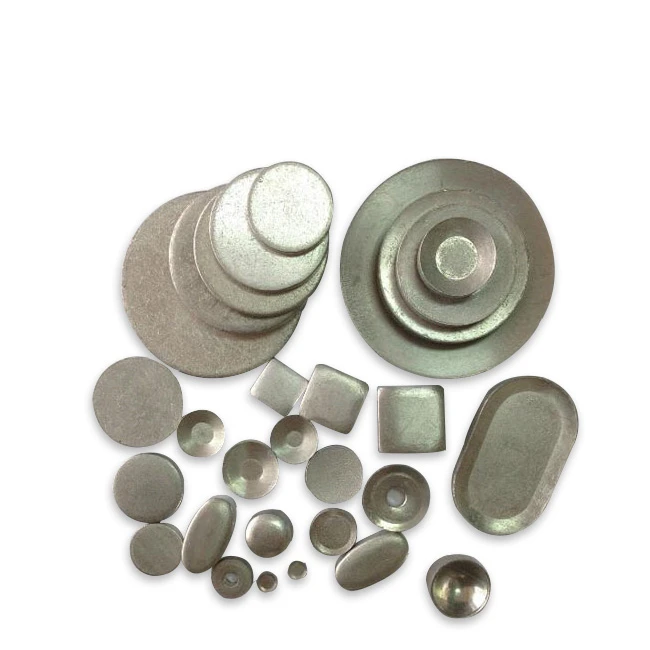

Shape flat,domed,round,oval,column,conical,rectangular,concave
Hole with hole, without hole
Surface Treatment  no surface treatment, sand blasted, vibrated, tumbled
Application  1. aluminum bottle: food, cosmetics,pharmaceutical,toothpaste
2. aerosol can: deodorants,perfume,cosmetics, hair care, household products
3. cosmetic-tube lipstic: comestic, eyelash tube
4. capacitor: household and industrial capacitor, capacitor with stud and without stud
5. automotive industry: filters, petrol pump housings, pressurised containers, cartridges, impellers, push-fit connections, bottles, tins, bushes, sleeve nuts, sensors, capacitor trays, reflectors, airbag and ABS systems, air conditioning technology, components for motor vehicles, plants and electrical engineering
Package PE bag+cartons+wood pallet
pallet weight:1000~1125kg
carton weight: 25kg
20ft container: 25 Ton max
Certificate  ISO 9001:2008
Standard  EN570/GB



Aluminum Slug Chemical Properties(%)

Alloy Si Fe Cu Mn Mg Cr Ni Zn Ca V Ti Other Al
1070 0.25 0.25 0.04 0.03 0.03 0.03 0.04 0.05 0.03 0.03 99.7
  %max %max %max %max %max %max %max %max %max %max %max %max %min



Shape: flat,domed,round,oval,column,conical,rectangular,concave

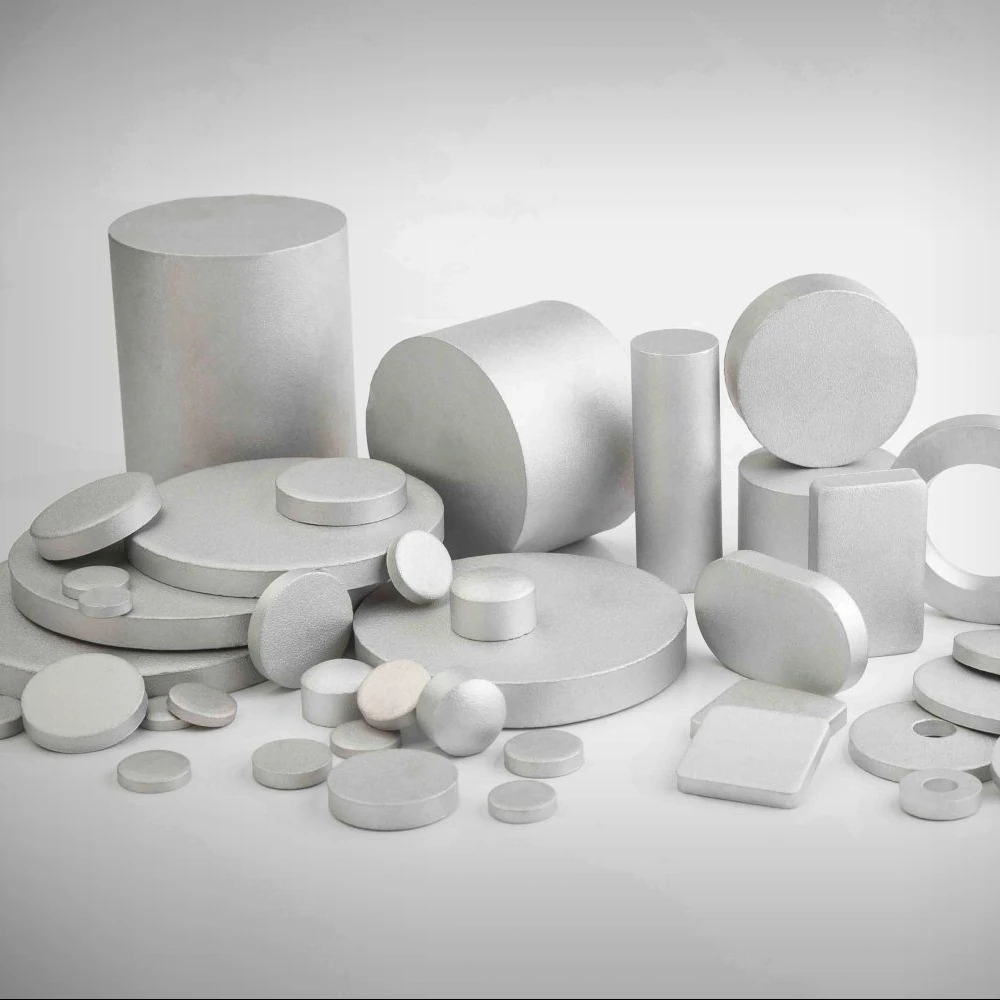

Product Pic.




aluminum slugs 6.jpg

APPLICATION

 Our slugs are encountered in virtually all industries.

Due to our diversified range of slugs, NANSEN products are present in all branches of industry. On the one hand, we are small enough to maintain our flexibility and adaptability to the exacting demands of our customers and, on the other hand, we are big enough to successfully fulfil larger orders. Through development, innovation and flexibility, we successfully continue to expand the range of our products and serve the requirements of a variety of industries.

1>   AUTOMOTIVE INDUSTRY

fuel filter casings,

air-conditioner noise attenuators,

capacitor and filter casing covers,

hydraulic filter casings,

hydraulic hose sleeves,

air bag system components,

air-conditioner condensate drier casings,

capacitor casings,

parking sensor casings,

components of motor lifting hydraulic pistons on boats,

braking system components,

clutch components,

propulsion electric motor components

2>   FOOD INDUSTRY

tubes for pastes and spreads,

tubes for mayonnaises, mustards, extracts,

aerosols for direct enhancement of beverages with bubbles,

aerosols for direct formation of cream,

packaging for different food supplements (minerals, vitamins etc.),

decorative external packaging for premium beverages,

complimentary packaging for sweet surprises or beverages,

protective packaging for cigars

3>   PHARMACEUTICAL AND COSMETICS INDUSTRY

packaging for drugs,

packaging for creams,

packaging for different sprays,

aerosols for different sprays,

decorative external packaging of special, signature designs for perfumes and toilet waters

4>   OTHER TECHNICAL COMPONENTS

capacitor casings and covers,

housings for smaller fire extinguishers,

components for doubling coils in the textile industry,

signalling rocket casings,

fireworks rocket casings,

cases for special two-component glues,

felt pen cases,

tubes for paints (oil paints, pastel paints),

tubes for car touch-up paints



Packaging & Shipping

1>   packaging: PE bags+cartons+wood pallet

2>   carton weight: 25kg

pallet weight: 1000~1125kg

20ft container: 25 Ton max

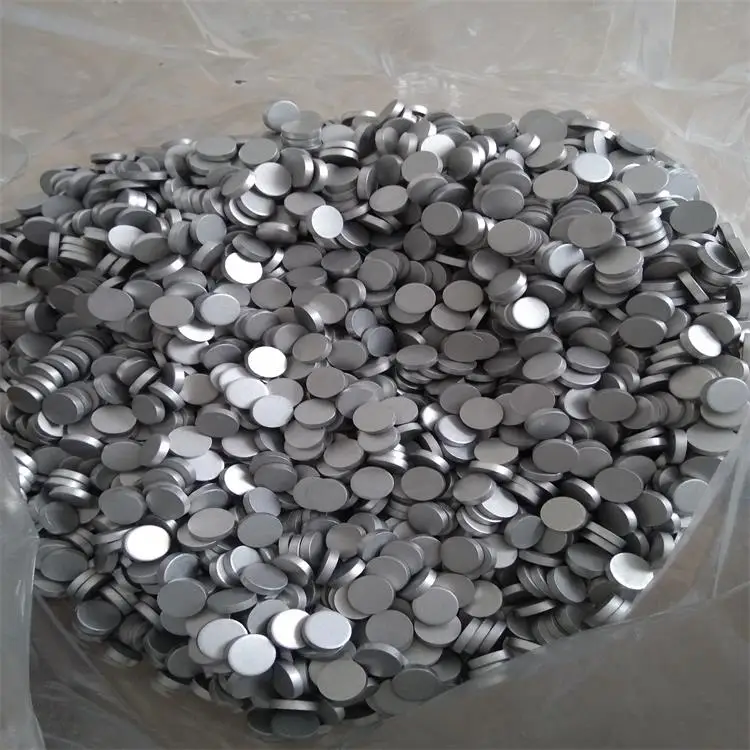

slug packing (5).jpg

Production Flow



1-1070 Aluminum ingot-Smelting

This stage starts by loading furnaces F1th ,F2th with 30MT each of raw aluminum (alloy AA1070, purity 99,7%

2-Continuous casting and hot-cold rolling

The melt is poured into the strip casting wheel, which rotates at a speed of 6 meters/min. A strip of 220 mm wide by 20 mm thick is formed.

3-Cold Lamination/Rolling

which aloud a maximum tolerance 0,05 mm

4-Stamping/Punching

This stage counts with four stamping presses, In this process we get about 50% of slugs for each Ton of punched strip.

5-Annealing Treatment

With this we obtain a Brinell hardness of 16 a 21 HB.

6-Surface Finish

Surface treatment is sand blasted, vibrated and tumbled

7-Final Inspection

QC department(gauge,mechenical test, surface quality)

8-Selection and Packing

Boxes are marked with customers information

Company Information

 Nansen Advantages

1>Quality: meet European EN570/EN573 standards.

2>Reputation: We have experience and capacities necessary for solving   technical problems of all kinds of aluminum parts.

3>Price: management issued low costing.

4>Guarantee/warranty.

5>Small orders accepted.

6>Experienced staff.

7>Service: 24 hour service customer any question.

8>Green product: environmental protection and the conditions of health and safety at work.



QC -Testing

The quality policy of Nansen Industries is to establish implement and maintain an effective assurance system. Based on standard of EN570 and ISO 9001 with the full employees in the process of continuous quality improvement and quality assurance practices resulting in our customer satisfaction. The purpose of our quality system is to continuously improve the quality of our products, our services and productivity in order to achieve internal and external customer satisfaction.
