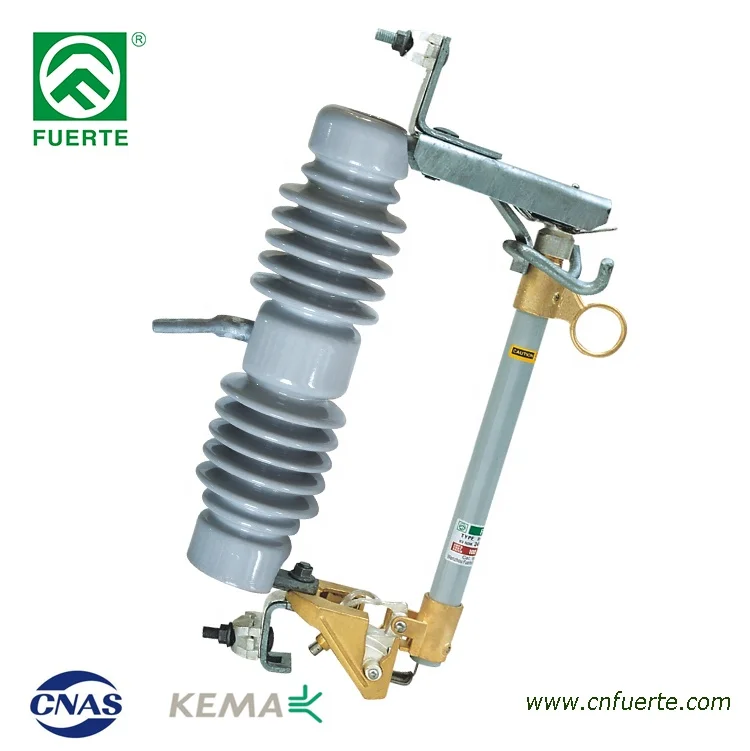

Distribution type drop out fuse 200A
- Category: >>>
- Supplier: Zhejiang Fuerte Electrical Apparatus Co. Ltd.
Share on (1150462731):
Product Overview
Description

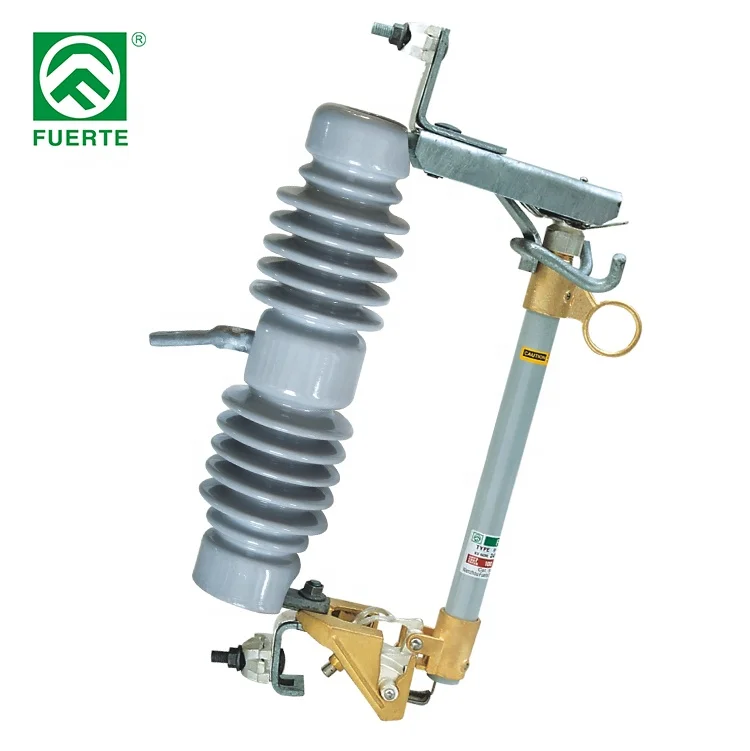

FSC-12 Distribution type drop out fuse 200A:
Technical Specifications:
| Type | Rated voltage | Rated current | Breaking current | Impulse voltage | Power-frequency withstand voltage | Leakage distance | Weight | Dimensions |
| Unit | KV | A | A | BIL | KV | mm | KG | cm |
| FSC-12 | 15 | 100 | 10000 | 125 | 45 | 320 | 8.5 | 48.5*35*10.5 |
| FSC-12 | 15 | 200 | 12000 | 125 | 45 | 320 | 8.5 |
