Product Overview

Description

 Features

Double Ended Cylinders

1.DNC series standard cylinder are producing conform to ISO 15552 ( ISO 6431, DIN ISO 6431,    VDMA 24 562, NF E 49 003.1 and UNI 10290).
2.Very wide used in the automation field, especial in Europe market.
3.Normally bore size: 32mm, 40mm, 50mm, 63mm, 80mm, 100mm, 125mm.
4.With the same DNC appearance, available built-in magnet, no protruding proximity sensors thanks to profile slots.
5.With self-lub bearing, the piston rod is lubrication free. And the adjustable air cushion keep the cylinder operating soomthly, safely and quietly.
6.Easier and various mounting via female threads or mounting accessories.
7.Supply cylinder kits, aluminium barrel, piston for customer assemble cylinder locally.

 Specifications

DNC Series ISO6431/VDMA24562 standard cylinder
Bore size(mm)		32	40	50	63	80	100	125
Action		Double acting,single/double rod
Fluid		Filtered compressed air
Proof pressure		1.5Mpa
Operating pressure range		0.05~1.0Mpa
Ambient and fluid temperature		-20~80ºC(No freezing)
Port size		G1/8	G1/4	G1/4	G3/8	G3/8	G1/2	G1/2
Piston rod thread	Basic type	M10X1.25	M12X1.25	M16X1.5		M20X1.5		M27X2.0
	K3	M6	M8	M10		M12		M16
	K5	M10	M12	M16		M20		M27
Cushion		Adjustable air cushion at both ends

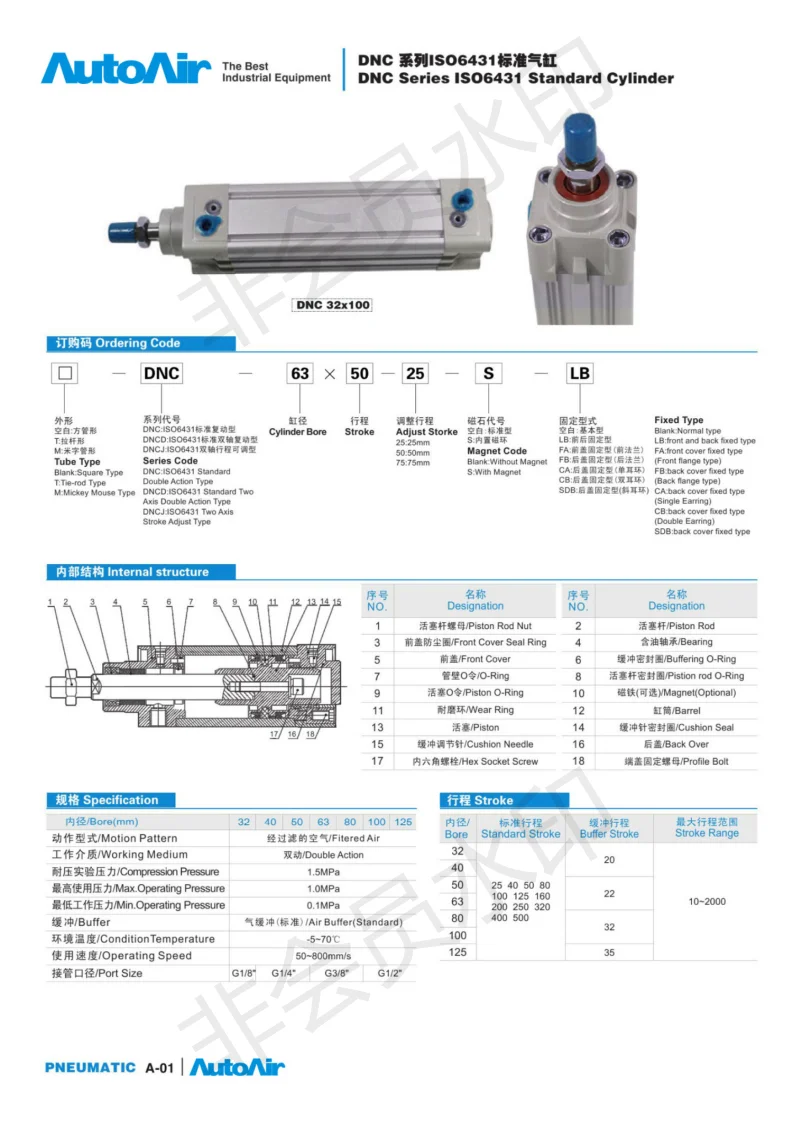

 Ordering Code

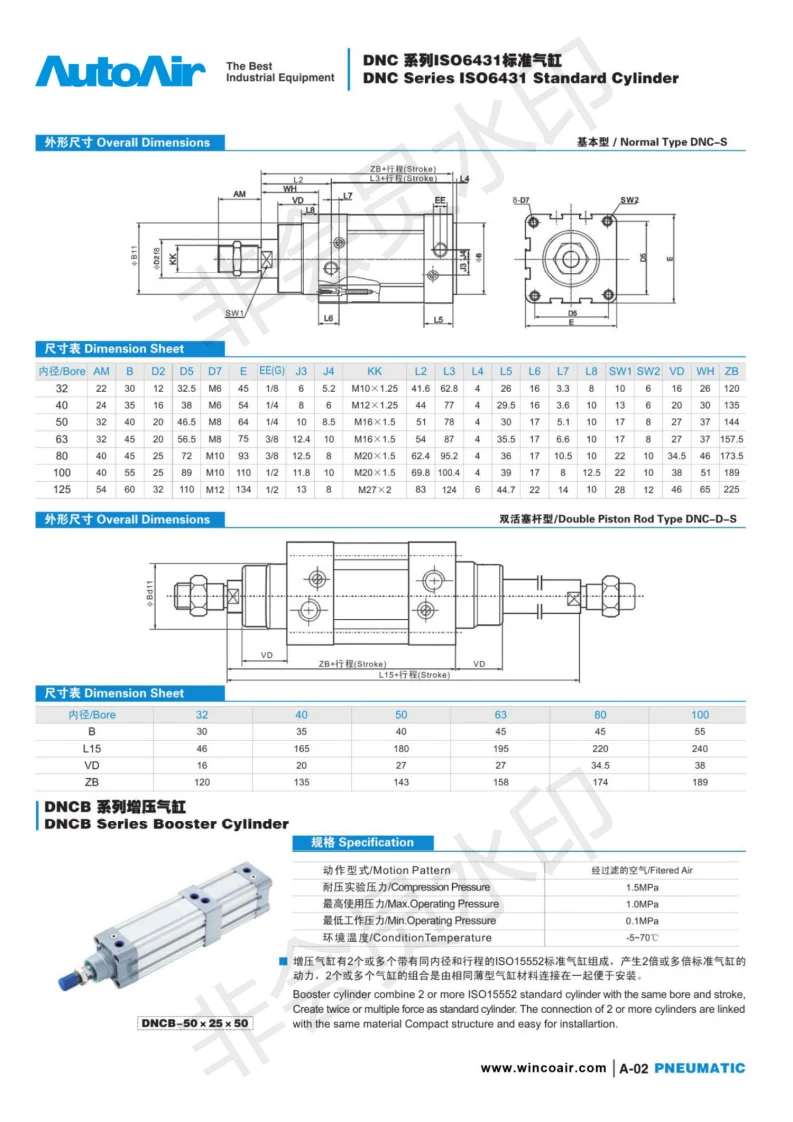

Overall Dimensions







Why choose us
1: Various style for completely series pneumatic products for you to choose
2: High quality with competitive price
3: Sample order & small quantity order is ok
4: Provide free products information.
5. Reliable quality assured and active after-sell service

Payment and Shipment

Payment: T/T, Western Union, 30% deposit and 70% balance before shipping, LC, ;
Shipment: Usually we send the goods by DHL, FedEx, UPS, TNT, or EMS or as you require;
                    After we shipped your goods, we will send you the tracking number by E-mail.
                    If you do not receive it within 7 business days after shipping, please contact us.
Note:2: We do our best to ship your order in 2 week after receive your payment,and please allow 4-7 working days for the arrival of your shipment. Thank you !

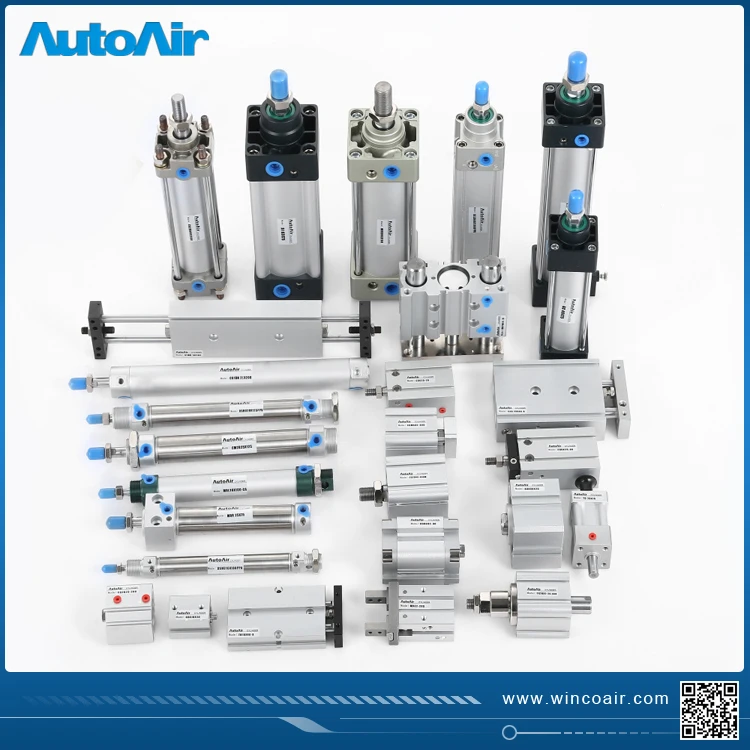

Other Products
