TG 250 tofu making machine Soy product processing equipment / tofu process machine
- Category: >>>
- Supplier: Shanghai Tiangang Machine Manufacture Co. Ltd.
Share on (1154758484):
Product Overview
Description

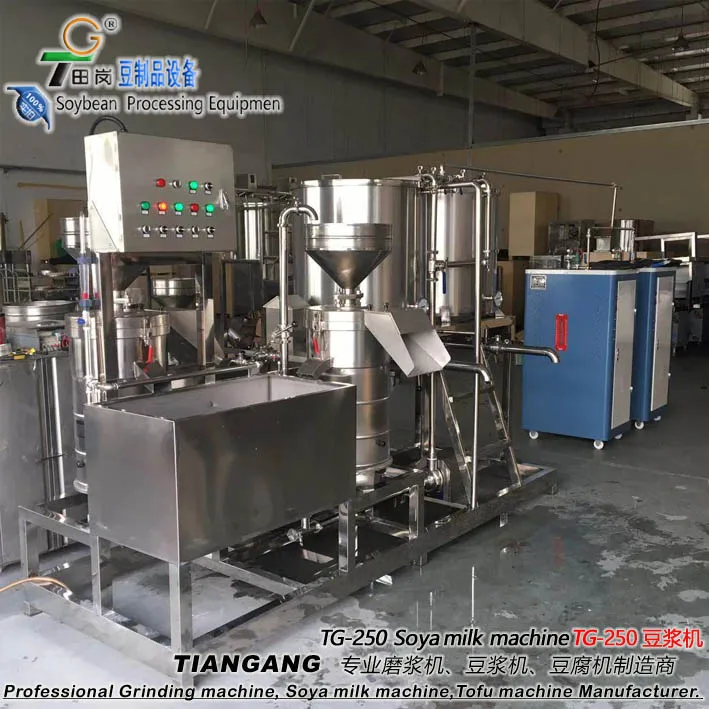

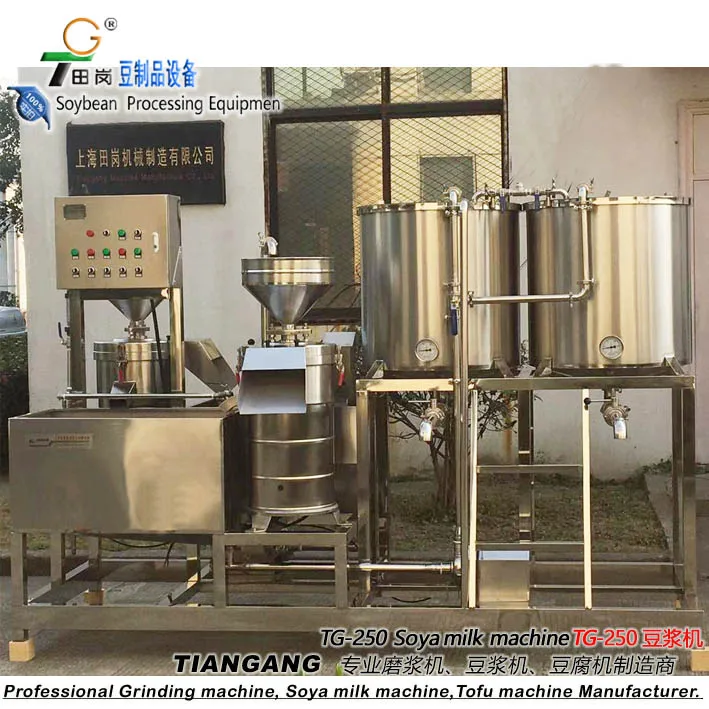

TG-250 tofu making machine -soybean making machine / tofu process machine

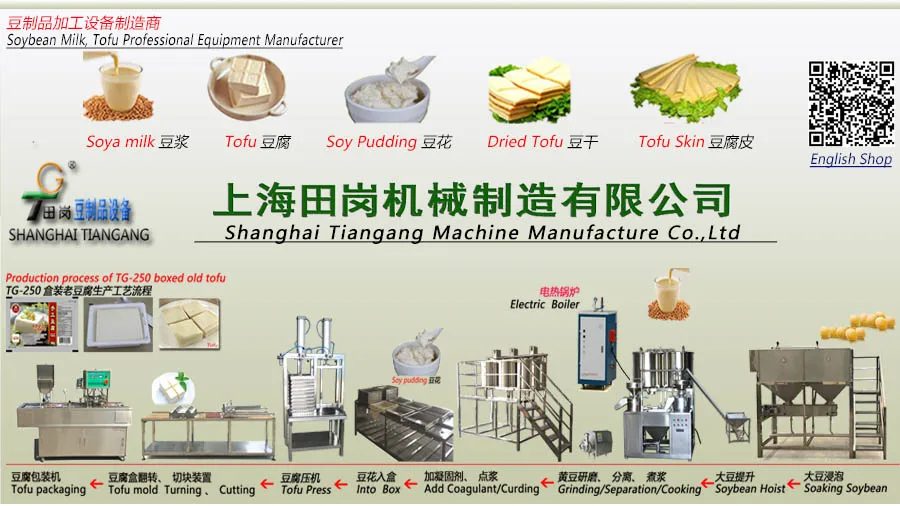

TG-250 soybean milk production process:
1. Soybean lift pump (The soaked soy beans and water will be mixed and raised.The water will return to the original bucket and soy beans remain in the hopper).

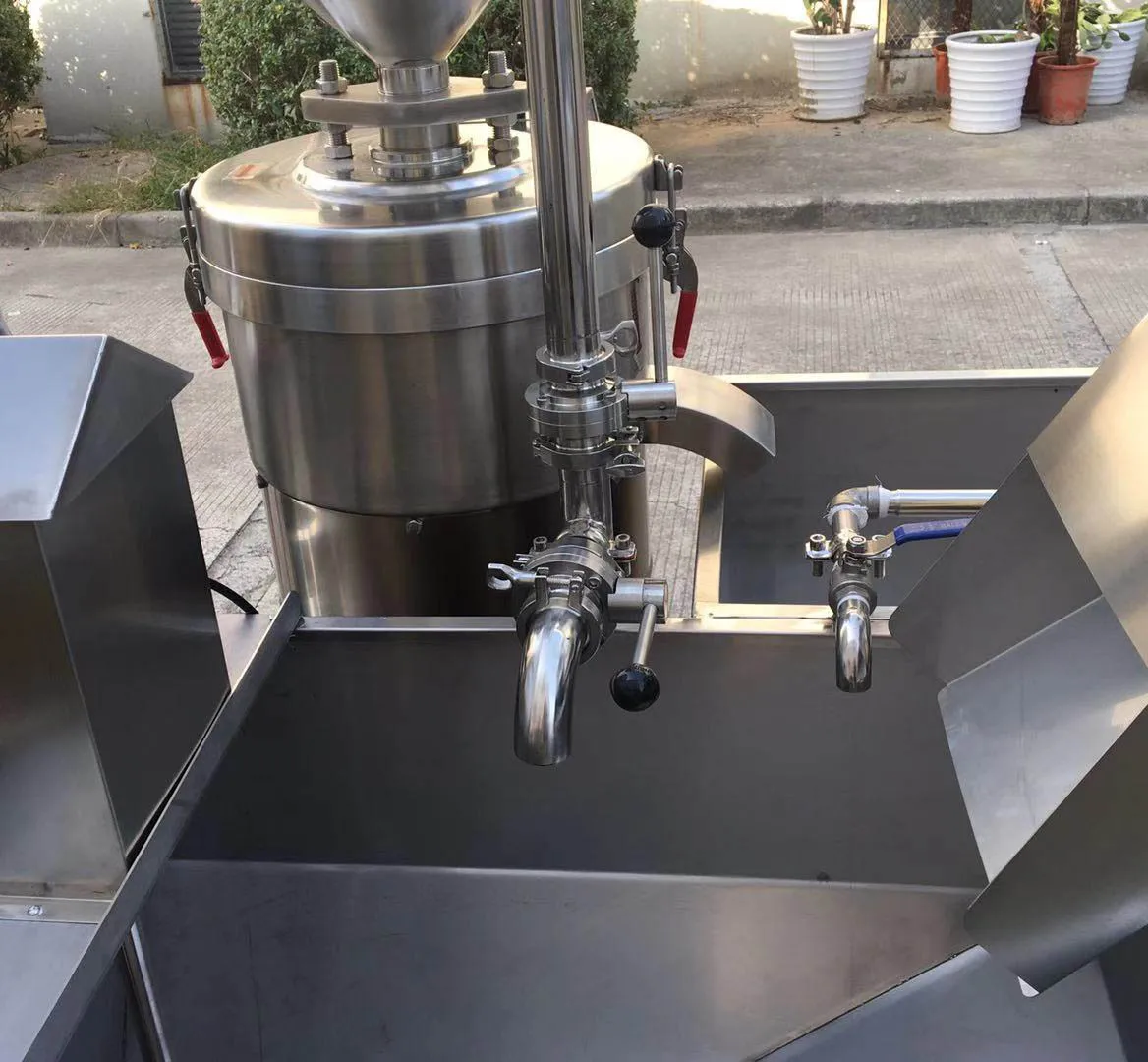

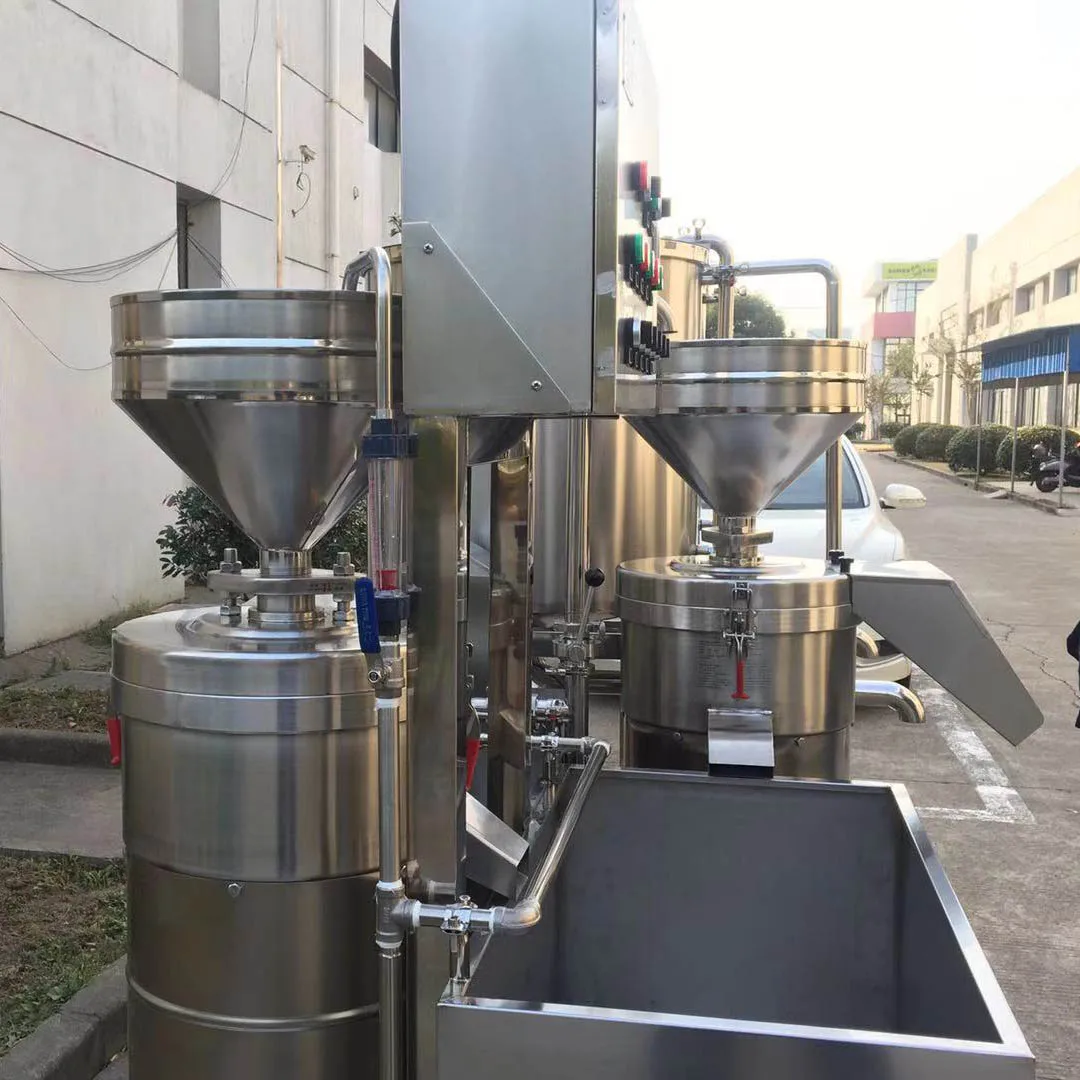

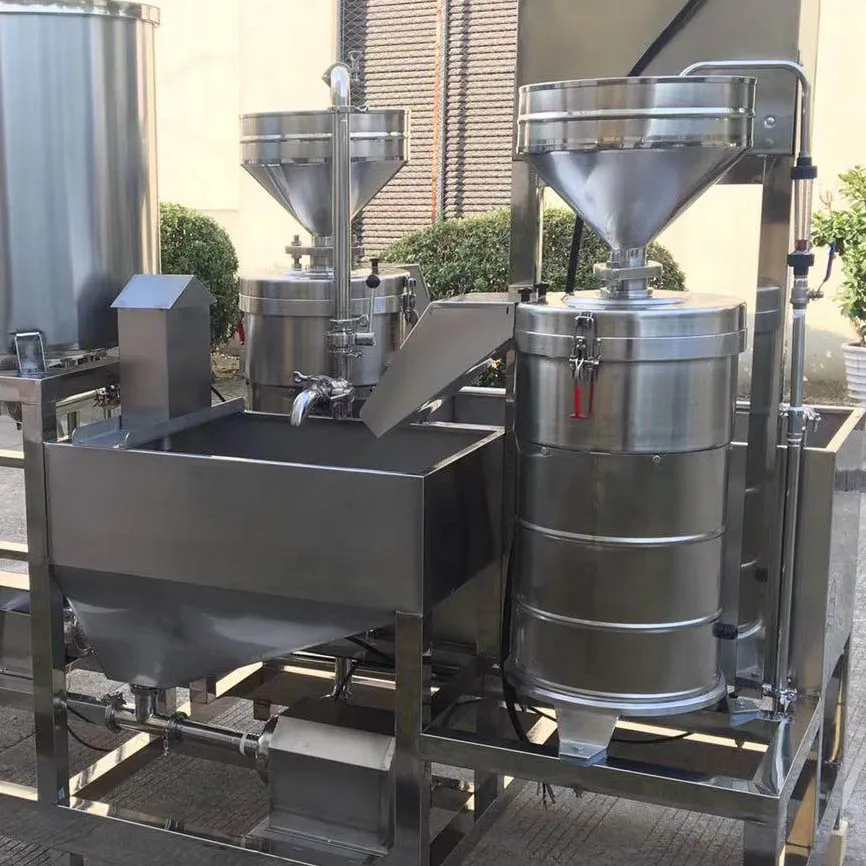

2. TGM-200 soy bean grinder (soaked soy beans are ground with water and the soybean residue will be separated from soya milk).
3. Adding water to the bean dregs to stir to make Paste.
4, Okara suction pump (Soy Okara is circulated by stainless steel centrifugal pump.sanitary circulation pipe valve can adjust flow).
5. TGM-200 The second grinding of Soy Okara

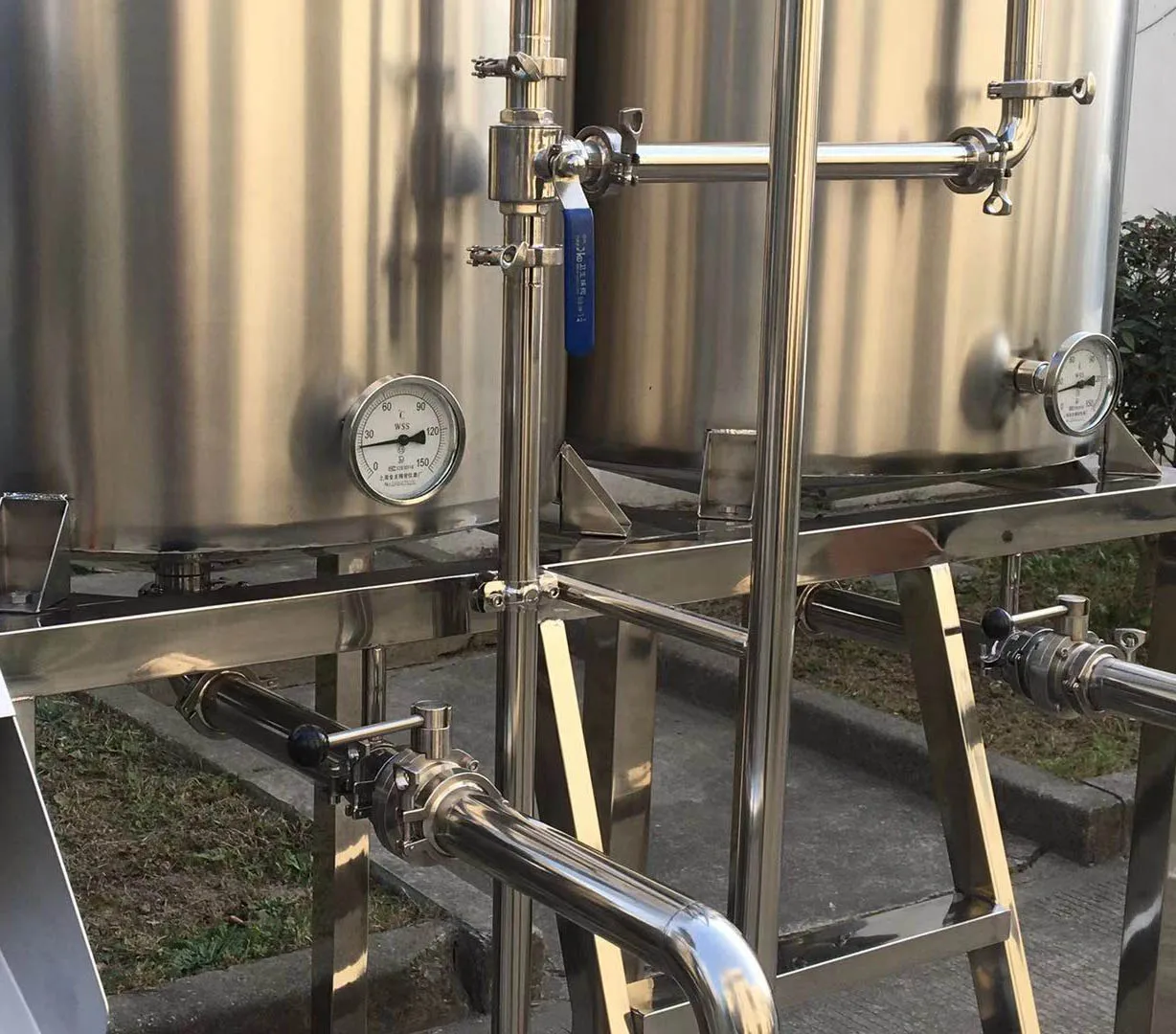

6. Soy milk is pumped to the cooking barrel and steamed for cooking. (External steam boiler)
1. Soybean lift pump (The soaked soy beans and water will be mixed and raised.The water will return to the original bucket and soy beans remain in the hopper).
2. TGM-200 soy bean grinder (soaked soy beans are ground with water and the soybean residue will be separated from soya milk).
3. Adding water to the bean dregs to stir to make Paste.
4, Okara suction pump (Soy Okara is circulated by stainless steel centrifugal pump.sanitary circulation pipe valve can adjust flow).
5. TGM-200 The second grinding of Soy Okara
6. Soy milk is pumped to the cooking barrel and steamed for cooking. (External steam boiler)
Main technical data:
1、voltage：380V/50HZ
2、power of beans-sucking pump:750W
3、power of dregs-sucking pump：900W
4、power of soymilk-sucking pump：750W
5、power of grinding soybeans：5000W
6、power of grinding dregs：5000W
7、water-input tie-in ：1/2″
8、steam-pipe tie-in：3/4″
9、cooking barrel volume：270L
10、size：2800mm×1000mm×2250mm
2、power of beans-sucking pump:750W
3、power of dregs-sucking pump：900W
4、power of soymilk-sucking pump：750W
5、power of grinding soybeans：5000W
6、power of grinding dregs：5000W
7、water-input tie-in ：1/2″
8、steam-pipe tie-in：3/4″
9、cooking barrel volume：270L
10、size：2800mm×1000mm×2250mm
Features:

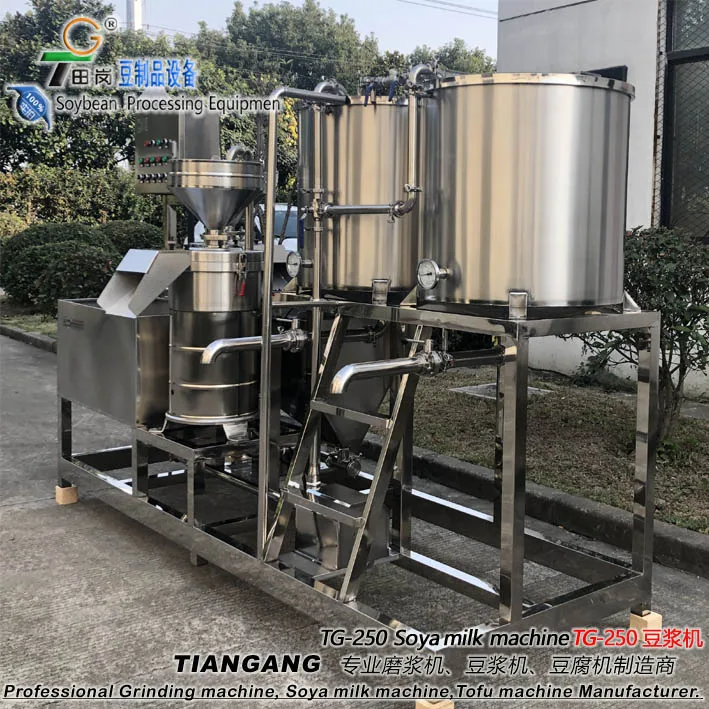

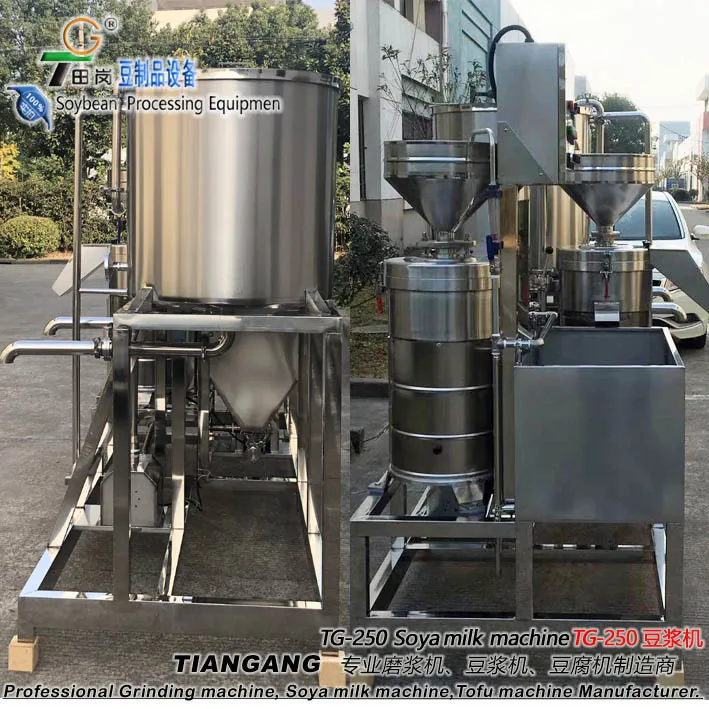

The machine of entire stainless steel structure, twice grinding paste systems, two barrel cooking soymilk, composed of two grinding & separating machines, suction pumps, bean-dreg pumps, soybean milk barrel, bean-dreg barrel, cooking soybean barrel and so on. External connect steam.
(Need to bring their own steam boiler, steam evaporation: 100kg/hr more
The types of electric heating boilers, gas heating, diesel heating, coal or wood heating, etc. Select the appropriate model to use their own)

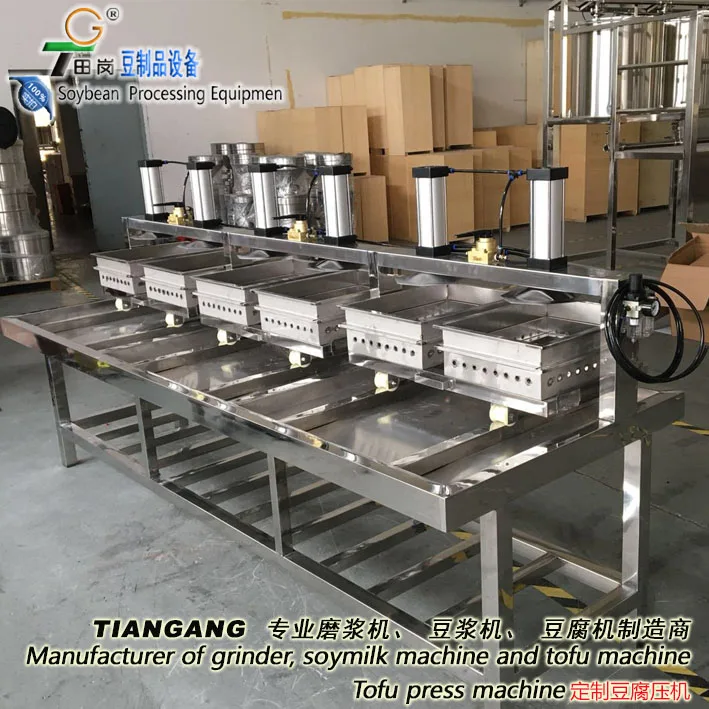

Do tofu, the need to increase bean product pressing machine.
(Need to bring their own steam boiler, steam evaporation: 100kg/hr more
The types of electric heating boilers, gas heating, diesel heating, coal or wood heating, etc. Select the appropriate model to use their own)
Do tofu, the need to increase bean product pressing machine.
Shanghai Tiangang Machine Manufacture Co.Ltd. has been engaged in manufacturing soybean processing machine for .
Our products are widely used all over the world . Mainly including Food grinding machine,Colloid mill,Commercial Soya milk machine, Tofu making machine, packaging and other soybean processing machinery.

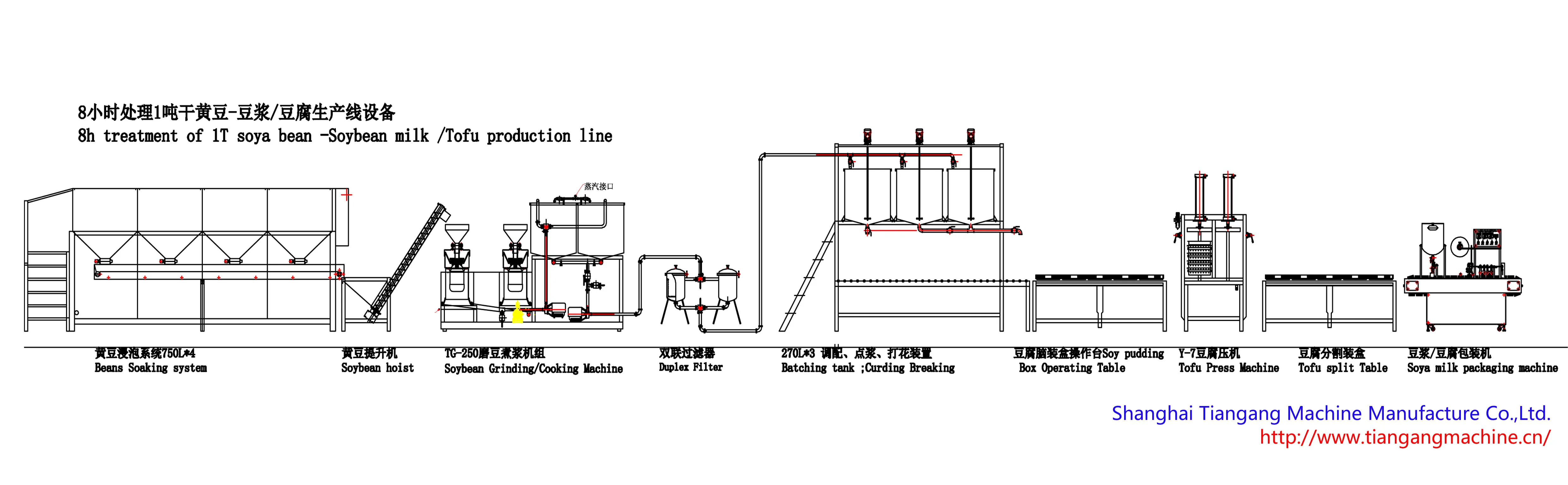

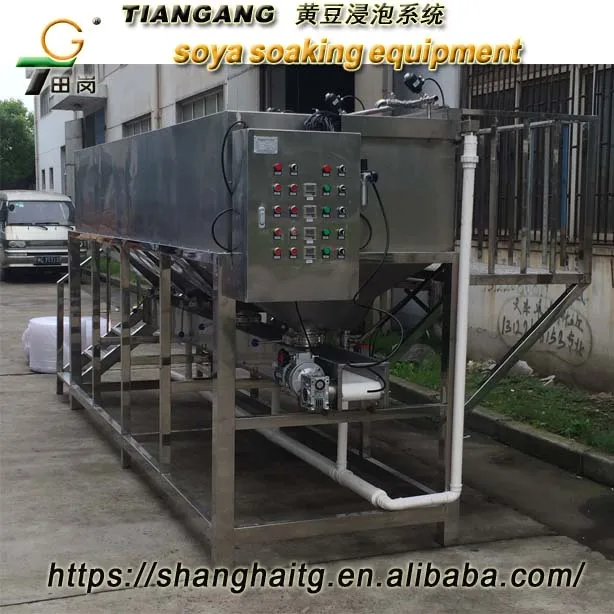

Also,we can provide whole sets of soymilk and tofu processing line, consist of soybean soaking,suction of soybeans,grinding and separating,cooking,breaking,pressing and sterilization ,packaging other.
More importantly is we can design turn-key project according to customers' needs. Our salesmen as well as engineers are know very well about our products,they will serve you with all their profession and sincerity.
Looking forward to cooperating with you in the near future !
Our products are widely used all over the world . Mainly including Food grinding machine,Colloid mill,Commercial Soya milk machine, Tofu making machine, packaging and other soybean processing machinery.
Also,we can provide whole sets of soymilk and tofu processing line, consist of soybean soaking,suction of soybeans,grinding and separating,cooking,breaking,pressing and sterilization ,packaging other.
More importantly is we can design turn-key project according to customers' needs. Our salesmen as well as engineers are know very well about our products,they will serve you with all their profession and sincerity.
Looking forward to cooperating with you in the near future !
