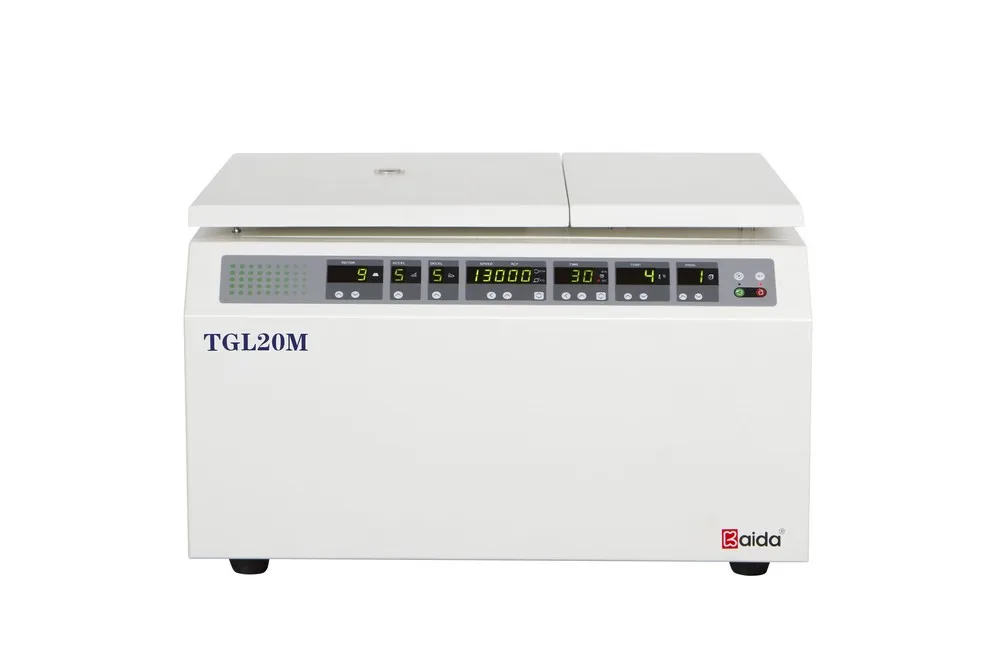

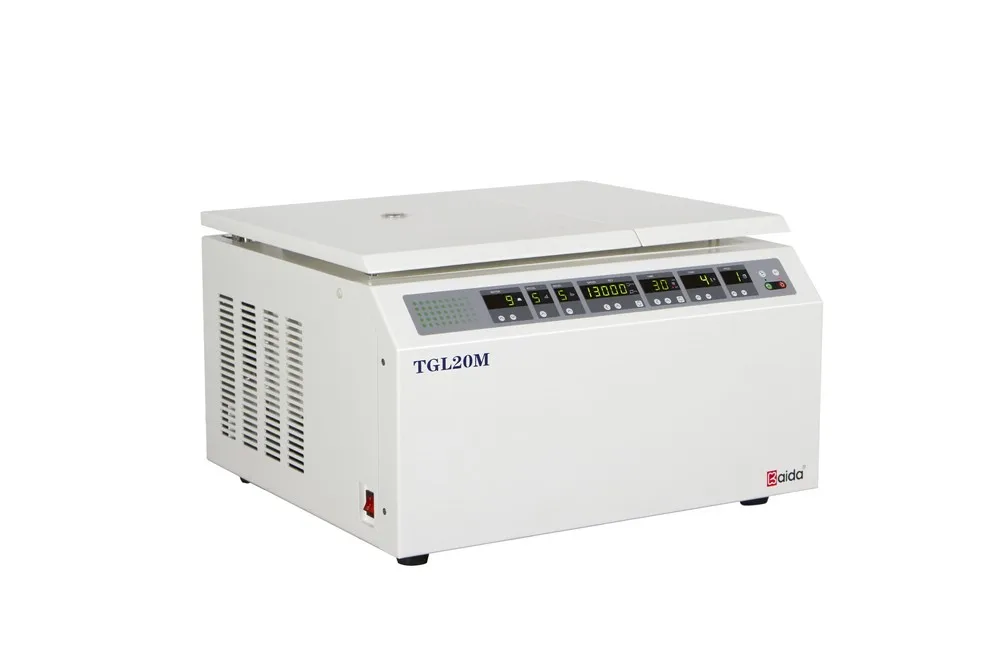

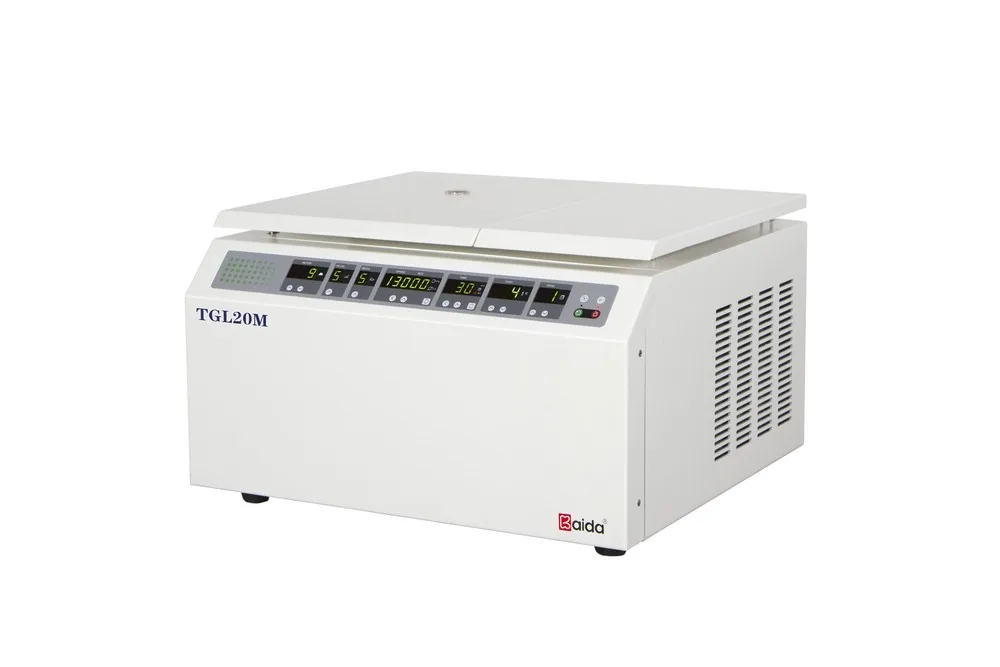

TGL20M Table type High speed and refrigerated china medical centrifuges, refrigerated high speed lab centrifuge

Product Overview

Description

TGL20M  Table type High speed and refrigerated china medical centrifuges, refrigerated high speed lab centrifuge



1. Microprocessor control, operated by touch panel, LED display, operating data can be saved automatically, RCF value can be set directly for working, easy to use.
2. Brushless converter motor which has high torque, high speed bearing from European that running smoothly and maintenance-free
3. Freon-free compressor, fast cooling, low noise and slight vibration, green.
4. Steel body, stainless steel centrifugal chamber, imported of key components with high quality, durable and easy to clean
5. overspeed, overtemperature, door interlock, unbalance protection function, the rotor can be disinfected at high temperature and high pressure to ensure safety.

refrigerated centrifuge techinical parameter :

Model	TGL20M
Maximum RPM	20500r/min
Maximum RCF	29200 x g
Maximum Capacity	400ml
Temperature Range	-20°C - +40°C
Time Range	0-99min
Speed Accuracy	±50r/min
Temperature Accuracy	±1°C
Noise	≤65dB
Power supply	AC220V, 50Hz,18A
Dimension	650 x 580 x 370 mm
Net Weight	95 kg

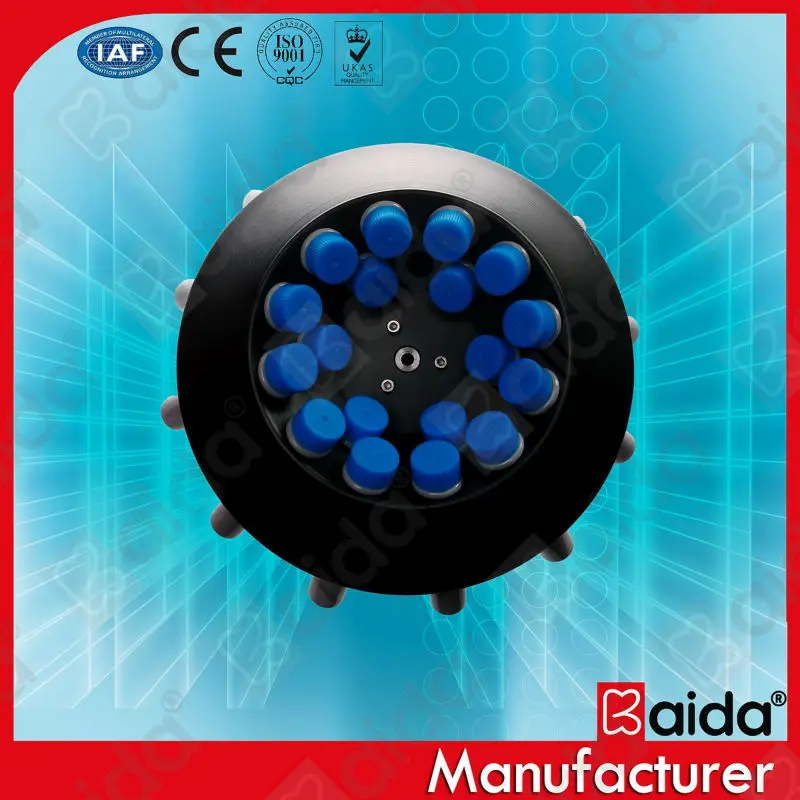

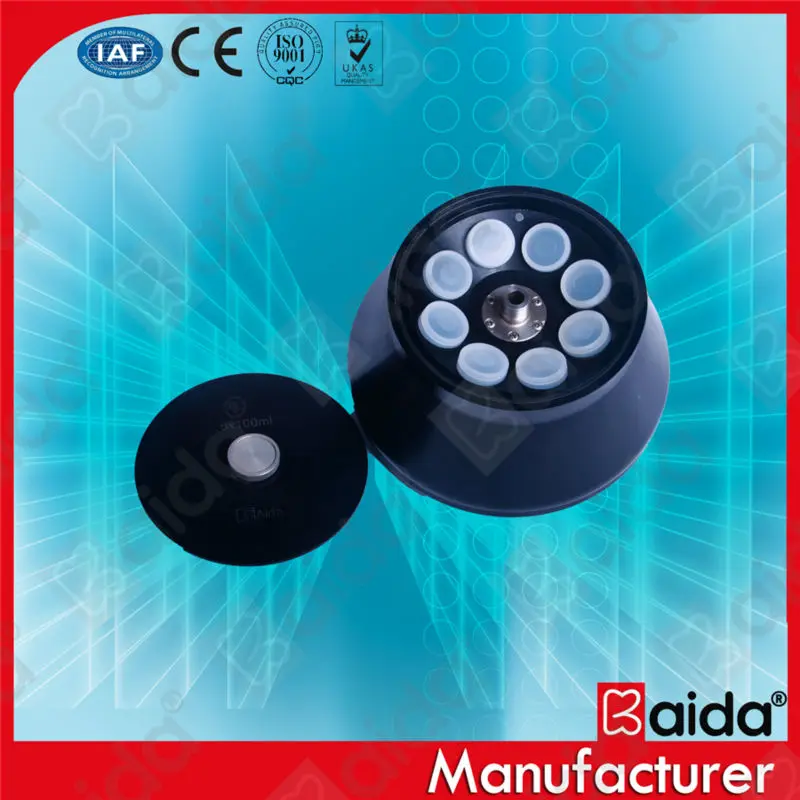

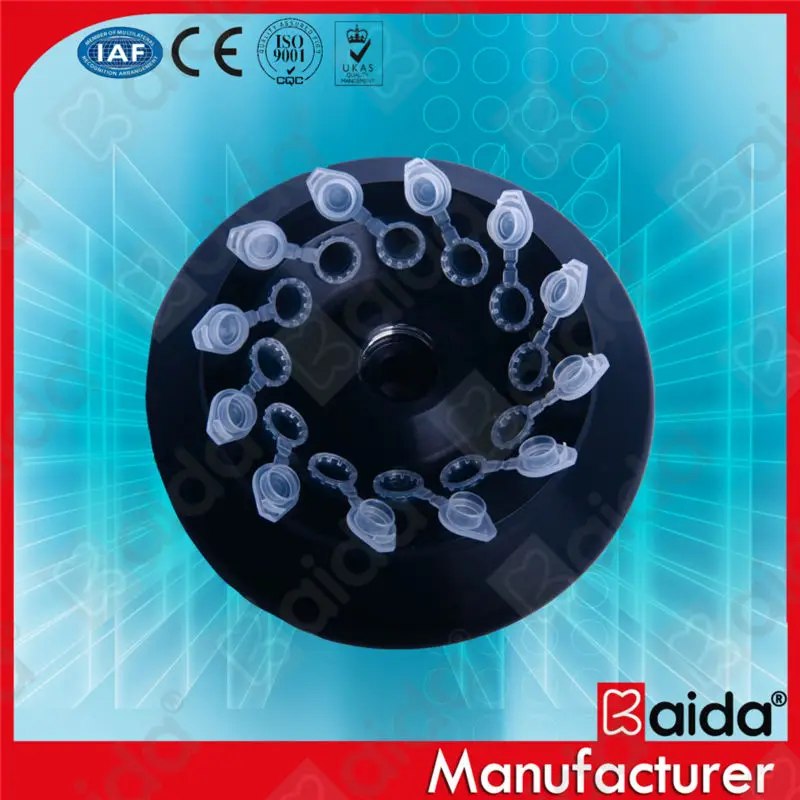

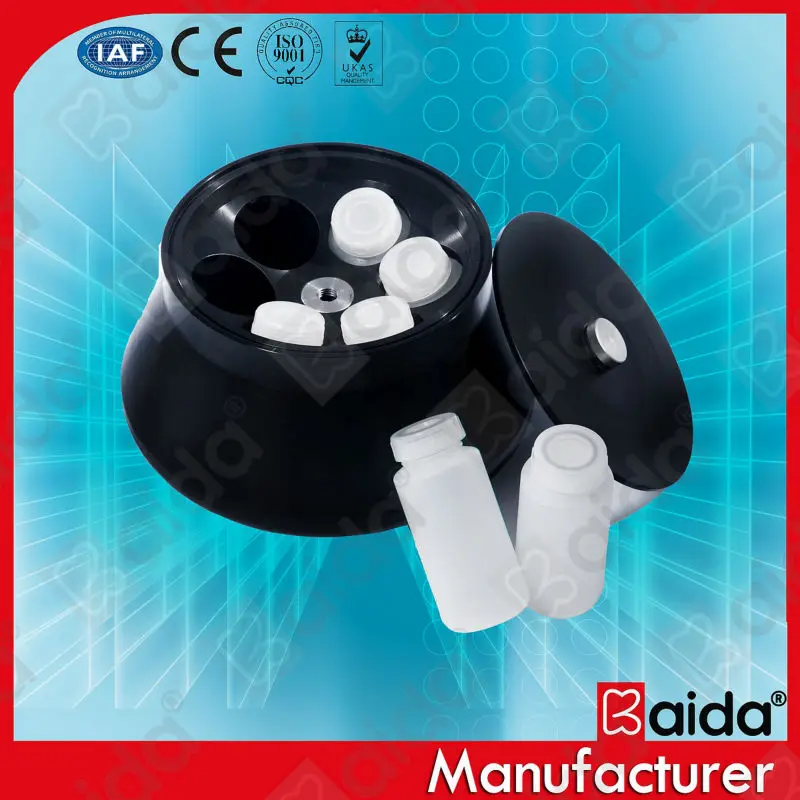

refrigerated centrifuge Rotors

Rotor Type	Rotor No.	Capacity (ml)	Max Speed (r/min)	Max RCF (xg)	Dimension of tube (mm)
Angle rotor	6	12x 1.5/2.0ml	20500	29200	Φ10x42
	9	24x 1.5/2.0ml	16000	23200	Φ10x42
	12	10x5ml	16000	17420	Φ14x54
	16	12x10ml	15000	23120	Φ16x81
	18	48x0.5ml	13000	14740	Φ8x32
	22	6x50ml	13000	17380	Φ28x105
	31	4x100ml	10000	9690	Φ38x124
	88	4x10ml	4000	1431	Φ18x85
Microplate rotor	44	2x48 holes	3000	1400	Microplate



Remarks: If you have any request of the centrifuge, please feel free to let us know. Your request will always draw our first attention.



Product photos :

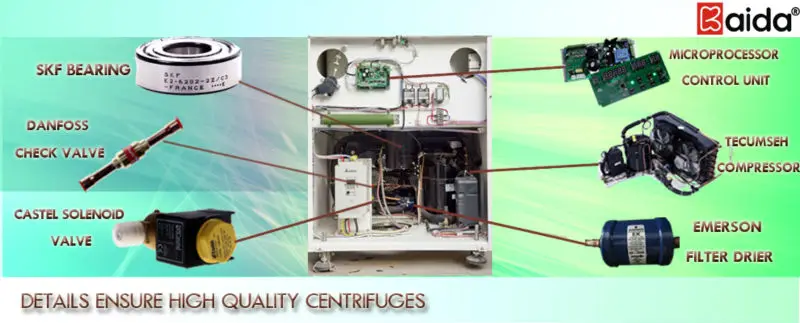

Details components in the centrifuges

Danfoss checking valve for centrifuge



SKF bearing in the power-driven machine for centrifuge



frequency converter for centrifuge



microcompressor control pannel for centrifuge





In 2008 the program in China for aid to Cuba, Kaida is the only one centrifuge supplier in this program and sold 102 sets of DL6M to Cuba blood center.





Packing and delivery
