4 inch Round LED STT Light 12V 4 inch round LED STT lamp trailer DOT SAE
- Category: >>>
- Supplier: Yuyao HOJA Lighting Products Co. Ltd.
Share on (1155250353):
Product Overview
Description
4 inch Round LED STT Light 12V 4 inch round LED STT lamp trailer DOT SAE
Features:
- Choice of 7 LEDs, 12 LEDs or 32 LEDs versions; super bright LEDs of SMD type or 5mm
- Stop, Turn, Tail functions combined.
- Engineered lens optics
- PC lens and housing welded together to ensure a permanent and water proof seal.
- LED circuit board coated with conformal coating for excellent moisture and environmental protection
- Right angle 3-prong plug assembly, PVC grommet mounting; also available in flange mount version by special order
- Super long life span up to 100,000 hours
- Meets DOT FMVSS 108/SAE requirements except Amber versions of 7 LEDs (104207A)
Rated for 12V, tested to 13.8V - Also available in multi-voltage 10~30V operating range, or 24V (special order only – minimum may apply)
Specifications:
Part No. | Description | Input Voltage | Nos. of LEDs | LED Type | Lighting Color | Current Draw (mA) at 13.8V |

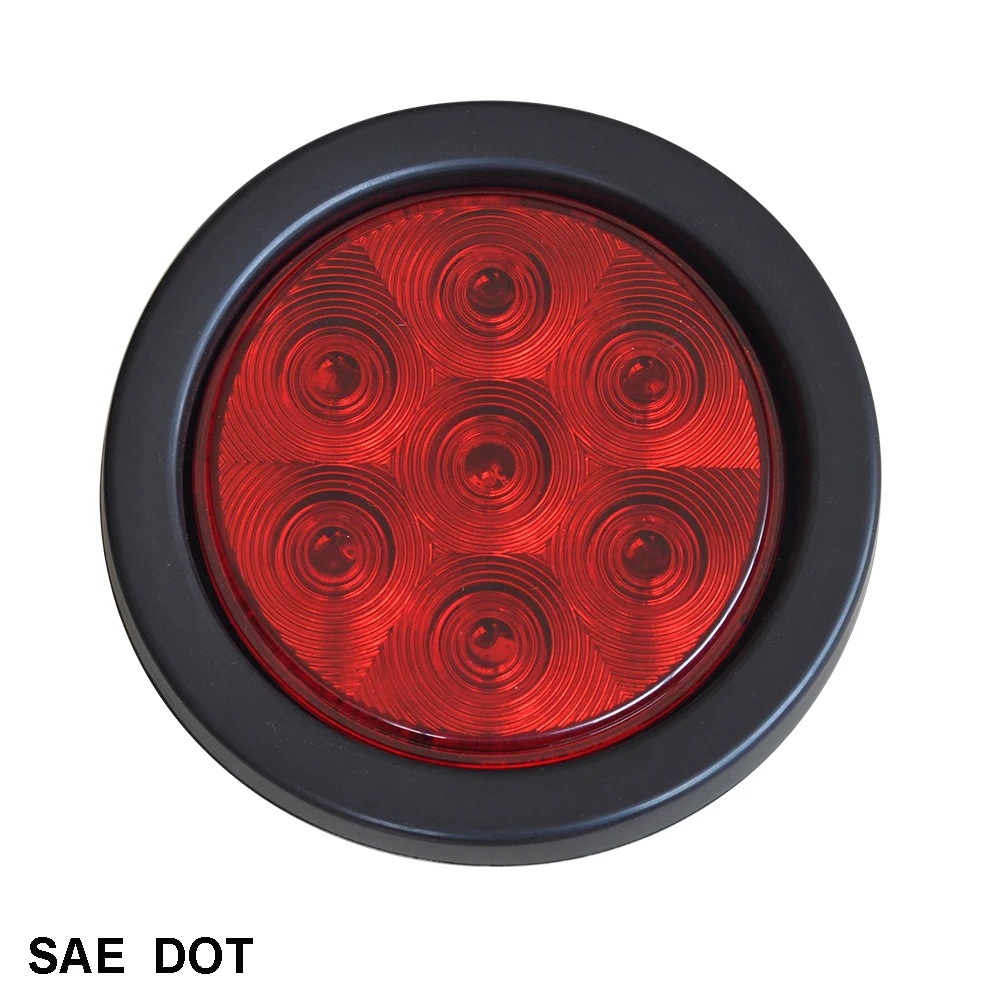

104207R | Grommet Kit | 12 V | 7 | SMD | Red | 15/150 mA |
104207A | Grommet Kit | 12 V | 7 | SMD | Amber | 150 mA |
104207C | Grommet Kit | 12 V | 7 | SMD | White | 150 mA |
104112R | Grommet Kit | 12 V | 12 | SMD | Red | 20/200 mA |
104112A | Grommet Kit | 12 V | 12 | SMD | Amber | 200 mA |
104112C | Grommet Kit | 12 V | 12 | SMD | White | 200 mA |

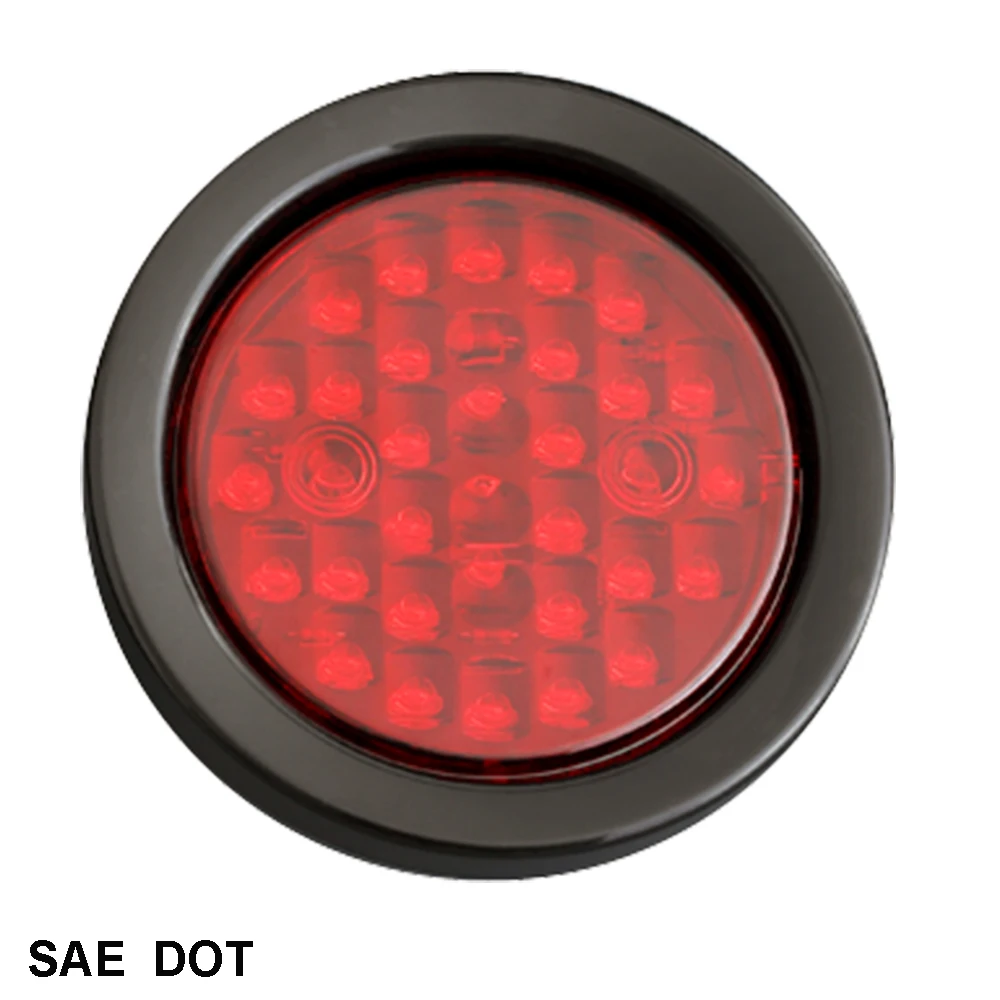

104232R | Grommet Kit | 12 V | 32 | 5 mm | Red | 20/145 mA |

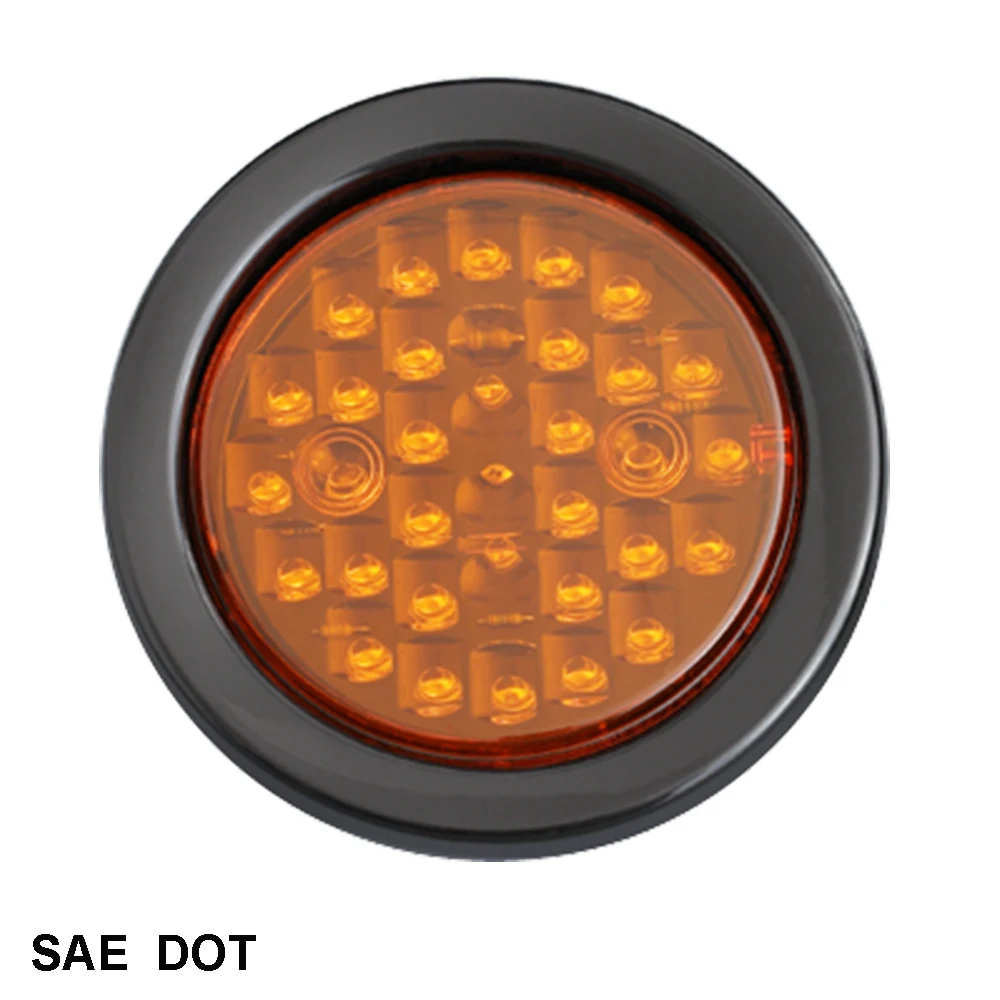

104232A | Grommet Kit | 12 V | 32 | 5 mm | Amber | 145 mA |
104232C | Grommet Kit | 12 V | 32 | 5 mm | White | 145 mA |
104207RM | Grommet Kit | 12~24 V | 7 | SMD | Red | 10/100 mA |
104207AM | Grommet Kit | 12~24 V | 7 | SMD | Amber | 100 mA |
104207CM | Grommet Kit | 12~24 V | 7 | SMD | White | 100 mA |
104112RM | Grommet Kit | 12~24 V | 12 | SMD | Red | 15/150 mA |
104112AM | Grommet Kit | 12~24 V | 12 | SMD | Amber | 150 mA |
104112CM | Grommet Kit | 12~24 V | 12 | SMD | White | 150 mA |
104232RM | Grommet Kit | 12~24 V | 32 | 5 mm | Red | 20/145 mA |
104232AM | Grommet Kit | 12~24 V | 32 | 5 mm | Amber | 145 mA |
104232CM | Grommet Kit | 12~24 V | 32 | 5 mm | White | 145 mA |
104200G | Grommet only for 4” Round Light | |||||
906403P | Right Angle 3 Prong Plug for 4” Round Light | |||||
Dimension:
