XURUI SS5GL 3 pin micro lever switch 3A 220V

XURUI SS5GL 3 pin micro lever switch 3A 220V

Category: Micro Switches >>>
Supplier: Zhejiang Xurui Electronic Co. Ltd. [Zhejiang China]Zhejiang

Price:RUB 14.87 - RUB 29.74

Quantity:

Product Overview

Description

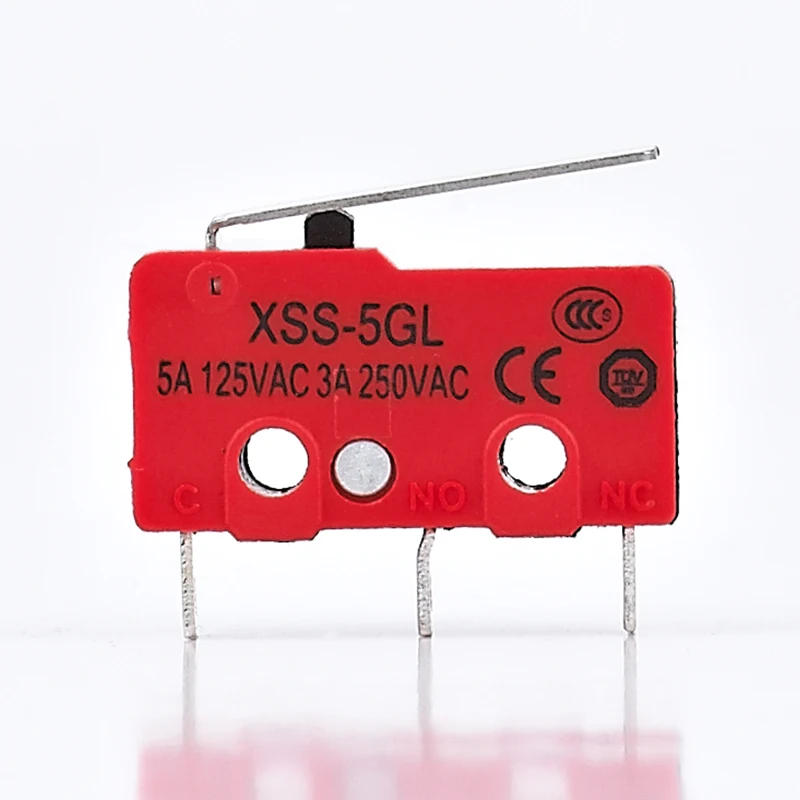

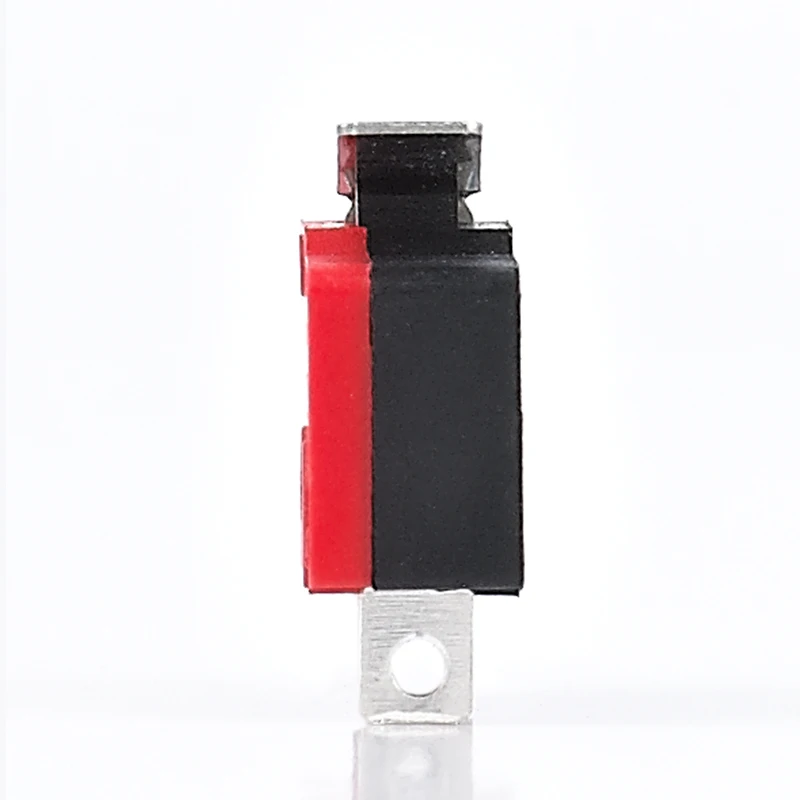

XURUI SS5GL 3 pin micro lever switch 3A 220V

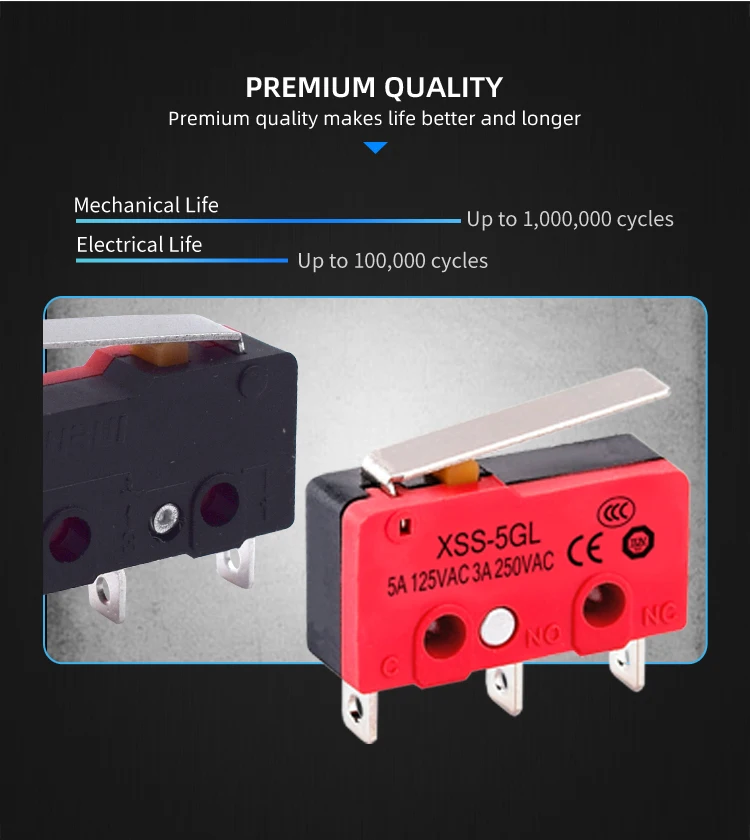

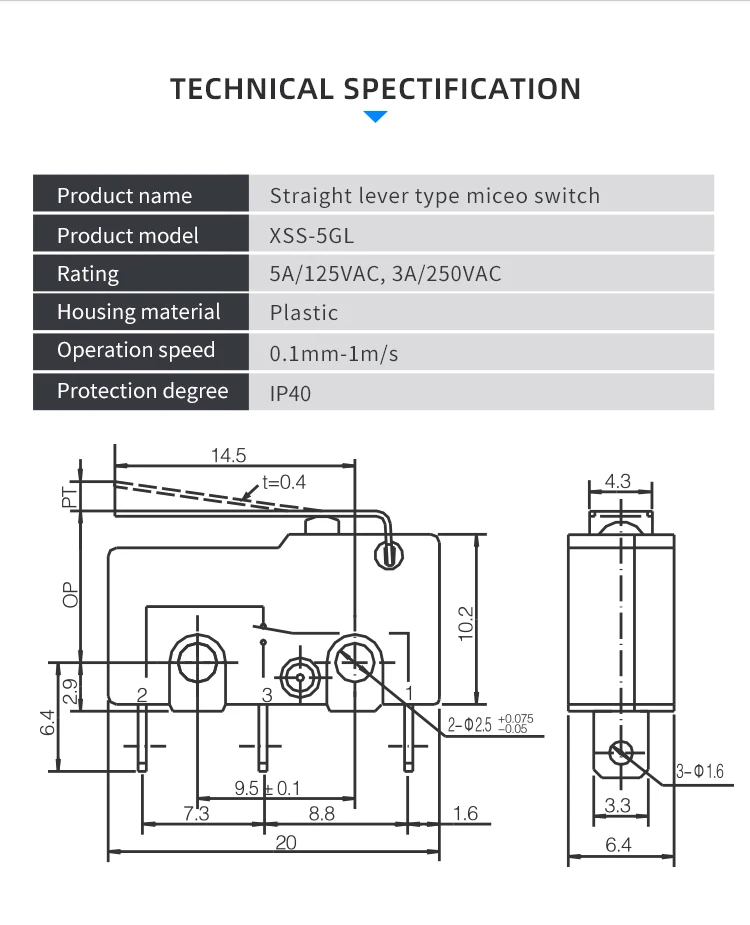

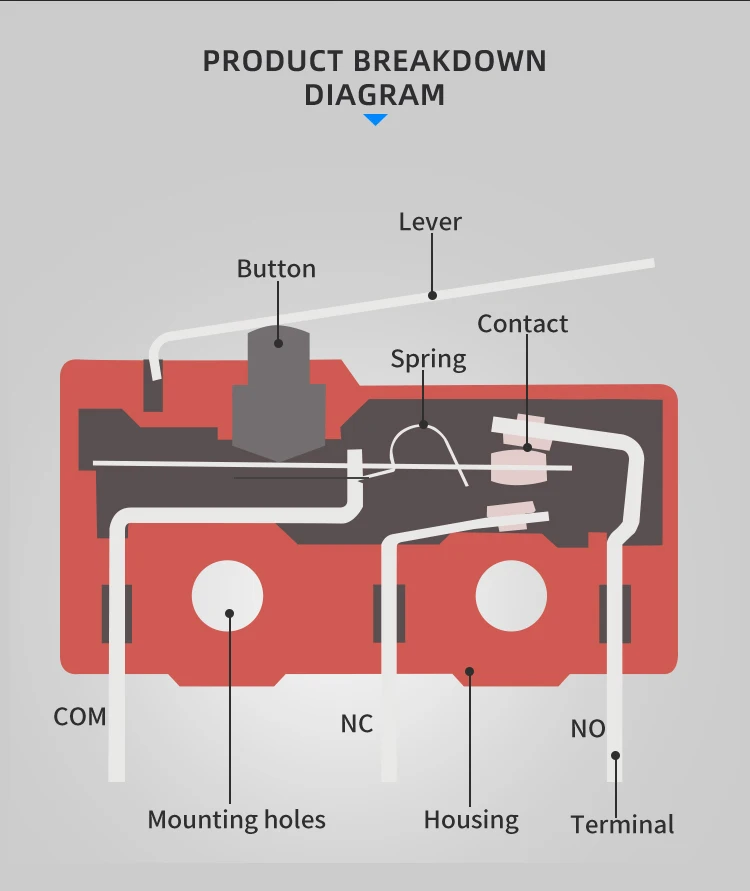

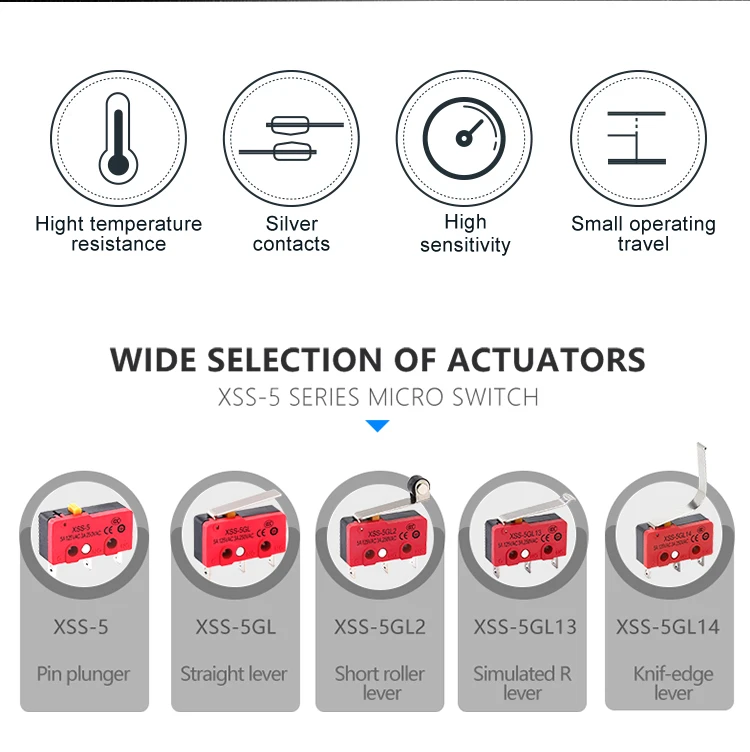

1-XSS-5GL 2-XSS-5GL 3-XSS-5GL 4-XSS-5GL 5-XSS-5GL

Item		Data
Rating load		5A/125VAC,3A/250VAC
Operating speed		0.1mm-1m/s
Operating frequency	Mechanical	400times/min
	Electrical	30times/min
Insulation resistance		100MΩ(Above)DC500V
Contact resistance		30MΩ(initial value)
Withstand voltage	Non-connection wire	1000VAC
	Every terminal	1500VAC
Vibration	Misoperation	10-55Hz Amplitude 1.5mm
Impact	Durable	1000m/s²
	Misoperation	300m/s²
Life	Electrical	100,000above
	Mechanical	1,000,000above
Protection degree		IP40
Operating temperature		-25~+80℃
Operating humidity		<85%

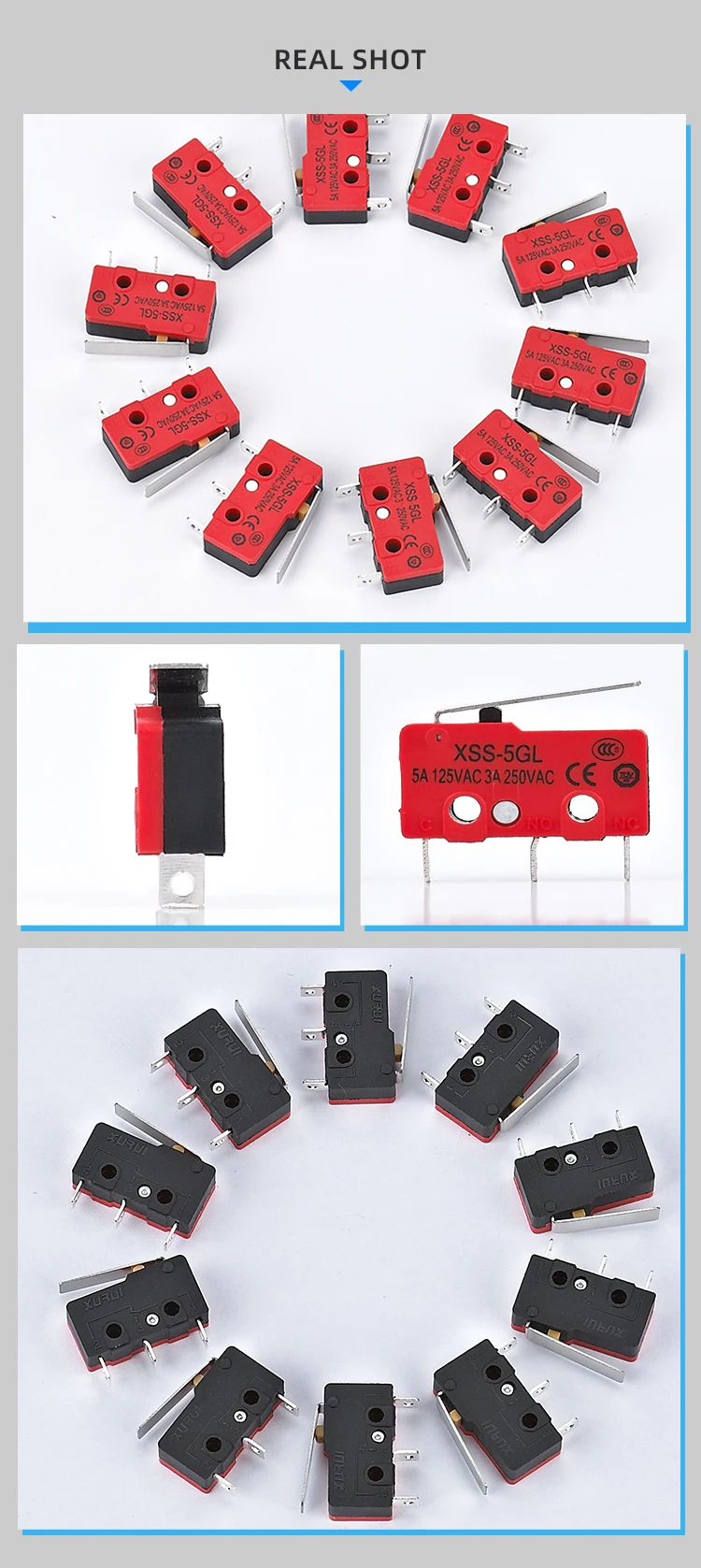

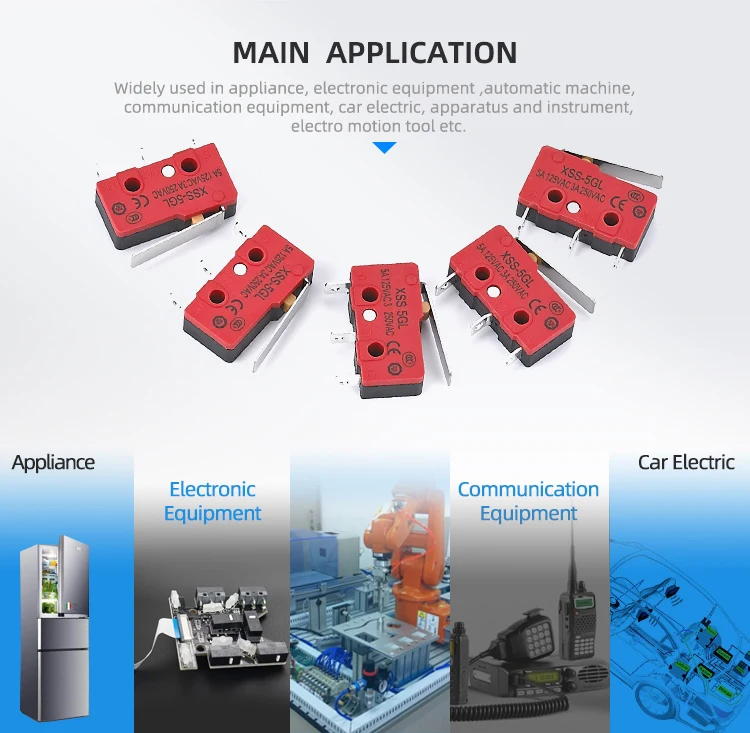

6-XSS-5GL 7-XSS-5GL

About Us

XURUI Electronics Co., Ltd was established in 2002, which is mainly engaged in the research, production and marketing of micro switch, limit switch,solid state relay , foot switch, toggle switch, proximity switch etc.

XURUI products have made their way to countries and regions such as the United States, Germany, South Korea, Japan, Turkey, Blegium and Egypt. The company also established sales agents as well as customer service centers in the United States, Italy, South Korea, and Egypt.

The company was approved by ISO9001, and a number of the products are also certified by other certification authorities such as CCC(China), CE(European Union), TUV(Germany),UL(US), KC(South Korea), and RoHS etc. Currently, the company boasts over fifty national patents, four patented products, and fifteen provincial-level new products etc.
