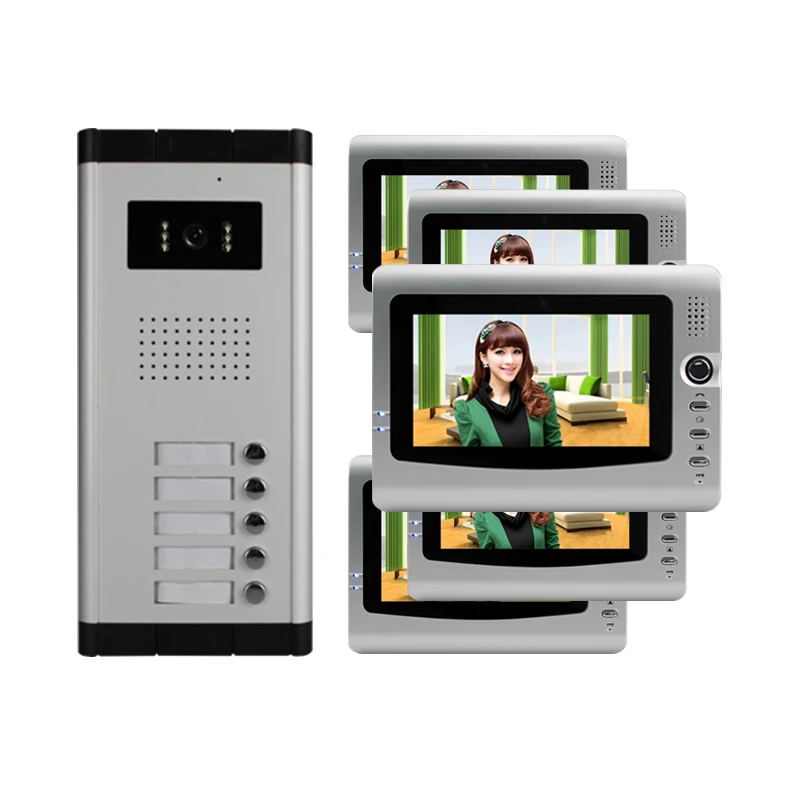

7 Inch Color 2 apartments Video Door Phone intercom building System

Product Overview

Description

TCP/IP 7 Inch Color Video Door Phone System/Ip Intercom

Function and Features:

1.  TCP/IP multi family plastic outdoor unit camera,good design,CMOS or CCD sensor.6 LED lights,nightvision.

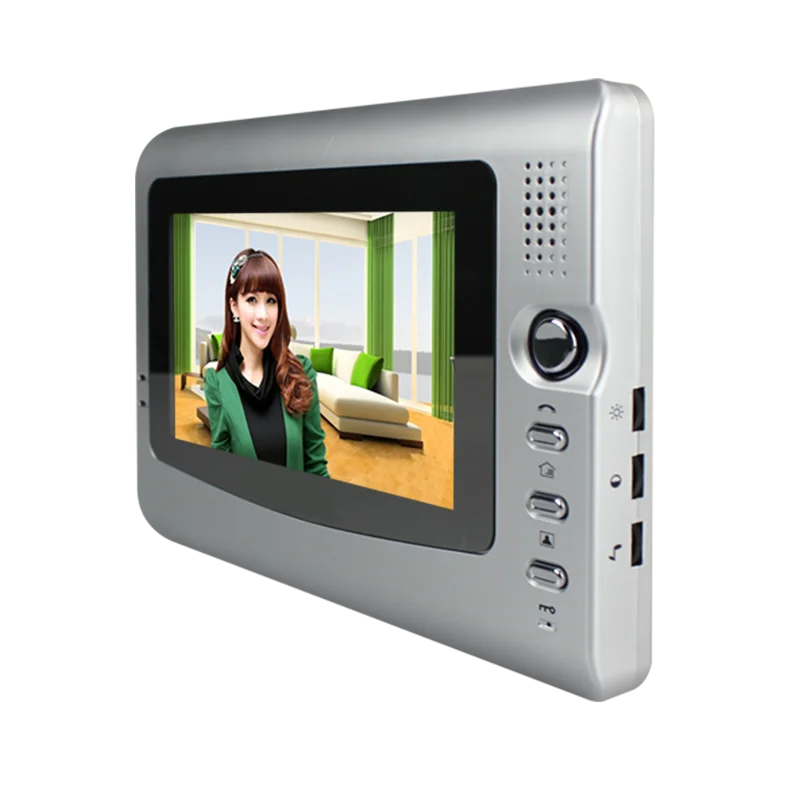

2. Touch button, handfree indoor monitor, 7 inch TFT digital screen,clear image.


3. intercommunication,monitoring the outdoor,unlock..


4. Intercommunication is available between indoor and outdoor unit..


5. Brightness, chroma and ring adjustable.


6. 3-chord melody rings for option.


7. Two cameras can connected with four monitors.(different choice)


8. Four wires,DIY installation


9. Including in one kit:One indoor monitor, one outdoor camera, power adapter, user manual,cables.


10. Packing detail: Color box,5sets in one carton.


11. Surface mounting for camera and monitor


12. Monitor dimension: 225(L)×168(W)×29(H)mm


13. Camera dimension:113(L)×140(W)×33(H)mm


14. Wiring requirements:30M: RVV4 X 0.5 mm,50M: RVV4 X 0.75 mm,100M: RVV4 X 1.0 mm

Data of Technology:

1. Night vision illumination distance; more than 10 meters, intercom with outdoor unit, unlock, monitor function.


2. Gain control: Automatic


3. Working temperature: -10 C- 50 C


4. Illumination: 0.1 Lux


5. Camera angle: 92 C degrees wide-angle


6. Adapter input voltage: AC100-240V  50Hz-60Hz


7. Adapter output voltage  current: AC14.5V  1200mA


8. Talk time delay: 90S


9. Monitor time delay: 30S


10. Dissipation: stand-by <0.5W ; working <10W


11. Relative humidity: 10 % - 90%(RH)













Package:  1pcs/ box

Delivery Time: 3working days after getting your payment for your trial order. Bulk order need to check with us according to your order quantity.

1. Fast reply your enquires with 24hours


2. Top of security equipment manufacturer and supplier


3. OEM/ODM welcome


4. Exclusive design, different for better products with competitive price


5. Strongly support technology and after-sale service


6. 2years quality warranty


7. Fast delivery, always have the goods in our stock.


8. Payment: TT or Western Union, MoneyGram


9. Shipping: We have the strong cooperation with DHL, UPS, EMS, Fedex, China Post, you also  can choice your forwarder.
