45 / 60 degree hopper bottom barley storage steel silo
- Category: >>>
- Supplier: Zibo Boda Steel Silo Co. Ltd.
Share on (1157901996):
Product Overview
Description
All silos include
Boda silo itself includes these components that come free of charge (the silo diameter should be equal to or more than 5.5m)
l Roof Natural vents
l Roof guardrail
l Roof manhole
l Roof ladders
l Silo door
l Silo door platform
l Inside and outside ladders on silo body
Main structure of BODA Steel Hopper Bottom Storage Silo | |||
Item | Materials | Quality Standard | Features |
Roof Sheet | By Hot Dip Galvanized Steel Plate, | China National Standard with Factory Quality Report | Our Corrugated Steel Plate Production Line is controlled by advanced CNC equipments |
Natural vents | By Hot Dip Galvanized Steel Plate, | China National Standard with Factory Quality Report | Production Line is controlled by advanced equipments |
Manhole | By Hot Dip Galvanized Steel Plate, | China National Standard with Factory Quality Report | Production Line is controlled by advanced equipments |
Simple roof ladder | By Hot Dip Galvanized Steel Plate, | China National Standard with Factory Quality Report | Assembly type, Production Line is controlled by advanced equipments |
Roof handrail | By Hot Dip Galvanized Steel Pipe | China National Standard with Factory Quality Report | Assembly type, Production Line is controlled by advanced equipments |
Body Sheet | By Hot Dip Galvanized Steel Plate, | China National Standard with Factory Quality Report | Our Corrugated Steel Plate Production Line is controlled by advanced CNC equipments |
Bolts and nuts | Hot Dip Galvanized, Strengthened, with hex flange for Max Sealing | Quality Strength Report | Hot dip galvanized with longer life |
Other sealant | Like as washers and caulking strip | China National Standard with Factory Quality Report | Purchased from reliable qualified suppliers |
Rib Stiffeners | Sidewall stiffeners are manufactured from min. 450 N/mm² tensile high strength steel. This type of stiffeners easily transit the vertical loads during loading or unloading | China National Standard with Factory Quality Report | Can be inside or outside. Rigorous calculation to meet full silo strength safety |
Wind Ring | The wind ring is attached directly to the stiffeners. The rings strengthen the silo providing reinforcement against damaging wind. | China National Standard with Factory Quality Report | Rigorous calculation to meet the anti-wind needs for sea port area or windy area |
Silo door with platform | A standard manhole door is located in the second ring of the silo. Double size door with strong frame and block system. | China National Standard with Factory Quality Report | Easy to inspect and maintenance. |
Vertical Ladders | We offer both inside and outside ladders for most silos.The outside kinds have handrail or safety guard. | China National Standard with Factory Quality Report | Can be installed inside and outside of the silo body, Easy to inspect and maintenance. |

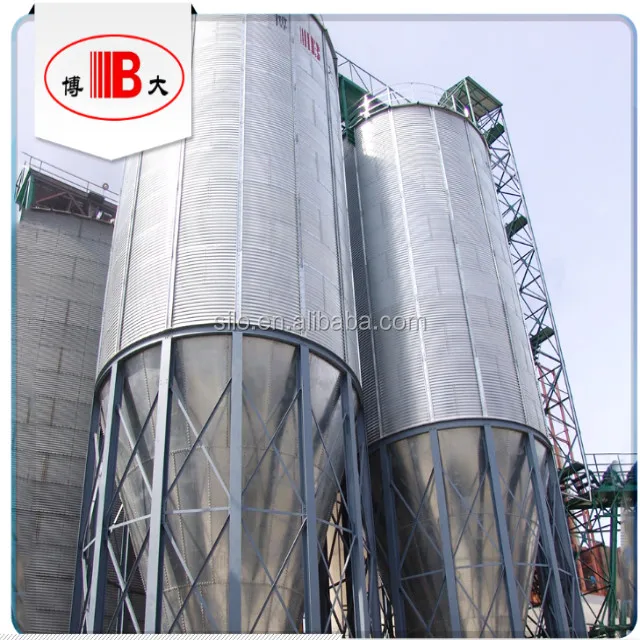

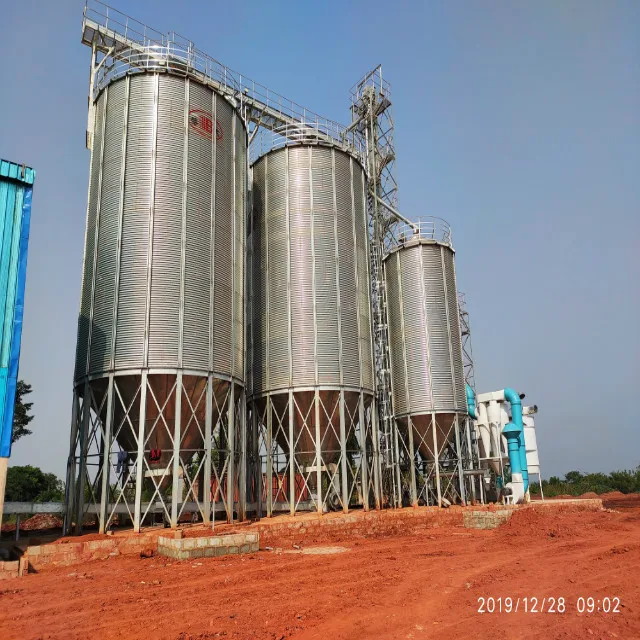

Steel hopper | Including hopper bottom sheets, steel support legs made by H beam, lintel girder made by channel beam and braces made of angle steel between legs. | China National Standard with Factory Quality Report | Automatic-flow unloading; easily to be installed; save foundation and operation resources and costs; less grain residues in steel insulated rice storage silo; |
|
|
| |
