Product Overview
Description

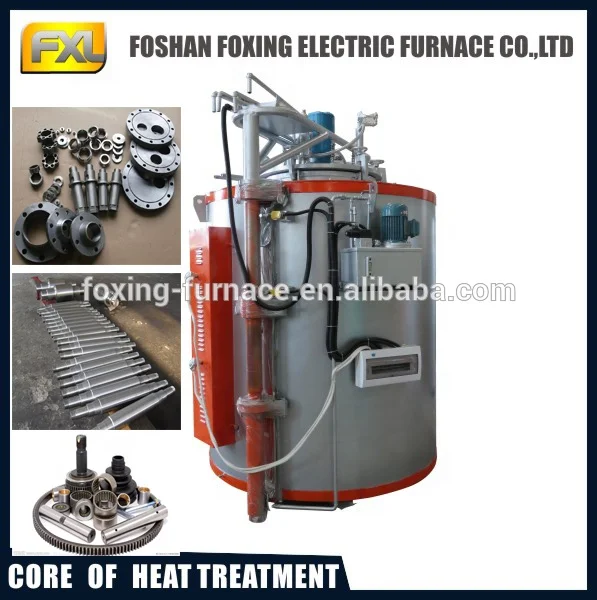

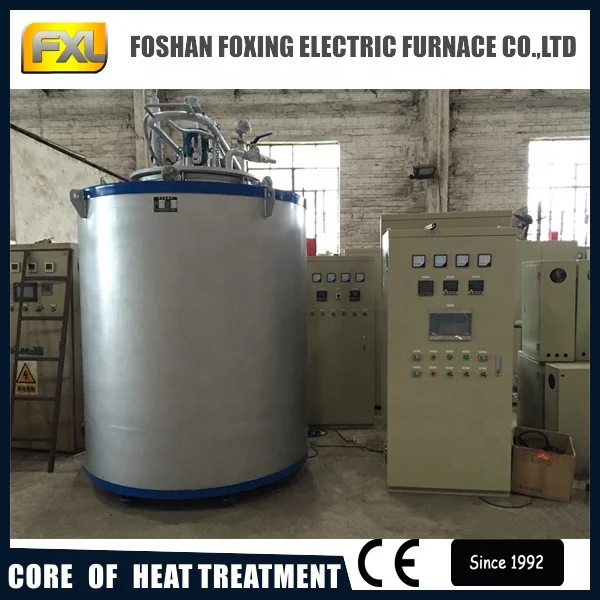

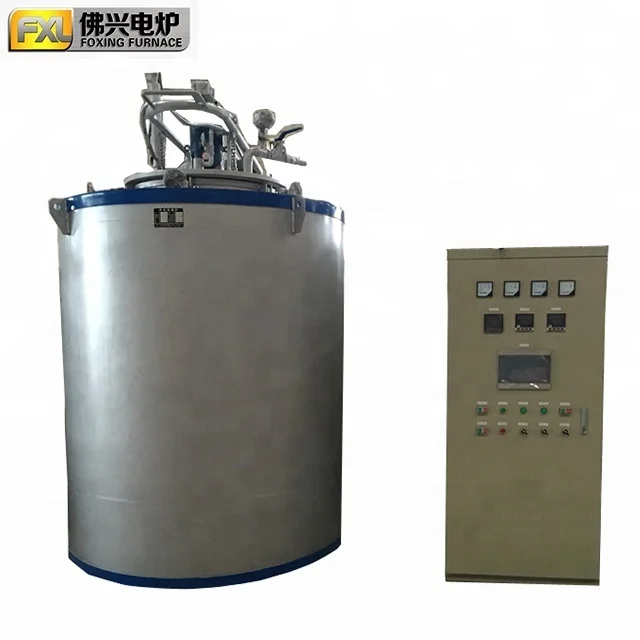

pit type tempering oven for steel parts, batch oven
introduction
1.Use for heat treatment in air of steel parts especially the long pieces .When the process requires, may pass into the protective atmosphere to reduce oxidation of the workpiece.
2.Two area control ,using intelligent digital display instrument with silicon controlled temperature control, alsohave heat preservation time relay, with the function of overtemperature alarm.
3.The heating element is 0Cr21Al6Nb heating filament.
4.Lining by energy-saving light and aluminum silicate refractory fiber and diatomite brick.
5.Furnace cover open by leverage.
6.Equipped with heat resistant steel skirts in the middle.
technical parameters of 950 °C well type resistance furnace
model | Rated power (KW) | phase | Chamber size(diameter×depth) (mm) |
application |
RJ2-40-9 | 40 | 3 | Φ600×800 |
Use for heat treatment in air of steel parts especially the long pieces,(such as axial).When the process requires, may pass into the protective atmosphere to reduce oxidation of the workpiece.
|
RJ2-50-9 | 50 | 3 | Φ600×1000 | |
RJ2-65-9 | 65 | 3 | Φ600×1600 | |
RJ2-75-9 | 75 | 3 | Φ600×2400 | |
RJ2-90-9 | 90 | 3 | Φ1000×1200 | |
RJ2-120-9 | 120 | 3 | Φ800×3000 | |
RJ2-160-9 | 160 | 3 | Φ1000×2400 | |
RJ2-110-9 | 110 | 3 | Φ700×3500 | |
RJ2-160-9 | 160 | 3 | Φ700×5000 |
technical parameters of 1200 °C well type resistance furnace
model | Rated power(KW)
| rated temperature(°C) | rated voltage(V) | phase | Chamber size((diameter×depth) (mm)
|
RJ2-50-12 | 50 | 1200 | 380 | 3 | Φ600×800 |
RJ2-75-12 | 75 | 1200 | 380 | 3 | Φ600×1600 |
RJ2-90-12 | 90 | 1200 | 380 | 3 | Φ800×1000 |
RJ2-120-12 | 120 | 1200 | 380 | 3 | Φ800×2000 |
RJ2-160-12 | 160 | 1200 | 380 | 3 | Φ1000×2400 |
RQ3 series 1050 °C well type gas carburizing furnace
model | Rated power(KW)
| rated temperature(°C) | rated voltage(V) | phase | furnace pipe size((diameter×depth) (mm)
| Usage depth of chamber (mm)
|
FXL-50-11 | 50 |
| 380 | 3 | Φ450×1240 | 700 |
FXL-60-11 | 60 |
| 380 | 3 | Φ650×1540 | 1000 |
FXL-70-11 | 70 |
| 380 | 3 | Φ800×1540 | 1000 |
FXL-80-11 | 80 |
| 380 | 3 | Φ1000×1540 | 1000 |
FXL-90-11 | 90 |
| 380 | 3 | Φ1200×1740 | 1200 |
