Castor bean oil extract machine

Product Overview

Description

   Castor bean oil extract machine



1. Introduction of Castor bean oil extract machine

The oil machine is used to extract all kinds of oil. Normally, the oil getting step is as below:



Crushing ----roaster -----oil pressing ---oil filtering ---oil refining.





If you want to get the rude oil , only oil pressing step is ok, if you want to clean the impurity from the oil , oil filter machinery is needed. Of course if you want to get the advanced and high quality oil ,the final oil refinery machine is needed.

 After this process, you will get cooking oil and meal. At present, Four grade of edible oil is available, and different oil grade have different requirement for quality and machines.



The final cake application: to be used to make pellets as fuel or animal feeding by the below pellet machine.





2. capacity of oil machine of Castor bean oil extract machine

We can supply semi-continuous oil press equipment for 2-30T/D and Continuity sets of oil equipment for 30-3000T/D. By the customers requirement we can provide cooking oil press machine, cooking oil pre-press machine, cooking oil extractor or cooking oil refinery only. Any part of this edible oil producing line can be provided by us.



3. Raw material of Castor bean oil extract machine

 Almost all of the grain seeds can be pressed to make edible oil, such as corn, soybean, peanut, sunflower seed, flax seed ,coconut ,palm , rape seed.sesame, Olive, walnut,cocoa bean.,rice brain ,cotton seed ,castor seed and so on.

Raw material	Oil yield
Tea-Camellia	58-60%
Peanut	44-55%
Castor seed	50-70%
Soybean	18-21%
Cottonseed	33-40%
Rapeseed	33-40%
Sesame	45-50%
Sunflower	45%
Safflower	29-45%
Rice bran	18-20%
Corn embryo	30-40%
Walnut	40-65%
Flaxseed/linseed	29-44%
Palm	50-55%
Coconut	35-45%







4. Customers-  Castor bean oil extract machine

We have customers from all over the world like Uzbekistan, Kyrghizstan, Kazakhstan,and Canada, Chile, Argentina,Ethiopia, india, malaysia, Zambia, Nigeria, Russia , Turkey, Tunisia ,more than 30 countries overseas.

5 Advantage of  Castor bean oil extract machine

(1) Simple design, small volume and light weight, easy to handle and move.
(2) Easy for operating, low labor intensity and high economical profit.



6.Feature of   Castor bean oil extract machine

1. It is easy for people to learn, understand, and operate because of its small size. Besides, it is no special requirements for people to operate.

2. It costs less various expenses with lower electricity consumption in use.

3. The machine is a hydraulic machine with big pressure, high oil yielding rate and pure oil Quality.

4. The machine adopts automatic control system, automatic preheating control and automatic pressure control of hydraulic system.



7. Techincal parameters- Castor bean oil extract machine



Type	6YL-68	6YL-80	6YL-100	6YL-120	6YL-130	6YL-160	6YL-180
Power (kw)	5.5	5.5	7.5-11	11-15	15	18.5-30	22-30
Shaft speed (r/min)	137-160	40-50	30-40	30-40	28-38	28-35	30-40
Size (m)	1x0.53x1.05	1.32x0.54x1.02	1.64x0.64x1.2	1.75x0.64x1.31	1.93x0.68x1.48	2.2x0.85x1.56	2.35x1x1.76
Weight (kg)	140	380	480	700	820	1200	1500
Capacity (t/24h)	0.8-1.2	1.9-2.4	3.5-4.	7-8	8-10	14-20	16-22

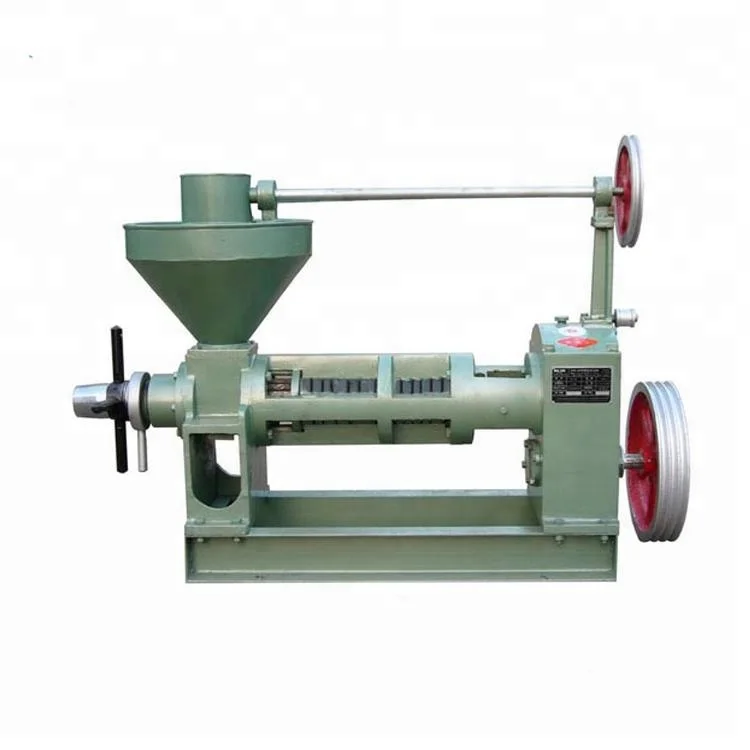

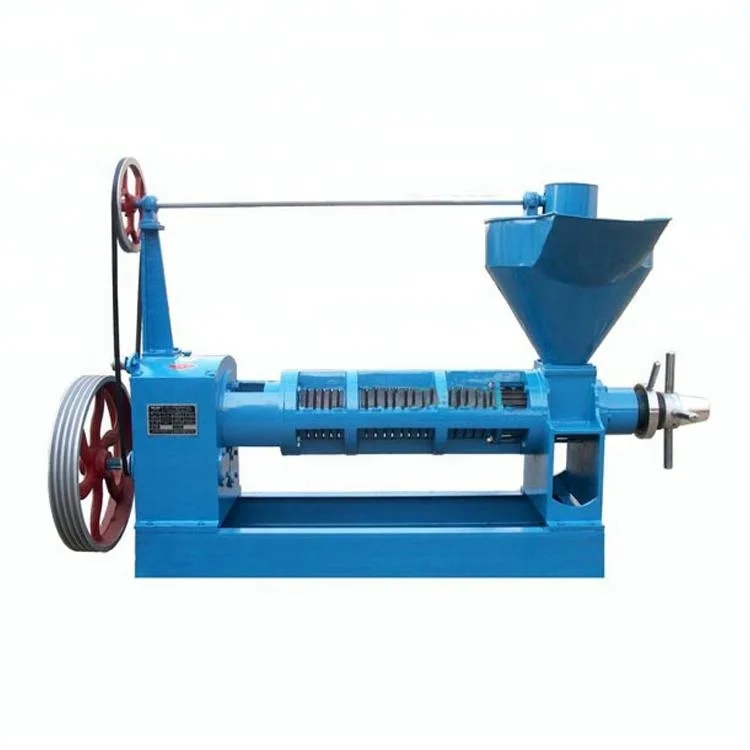

8. Castor bean oil extract machine picture for reference
