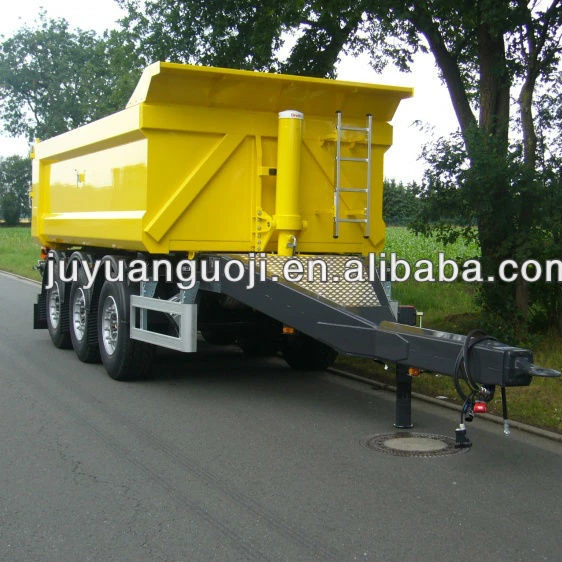

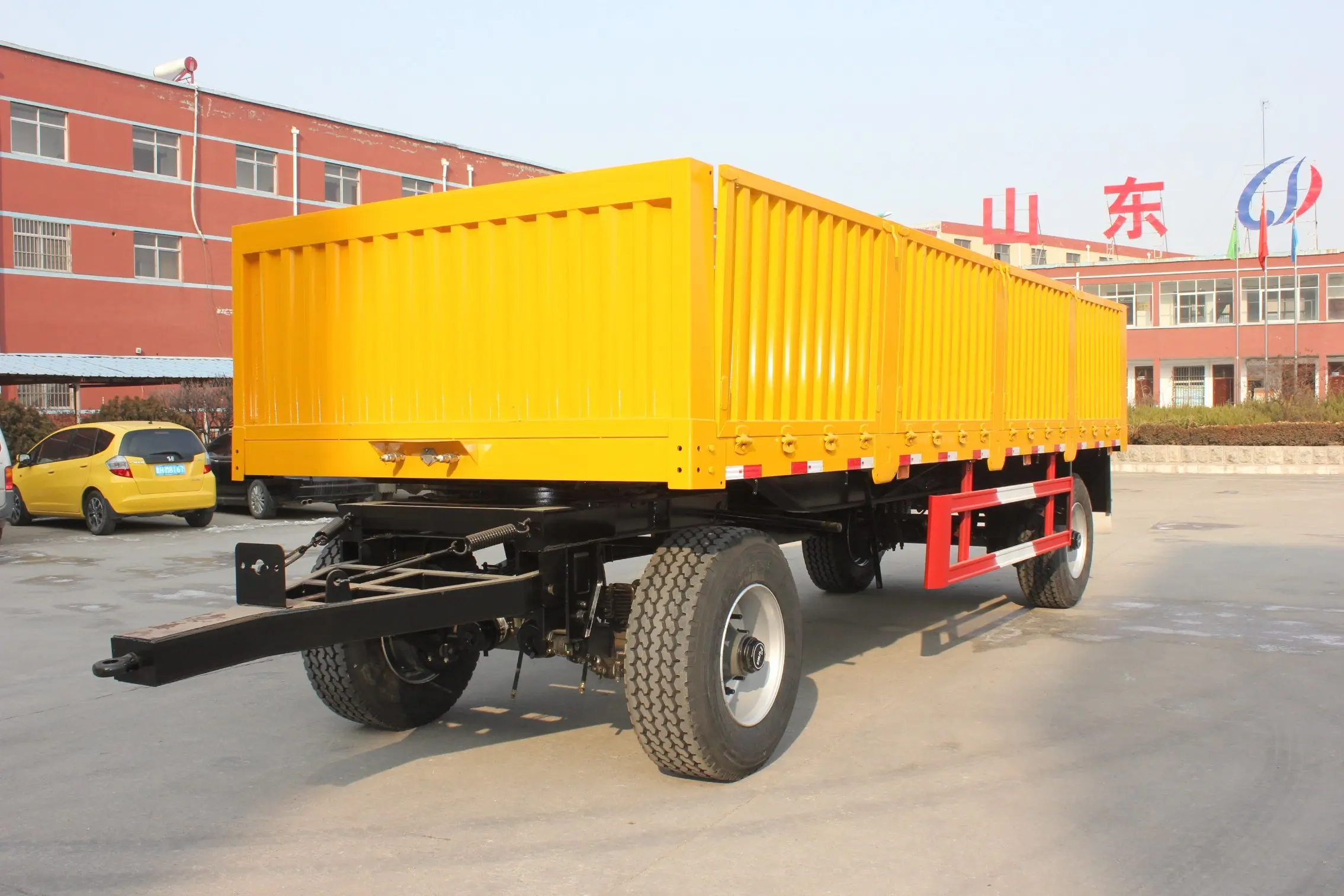

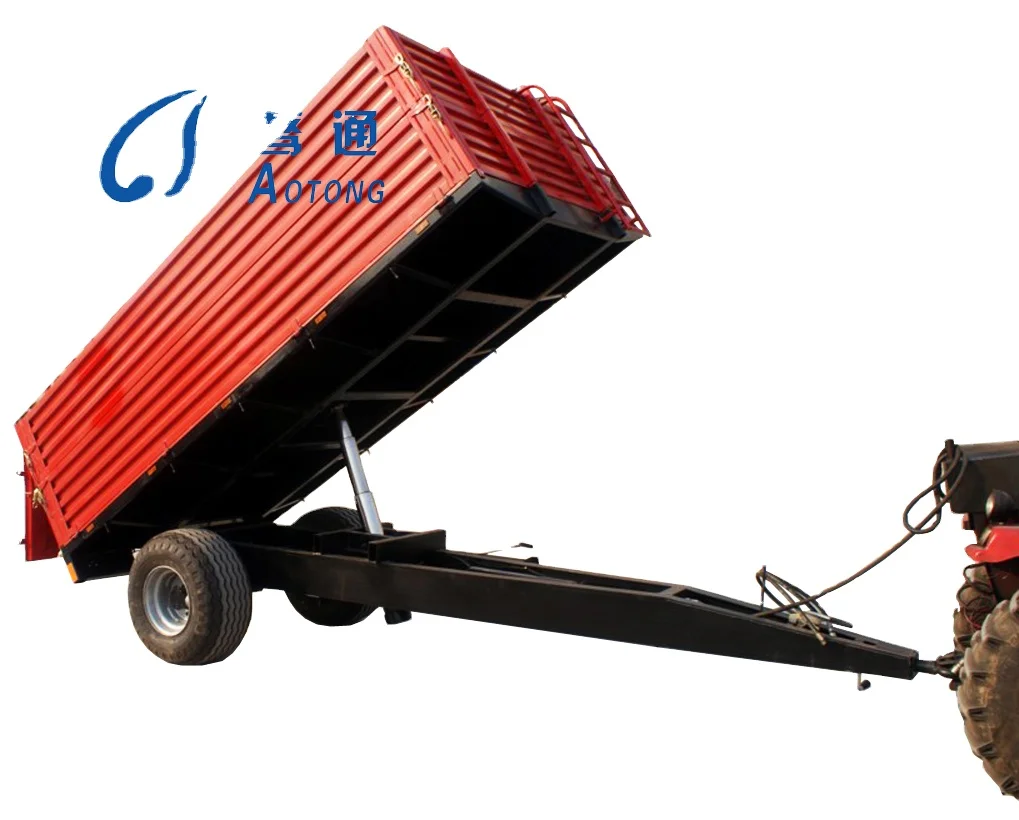

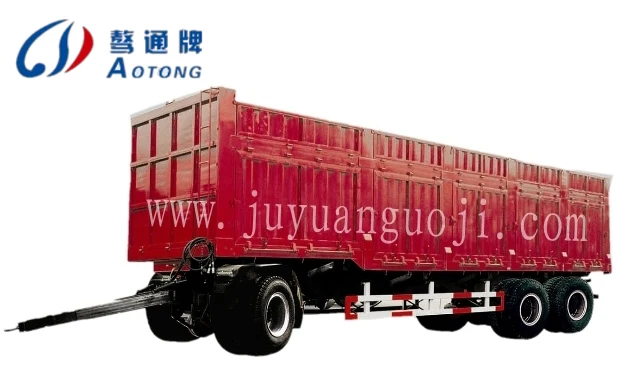

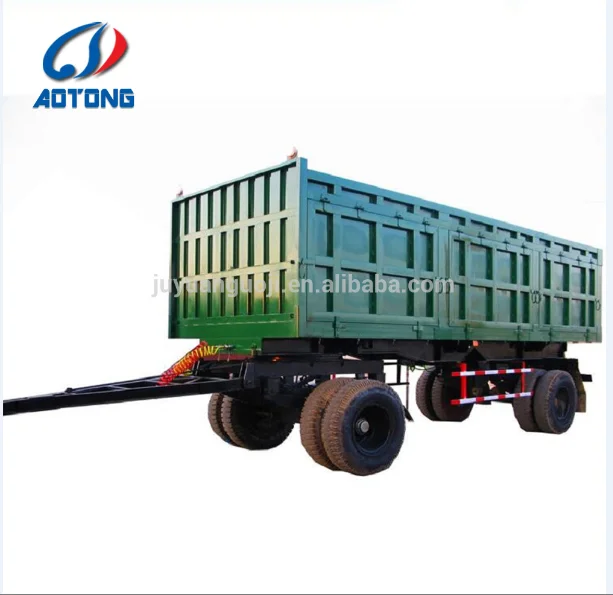

High quality tipper/dump trailer with draw bar farm tractor full trailer

Product Overview

Description



High quality tipper/dump trailer with draw bar (full trailer type)

2 axles 8 tires high quality full trailer sale :



1.30 years experience manufactory
2.CCC,ISO agree
3.Well designed ,small order accept.
4.Manufacture according to your detail requirements
5.After-sale-support;6 month guarantee term







Product Information
Product	Full trailer
Brand Name	Aotong Brand
Place of Origin	Shandong province, China
Color	Any color will be available
Manufacturer	Shandong JUYUAN Automobile Technology Co.,Ltd
Product Specifications
Parameter
Rated Load				25000 kg
Tare Weight				5000 kg
Running Gear
Tires		specification				11R22.5 18PR(Vacuum tire or rail tire)
		No. of tires				8pcs
		Spare tire carriers				2pcs/1pc
Axles		Brand :				FUWA (BPW optional)
		No. of axles:				2pcs
		Axle-load				13000kg
Rim			22.5*8.25*8PCS
Suspension		is constitute by tandem steel plate spring and bearing legs.
Pieces of leaf-spring		8/4
Brakes		brand					TKL brand
		Brake chamber					double chamber
		System					Dual line braking system /ABS
Under Frame
Turntable			1100/1200mm
Front/Rear   Overhang			1830 mm
Main Beam			material		I beam ,mild alloy(16Mn) , automatic submerged arc welded
			specification		Height is 500mm,upper plate is 14mm,lower plate is 16mm,middle is 8mm
Cross Beam material			Mild Alloy Q235B
Side beam			16# channel steel
Plateform			3mm diamond steel plate
King Pin			50# or 90#
Landing gear			Single side operation or double side operation, Static capacity 28Ton
Appendix			1 or 2 tool box, length 1.0m
Electrical
Voltage		24V
Receptacle		7 ways (7 wire harness)
Lights		Front corner marker lamp :red ;reflector lamp :white
		Side marker :orange
		Rear lamp :red; rear reflector :white; turn single lamp :orange
Other
Painting ,marking and side guard can according to the customer’s requirement





Complete series trailer frame are wearing, longitudinal beam pumping structure using flat type or gooseneck type. Webs 200mm height from to 400mm manganese plate welding, longitudinal adopts automatic submerged arc welding, shot preening treatment, adopt frame beams pierce longitudinal and welding of the whole

Complete series trailer is divided into oridinary type and designed two kinds, can choose tonnage from 6tons to 14 tons of all kinds of domestic imports axle

Advanced software product optimization design satisfy customer individual requirements

The vehicle body USES the high quality steel products, advanced technology and strict production process manufacturing and become, vehicle rational structure, reliable performance, convenient operation, good appearance









According to client's speical requests for trailer, we can design full set drawings for clients.


(1) .The material of trailer frames is high quality and strength steel that can extend the using life of trailer.
(2). It has been designed appropriately according with clients requirements, such as dimension, payload, main beam and so on.
(3). Brake system and Electric system are well-known brand in the world.
(4). Shot blasting twice and particular coat painting can guarantee the quality of trailer surface.
(5). All componenet/configuration (OEM parts) can be arranged based on clients detailed requirements and meet clients need.
