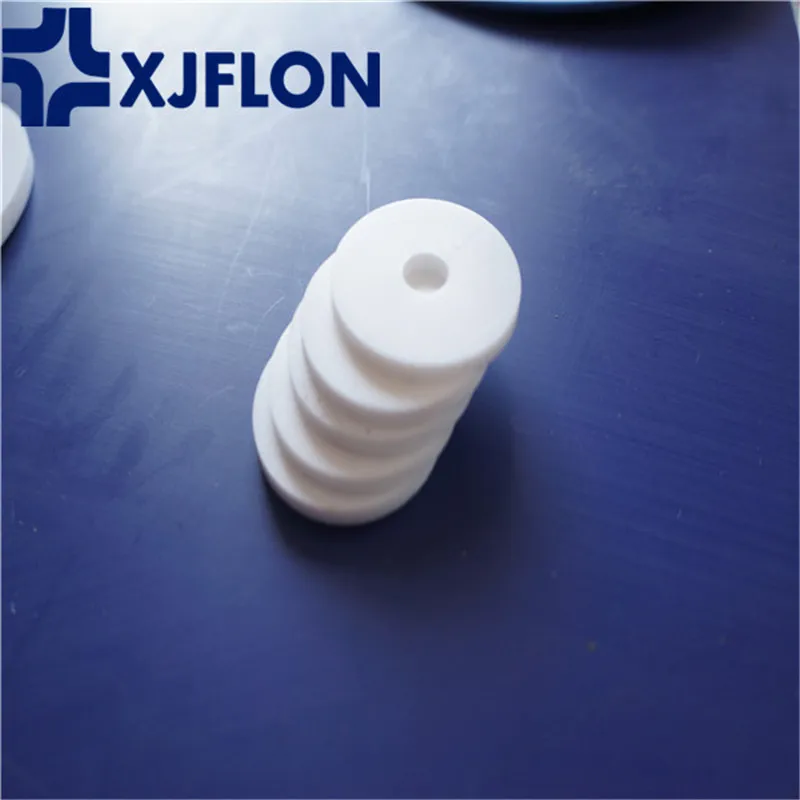

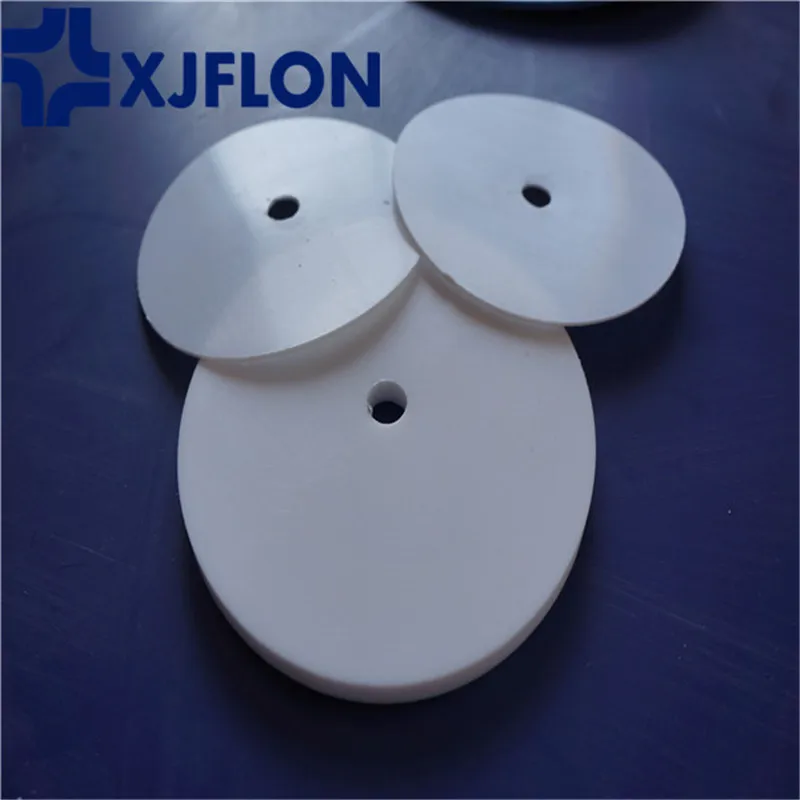

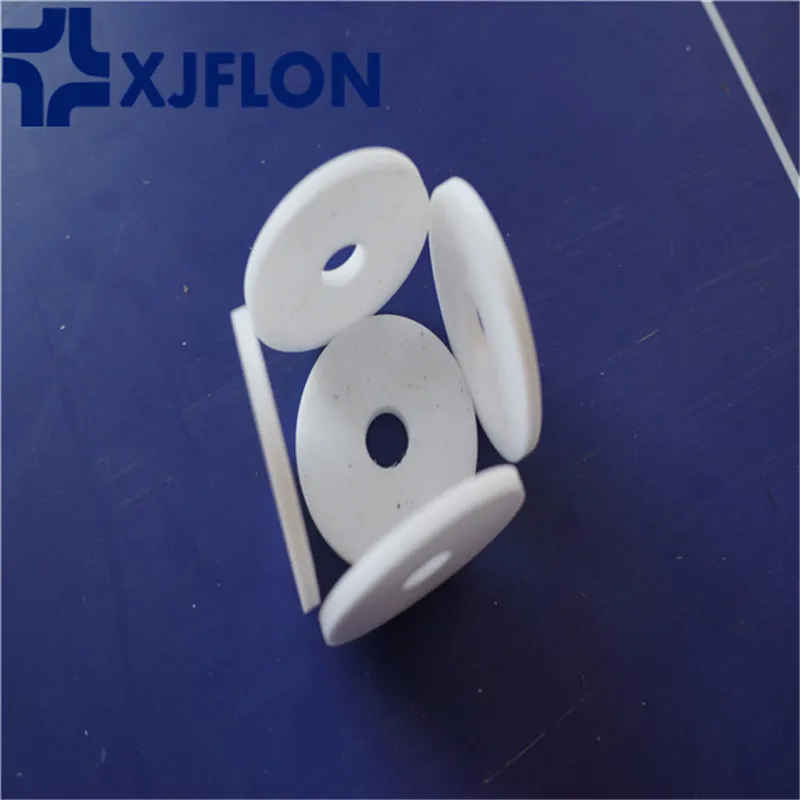

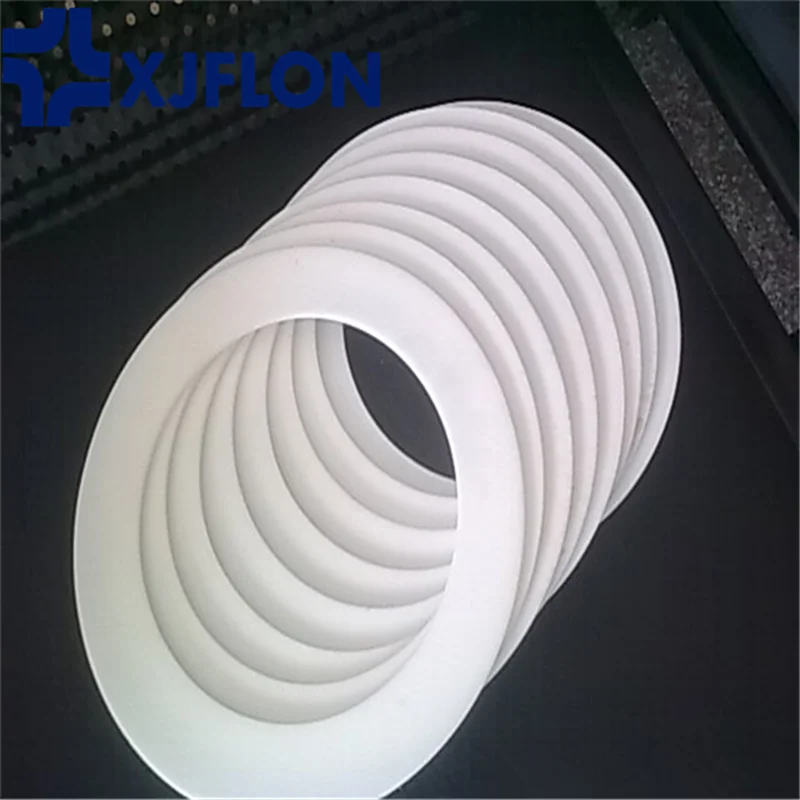

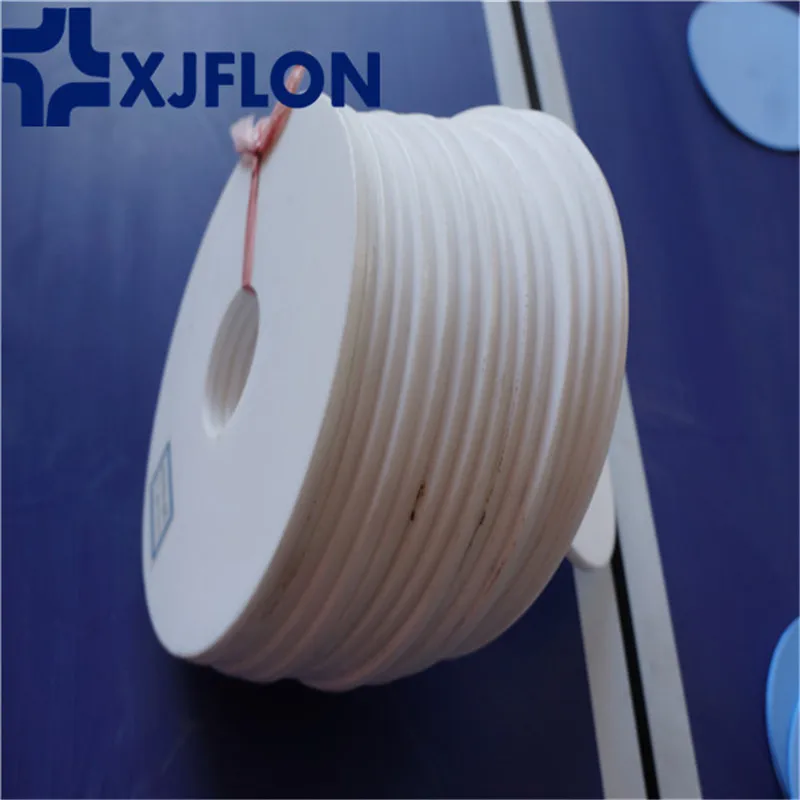

factory wholesale high quality white molded PTFE spacer flat skived ptfe gasket engine parts seal ring
- Category: >>>
- Supplier: Wuxi Xiangjian Ptfe Product Co. Ltd.
Share on (1159958686):
Product Overview
Description
Product Description
Standard Gasket
| ENSI (PN2.0) mm | EU Standard(PN1.6) | JIS (16K) | JIS(10K) | ||||||||||||||||
Nomi- | OD | ID | T | N.W. | Nomi- | OD | ID | T | N.W. | Nomi- | OD | ID | T | N.W. | Nomi- nal Dia | OD | ID | T | N.W. |
| DN15 | 46.5 | 22 | 3 | 0.01 | DN10 | 46 | 18 | 3 | 0.01 | DN10 | 53 | 18 | 3 | 0.014 | DN10 | 53 | 18 | 3 | 0.014 |
| DN20 | 56 | 27 | 3 | 0.015 | DN15 | 51 | 22 | 3 | 0.012 | DN15 | 58 | 22 | 3 | 0.016 | DN15 | 58 | 22 | 3 | 0.016 |
| DN25 | 65.5 | 34 | 3 | 0.02 | DN20 | 61 | 27 | 3 | 0.016 | DN20 | 63 | 28 | 3 | 0.017 | DN20 | 63 | 28 | 3 | 0.017 |
| DN32 | 75 | 43 | 3 | 0.023 | DN25 | 71 | 34 | 3 | 0.021 | DN25 | 74 | 35 | 3 | 0.023 | DN25 | 74 | 35 | 3 | 0.023 |
| DN40 | 84.5 | 49 | 3 | 0.03 | DN32 | 82 | 43 | 3 | 0.027 | DN32 | 84 | 43 | 3 | 0.028 | DN32 | 84 | 43 | 3 | 0.028 |
| DN50 | 104.5 | 61 | 3 | 0.05 | DN40 | 92 | 49 | 3 | 0.033 | DN40 | 89 | 49 | 3 | 0.03 | DN40 | 89 | 49 | 3 | 0.03 |
| DN65 | 123.5 | 77 | 3 | 0.053 | DN50 | 107 | 61 | 3 | 0.042 | DN50 | 104 | 61 | 3 | 0.038 | DN50 | 104 | 61 | 3 | 0.038 |
| DN80 | 136.5 | 89 | 3 | 0.06 | DN65 | 127 | 77 | 3 | 0.055 | DN65 | 124 | 77 | 3 | 0.051 | DN65 | 124 | 77 | 3 | 0.051 |
| DN100 | 174.5 | 115 | 3 | 0.13 | DN80 | 142 | 89 | 3 | 0.066 | DN80 | 140 | 90 | 3 | 0.062 | DN80 | 134 | 90 | 3 | 0.053 |
| DN125 | 196 | 140 | 3 | 0.14 | DN100 | 162 | 115 | 3 | 0.07 | DN90 | 150 | 102 | 3 | 0.066 | DN90 | 144 | 102 | 3 | 0.056 |
| DN150 | 221.5 | 169 | 3 | 0.15 | DN125 | 192 | 141 | 3 | 0.092 | DN100 | 165 | 115 | 3 | 0.076 | DN100 | 159 | 115 | 3 | 0.065 |
| DN200 | 278.5 | 220 | 3 | 0.18 | DN150 | 218 | 169 | 3 | 0.105 | DN125 | 203 | 141 | 3 | 0.116 | DN125 | 190 | 141 | 3 | 0.088 |
| DN250 | 338 | 273 | 3 | 0.25 | DN200 | 273 | 220 | 3 | 0.145 | DN150 | 238 | 167 | 3 | 0.156 | DN150 | 220 | 167 | 3 | 0.111 |
| DN300 | 408 | 324 | 3 | 0.35 | DN250 | 329 | 273 | 3 | 0.182 | DN200 | 283 | 218 | 3 | 0.176 | DN175 | 245 | 192 | 3 | 0.125 |
| DN350 | 449 | 356 | 3 | 0.45 | DN300 | 384 | 325 | 3 | 0.226 | DN250 | 356 | 270 | 3 | 0.291 | DN200 | 270 | 218 | 3 | 0.137 |
| DN400 | 513 | 407 | 3 | 0.55 | DN350 | 444 | 377 | 3 | 0.3 | DN300 | 406 | 321 | 3 | 0.34 | DN225 | 290 | 244 | 3 | 0.133 |
| DN450 | 548 | 458 | 3 | 0.5 | DN400 | 495 | 426 | 3 | 0.343 | DN350 | 450 | 359 | 3 | 0.4 | DN250 | 333 | 270 | 3 | 0.205 |
| DN500 | 605 | 508 | 3 | 0.6 | DN450 | 555 | 480 | 3 | 0.419 | DN400 | 510 | 410 | 3 | 0.5 | DN300 | 378 | 321 | 3 | 0.215 |
| DN550 | 659 | 559 | 3 | 0.7 | DN500 | 617 | 530 | 3 | 0.539 | DN450 | 575 | 460 | 3 | 0.643 | DN350 | 423 | 359 | 3 | 0.27 |
| DN600 | 716.5 | 610 | 3 | 0.8 | DN600 | 734 | 630 | 3 | 0.766 | DN500 | 630 | 513 | 3 | 0.722 | DN400 | 486 | 410 | 3 | 0.368 |
| DN550 | 684 | 564 | 3 | 0.809 | DN450 | 541 | 460 | 3 | 0.438 | ||||||||||
| DN600 | 734 | 615 | 3 | 0.867 | DN500 | 596 | 513 | 3 | 0.497 | ||||||||||
| DN550 | 650 | 564 | 3 | 0.564 | |||||||||||||||
| DN600 | 700 | 615 | 3 | 0.604 | |||||||||||||||
Custom specifications
| Diamater | ≤3000mm |
| Thickness | 0.1-10mm |
Technical Indexes
Properties | Unit | Result |
Apparent density | g/cm3 | 2.10-2.30 |
Tensile strength (min) | MPa | ≥15 |
Ultimate elongation (min)(min) | % | ≥150 |
| Product No. | Filled compound and content by weight | Tension strength Mpa min | Ultimate strength % min | Compresive strength MPa min |
| 1 | 20% glass fiber | 10 | 120 | 16 |
| 2 | 25% glass fiber | 10 | 100 | 16 |
| 3 | 20% glass fiber graphile | 10 | 120 | 16 |
| 4 | 60% bronze | 10 | 80 | 20 |
| 5 | 15% carbon fiber | 11 | 130 | 16 |
| 6 | 24% bronze 12%glass fiber 6% graphite | 9 | 100 | 16 |
| 7 | 15%glass fiber 105polyikmide 5% graphite | 10 | 120 | 16.7 |

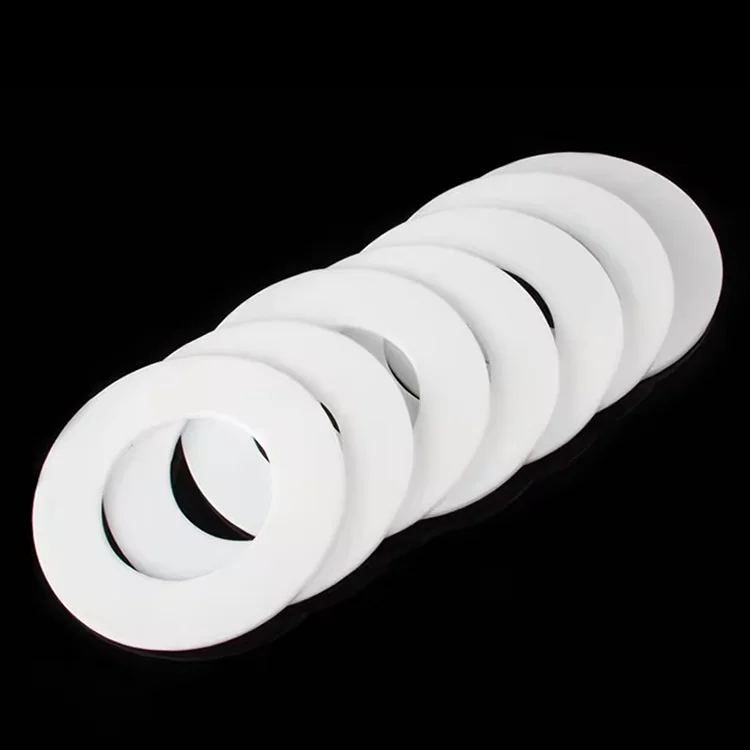

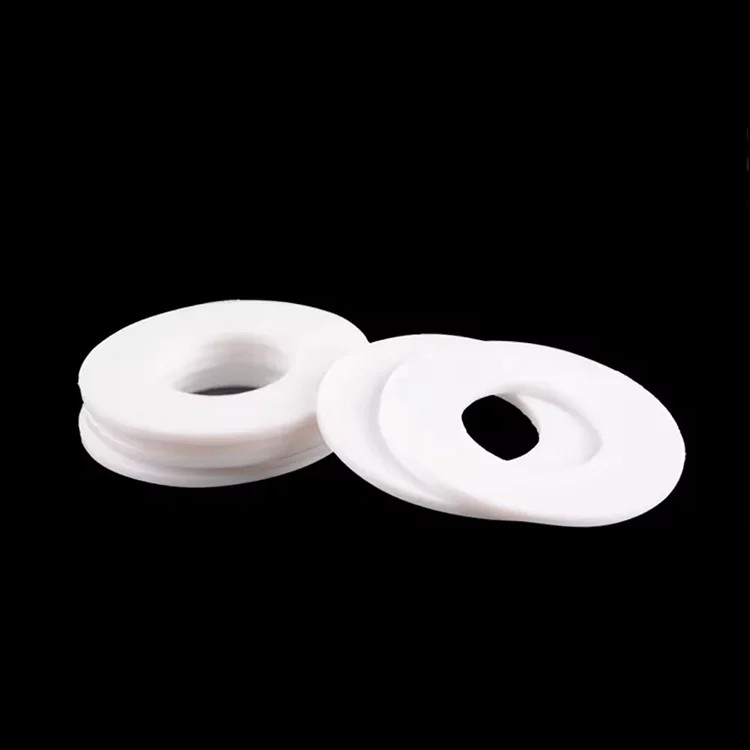

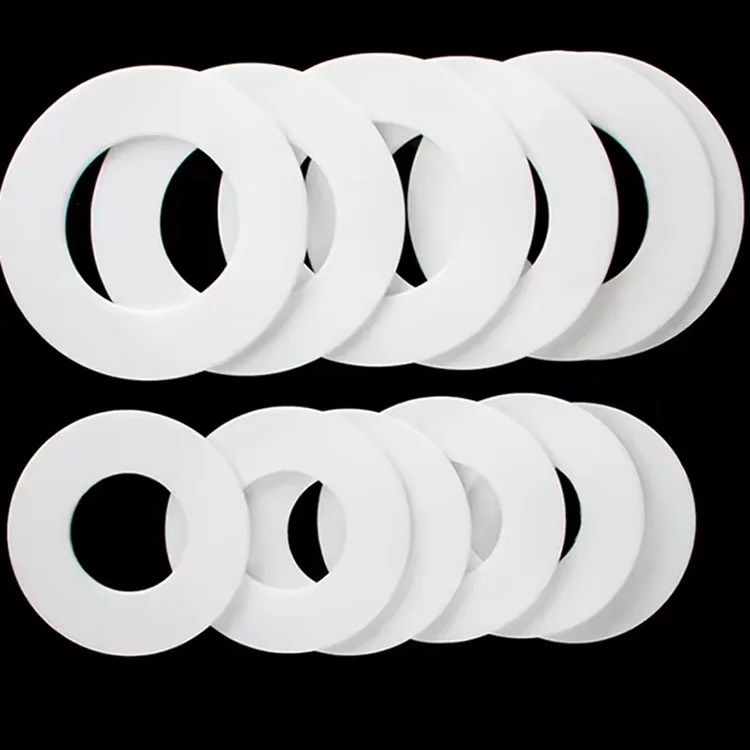

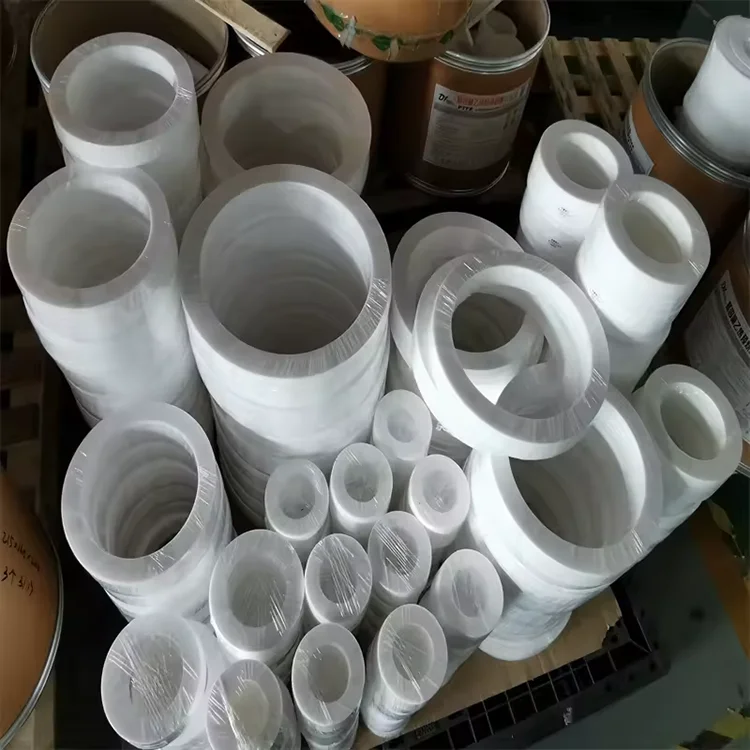

PTFE Gasket
More Related Product
Company Information
FAQ
Q1: How can I get a sample?
A1: Small size of sample are free, you only need pay for the shipping cost, or you can provide your UPS, DHL, Fedex, TNT courier to us. Customized size of sample should be charged.
Q2: What is your payment term?
A2: Small order ,we accept by T/T,western union, paypal, .Bulk quantity order ,30% T/T in advance, 70% balance before shipment.Other terms negotiable.
Q3:Can we purchase a small part of plastic sheet / rod?
A3: Yes, if we have the size you require in stock.
Q4:Can you manufacture the plastics products as per drawing?
A4: Yes,we can.Products can be customized. Please contact us for any further information.
Q5:What kinds of processing machine do you have?
A5: CNC machining center,CNC lathes,Milling,Laser engraving machine.
