Food & Beverage Shops electric under slung remote control single girder overhead bridge crane

Product Overview

Description

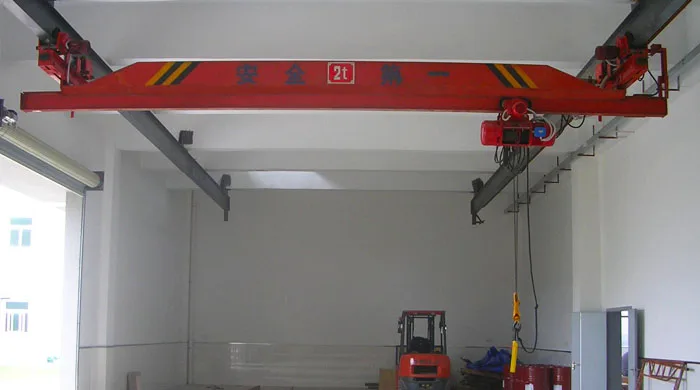

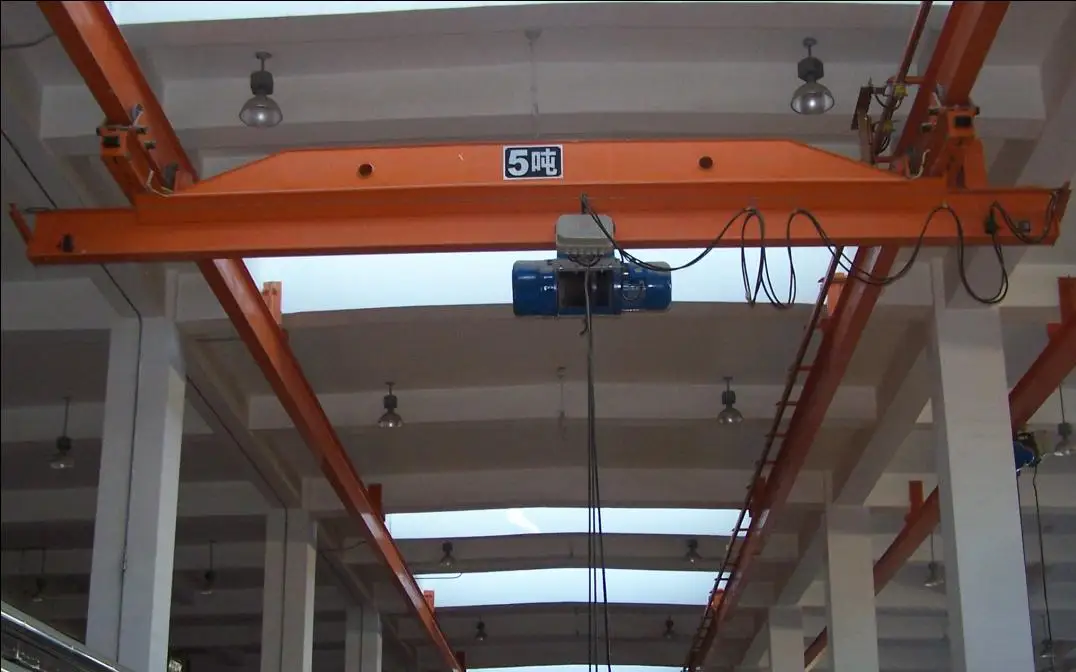

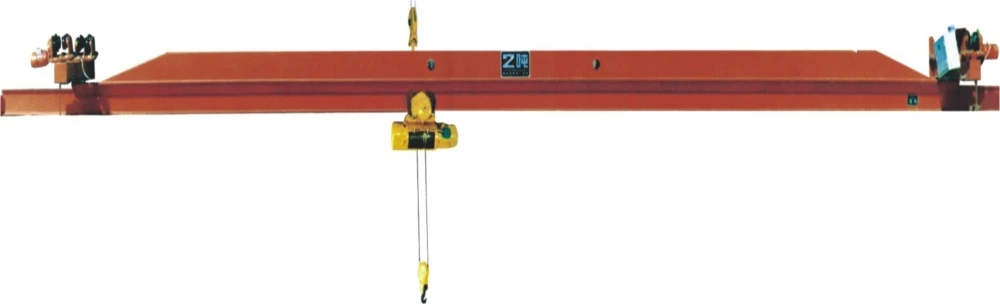

Food & Beverage Shops electric under slung remote control single girder overhead bridge crane

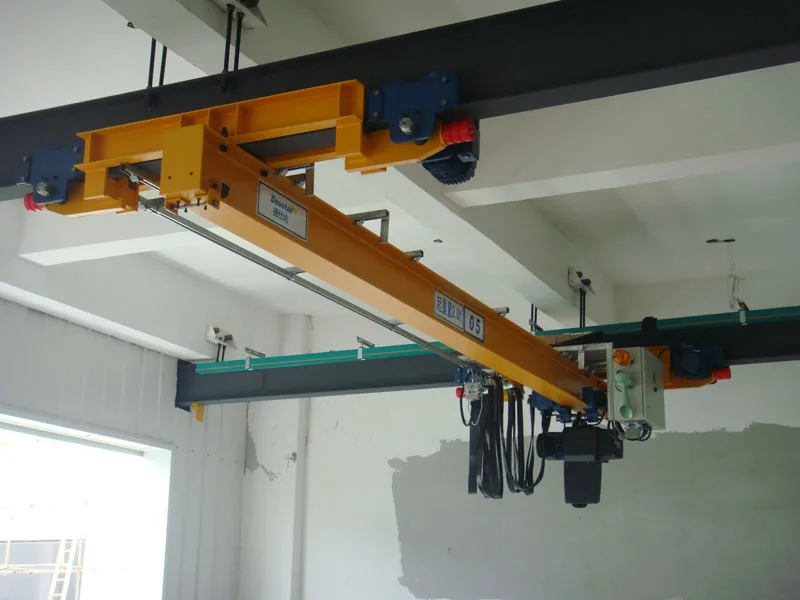

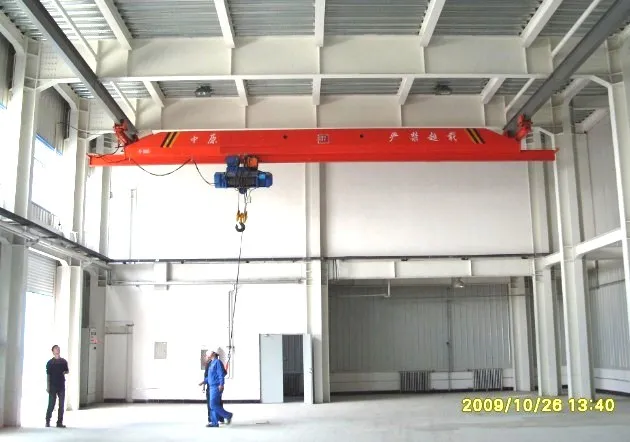

LX new type electric single girder  motor underslung crane operates in the assiciation with  CD1 and MD1 electric hoist ,and becames a small crane traveling on the rails ,it is widely used in the place such as machinery,assembly and warehouse. The product is ground controlled under the operating ambient environment of -25~+40°C. it is prohibited from operating under the environmenta of flammable. explosive and corrosive media  .







Safety feature of  Single Girder Underslung Crane :

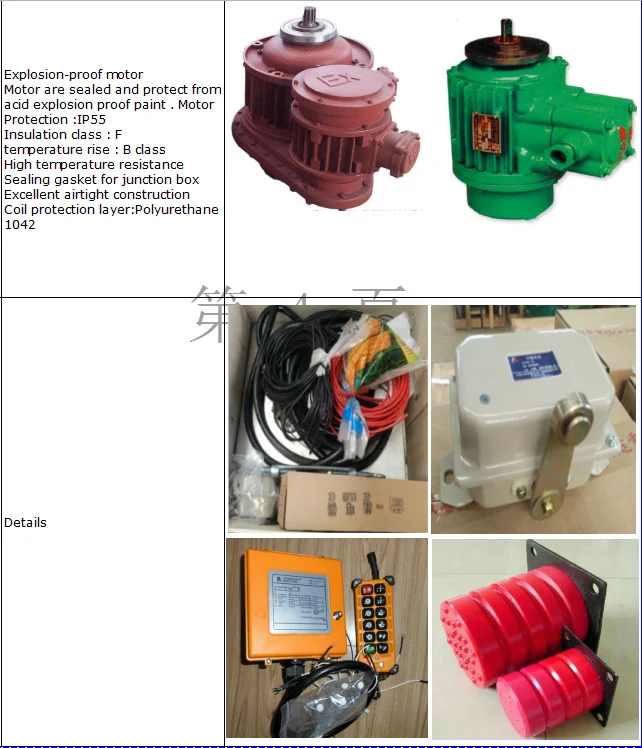

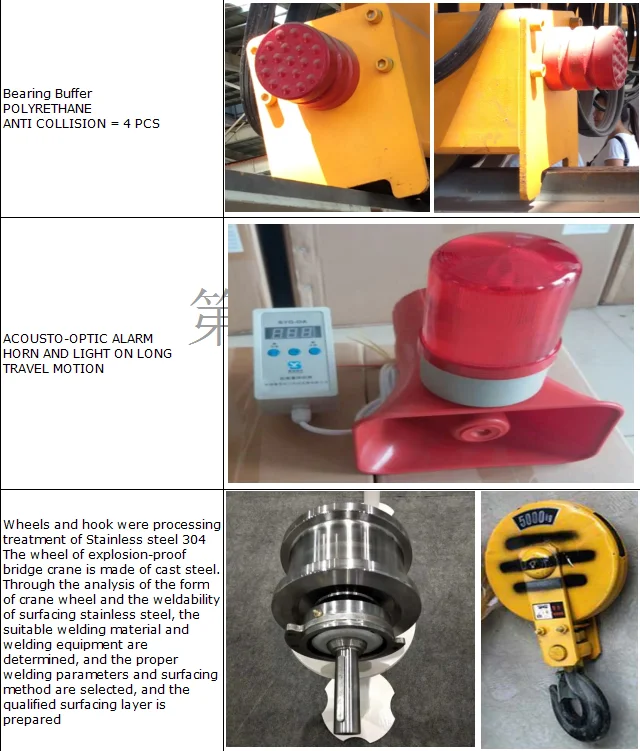

Weight overload protection device, Top quality long time bearing polyurethane materials buffer, Crane traveling limit switch, Voltage lower protection function, Emergency stop system, current overload protection system and so on!



Control method of   Single Girder Underslung Crane :

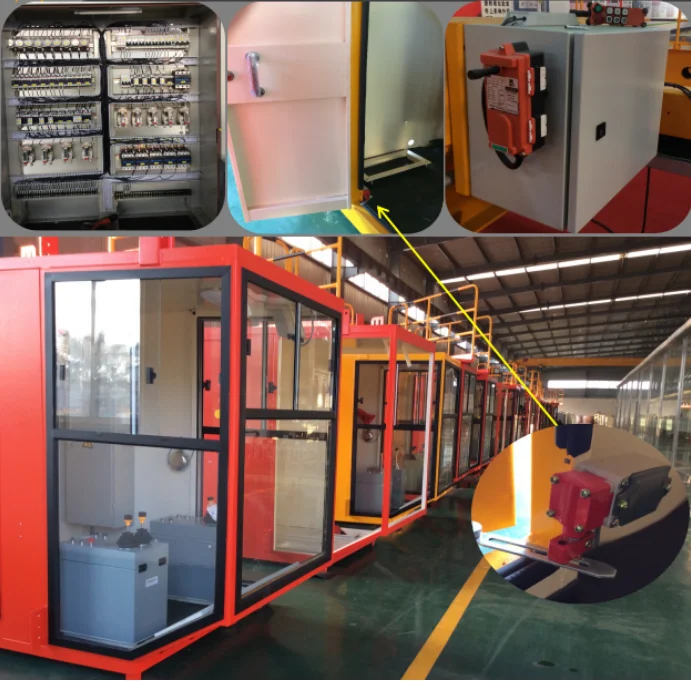

Pendent line with press button or remote control or cabin or both

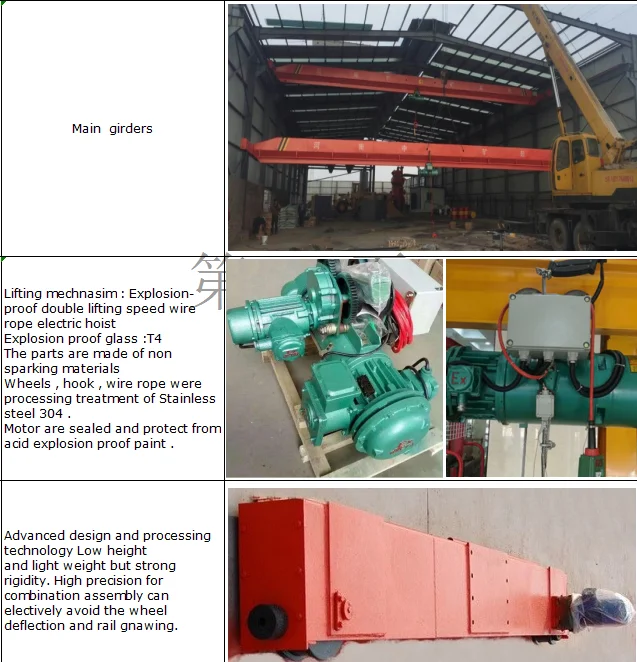

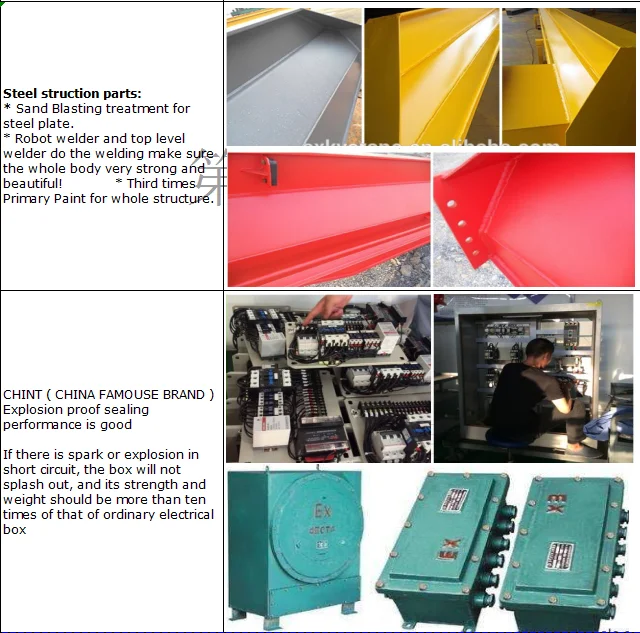

Crane girder of  Single Girder Underslung Crane :

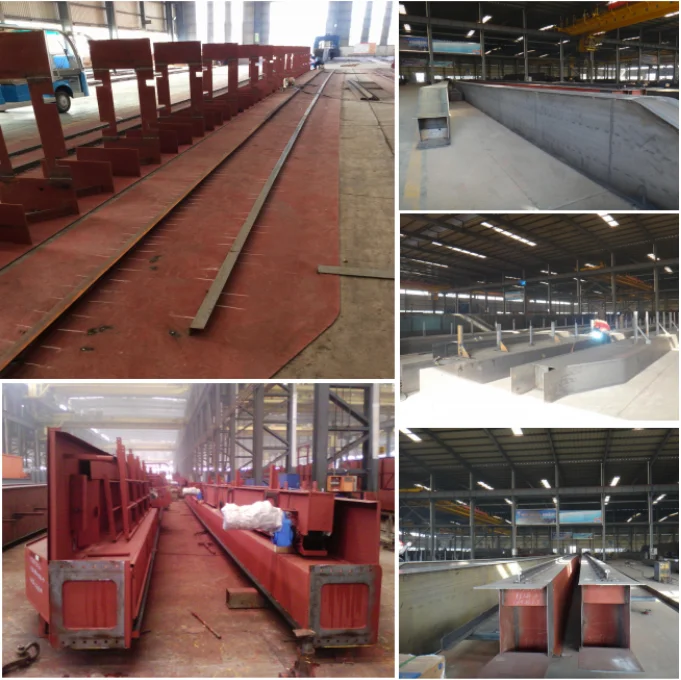

The crane girder is of welded girder construction. This result in lower dead weight with a high degree of vertical and horizontal rigidity and small wheel loads being transmitted to the crane runway!



Painting:



Primer and finishing paint

Color: according to your demand.

Average thickness: about 100 microns

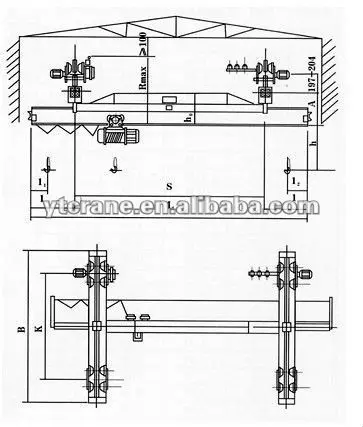

Lifting capacity (ton)			0.5, 1, 2, 3			5
Span (m)			3- 16			3-16
Crane Travelling Device	Travelling speed (m/min)	20		30	20		30
	Reducer ratio	28.2		20	30.4		21.6
	Motor	ZDY21-4, 2x0.4Kw, 1380r/min			ZDY112-4, 2x0.8kw, 1380r/min

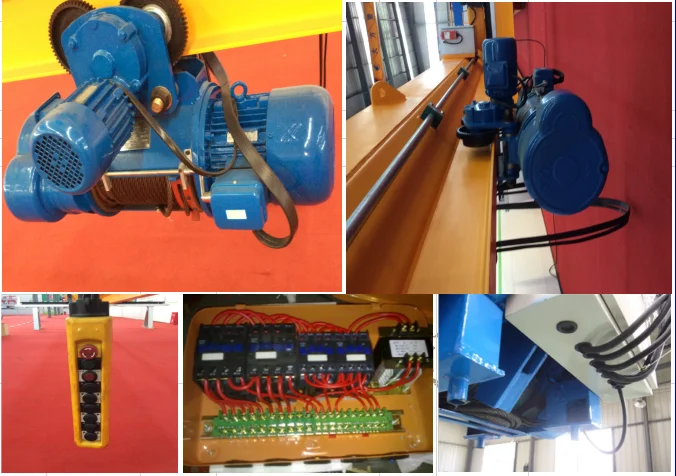

Lifting device (Electric hoist) And hoist travelling device	Electric Hoist model	CD1/ MD1
	Lifting speed (m/min)	8, 0.8/8
	Lifting height (m)	6, 9, 12, 18, 24, 30
	Travelling speed (m/min)	20; (30)
	Motor	Taper Squirrel-cage type
Work duty	Middle grade, JC=25%
Power supply	380V, 50Hz, 3-Phase
Wheel Diameter	130mm					150mm
Rail Surface width	37- 70mm



Molding, no welds, high-precision cold-formed molding,  eliminating the traditional production grinding, cutting, welding, and many other complicated production process,

reduce to the deformation of the single beam crane girder in the handling process, to ensure that a single beam crane girder precision. Improve the work efficiency,

while greatly enhanced the whole strength, and improve the quality of cranes appearance.

1.2 . Term
Delivery date		In 15 working days after received the deposit and comfirmed designs
Payment		* 30% down payment through T/T within 2days after signing the contract.                   * 70% balanced payment after inspection before delivery from factory by T/T             * We also accept order on line throught trade assurance of Alibaba .
Validity		10 days
Warranty		12 months after commissioning at site or 18 months after delivery, what occurs first. During this period, we will bear all repair and maintenance expenses including broken spare parts and man power if it is caused by the defects of products itself.

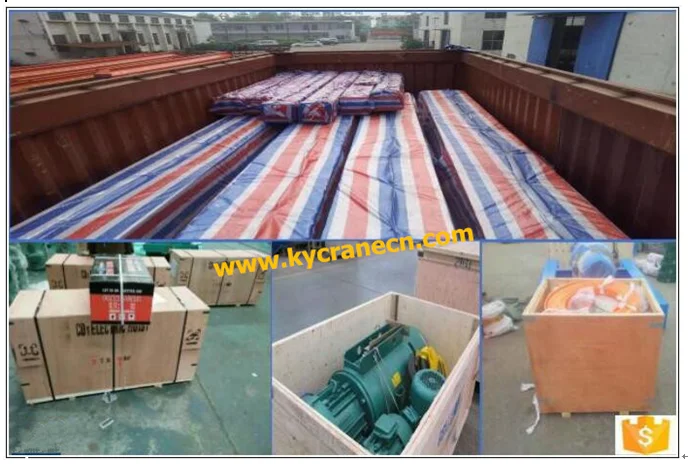

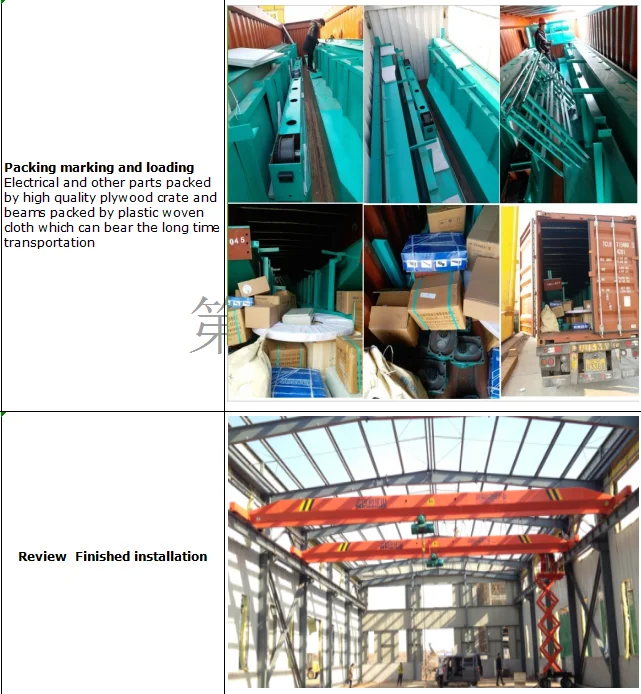

Shippment		For the shipping method , we would like to recommend shipping in 40'OT container LCL .
Main Parts Including		Pls check the attachment of P/L









Installation Service

:Our engineer to site for installation,  customers need to supply the VISA,Round trip tickets,  accommodation and meals for them, and pay USD$150/day for each person.





If you need more details , pls kindly inquiry me !

We will quote you a very detail solution with in 24 hours.

































,
