Product Overview
Description

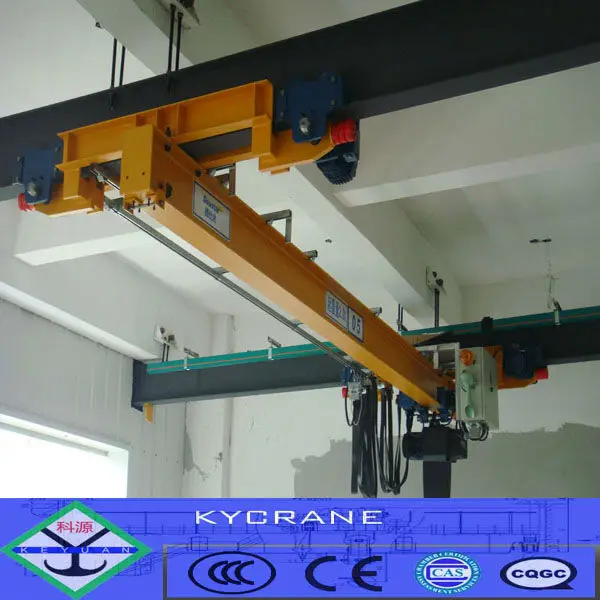

LX model durable electric underslung crane 3T
LX new type electric single girder motor underslung crane operates in the assiciation with CD1 and MD1 electric hoist ,and becames a small crane traveling on the rails ,it is widely used in the place such as machinery,assembly and warehouse. The product is ground controlled under the operating ambient environment of -25~+40°C. it is prohibited from operating under the environmenta of flammable. explosive and corrosive media .
Safety feature of Single Girder Underslung Crane :
Weight overload protection device, Top quality long time bearing polyurethane materials buffer, Crane traveling limit switch, Voltage lower protection function, Emergency stop system, current overload protection system and so on!
Control method of Single Girder Underslung Crane :
Pendent line with press button or remote control or cabin or both

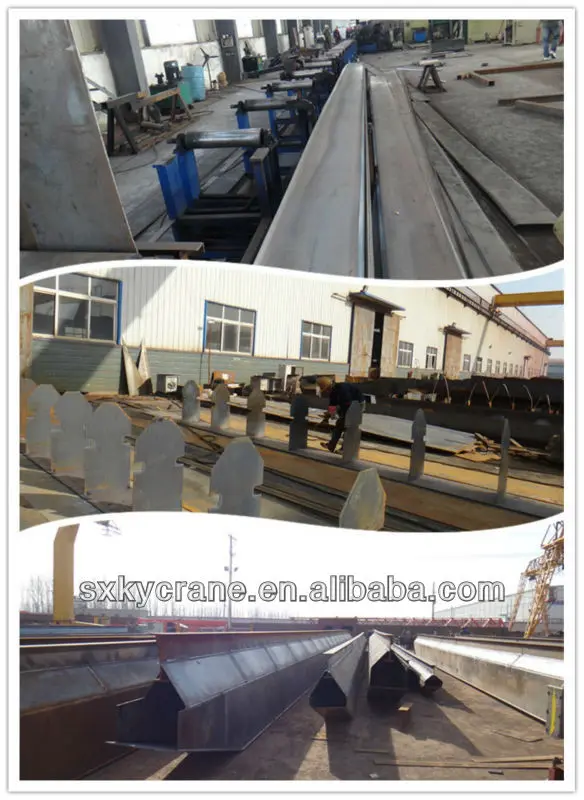

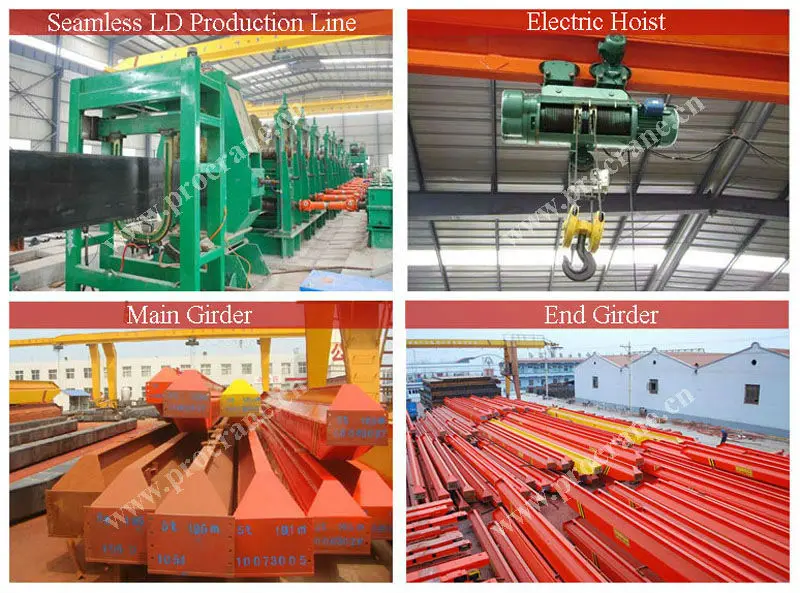

Crane girder of Single Girder Underslung Crane :

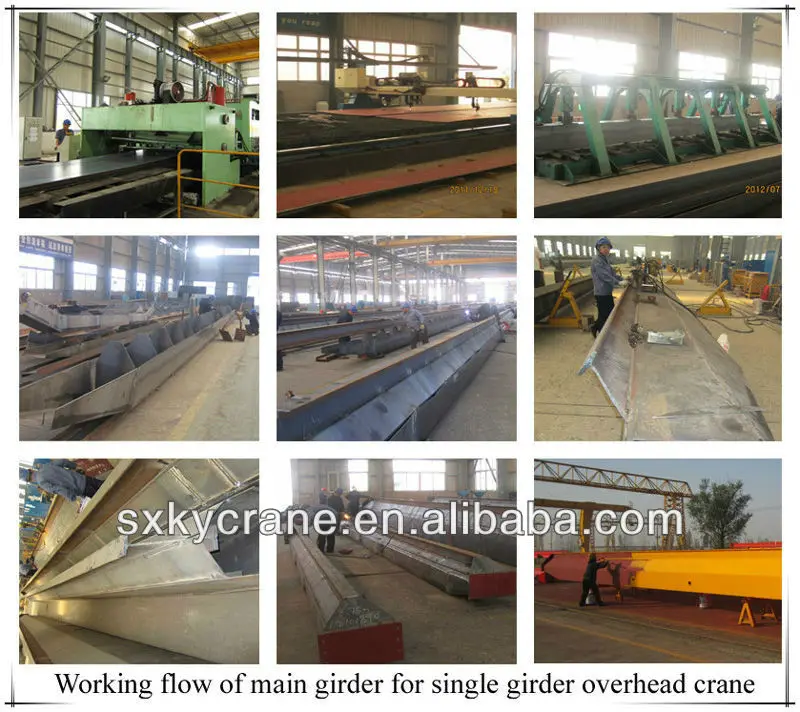

The crane girder is of welded girder construction. This result in lower dead weight with a high degree of vertical and horizontal rigidity and small wheel loads being transmitted to the crane runway!
Painting:
Primer and finishing paint
Color: according to your demand.
Average thickness: about 100 microns
 |  |
 |  |
Technical Data of Single Girder Underslung Crane :
Lifting capacity (ton) | 0.5, 1, 2, 3 | 5 | ||||||||
Span (m) | 3- 16 | 3-16 | ||||||||
Crane Travelling Device | Travelling speed (m/min) | 20 | 30 | 20 | 30 | |||||
Reducer ratio | 28.2 | 20 | 30.4 | 21.6 | ||||||
Motor | ZDY21-4, 2x0.4Kw, 1380r/min | ZDY112-4, 2x0.8kw, 1380r/min | ||||||||

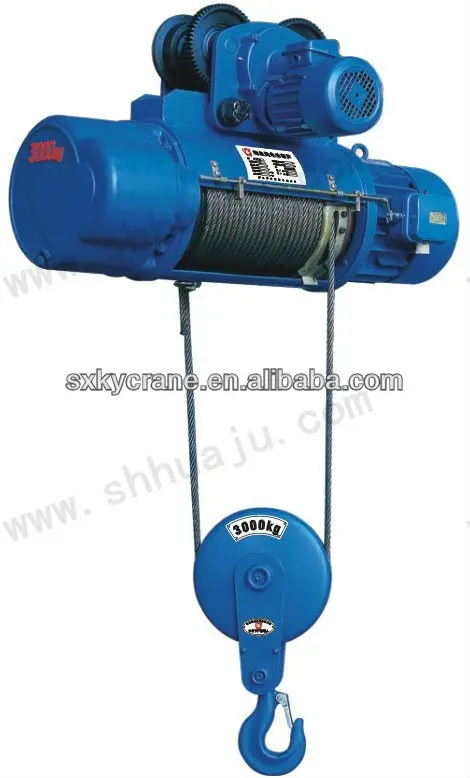

Lifting device (Electric hoist) And hoist travelling device | Electric Hoist model | CD1/ MD1 | ||||||||
Lifting speed (m/min) | 8, 0.8/8 | |||||||||
Lifting height (m) | 6, 9, 12, 18, 24, 30 | |||||||||
Travelling speed (m/min) | 20; (30) | |||||||||
Motor | Taper Squirrel-cage type | |||||||||
Work duty | Middle grade, JC=25% | |||||||||
Power supply | 380V, 50Hz, 3-Phase | |||||||||
Wheel Diameter | 130mm | 150mm | ||||||||
Rail Surface width | 37- 70mm | |||||||||

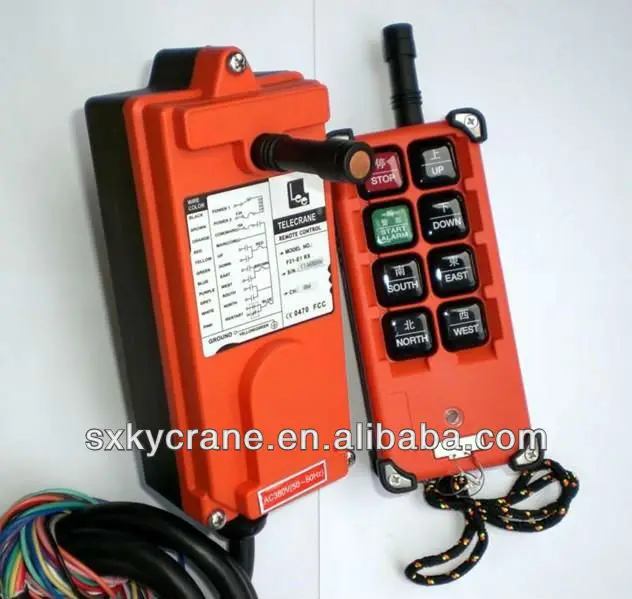

It is similar to the pendeant control, the difference between both is remote control adopting wireless control, adopting receiving signal

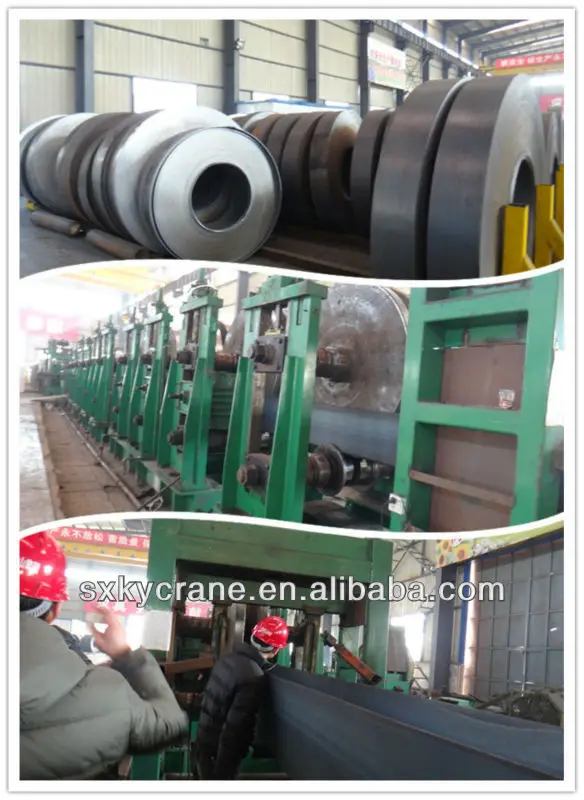

The materials
Molding, no welds, high-precision cold-formed molding, eliminating the traditional production grinding, cutting, welding, and many other complicated production process,
reduce to the deformation of the single beam crane girder in the handling process, to ensure that a single beam crane girder precision. Improve the work efficiency,
while greatly enhanced the whole strength, and improve the quality of cranes appearance.
Safety and Protection devices
1.Stopper of lifting height
2.Buffer block
3.Limiter of lifting capacity
4.Position correcting set
5.Riveting set device
6.Alarm of wind speed
If you are interested in our frame crane.Please kindly tell us your detailed requirement ( rated lifting weight, lifting height and span, etc. )of the crane and the working conditions shall be described clearly when the user orders goods or signs a contract so that the product which may satisfy the working condition can be supplied. Or we can help you to choose which model is much more suitable to your requirement
