Product Overview
Description
Air Micro Die Grinder Set - Grinder
What IS THE DETAILS OF OUR GRINDER ?
| Item Name | Air Micro Die Grinder Set - Grinder |
| Variable Speed | Yes |
| No-Load Speed | 65,000RPM |
| Angle | 0° |
| The Amout Of Air Consumption | 120NL/min |
| Collet Size | 3MM(1/8") |
| Air Pressure Supply | 0.63MPa |
| Weight | 130g |
| Size | 143mm*17mm |
| Material | Zinc alloy & Plastic |
| Coating | Nickel |
| Mass Production Time | 7-10 days for 50 sets, depends on the order quantity |
| Use | It applies in what need to be grinded, rubbed, carved and mirror polished. |

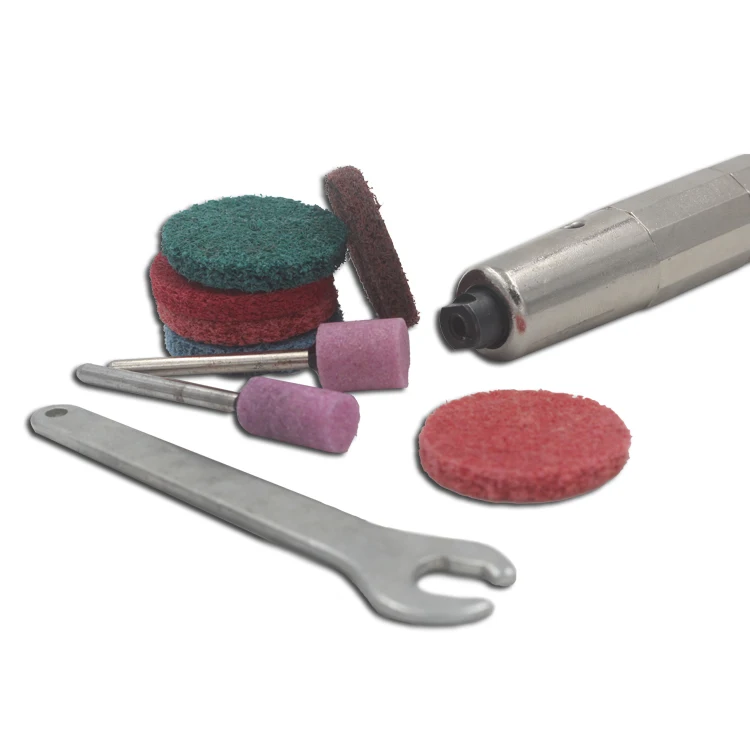

| Matching Components | 1) MSG-3BSN: one piece; 2) new soft lap: seven pieces; 3) sub-tie-in: one piece; 4) over hose: 0.4meter; 5) air hose: 1.2 meter; 6) hose band: two piece; 7) bolt: one piece; 8) spanner: one piece; 9) grinding wheel: two pieces; 10) colett: one piece. |

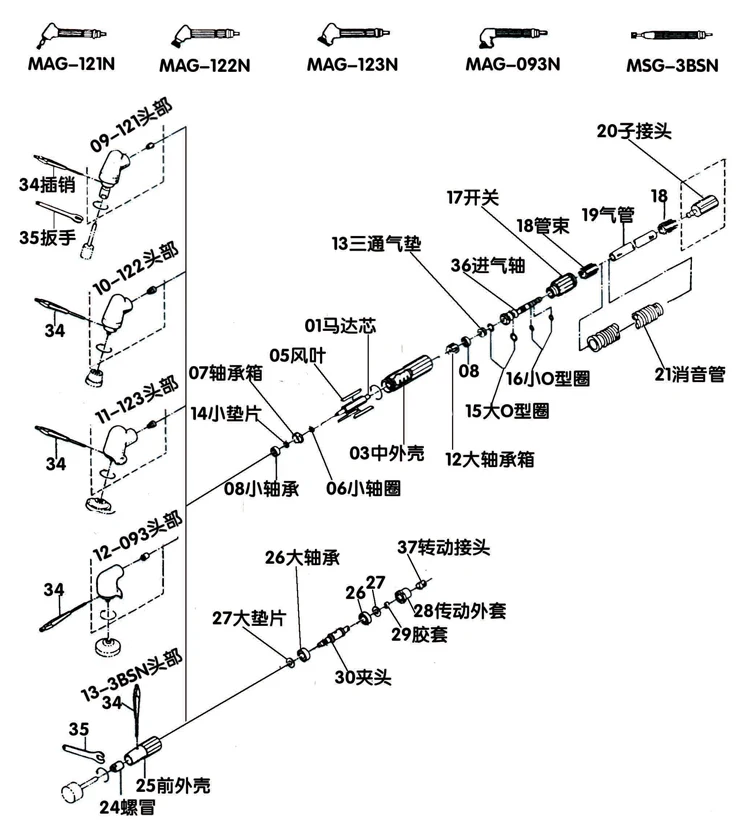

DISSECTION OF SUBJECT
01. rotor 03. middle crustl 05. blade
06. small axis circle 07. bearing box 08. small bearing(motor bearing)
09. 121N-head 10. 122N-head 11. 123N-head
12. 093N-head 13. 3BSN-head 14. small filling piece
15. o-ring circle(big) 16. o-ring circle(small) 17. switch
18. hose band 19. air hose 20. sub-tie-in
21. over hose 24. screw cap 25. front shell
26. big bearing 27. big filling piece 28. rotating coat
29. gum cover 30. chuck 34. set pin(bolt)
35. spanner 36. intake shaft 37. rotating joint
MAINTENANCE OF TOOLS
1. Frequently add oil to tools (pneumatic oil or decatizing oil).
2. Air compressor should be installed oil-water separator, and we need always clean its sewage.
3. Ask professional staff to maintain the tools.
PACKAGE OF TOOLS

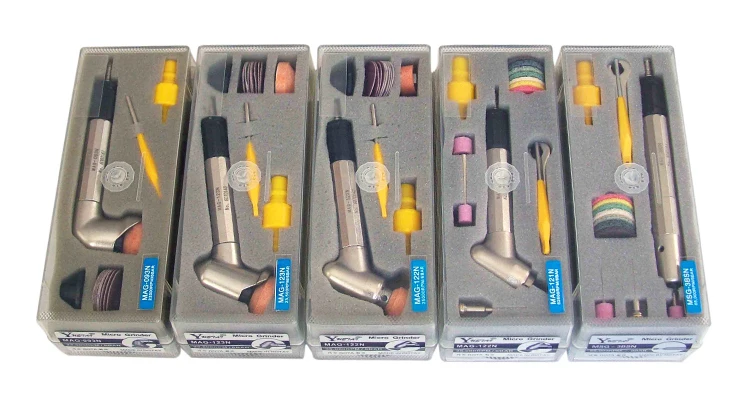

Usually we use simple package by plastic box, then 1 sets per inner box. 50 sets per carton.
Carton size is 40*40*34cm.
Shipping method: We delivery goods by sea, by air or by express, it depends on your request.
WHY CHOOSE US?
Competitive advantage and services:
1.Factory direct price: you can get more benefit from us.
2.Peofessional sales-team: any of your question can be answered within 12 hours.
3.Fast delivery time: 7-10 days usually, and rush order is available, no extra cost caused.
4.Good cooperation with our forwarder and courier to ensure our rapid delivery.
Payment:
1. 30% deposit, balance before shippment. by T/T, Western Union .
2.The special issues can be discussed .
RELATED ITEMS
FAQ
Q: How about MOQ ?
A: Our minimum number of polishing tools is with no limited quantity, even 1 set is also appreciated. But the postage need to be paid. Please kindly consult your sales associate, and he/she will follow up immediately.
Q: What information should i let you know if i want to get a quotation ?
A: The model number and quantity.
Q: How could I make payment ?
A: Online Escrow payment is welcome, and Paypal, TT, Western Union payment is also acceptable.
Q: When can I get your quotation?
A: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the price, please call or tell us in your email so that we will regard your inquiry as priority.
Q: Can I get a sample before making a big order?
A: Yes, but you need to pay for the sample and postage.
Q: What about the lead time for mass production?
A: It’s depends on the order quantity and the season you place the order. For example, for quantity 50 sets, the lead time is about 7 – 10 working days.
If you want to know more about our products,pls just contact us freely.
Any inquiry will be replied within 12 hours, which will always have our best attention.
At last, thank you for your visiting. Your inquiry will always be welcomed.
