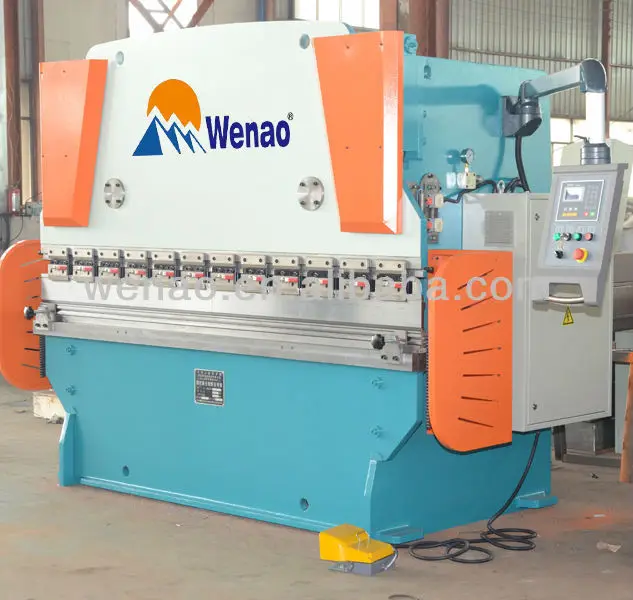

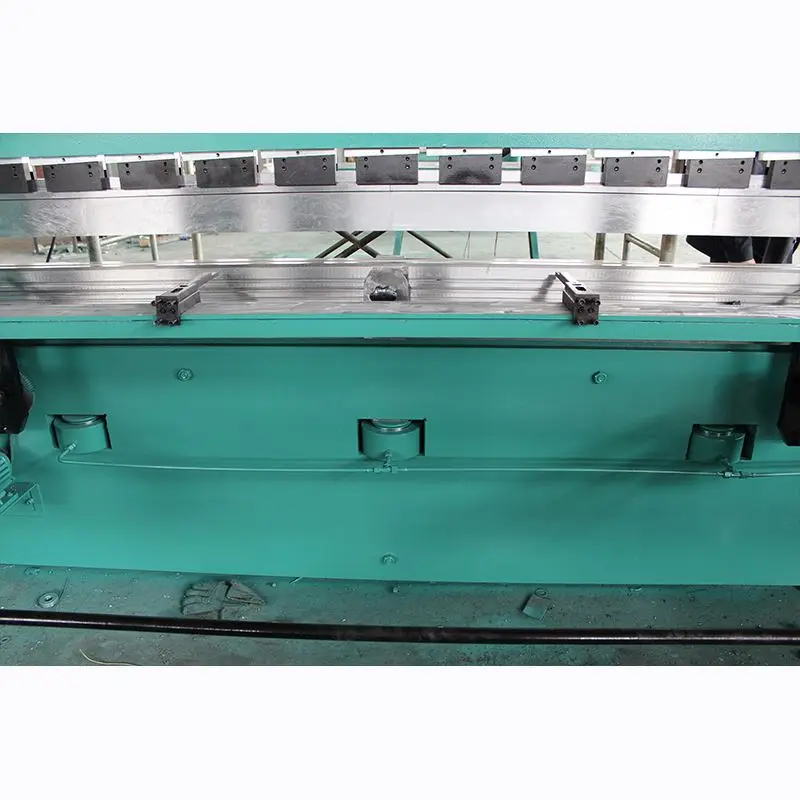

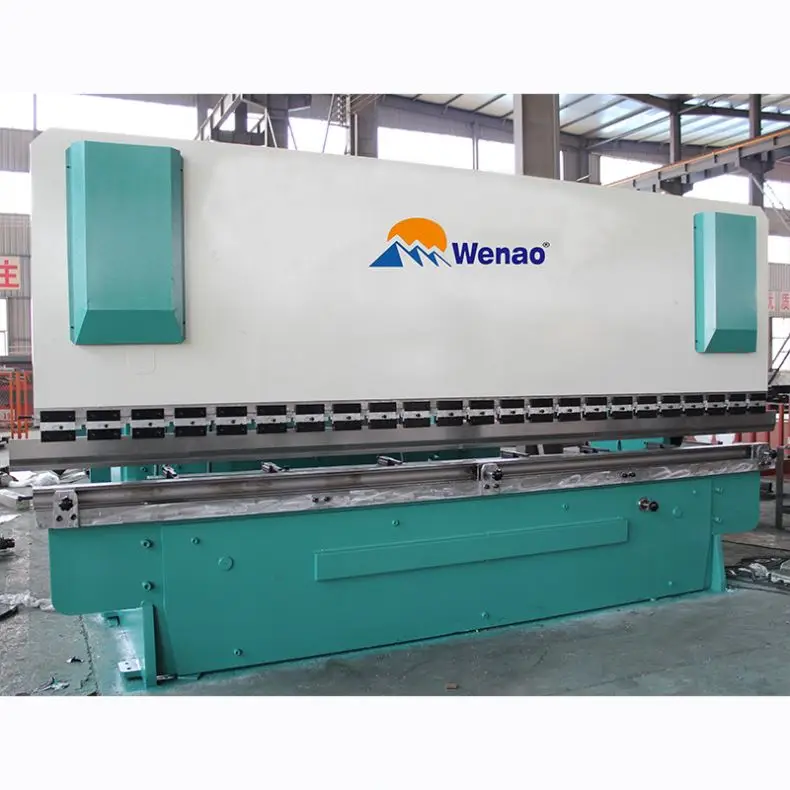

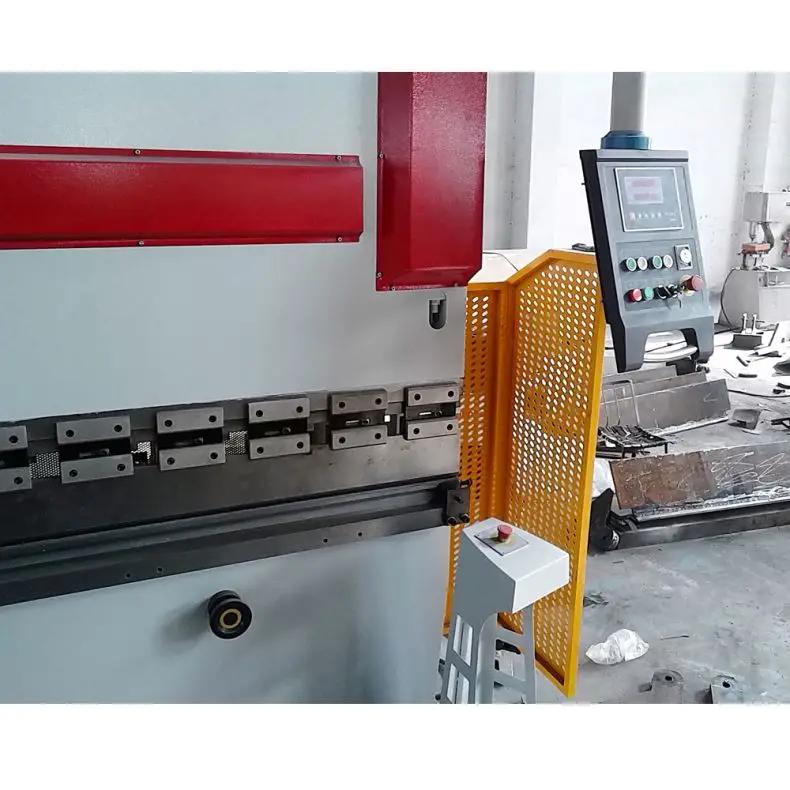

hydraulic press brake machine/brake pad machine

Product Overview

Description

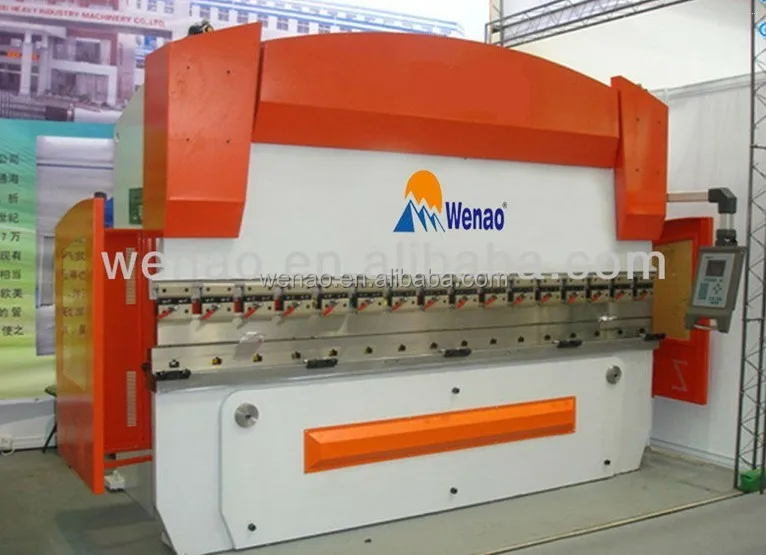

    CNC hydraulic press brake/automatic bending machine/plate press brake/press brake bending machine





  Press brake technical details:





 Example:   How to count bending power?



                 8(Ratio) x 2 mm(thickness) x 2.5 meter (width)= 40.



                 so, you need WC67Y-40T/2500 press brake to bend 2 mm thick x2500mm width mild steel.





•How to get a accurate quotation from us ?



1,tell us metal thickness.



2,tell us metal widthness.



• How to check shipping cost from China to my country?



Very simple,tell us your city or port.



• How to check imported charges or tax ?





Call your Customer.tell them machine HS code?





Press brake and rolling machine are 84622990. shearing machine is 84623990.





• How to see our machine in your local place?





We have sold lots of machines to the world,in most situation,you can see our machine





in your country,however,we can not promise 100%,so,confirm with us by email.





• How to repair&maintain our machine ?





Generally,the hydraulic machine is not easy to break.even though the problem occur,it is small problem.





we can solve it through email and video.



• do you offer commissioning service ?



yes,we can offer commissioning service,but,the buyer need to afford plane tickets.



• Do you offer teaching&training ?



yes, we prefer that you arrange your worker to China. or our engineer go to your country.



• what policy for broken parts?



within one year,we offer free parts.



if beyond one year,you need to buy by factory cost



Detailed Product Description



1. Export quality license by government
2. SME factory control cost easy focus on quality
4. CE/ISO
3. English video manual



FEATURE OF      CNC hydraulic press brake/automatic bending machine/plate press brake/press brake bending machine

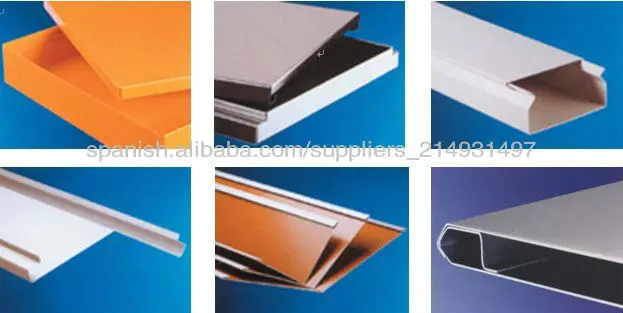

1.It’s very popular in metalworking market for bending metal sheet



 2.Various model of bending 4-40mm thickness and 1000-9000mm length.



 3.Steel welded construction, vibrating aging function

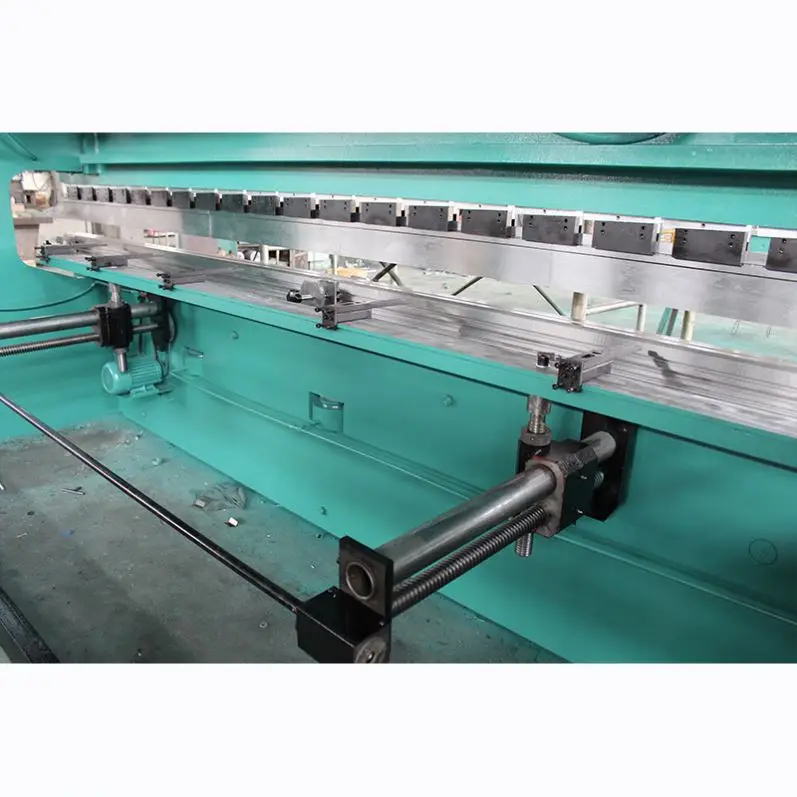

 4.Servo backgauge and RV working table comensation is optional





 5.Motorized back gauge and cutting number can digital readout ,E10 or CNC100





6.Power break protection device to guarantee safety during maintenance



7. Debug and goodafter-sales service





CHARACTOR:

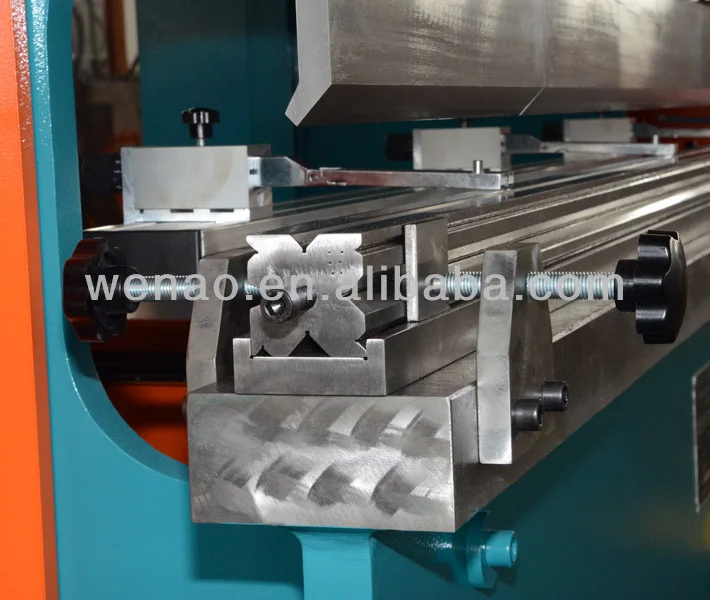

1)whole steel-welded,standard upper and lower dies,hydraulic transmission system,foot pedal with emergency stop.

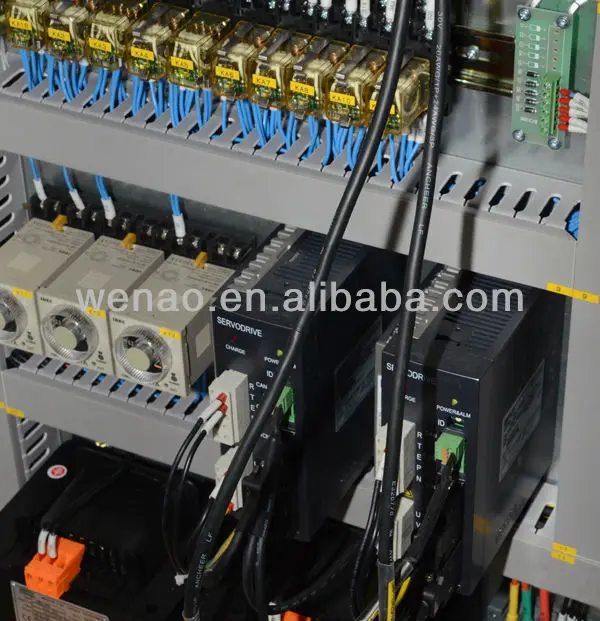

2)The machine equips with DRO(digital readout) system to display the values of ram and backguage,(ball screws),and equip the side and back guard.to equip CNC system,you can choose  the system E-20+ CNC(made in China) or Delem 51 system (from Netherlands),All price include the servo-motor, To equip with light curtains for rear of press brake,you can choose the system from China or sick from Germany.



 All include the servo-motor.



To equip with light curtains for rear of shearing machine,you can use system from China madeor sick from Germany.





  TECHNOLOGY DATA OF CNC hydraulic press brake



	Nominal pressure	Length of working table	Distance between uprights	Throat dephts	Ram stroke	Motor power
Specification	KN	mm	mm	mm	mm	KW
40/2200	400	2200	1650	200	100	4
40/2500	400	2500	1900	200	100	4
63/2500	630	2500	1900	250	120	5.5
63/3200	630	3200	2570	250	120	5.5
80/2500	800	2500	1900	320	120	5.5
80/3200	800	3200	2560	320	120	5.5
80/4000	800	4000	2900	320	120	5.5
100/2500	1000	2500	1900	320	120	7.5
100/3200	1000	3200	2560	320	120	7.5
100/4000	1000	4000	2960	320	120	7.5
125/2500	1250	2500	1900	320	120	7.5
125/3200	1250	3200	2560	320	120	7.5
125/4000	1250	4000	2960	320	120	7.5
160/2500	1600	2500	1900	400	200	11
160/3200	1600	3200	2540	400	200	11
160/4000	1600	4000	2940	400	200	11
160/6000	1600	6000	4600	400	200	11
200/2500	2000	2500	1900	400	200	15
200/3200	2000	3200	2540	400	200	15
200/4000	2000	4000	2940	400	200	15
200/6000	2000	6000	4600	400	200	15
250/2500	2500	2500	1900	400	250	18.5
250/3200	2500	3200	2540	400	250	18.5
250/4000	2500	4000	2940	400	250	18.5
250/6000	2500	6000	4600	400	250	18.5
300/3200	3000	3200	2530	400	250	22
300/4000	3000	4000	2930	400	250	22
300/6000	3000	6000	4600	400	250	22
400/3200	4000	3200	2520	400	300	30
400/4000	4000	4000	2920	400	300	30
400/6000	4000	6000	4600	400	300	30
500/4000	5000	4000	2920	400	350	37
500/6000	5000	6000	4600	400	350	37
600/6000	6000	6000	4600	400	350	45
800/6000	8000	6000	4600	500	400	55
1000/6000	10000	6000	4600	600	500	75
