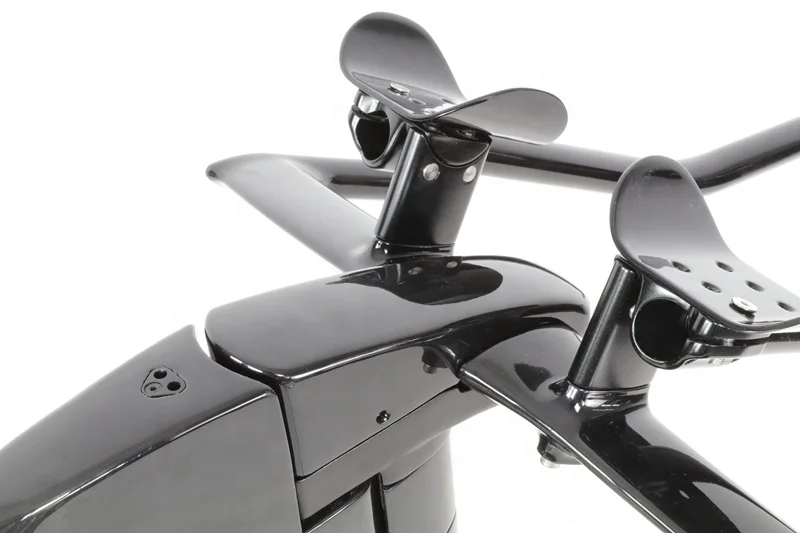

New Time trial frame Carbon triathlon frames TT bike frameset

Product Overview

Description

New Time trial frame Carbon triathlon frames TT bike frameset







Type	New TT frame
Frame	TT012  Frame/Fork/Seatpost/Headset/Handlebar/ Stem

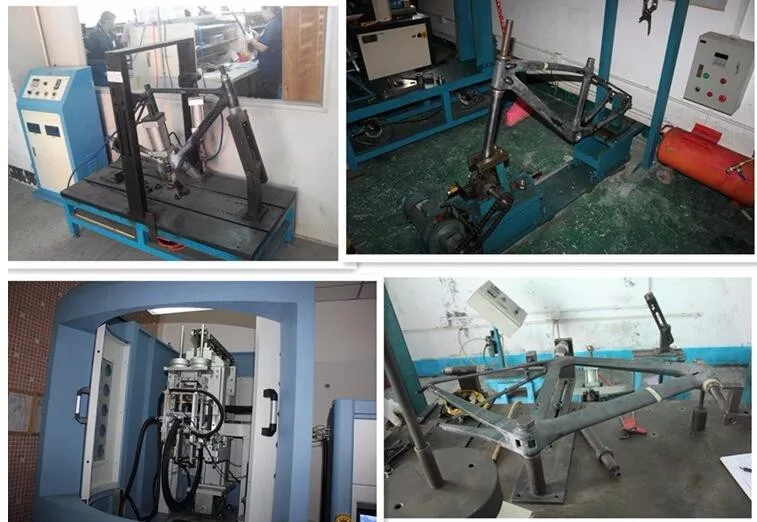

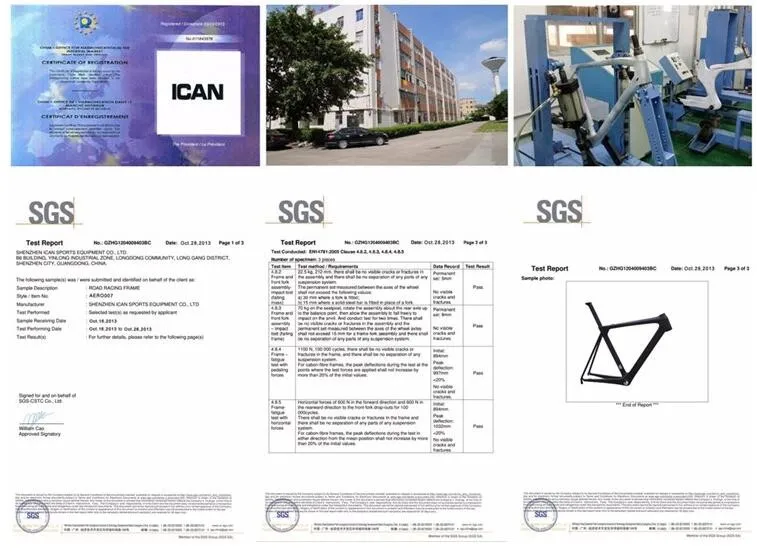

Test	SGS report
Material	Toray T700 carbon
weave	UD
Frame weight	Frame 1750g(54cm),Fork 425g,Seatpost 210g, Stem 420g.
Painting	Customized painting is available
Headset	1-1/8''
BB(Bottom Bracket)	BB386

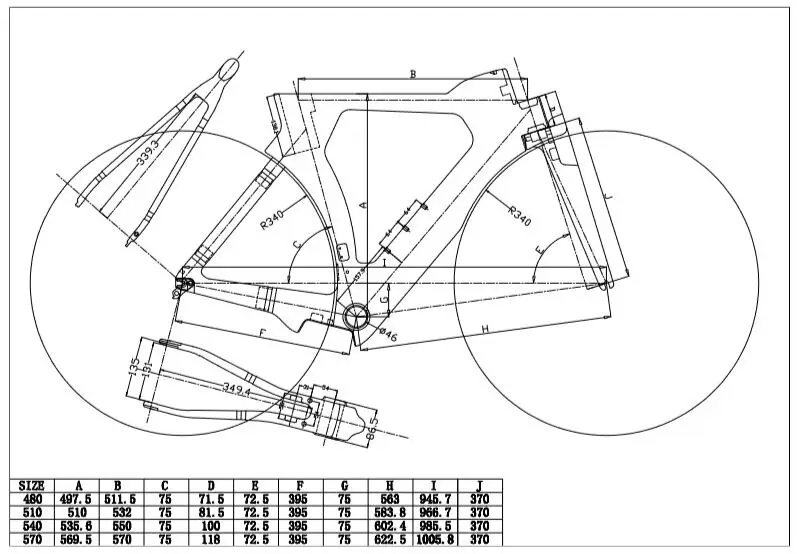

Available sizes	S/48cm,M/51cm,L/54cm,XL/57cm
Seatpost size	350mm (74-78° seat angle)
Handlebar size	420mm
Stem size	100mm
Tire	700X25C
Laden Weight	115KG

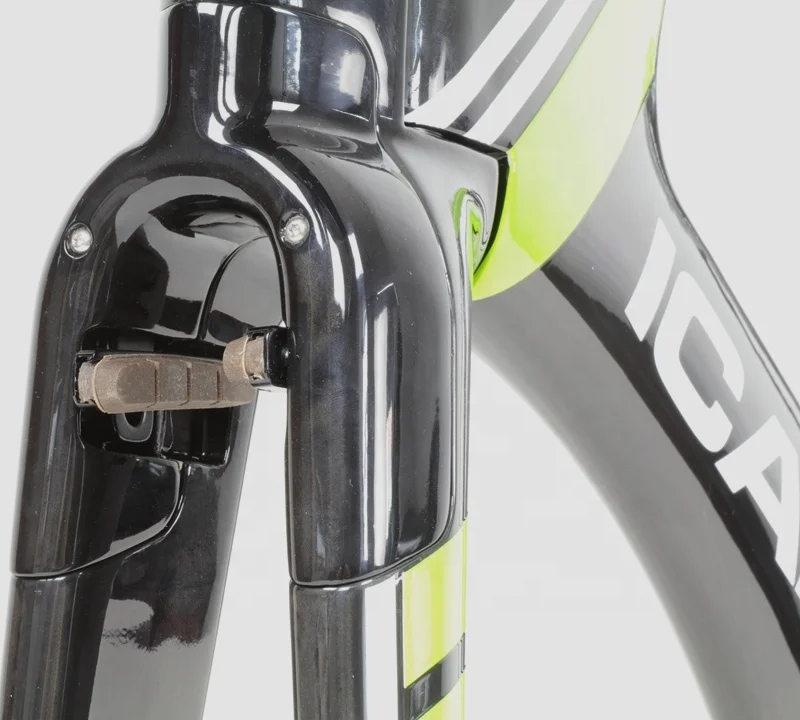

Brake	Special brakes for the frame , hidden brakes

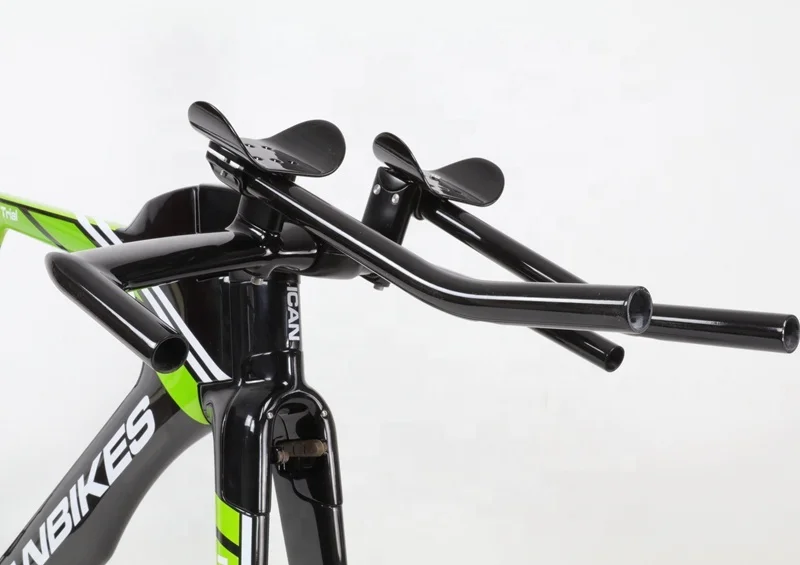

Hanldbear	Straight / riser

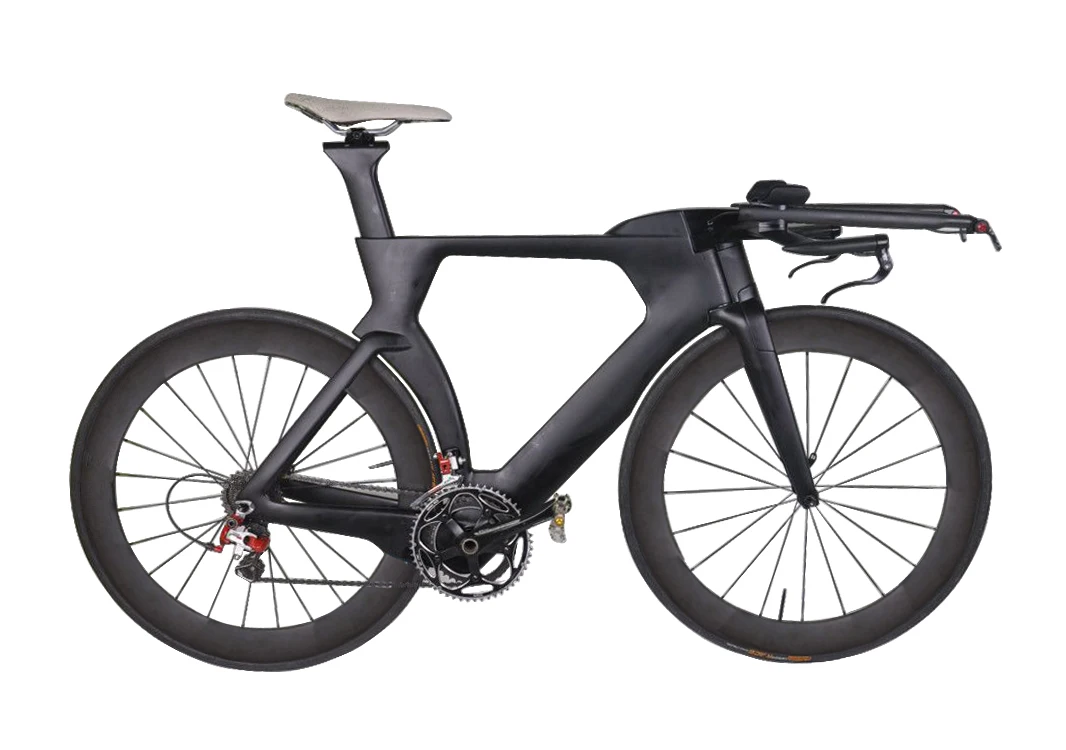

•  Triathlon bicycle carbon frame


•  Full hand-wrapped and monocoque carbon structured


•  Using the T700 carbon fiber from Toray/Japan


•  2 years warranty period under normal riding , if there is any damage not caused by  human factors, products can be replaced from us


•  We have professional desingers who can make a sketch as you like
