Product Overview
Description
chinese homemade lcd brochure video card
Product details:1.Display:7-inch TFT LCD color screen
2.Screen display Size:153*86MM
3.Picture resolution:800*480(16:9) or 1024x600 or IPS HD
4.Memory:Built-in 256M (128M to 4GB for option)
5.Built-in 3.7V 1000mAh Lithium battery and play time is 2-3 hours
6.Support video format MP4,AVI(music format:MP3 and photo format:JPG for option)
7.video playing time can last 10-20min.
8.Build in 8Ω2W speakerx1
9.Multiple design options
10.system support:Win98/ME/NT/2000/XP/WIN 7/mac
11.Accessories: USB cable,Foam
13. and If you need touch screen,add $3.0
14.support 1080P for option,(it need add extral $0.8-$0.5)
USB cable for charging and upload video full color printing card
15.A grade screen+A grade battery+100% new flash...
16.If need motion sensor,it need add extral USD4.0; if need button,it need add usd0.1 per button;If need sample with customer own design in digital printing ,it need add extra $24
17.if you need 128M flash,it can deduct $0.3
a)Open the card: power on and will play video automatic, closed the card,power off,if you no need this function,we can cancel
b)Or press a play button on the booklet to play the video;
c)cycle playing if have several videos
d)Or make 4 segments video with 4 different button to play the viedo for showing different theme;
e)Could download your favourite video into the card or take your own video to your friends by USB downloading.
f)Customerize shape, design, Size are welcome!
h)If device stop working,pls closed the card and will restart,if you no need this function,we can cancel
i)Using USB to charge battery,it also can play video by using adapter directly (USB cable long can be 1.5M or more longer)
PS:The above price can including customer's own design
1.Specification
| ODM Design | |||||
Please send us your details according to our table below or with your special requirements. We will check and feedback you very soon. | |||||
| LCD screen | 4.3inch | 5inch | 5inch IPS | 7inch | 10.1inch |
| Display Area | 94mm*53mm | 110mm*61mm | 107mm*64mm | 152mm*85mm | 221mm*124mm |
| Screen Ratio | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 |
| Resolution | 480x272 | 480x272 | 800x480 all the view | 800x480 | 1024x600 |
| if Popular size | Yes | Yes | Yes | Yes | Yes |
| 5inch with 3 option | 5inch standard Resolution: 480x272 Screen Ratio:16:9 | ||||
| 5inch HD Resolution: 800x480 Screen Ratio:16:9 | |||||
| 5inch IPS Resolution:800x480 Ratio:16:9 which could see all the views for the video | |||||
| 7inch with 3 option | 7inch standard Resolution 800x480 Screen Ratio:16:9 | ||||
| 7inch HD Resolution 1024x600 Screen Ratio:16:9 | |||||
| 7inch IPS Resolution:1024x600 Ratio:16:9 which could see all the views for the video | |||||
| 10.1inch | 10.1inch standard Resolution 1024x600 Screen Ratio:16:9 | ||||
| 10.1inch IPS Resolution:800x1280 Ratio:16:9 which could see all the views for the video | |||||
| Memory | 128MB - 8GB Optional | ||||
| Battery | 300mAh -10000mAh Optional | ||||
| Button | play/pause, previous, next, volume up, volume down, silence, restart, | ||||
| video select ( play the video you need),picture button, music button ect. | |||||
| (10 buttons at most in one card) | |||||
| Switch | on/off button, magnet switch, light sensor switch, motion sensor switch | ||||
| USB | 5pin/2.0/ 80mm USB cable | ||||
| Material | 300g-350g coated/1200gsm hard cover | ||||
| Printing | CMYK.pantone, embossed, hot stampling in gold or sliver etc. | ||||
| Usage | Advertising Brand,Business Gift,Wedding Invitation,Brand promotion. | ||||
| Product Size | A4 size: 210*297*9mm; A5 size"210*148*8mm; customized accepted | ||||
| Playback Time | standard 90~120 minutes, if you want longer, please choose larger battery. | ||||
| Video Format | MP4,WMV,AVI,MPG,FLV,MOV,3GP,ASF,DIVX,XVID,DVD,VOB,MPG2,VCD,DAT, | ||||
| MPG1,SVCD,RMVB,RM,MKV | |||||
| Music Format | MP3 | ||||
| Photo Format | JPG | ||||

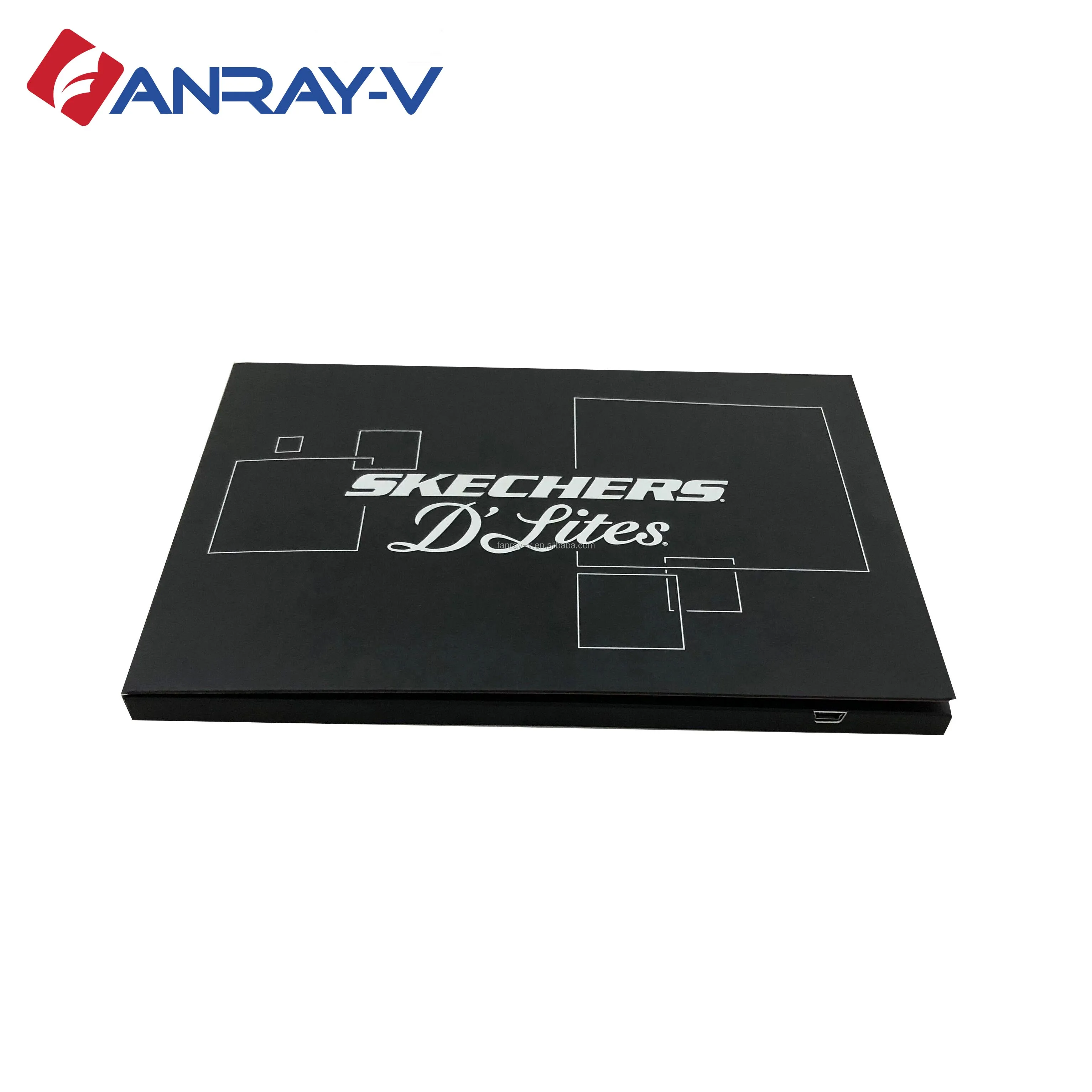

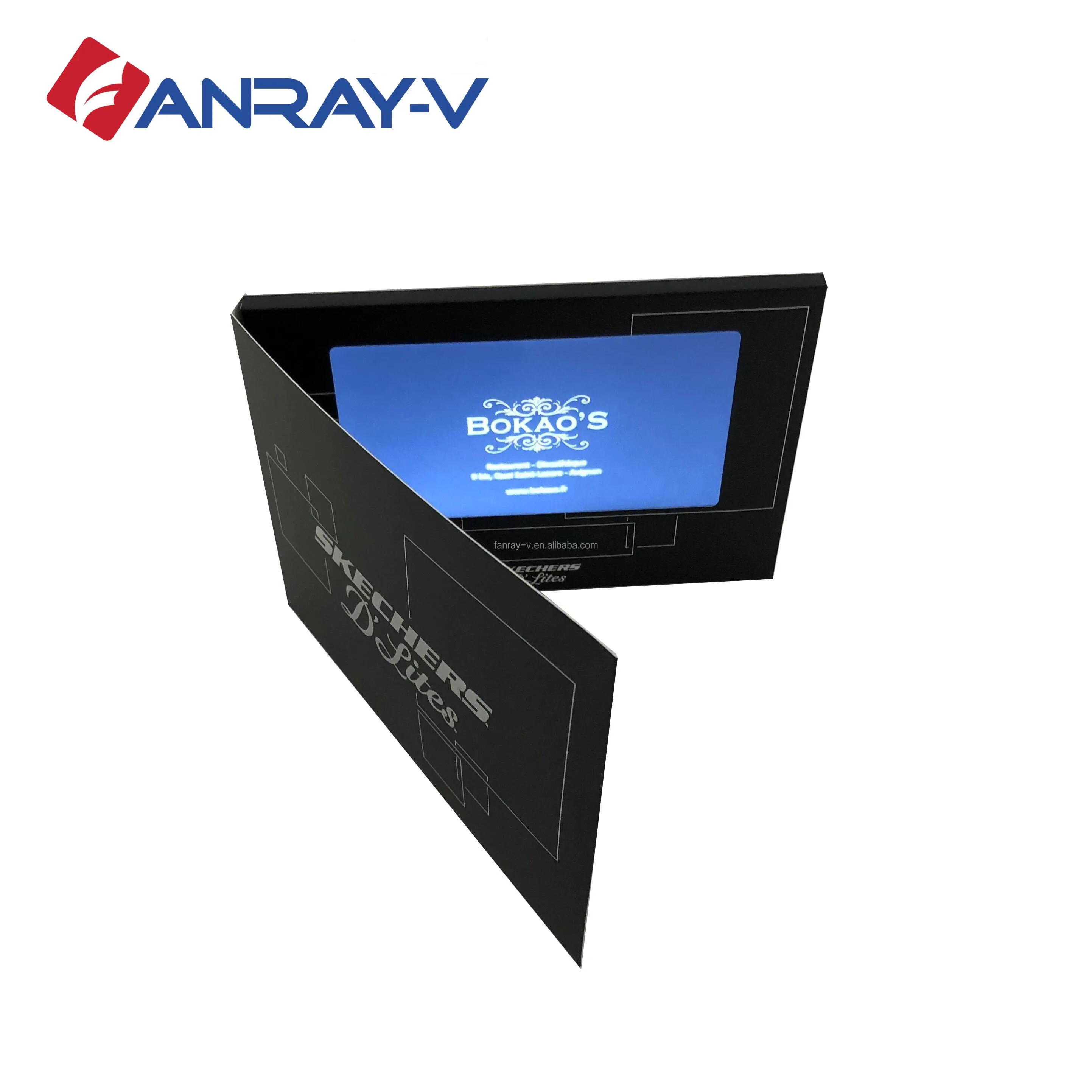

2.Product display
3.Product details
| LCD Screen Specs | Screen size: | 7" LED Screen |
| Resolution: | 800x480 or 1024x600 or HD and IPS | |
| Display Ratio: | 16:9 | |
| Display Color: | 16.7 M | |
| Response Time: | 300 cd/m2 | |
| Contrast Ratio: | 500:1 | |
| Touch screen | for option | |
| Media Formats | Video: | AVI,MP4 |
| Audio: | MP3 for option | |
| Picture: | JPEG for option | |
| Power Supply | AC Input: | 110-240V |
| DC Input: | 5V | |
| Apprearance | Housing Material | Paper for Multiple design options |
| I/O Interface: | USB1.1 port/USB2.0 port | |
| Unit Dimensitons: | 210x148x1cm or customized | |
| Screen Area: | 152x83mm | |
| Patameters | Paper Material | 300 coated or 350g coated |
| Standard Battery: | 1000mAh | |
| Playing Time: | 1.5-2 hours | |
| Build in Speaker: | 8Ω 2W | |
| on/off Switch | on/off button, magnet switch, light sensor switch, motion sensor switch | |
| buttons | multi buttons for your option | |
| Systerm Support: | Win98/ME/NT/2000/XP/WIN7/Mac | |
| Accessories: | USB cable,Foam | |
| Memory | Memory: | Built-in 256M (128M to 4GB for option) |
4.Related Products
5.Packing &shipping
6.Company info.
7.FAQ
Q: How to Design? A: We will offer you a blank template by PDF,then you put your design on our template |
Q.How to Know Paper Size ? A: We have standard A5,A4 or custom design
|
Q.How Many Screen Size? A: We have 2.4inch,2.8inch,4.3inch,5inch,5inch HD,5inch HD & IPS,7inch,7inch HD,7inch HD & IPS,10.1inch 1024x600 and 10.1inch HD and IPS
|
Q.How Many Buttons Could Put? A: We can do Min.1 button to Max.10 buttons
|
Q.How many order we could order and How To Printing? A: Quatity can do 50/100/250/500/1000/2500/5000/7500/10000/25000/50000 or more Printing 1 color or 4 color/ pantone color/Silver foil/Gold Foil
|
Q. What's the Surface treatment? A: Glossy varnish/Glossy lamination/Matt lamination
|
Q.What's the Price & Delivery time? A: Very compectitive price and fast delivery time:
|
Q.What About Warranty service? A: Video module (2 years) & Video greeting card: 1 year
|
Q.How to delivery? A: We always shipped by fast DHL/UPS,if order is over 5000pcs,we could ship by air door to door fast DHL it need 3-4 working days on the road
|
Q.How To Pay? A: By T/T/Western union/Paypal/ Visa/Marster/e-checking
|
