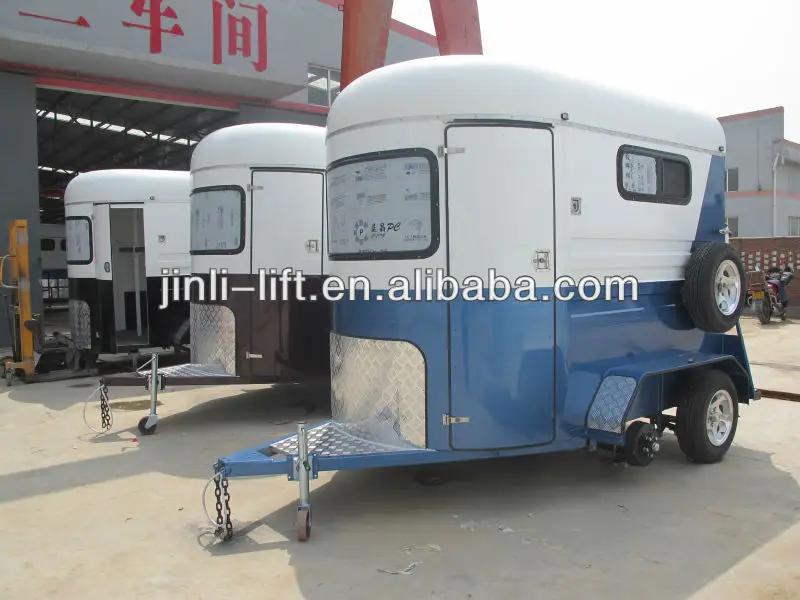

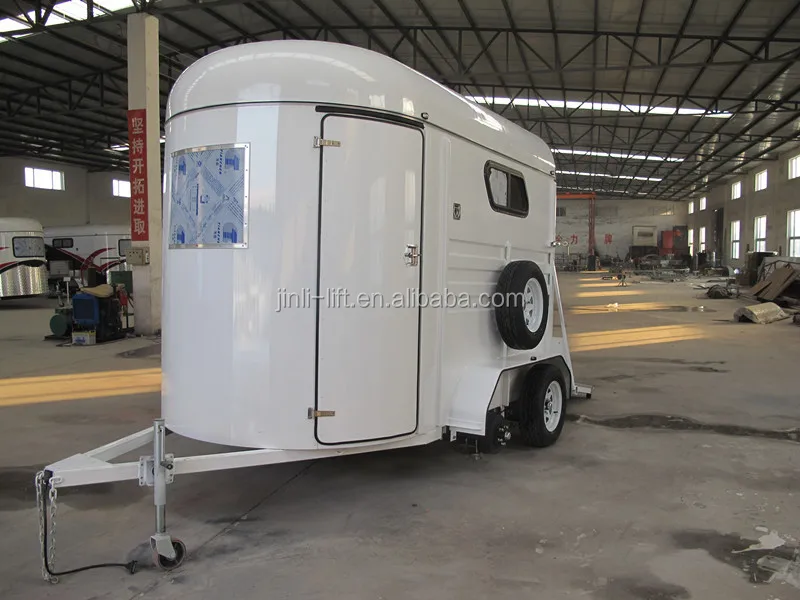

straight load horse float for two horses,box trailer

Overall Dimension

3745*2270*2590mm

Dimension of Body

2895*1750*2230mm

Maximum Internal Dimension of Body

2870*1700*2155mm

Chassis

hot-galvanized RHS (3.5mm-4.0mm)

Frame

hot-galvanized RHS(2.5mm)

Body

galvanizediron sheet(1.0mm-1.5mm)

Roof

glass fibre reinforced plastic 2950*1750mm

Wheel/Tyre

alloy rims 185R14C

Spare Wheel

one

Suspension

5-leaf plate spring suspension(400KG/leaf)

Independent

Axles

trailer axles

Brake System

one axle electric brake

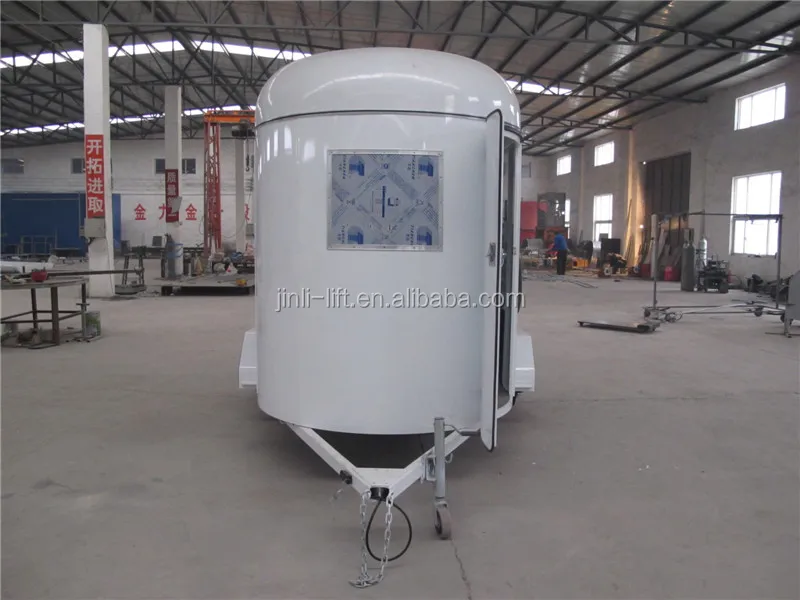

Front Window

1220*610mm front window

Side Window

one 300*600mm, left

Side Door

one

Turn Light

two each side(except tail lights)

Tail Lights

one set

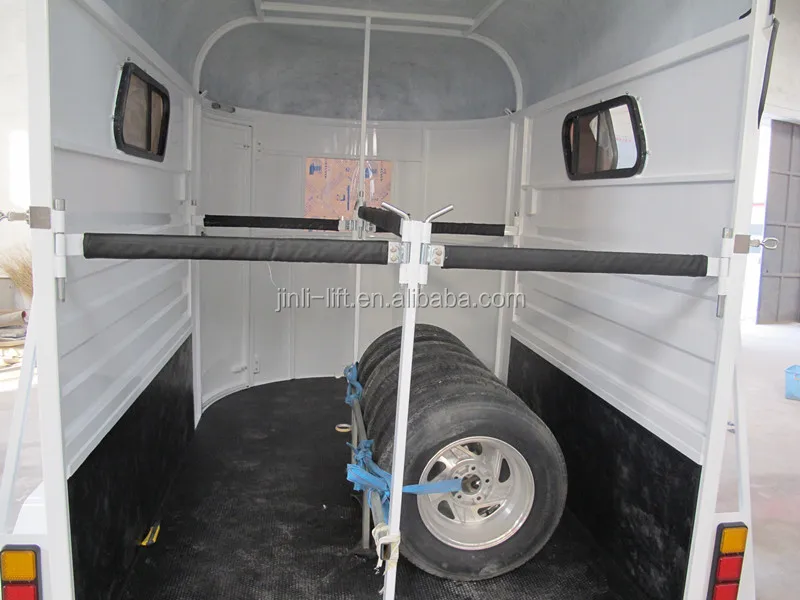

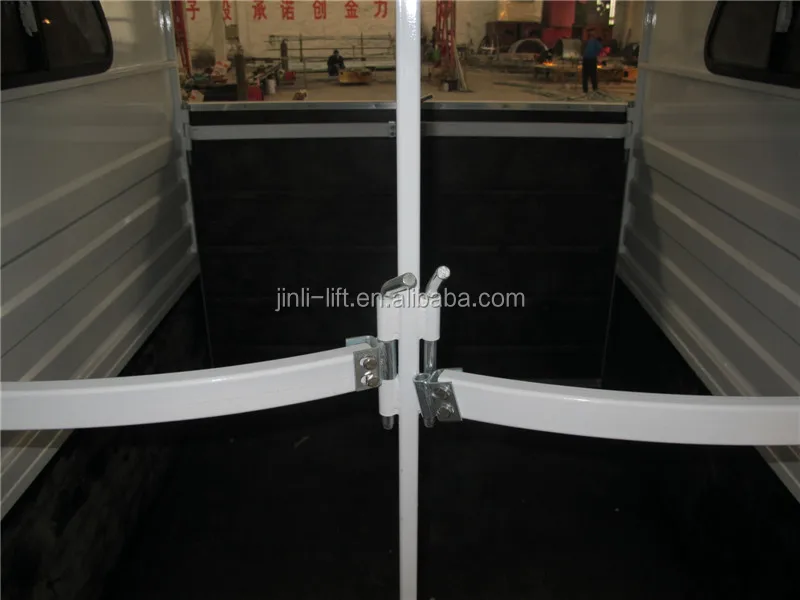

Horse Divider

normal cushion

Decorative Front panel

yes

Mudguard

partialy decorate with aluminium checkered plate

Pedal Plate

yes

External Tie Hooks

two,one each side

Jockey Wheel

swing-up jockey wheel

A kitchen

none

Roof Vents

none

Saddle Stents

none

Toolbox

none

Hay Rack

none

Tailgate(upper)

none and in canvas in stead

Tailgate/Ramp Door

2020*1210mm, pneumatic spring-loaded,10mm rubber cushion

Horse Area

10mm rubber floor

Side Area Inner

3mm rubber cushion

Taillight Mounting Plate

iron sheet
