WQM 320G Adhesive Flat Bed Automatic Label Die Cutting Machine

Share on (1175498565):


Price:

Quantity:


Product Overview

Description



WQM-320G Adhesive Flat Bed Automatic Label Die Cutting Machine




Product Description


  Features:



The machine features flat pressing high precision die cutting and computer control of material pulling and slicing, precision tracking and positioning of both sides and longitude of printed marks by three photoelectric eyes as well as completion of die cutting, waste collection, slicing or automatic marking machine roll at a time, suitable for the die cutting of paper adhesive trademarks, terylene film trademarks and laser counterfeiting trademarks. As the optimal auxiliary equipment of flexographic printing machines, continuous screen printing machine, relief printing machines and counterfeiting trademark mould press, it is the most ideal machine for various trademark printing factories.





Main Technical Parameters:























































ModelWQM-320G
Die cutting speed:20-170t/min
Max unwinding diameter:500mm
max web width:320mm
Max. die cutting width:300mm
Max. die cutting length:300mm
Orientation accuracy:±0.1mm
Main power:3.5kw
Power supply220v±10%
Machine package dimension:2.6(L)x0.99(W)x1.4(H)(m)
Machine net weight:About 1700kg

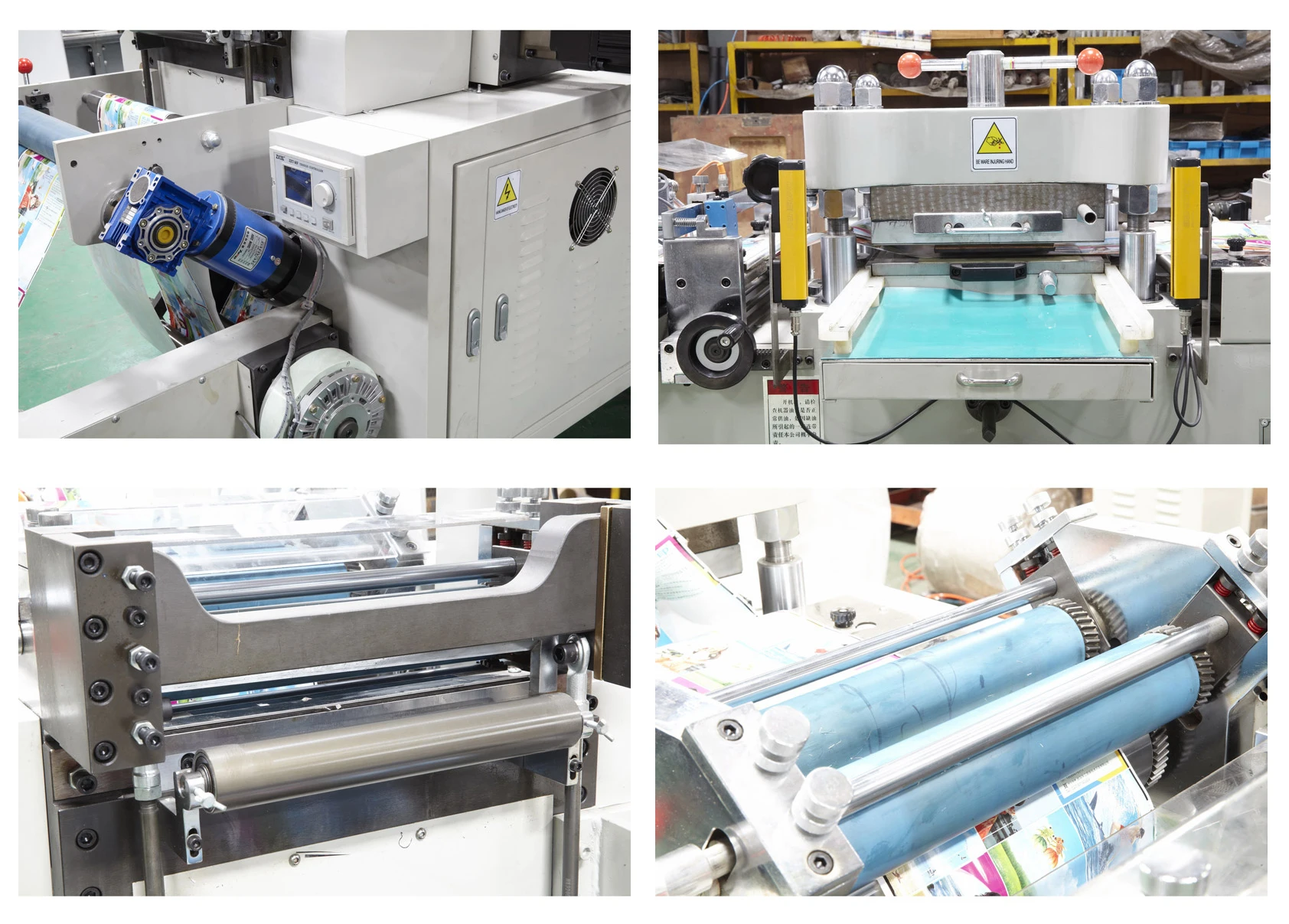

Detailed Images










Sample Picture


  adhesive label 6   adhesive label2


  adhesive label4








Packaging & Shipping







Our Exhibition


1111111





FAQ


1. Q: Are you a factory or trading company?
A: We are manufacturer,and also on stop solution for paper printing and packaging machines.





2. Q: whats the delivery time ?
A: Normal production time 25-35 days, but base on different period.





3. Q: Do you have CE Certificate?


A: yes, All machine have CE.





4. Q: Do you have any working machine for us to visit?
A: Yes,We have running machine to show.


5. Q: How is the warranty of the machine?
A: Our machines have ONE YEAR WARRANTY. And the engineers available for overseas service.





6. Q:Is it safe on the payment for me as we are the first cooperation?
A: We can do the trade assurance, which will guarantee your products receiving, we also accept other safe payment way as you want.





7. Q: How about installation?


A: We can send engineer to help install the machine, but the charge should afford by you, and we also can take details installation video to you.
