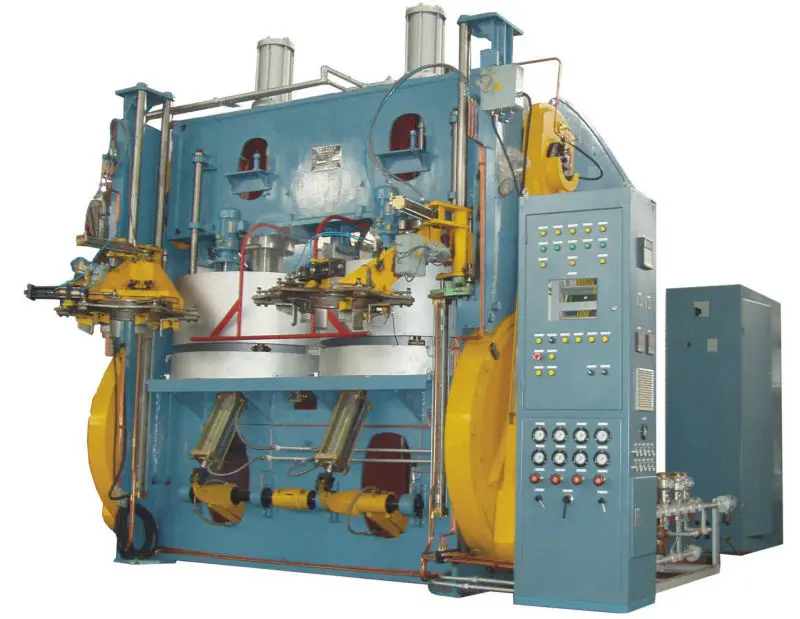

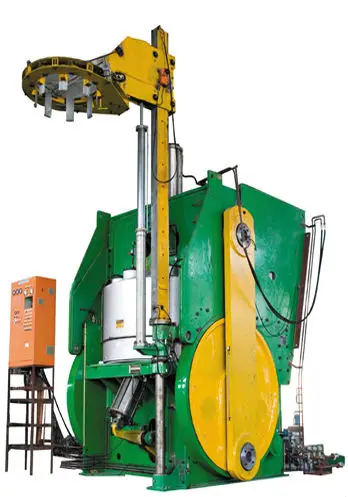

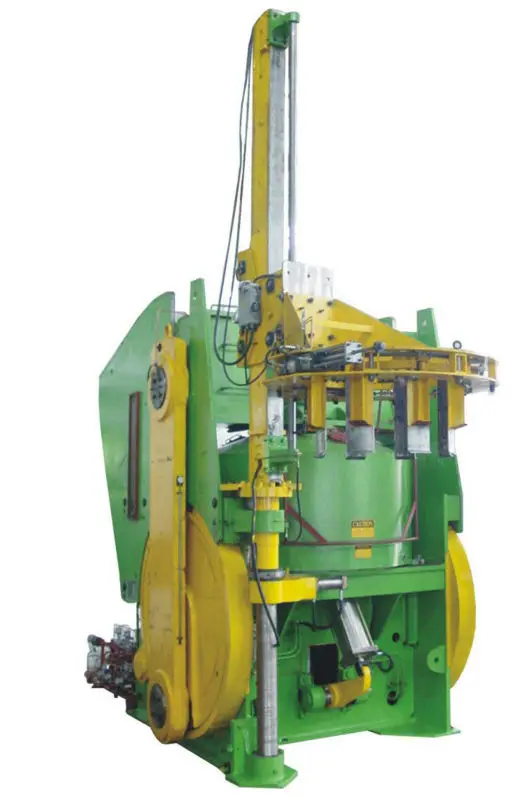

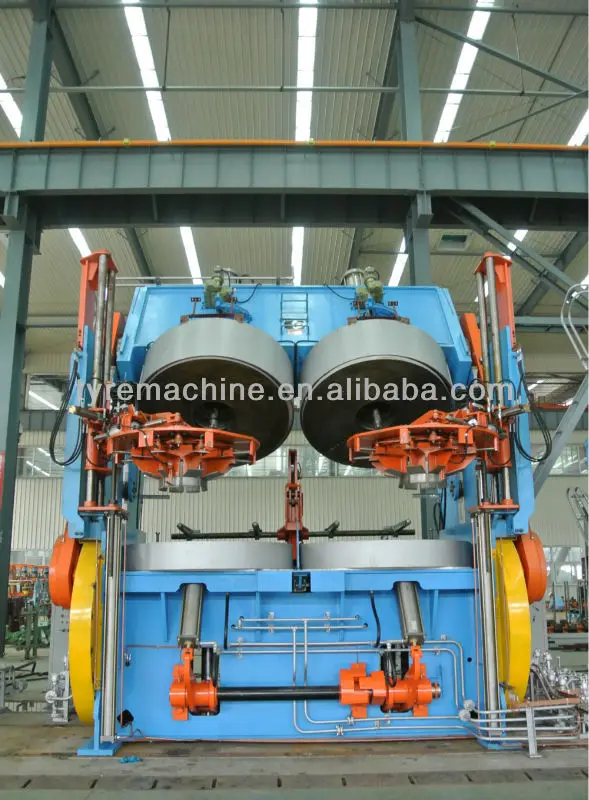

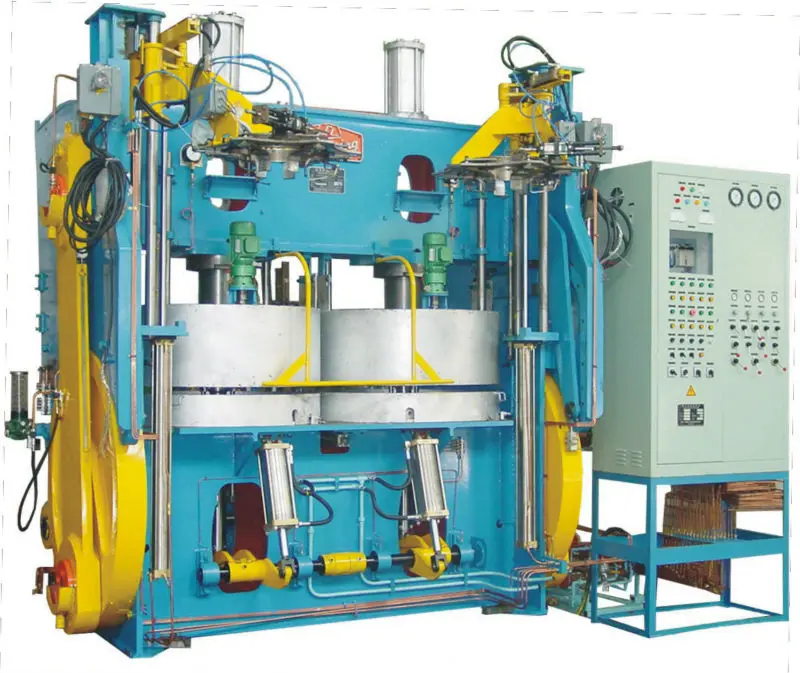

Mechanical Tire curing press

Price:RUB 5,946,168.00 - RUB 13,378,878.00

Quantity:

Mechanical tire curing press

We can supply the curing press for PCR tyre, Agricultural tyre, OTR tyre, TBR tyre,etc.

Type: Mechanical type and Hydraulic type

BOM, A, AB

Size of curing press: 40"45"46"48"55"62.5"65"75"85",etc

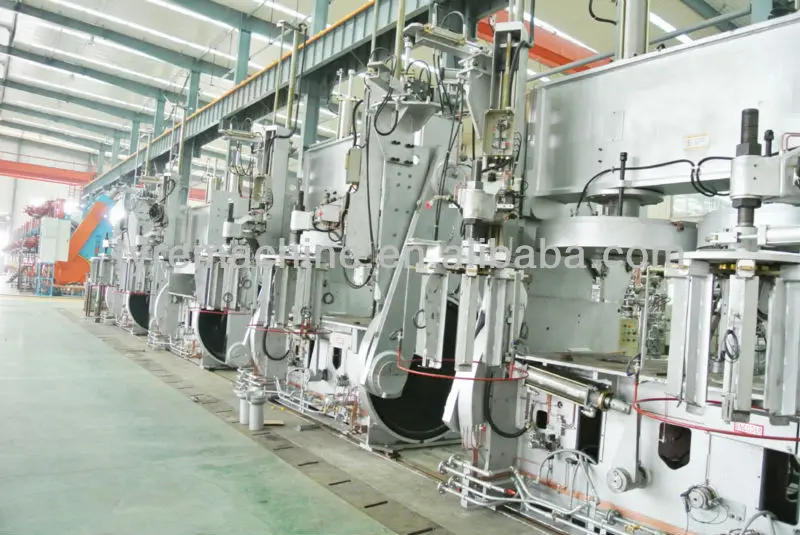

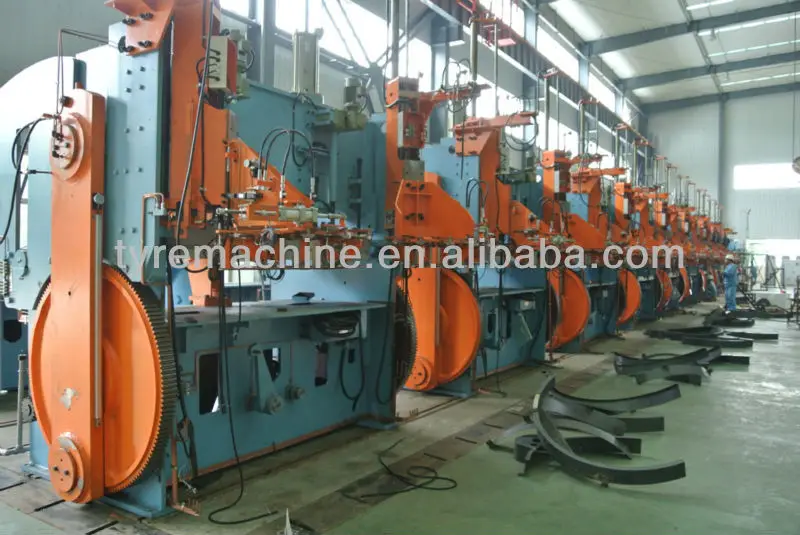

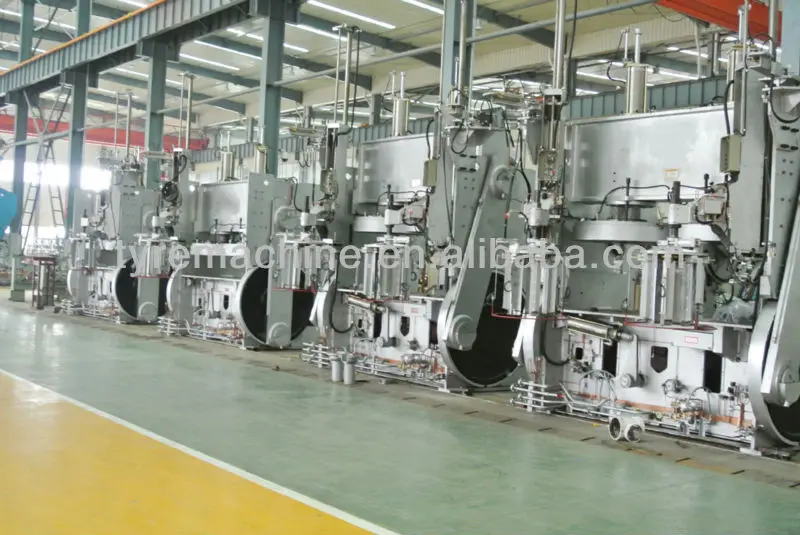

Our curing presses are supplied for many famous tyre factories around the world, like Michelin, Bridgestone, etc.

We welcome your visiting to our factory for further discussion,

Below is example parameters:

Mechanical Type

Item		Unit	Specification
			B1600	B1665	B1750
Curing cavity No.			2	2	2
ID of Mould shield		MM	Φ1600	Φ1665	Φ1750
Max squeezing force		KN	3800x2	3800x2	4600x2
Height of mould		MM	400-700	400-700	400-700
Center Mechanism			BOM(water hydraulic)	BOM(water hydraulic)	BOM(water hydraulic)
Diameter of suitable tyre bead		Inch	20-25	20-25	20-25
Max O.D. of cured tyre	Segmented mold	MM	1135	1200	1300
	Two piece mold	MM	1235	1300	1400
Max section width of cured tyre		MM	500	500	500
Max height of green tyre		MM	650	650	600
Designed mould open/close time		S	90/50	90/50	90/50
Max load of VCL		Kg	150
Max weight of mold		Kg	6500
High pressure oil pressure		Mpa	16
Low pressure oil pressure		Mpa	8
Max external pressure		Mpa	1.4
Max internal pressure		Mpa	2.8
Hydraulic water pressure		Mpa	2.1
Compressed air pressure		Mpa	0.7
Control air pressure		Mpa	0.35
PCI inflation pressure		Mpa	0.7

Hydraulic Type

Item		Unit	Specification
			B1145	B1220
Curing cavity No.			2	2
ID of Mould shield		MM	Φ1145	Φ1220
Max squeezing force		KN	1360x2	1960x2
Height of mould		MM	220-440	300-560
Center Mechanism			BOM(Oil hydraulic)	BOM(water hydraulic)
Diameter of suitable tyre bead		Inch	13-18	13-20
Max O.D. of cured tyre	Segmented mold	MM	Φ760	Φ860
	Two piece mold	MM	Φ820	Φ900
Max section width of cured tyre		MM	300	350
Max height of green tyre		MM	440	600
Designed mould open/close time		S	30/26	30/26
Max load of VCL		Kg	50	80
Max weight of mold		Kg	2700	4500
High pressure oil pressure		Mpa	16
Low pressure oil pressure		Mpa	7
Max external pressure		Mpa	1.4
Max internal pressure		Mpa	2.8
Hydraulic water pressure		Mpa		2.1
Compressed air pressure		Mpa	0.7
Control air pressure		Mpa	0.35
PCI inflation pressure		Mpa	0.7
PCI rim width		Mm	100-280		100-330

If you need more details, please contact us!

We welcome your visiting to our factory.
