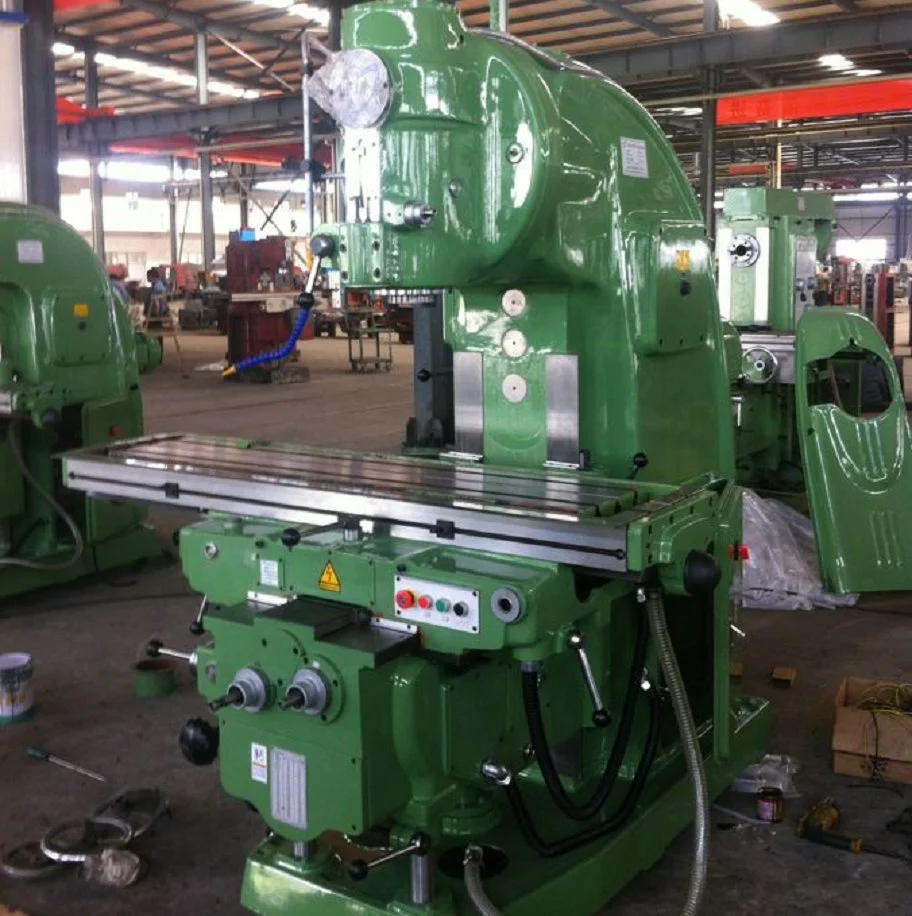

X5028 knee type vertical milling machine
- Category: >>>
- Supplier: Dalian Longlife Machinery Import And Export Co. Ltd.
Share on (1178709771):
Product Overview
Description
X5028 vertical milling machine
Product Introduction
x5028 vertical milling machine has following features:
1. one more powerful metal cutting machine,
2. high rigidity,
3. wide range of spindle feed also can bear a heavy burden.
4. the spindle taper hole can install many kinds of cylindrical cutter, disc cutter, form cutter, end milling cutter and so on,
5. optional accessories as dividing head, rotary table, machine vice,milling chuck, Digital readout, can make such machine more functional.
Main Usage:
6. Suitable for machining all parts plane, inclined plane, groove, hole,keyway, etc,
7. for machinery manufacturing, mould, apparatus, instrument, car and motor car.
Main Technical Data
SPECIFICATIONS | UNIT | Parameter |
Table Size | mm | 1200 × 280 |
Table Travel (X, Y, Z) | mm | 680/260/400 |
Spindle nose to work surface | mm | 35~435 |
Spindle taper |
| 7:24 ISO40 |
Rapid speed of table (X, Y, Z) | mm | 1000/1000/500 |
Table feed ( X, Y, Z ) | mm | (8) 10~400 (X, Y) |
T-slots ( NO:/ width/pitch ) | mm | 3/14/70 |
Spindle speed range | r.p.m | 12steps 35~1500 |
Spindle travel | mm | 70 |
Distance between spindle axis and colomn guidway | mm | 285 |
Swovel angle of Vertical milling head |
| ±30° |
Main motor | kW | 3 |
3 to feed motor feed | kW | 0.75 |
Overall size | mm | 1635 × 1680 ×1810 |
Net weight | kg | 1500 |
Our Services
1, Your inquiry will be replied in 24 hours;
2, Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 7 years. And there is more industry technology experience for 24years with our manufactures;
3, To offer free spare parts and service within one year of warranty;
4, Technical Support Provide operation video for training;
5, Professional after-sales service team;
6, Call us at any time: +86-1313 046 5353
7, Fax us:+86-411-84410129

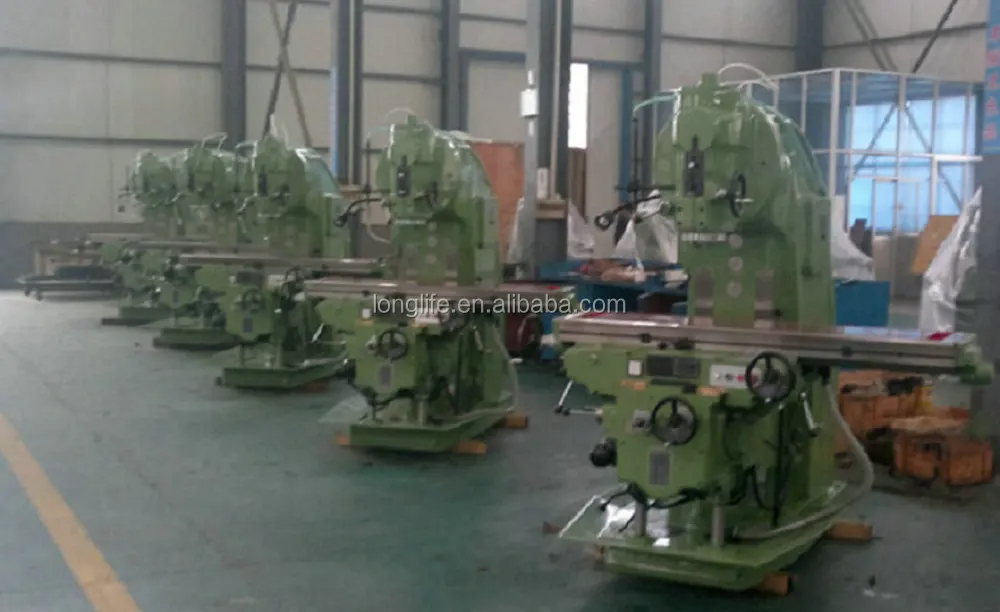

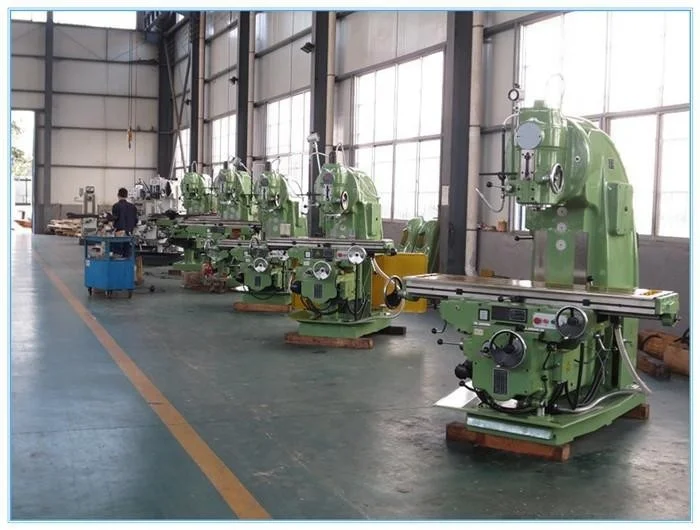

Factory Overview
