They own Europe Coal Mine Explosion-proof Certificate-ATEX. Main light adopt LEDs, has a high brightness and long life span. The switch of head lamp adopts light-touch electronic switch, good seal and easy to use, With the microprocessor control chip inside, it has multi-function for self-protection, intelligent managing the process of charging and discharging, and can be charged by all kinds of chargers. It has Lithium manganic battery pack, which has no memory, free of maintenance, environment protection, safe and reliable. The product is widely used for lighting in the environment where flammable and explosive gases exist.

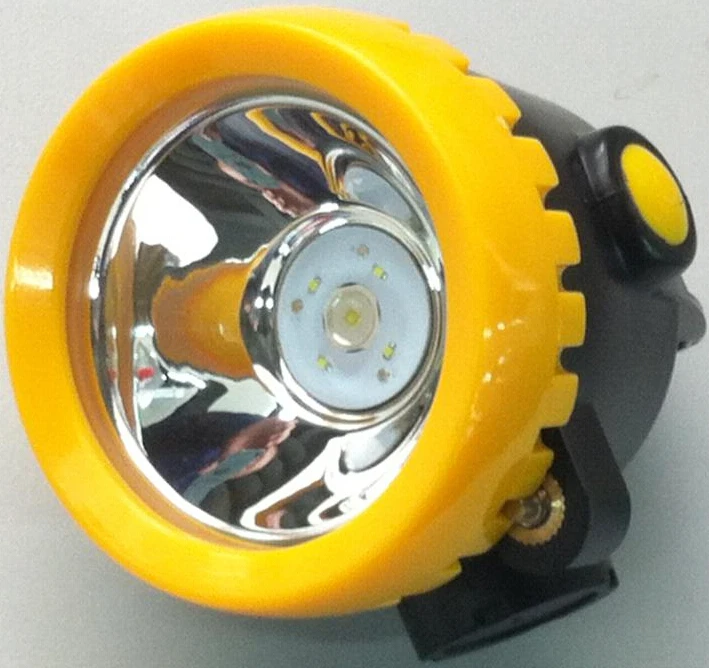

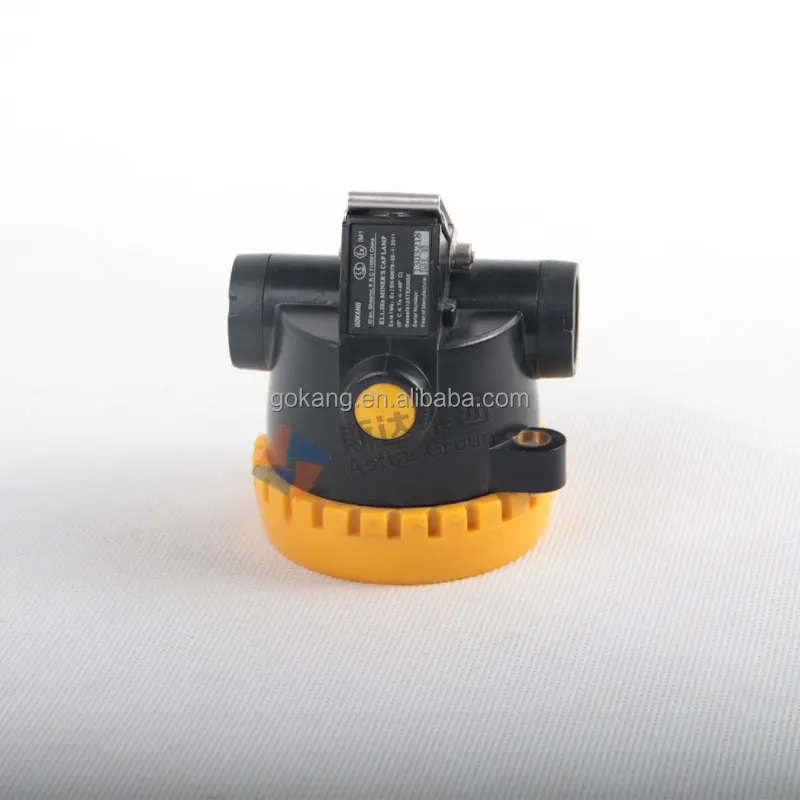

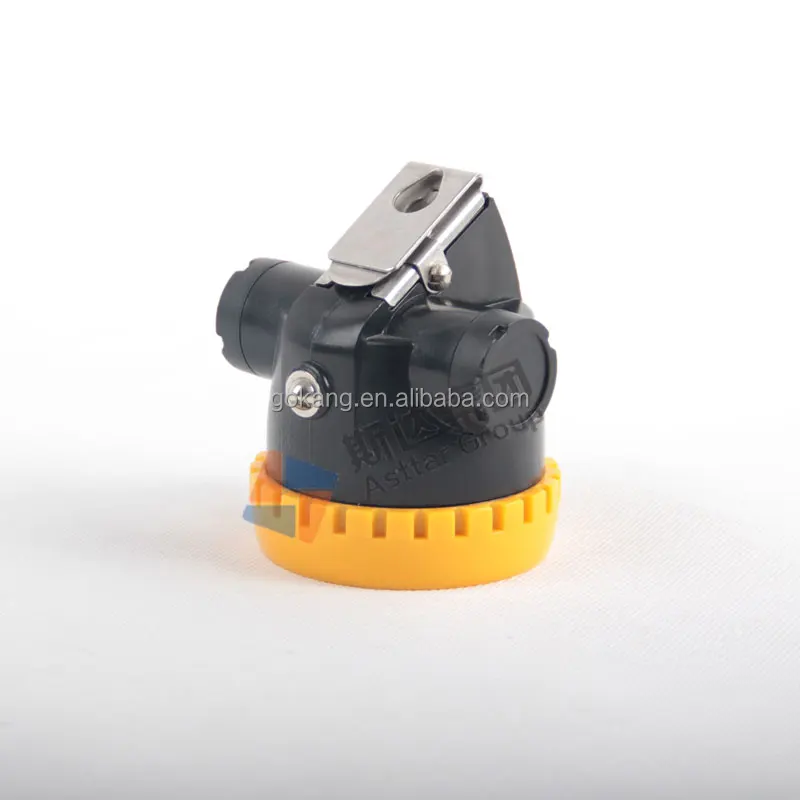

K--- Miner’s Cap Lamp
L--- Li-ion battery
1.2--- Rated capacity of battery(Ah)
Ex--- Explosion-proof
Item
KL1.2Ex
Battery style
Li-ion
Rated capacity
1.4Ah
Rated voltage
3.7V
Lighting time
>11h
Main light source
Working current
>0.12A
Length of Life
>30000h
Max luminance
(1m apart from the lamp)
When lighting begins
>3500 lx
After lighting for 11h
>2000 lx
Sub-light source rated power
0.4W
Sub-light current
0.06A
Length of life
>2years
Charging Voltage
(6-8)V
Charging time
<10h
Explosion protection
Ex iaI Ma

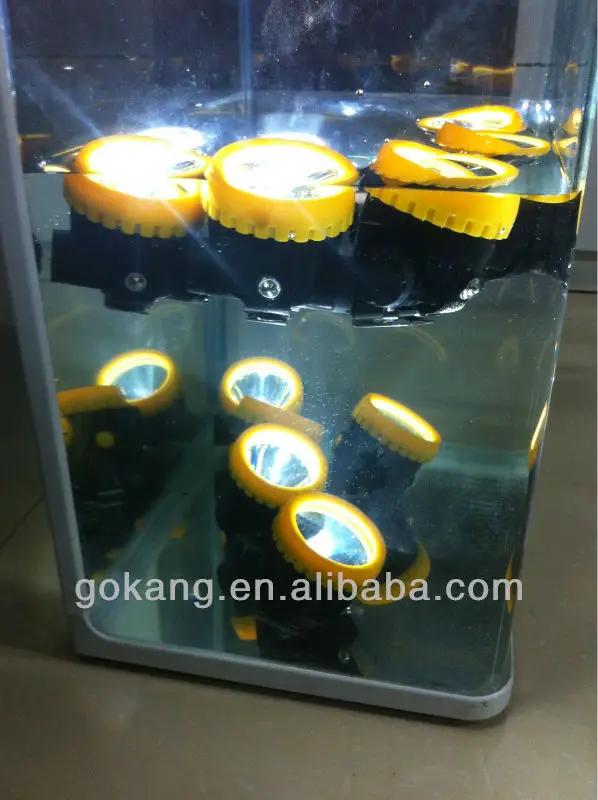

Protection grade
IP65
Dimensions of battery case
67×80×75mm
Weight
0.2kg
Matched chargers

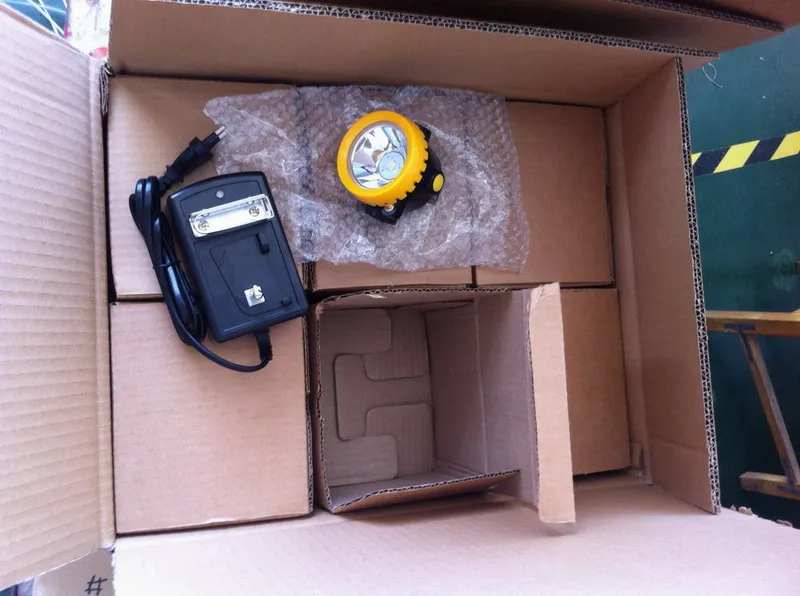

Packaging & Shipping
Our Services

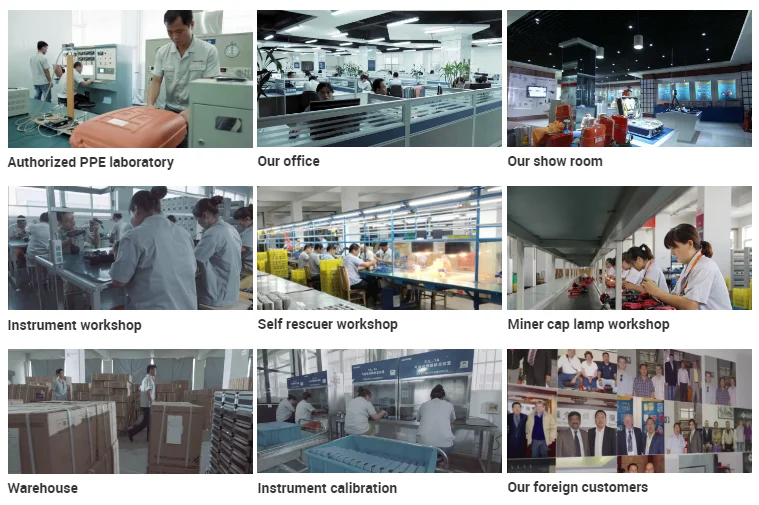

Company Information

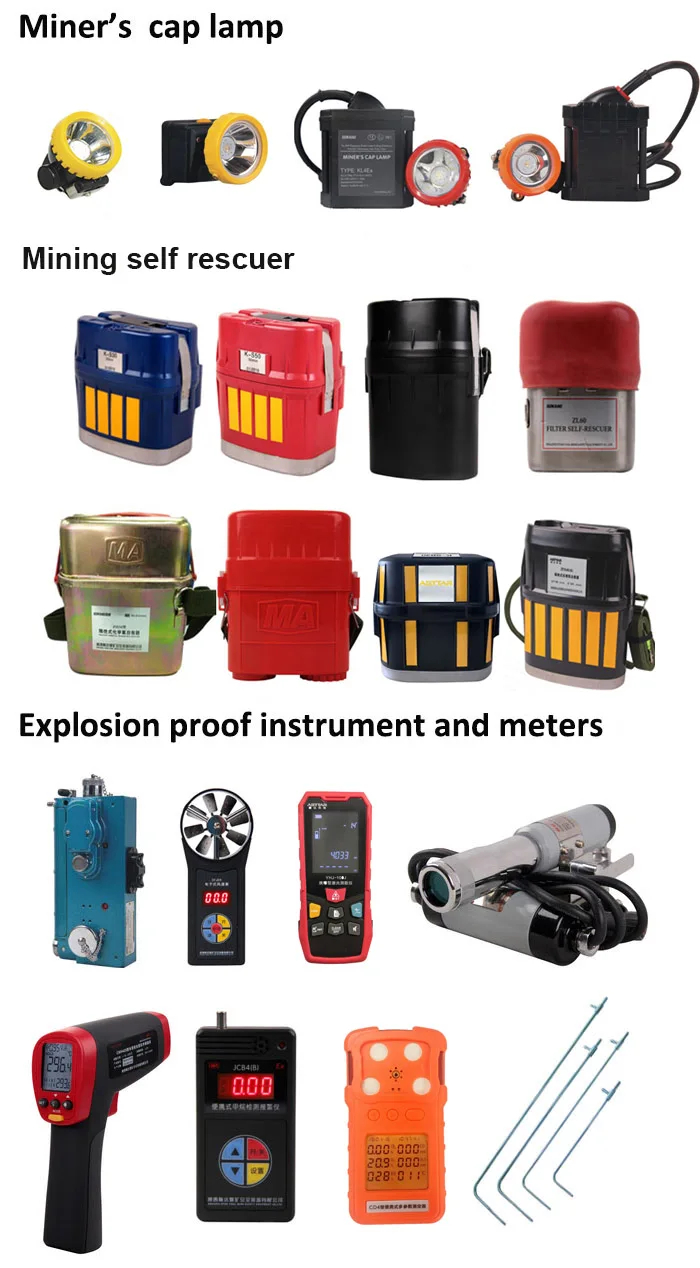

With ISO9001, CE authorized lab on respiratory devices for PPE directive, more than 20 years’ experience, ODM, OEM service provided, ASTTAR is specialized in developing and manufacturing of explosion-proof safety technology and products. We mainly export products of three categories:
