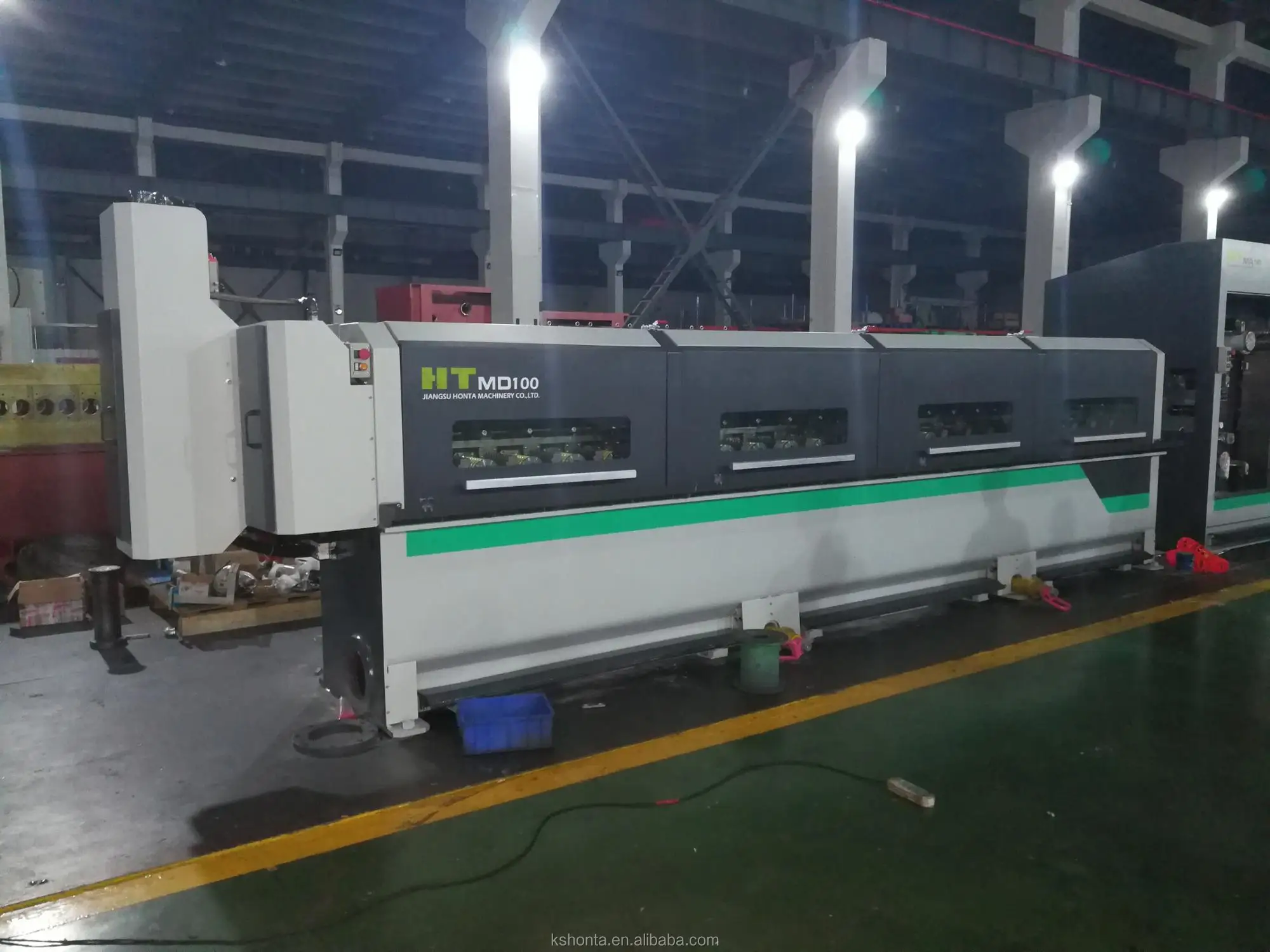

(dry Wire Drawing Machine)coaxial cable making machine
- Category: >>>
- Supplier: Kunshan City Hongtai Machinery & Electric Equipment Co. Ltd.
Share on (1179187793):
Product Overview
Description
Product Description
Medium Wire Drawing Machine with Annealer:
Features:
u Driven by high precise helical gears; compulsive oil supply lubrication; low noise;
u Drawing cones are fully immersed into drawing emulsion;
u DC annealing control, speed tracks to drawing speed automatically, it can ensure uniform and
stable elongation of copper wires.
u Reasonable low elongation design to ensure production efficiency and copper wire quality;
u PID auto adjusts spooling tension to ensure constant stable tension during wire drawing machine process.
----------------------------------------------
Technical Specification:
Machine type | HT-250-17DT | HT-260-17D | HT-300-17D | HT-300-17D |
Material | Cu | Cu, Cu alloy, Composite Cu | Al | Cu |
Machine speed | Max.1800m/min | Max.1500m/min | ||
Inlet dia. | 2.6-3.00mm | 2.5-3.0mm | 2.6-4.00mm | 3.00-3.50mm |
Finished dia. | 0.40-1.60mm | 0.40-1.20mm | 0.80-2.00mm | 0.80-2.76mm |
No. of dies | Max.17 | 17 (max) | ||
Drawing cone dia. | Max.250mm | Max.260mm | Max.300mm | Max. 300mm |
Capstan dia. | 250mm | 260mm | 300mm | 300mm |
Annealing current | Max.2000A | Max. 1500A | Max.2000A | Max. 3500A |
Annealing power | 170kw | 110kw | 170kw | Max. 270KW |
Machine dimensions | 9500*3500*3400 | 12000*3500*3400mm | ||
Production speed:
Wire dia. (mm) | Speed (m/min) | Elongation | |
Hard wire | Soft wire | ||
0.40 | 1500 | 1400 | ≥25% |
0.80 | 1400 | 1300 | ≥25% |
1.00 | 1300 | 1200 | ≥30% |
1.20 | 1000 | 900 | ≥30% |
1.60 | 750 | 600 | ≥30% |
Wire dia.(mm) | Speed (m/min) | Elongation |
TR(Soft wire) | ||
1.00 | 1200 | ≥30% |
1.38 | 900 | ≥30% |
1.78 | 600 | ≥30% |
2.25 | 500 | ≥30% |
2.52 | 450 | ≥30% |
2.76 | 300 | ≥30% |
---------------------------------------------
Finished Products

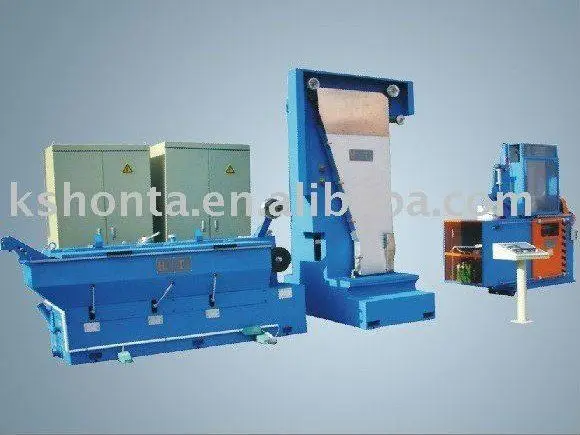

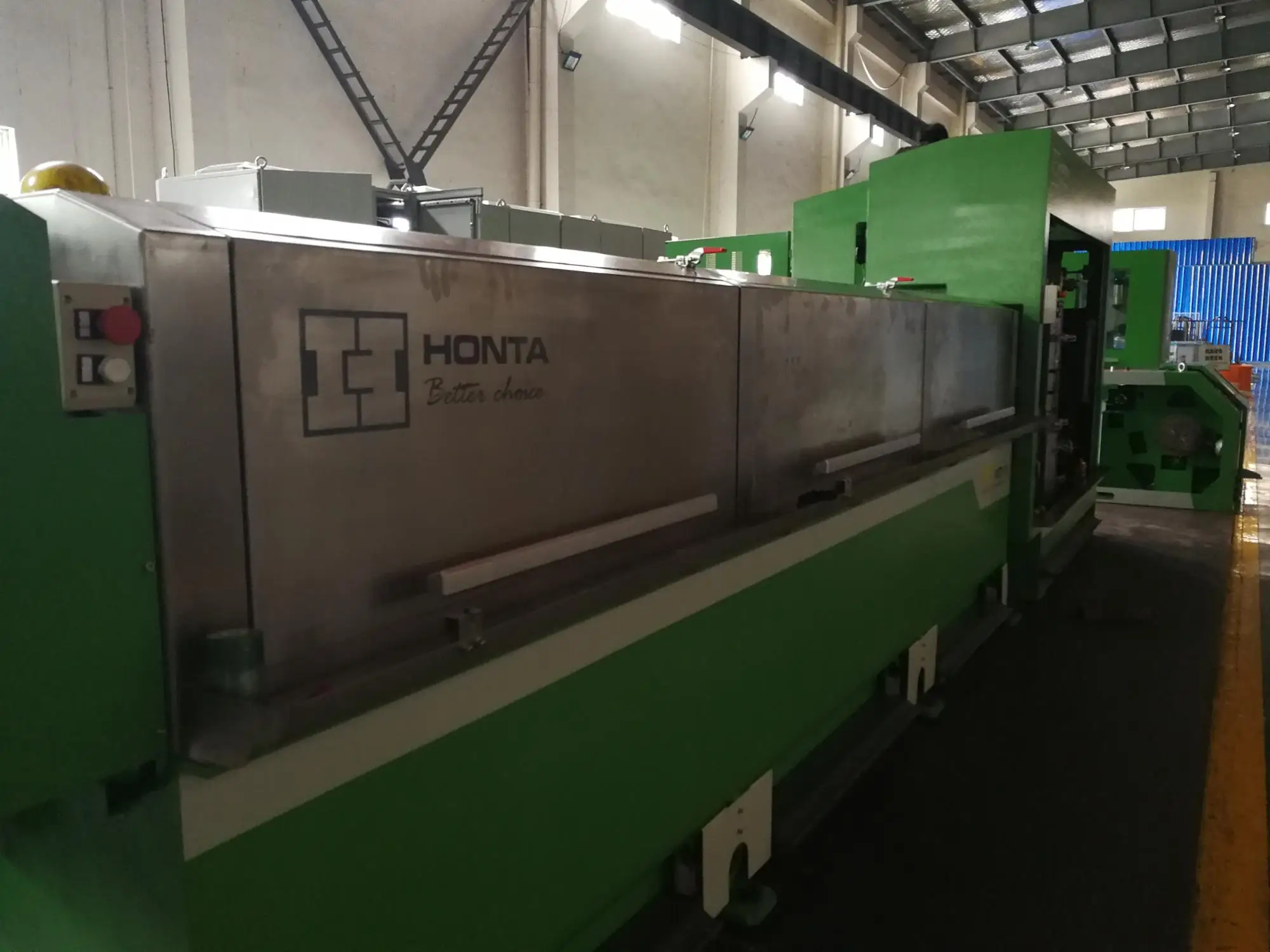

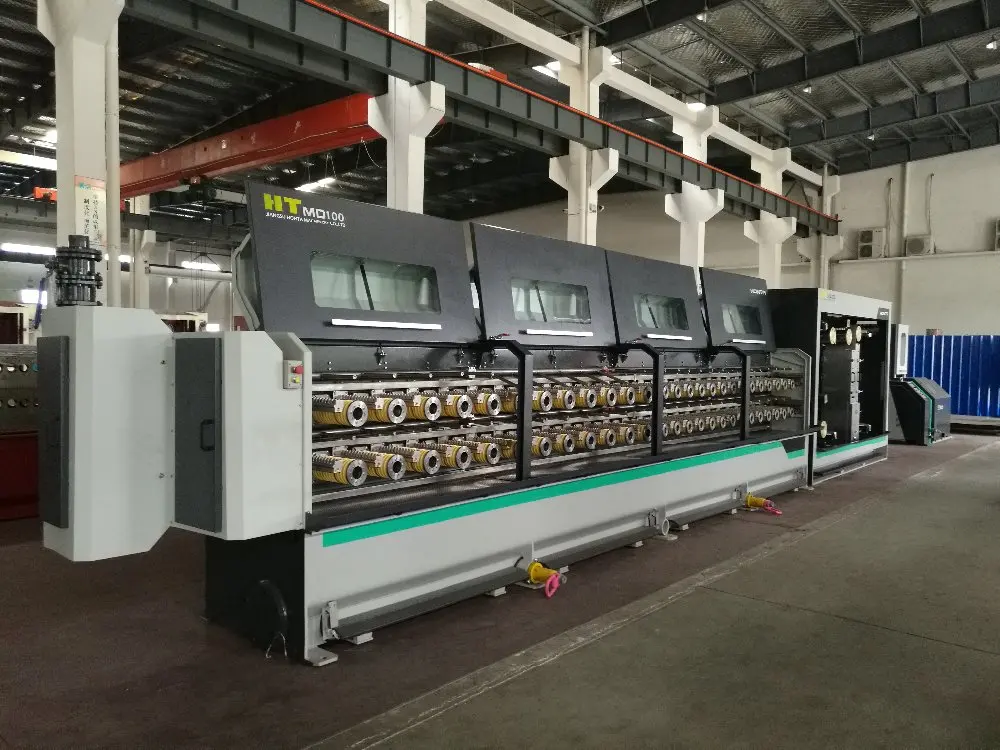

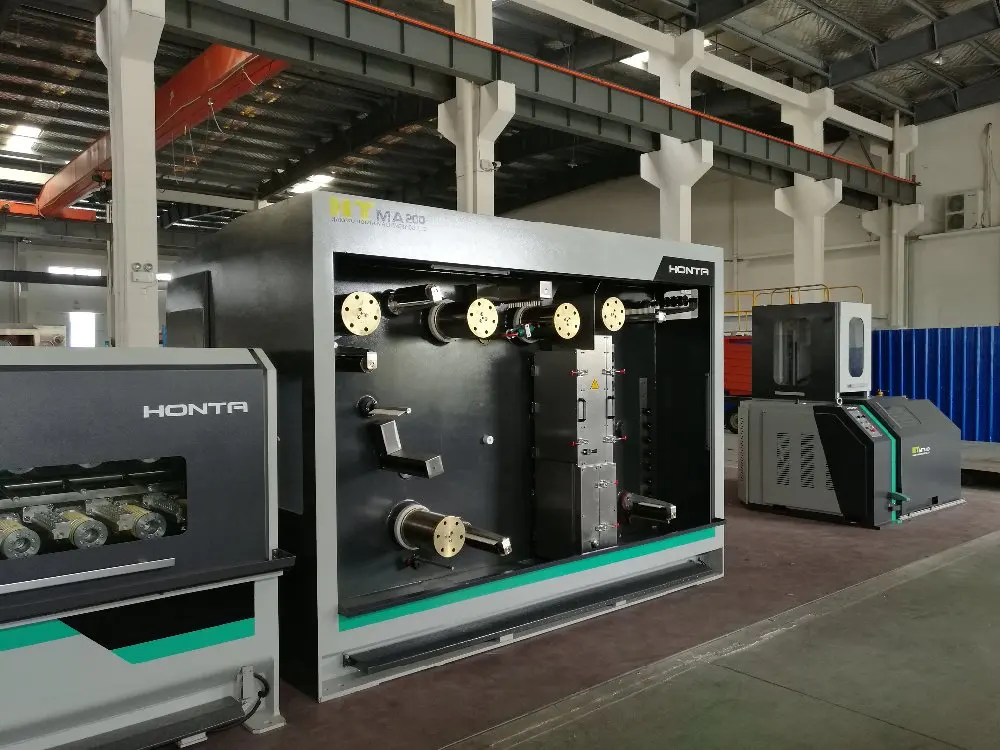

Medium Wire Drawing Machine with Annealer picture show:
Company Information

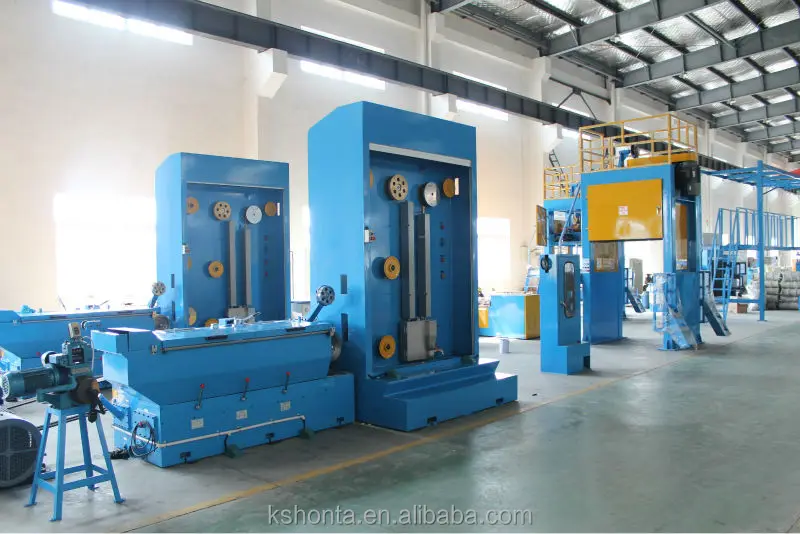

Our factory show:
Certifications
CE for multi wire drawing machine:
Trade show
Exhibition is shanghai city:
Commissioning
Commissioning wire drawing machine in Turkey :
Customer show
Our customers come from different countries around the world.
