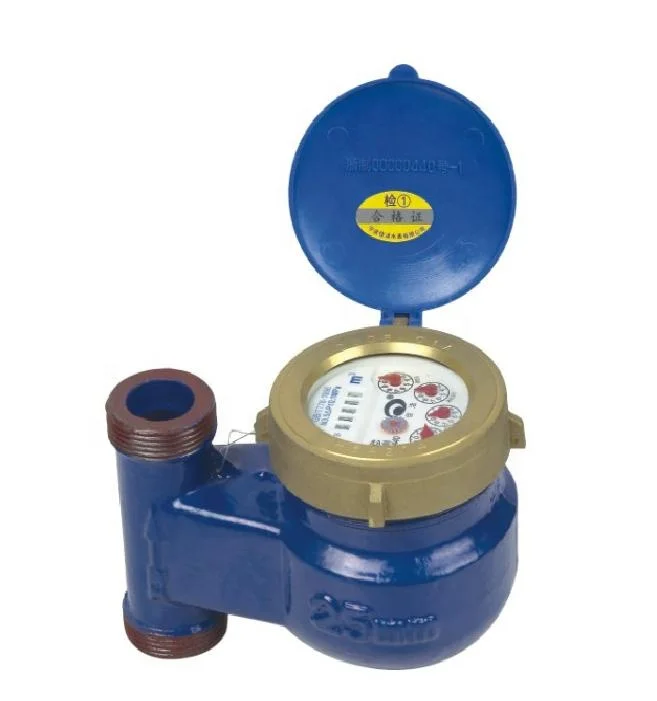

Vertical Type Cold Water Meter

Product Overview

Description

The series of water meters is used to measure the total quantity of hot potable water meter, consumed in household or a resident unit, passing through the pipeline.



Size	Length	Width	Weight	conecting	thead	Weight
	mm	mm	mm	d(in)	D(in)	KG
15mm	96	135	116	R 1/2	G 3/4	1.3
20mm	96	140	116	R 3/4	G1	1.8
25mm	105	150	130	R1	G1 1/4	2.3

Features:



1.Wet-dial or Dry-dial

2.Multiple-jet

3.Sensitive & reliable

4.Measuring accuracy is up to class B of ISO4064Standard

5.Vertical-type water-meter should be installed along the vertical pipeline and it
is suitable for household use of branch meter.

6.Size: 15mm-25mmMaterial: iron or brassPacking: carton
