ISO 9001 quality certification yokohama type fender, inflatable rubber fender, pneumatic marine fender

Product Overview

Description



SUPERIORITY



      FOR XINCHENG

• High quality narural rubber imported from Thailand


• High  technical study team


• A serious of advanced product equipment


• Clear devision of labor


• High quality stuff and sincere service attitude

         FOR PRODUCTS

• high shock energy absorption


• small reaction ability


• large flexility and toughness


• 10 to 15 years' working age


• it's repairable,easy to maintain


• easy install and remove


  MARINE FENDER



















  OUR SERVICES









  ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦









  Why customers choose our XINCHENG's products?









  1. Value for Money, you will get the best price.









  2. Unrivalled Expertise, we promise trustworthy product quality and service.









  3. Good product lifespan and quality warranty.









  4. Environment friendly and anti-collision.









  ! .XINCHENG has passed ISO9001:2000,SGS,China's top ten enterprises and top ten famous brands.









  ! .Production and test based on ISO17357-2002 AND gb/t21482-2008.









  ! .Customer's satisfaction is our duty.LR,CCS and other certificates are available to show you against your requirements.

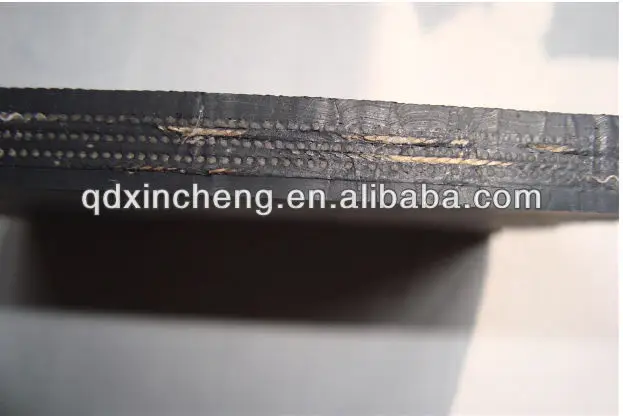

  ♦——   Fiber layers:
























    ♦——   Our  equipment :



















   ♦——  Marine fender Pressure Test & Inflatable  process :







































  PRODUCT DESCRIPTION









  ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦













  Marine fender is the advanced anti-collision device for marine application in the world today. It uses compressed airbag as medium to absorb the impact energy when ship-to-ship contact(STS). It uses compressed air as medium to absorb the impact energy when ship-to-berthing(STB).






































  Comparing with traditional bumper style rubber fender, it has the following advantages:



















  1. More energy absorption.









  2.Less reverse impact on ships.









  3.Less weight.









  4.Easy installation.









  5.Softer and economical. etc.



















  So, it is widely used by large tankers, LPG vessels, ocean platforms, large docks, harbor and wharfs.





























  ...............................................................................................................

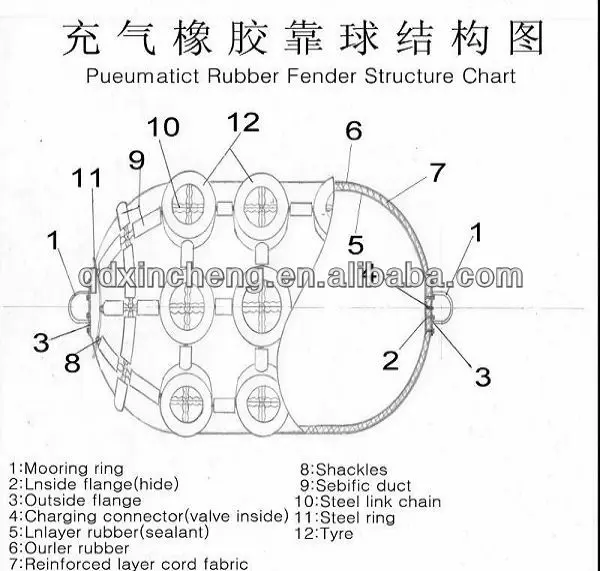

  ♦——  The structure of Marine fender :





























  1. The outer rubber



















     Outside on the ball of rubber layer, which is used to protect by skeleton material and lining rubber ball









     fromexternal force damage or wear.



















  2. The inner plastic



















     On the ball inside the rubber layer, which is used to prevent gas leakage and stay on the ball pressure.



















  3. Cord fabric layer



















     Composed of hanging plastic cord fabric, the lacquer that bake frame materials



















  4. Volume line ring



















     Placed in by ball end (or both) of steel ring, for fixed end cord fabric layer



















  5. The end of the flange



















     On the ball at the ends of the metal parts, can be installed charging valve and relief valve.

















































  ♦——   The specification of Marine fender :

































































































































































































  size D×L(m)	Initial pressure(Po) is 0.05MPa			Initial pressure (Po) is 0.08MPa
  	Weight kg	R(kN)	GEA(KJ)	Weight  kg	R(kN)	GEA(KJ)
  0.5×1.0	25	64	6	25	83	8
  0.6×1.0	32	74	8	32	96	11
  0.7×1.5	50	137	17	50	178	24
  1.0×1.5	80	182	32	80	235	44
  1.0×2.0	100	257	45	125	335	63
  1.2×2.0	120	297	63	165	386	86
  1.35×2.5	165	427	102	226	554	140
  1.5×3.0	315	597	153	370	751	211
  1.7×3.0	405	639	191	436	830	263
  2.0×3.5	590	875	308	632	1138	424
  2.5×4.0	1050	1381	663	1110	1815	925
  2.5×5.5	1333	2019	943	1410	2653	1317
  3.0×5.0	1880	2104	1210	2155	2709	1571
  3.0×6.0	2160	2583	1485	2470	3292	1888
  3.3×4.5	2020	1884	1175	2300	2476	1640
  3.3×6.0	2300	2783	1675	2600	3652	2338
  3.3×6.5	2700	3015	1814	3080	3961	2532
  Height: the height of rubber fendernon- coxcombing, Inaccuracy of weight: ±10% Inaccuracy of reaction force: ±10%

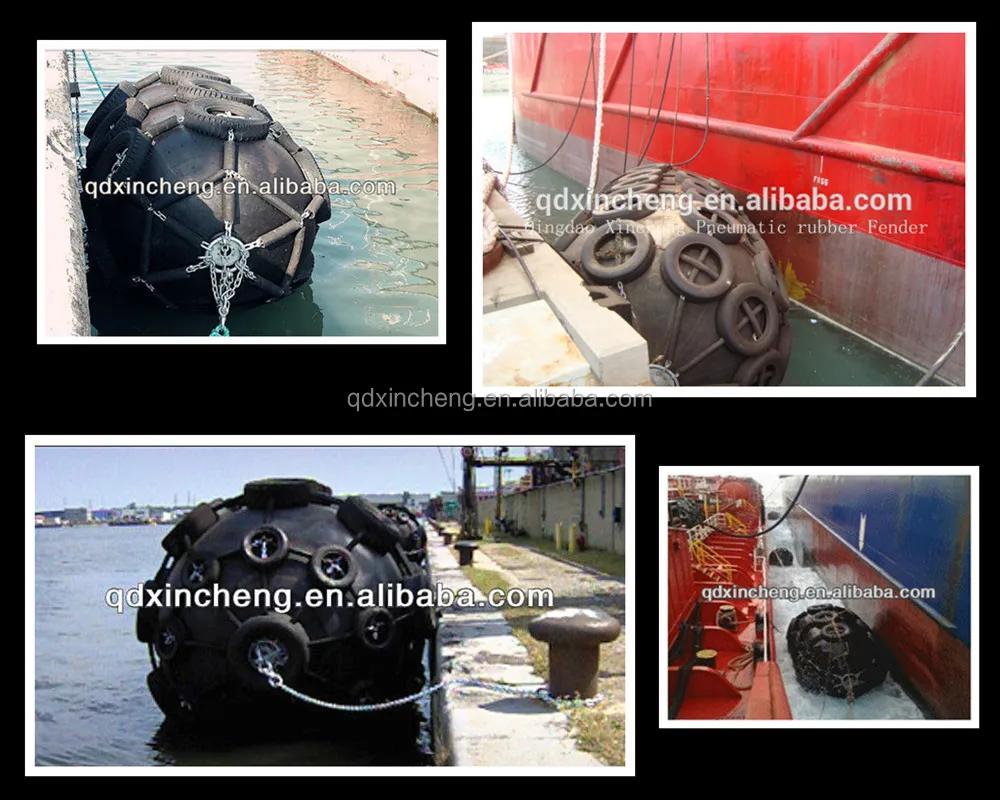

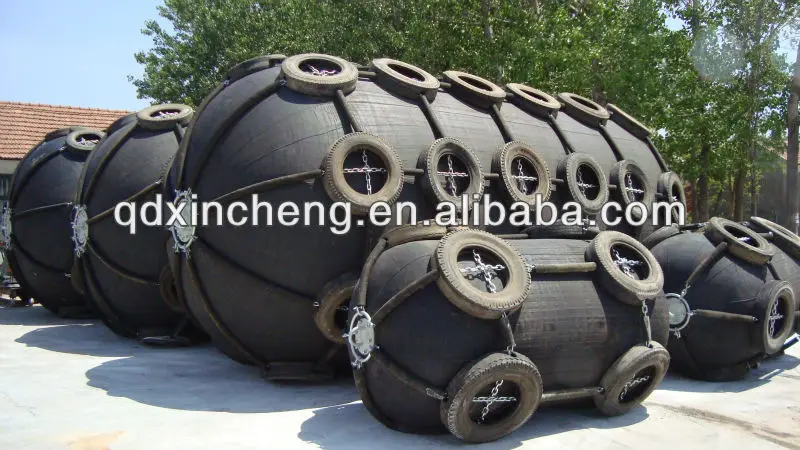

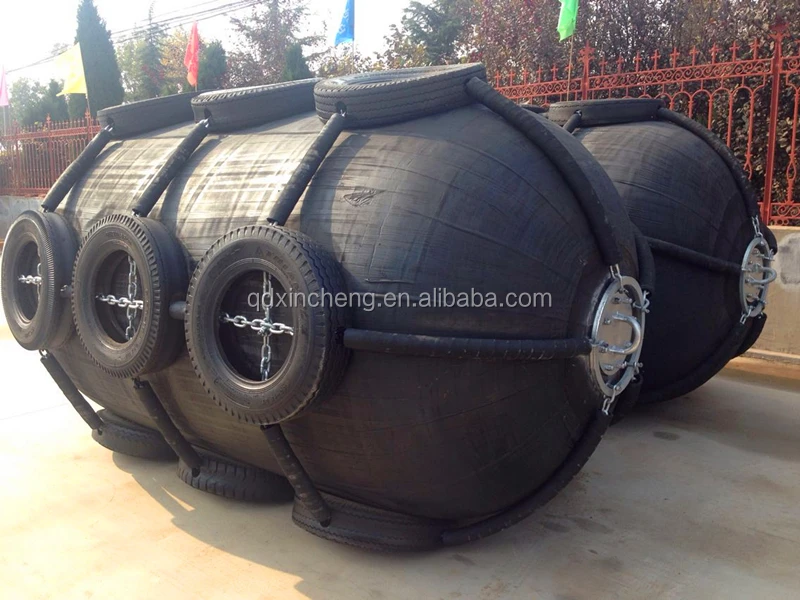

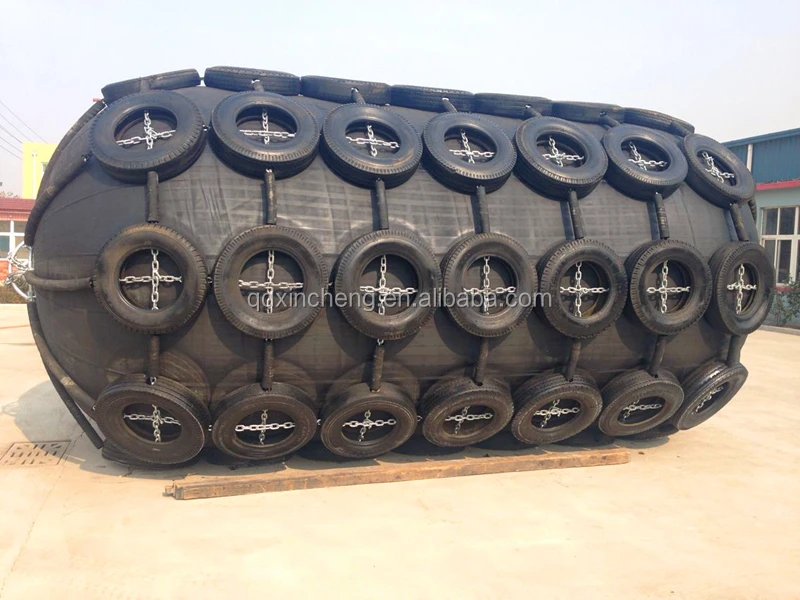

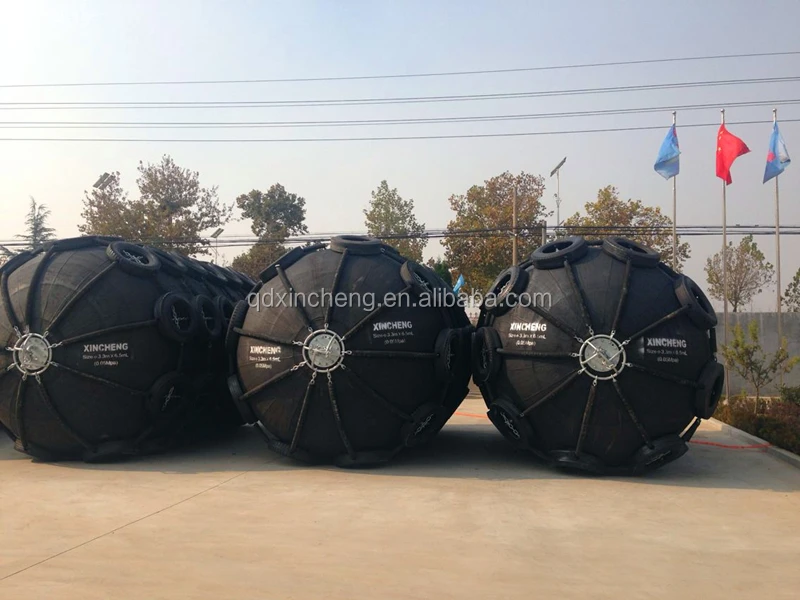

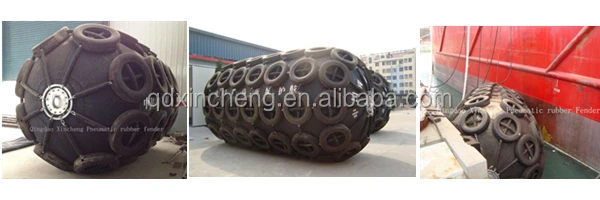

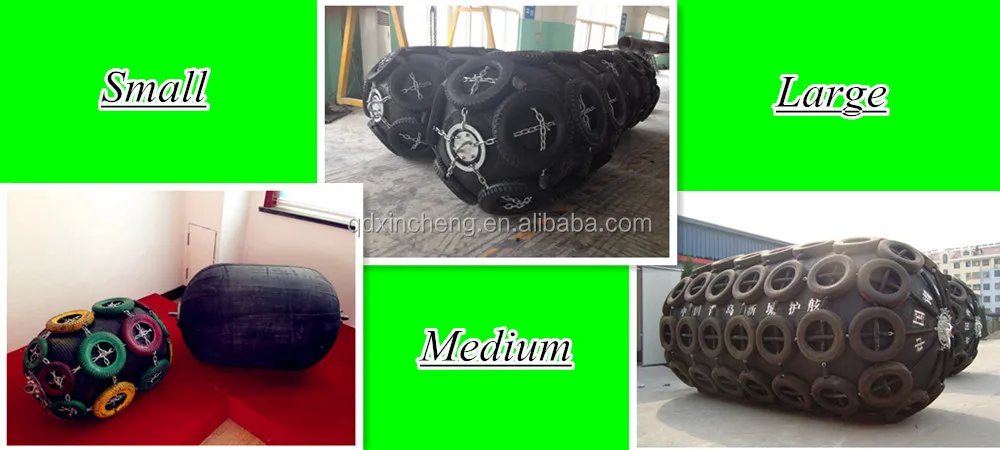

   ♦——   The  photos  of Marine fender :

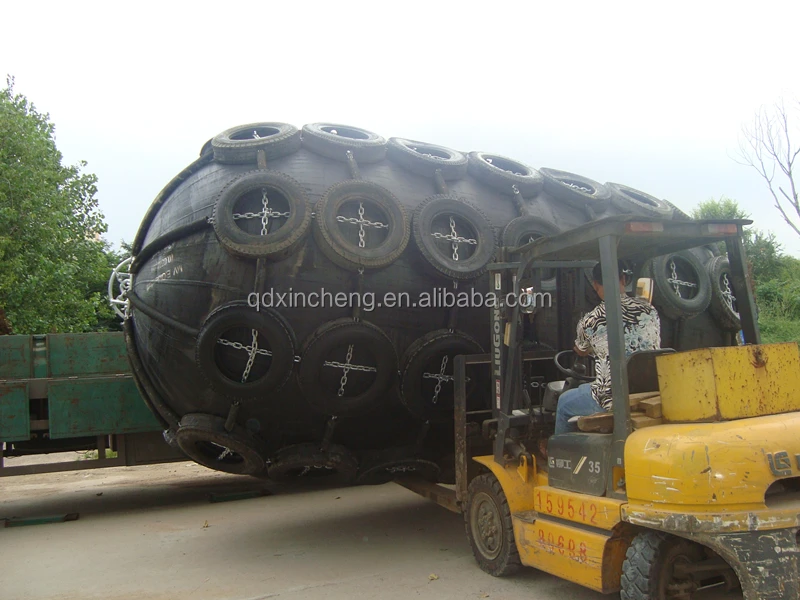

  PACKAGING & SHIPPING



















  ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦

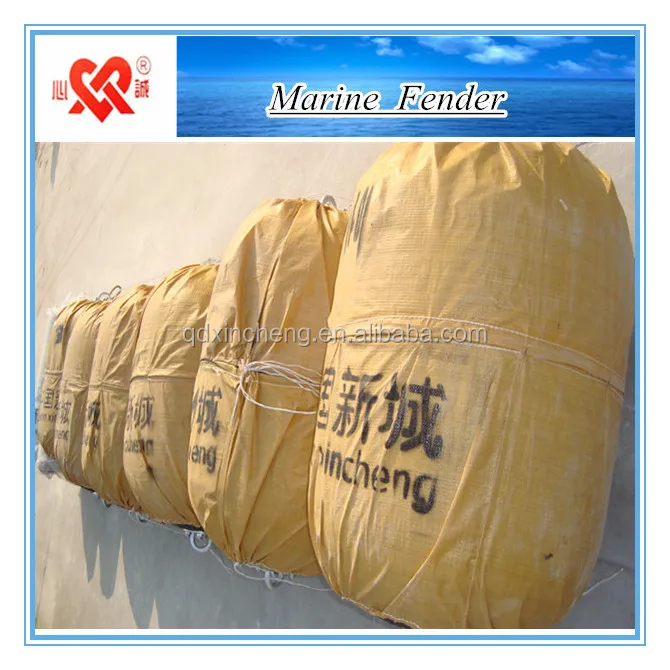

  PACKING              :  1 .Packed in Woven bags or containter . 2 .It also depends on our clients' need .



















  DELIVERY            :  Usually 7days, it depends on order's quantity.



















  PAYMENT TERM : 1. TT( 30% deposit, the balance money before shipment)









                                  2. L/C at sight






















































  COMPANY INFORMATION














  ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦














  Qingdao XinCheng rubber product Co.,Ltd  which founded in 1986. It's a science and technology-oriented manufacturer that engaged in marine supplies. Selling all kind of marine fenders and airbag. Our company's branch — XinCheng Airbag Factory is a professional airbag factory which make load bearing, floating, store up and anti-collision airbags with many usage. Also XinCheng is a professional airbag and marine fender leading enterprise in QingDao.



















  Our company own many professional machineries (internal mixer, rubber mixing machine, four roll rubber calender, vulcanizer and vulcanizing boiler with various specifications) . Qingdao XinCheng rubber company is the only one enterprise who own CCC, CCS, ISO90001:2008, SGS and Lloyd's Register of Shipping.
