Plastic Hooper Dryer Machine

Product Overview

Description

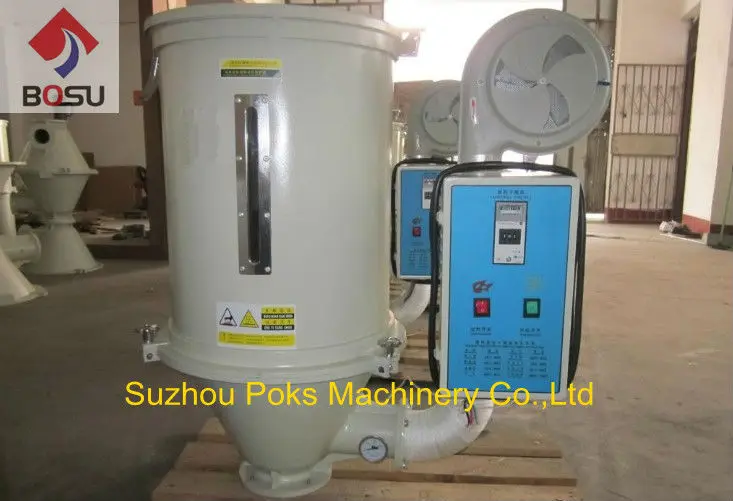

  Hopper dryer



Use and application:

  HD series hopper dryer appearance, electrical performance is stable, accurate temperature control, 24-hour automatic operation time setting function. With low energy consumption, high efficiency.



Work:

  Heater hot air generated by the role of the raw materials, the heat generated moisture is blown into the collector, the collector is equipped with filter, containing the hot air with the dust filter, the natural evaporation of moisture from outside, clean and The hot air dryer blowing back to work within the cycle .



Technical parameters:

Model	Volume	Capacity	Heating power	Fan power
STG-U8	8 Litre	5kgs	1.2kw	0.04kw
STG-U20	20Litre	12kgs	0.6kw	0.06kw
STG-U40	40Litre	25kgs	2.6kw	0.06kw
STG-U80	80Litre	50 kgs	3.9kw	0.12kw
STG-U160	160Litre	100 kgs	5.4kw	0.25kw
STG-U250	250Litre	150 kgs	9kw	0.37kw
STG-U400	400Litre	250 kgs	15kw	0.55kw
STG-U500	500Litre	300 kgs	18kw	0.55kw
STG-U800	800Litre	500 kgs	24kw	0.75kw
STG-U1250	1250Litre	800 kgs	36kw	1.1kw
STG-U3000	3000Litre	2000 kgs	60kw	2.2kw
STG-U5000	5000Litre	3000 kgs	72kw	3kw
