WFJ superfine dried coffee beans tea leaf leaves turmeric ginger sugar powder grinding pulverizer machine with CE
- Category: >>>
- Supplier: Jiangyin Lingling Machinery Manufacturing Co. Ltd.
Share on (1180201704):
Product Overview
Description
WFJ
IF YOU WANT A GOOD AND EXPERT FACTORY, CALL/TEXT US FOR MORE INFORMATION!!
Main Uses:

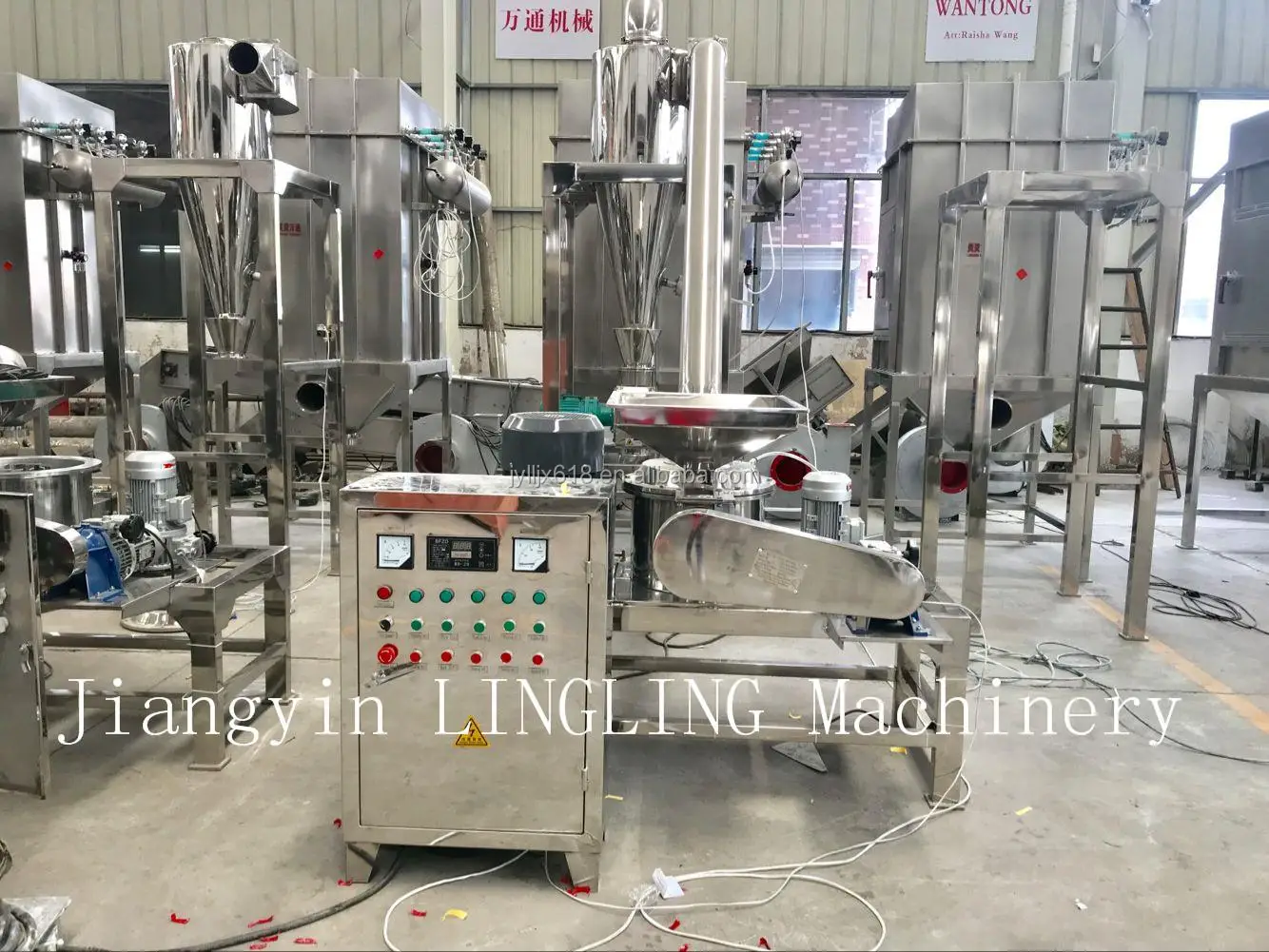

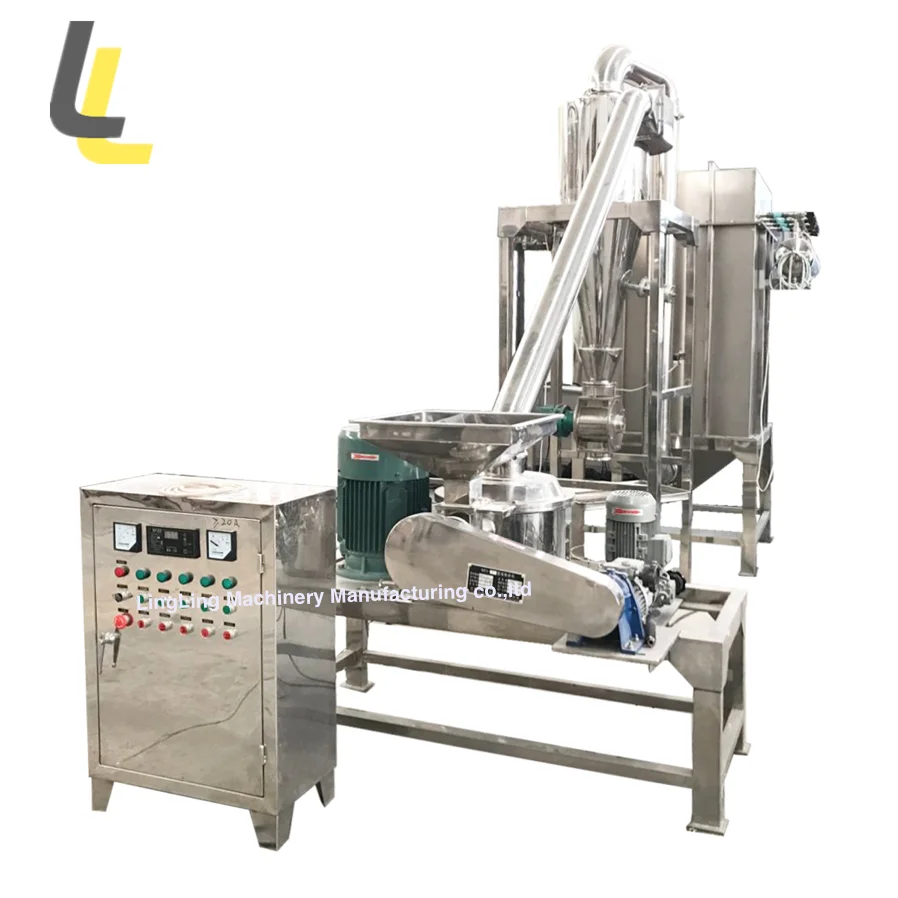

The machine made up of main engine, auxility engine and electric-box, featuring winnowing without sieve or mesh, ever granule size, continuous operation, etc. The machine reaches advanced world-level and is widely used for material grinding in chemical and foodstuff industries, etc.
Working Principle:
Materials are transported into smashing mesh via screw conveyor, then crushed by the high-speed revolving razor blade. With the negative pressure, materials will be transported into cyclone separator, ejected by pass-breezing machine. Without the powder float in whole producion line the powder float in the sky.
Technical Parameters
Model | WFJ-15 | WFJ-20 | WFJ-30 | WFJ-60 | WFJ-80 | |
Capacity (kg) | 20~100 | 50~200 | 100~400 | 200~800 | 300~1000 | |
Feed size (mm) | <10 | <10 | <12 | <12 | <12 | |
Output size (mesh) | 80-320 (adjustable) | |||||
Motor power (kw) | 13.37 | 18.37 | 42.5 | 77.5 | 96 | |
Spindle speed (rpm) | 5800 | 4200 | 3800 | 3200 | 2800 | |
Weight (kg) | 850 | 1000 | 1300 | 2500 | 3000 | |
Overall size(L*W*H)(mm) | 4500*1250*2700 | 6000*1250*2900 | 7100*1300*3650 | 8000*2300*4500 |
8500*2500*4600 | |
The above is our technical data. We can also design and manufacture different varieties upon customer's request.
