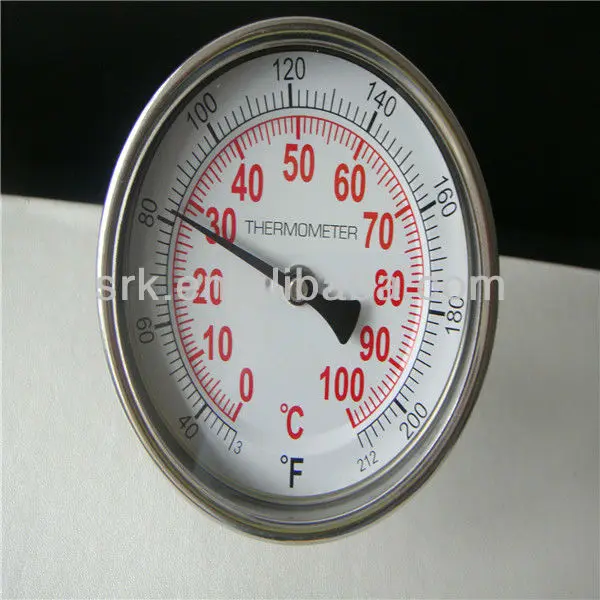

0 to 100 degree Industrial dial bimetal thermometer

Product Overview

Description

Name: 0 to 100 degree Industrial dial bimetal thermometer





1. Dial bimetal thermometer Application



Bimetal thermometer can directly measure such as carbide manufacturing explosives in the



process of the - 80 ~ + 500 °C range of liquid, steam and gas medium and solid surface

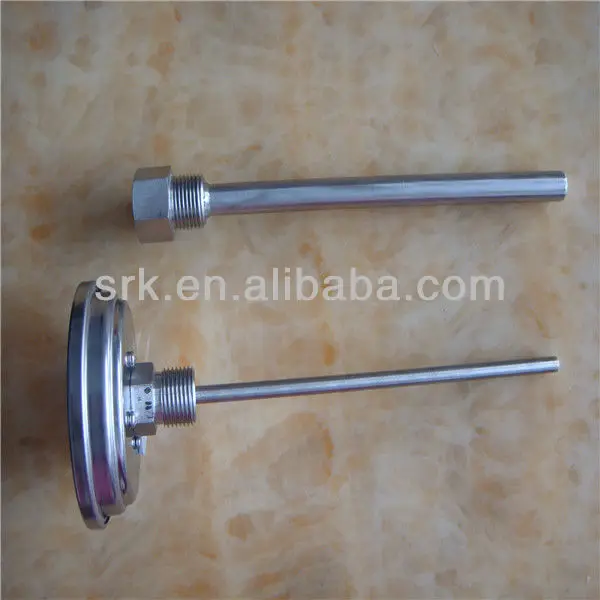

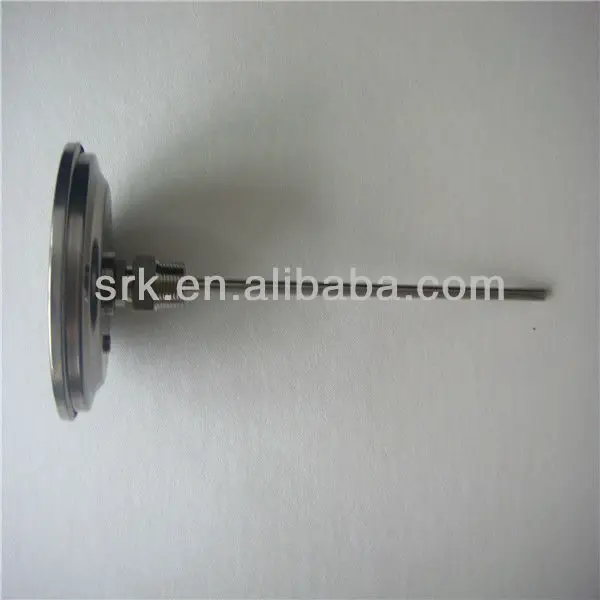

temperature measurement. Bimetal thermometer WSS - 501 mean pointer type axial, dial Φ



150, protection works mostly Φ 6, 8 Φ, Φ 10. Thread for the M16 x 1.5, M20 x 1.5, M27 x 12,



external thread, and bimetal thermometer WSS - 501 - easy to use, the temperature can be



intuitive

2. .Dial bimetal thermometer Main technician parameter





(1) Brand:SRK



(2) Model No.: WSS- 401



(3) Nominal diameter: Φ 60, Φ 100, Φ 150



(4) Accuracy: 1.0; 1.5



(5) Response time: ≤40s



(6) Protection: I P55



(7) Direction: Axial; Radial; 135 C ; All direction



(8) Temperature: 0C - +500 C /0-900F



(9) Payment: T/T; L/C; Western Union







Type	Nominal diameter D(mm)	Measuring range °C	scale interval °C	Insertion length L(mm)	Protected pipe dia d(mm)	Install thread mm
WSS-3	60	0-50 0-100 0-150 0-200 0-300 0-400 0-500	1 2 2 5 5 10 10	75;100; 150;200; 250;300; 400;500	6	M16×1.5
WSS-4 WSSX-4	100				10	M27×2
WSS-5	150
					10
