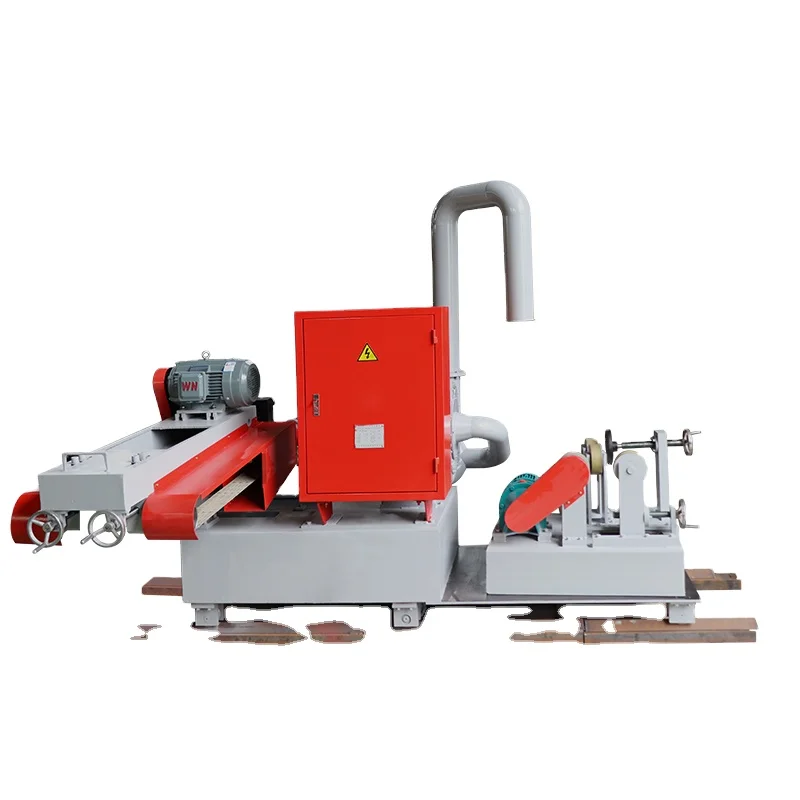

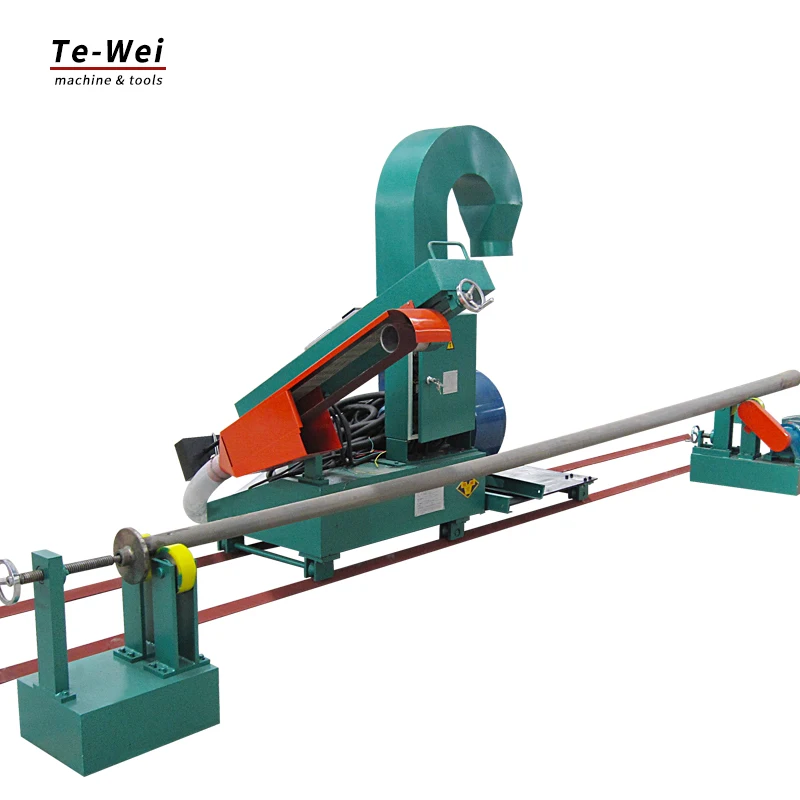

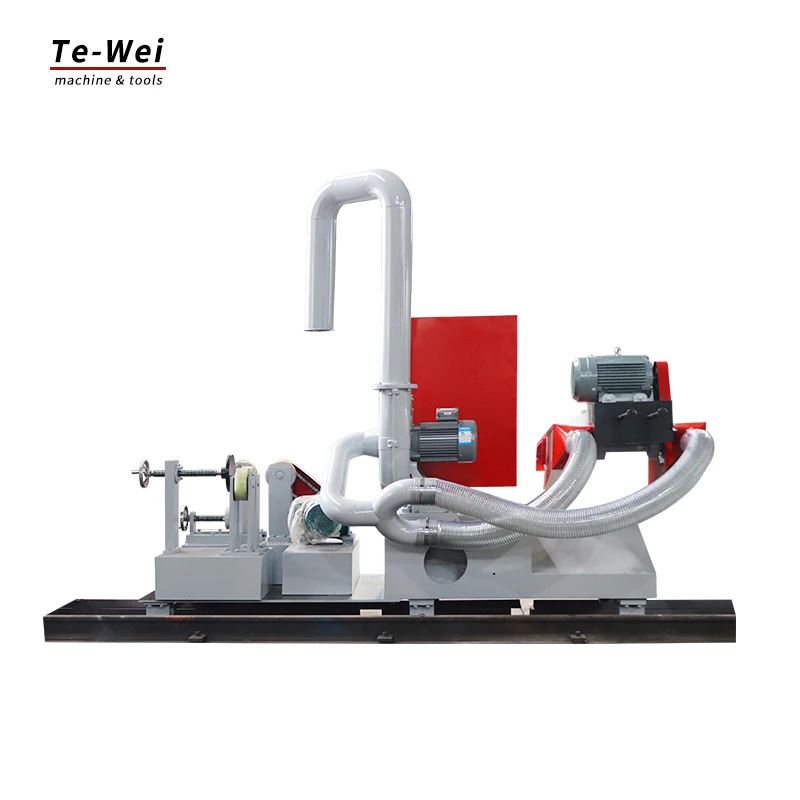

ZDMJ automatic Light pole polishing machine
- Category: >>>
- Supplier: Jiangsu Tewei Machine Tool Manufacturing Co. Ltd.
Share on (1181330994):
Product Overview
Description
Product Description
1.Apt to light poles grinding. Various pole body can be burnished and grinded.
2.Automatic recovery, environmentally friendly and also can recycle the zinc powder.

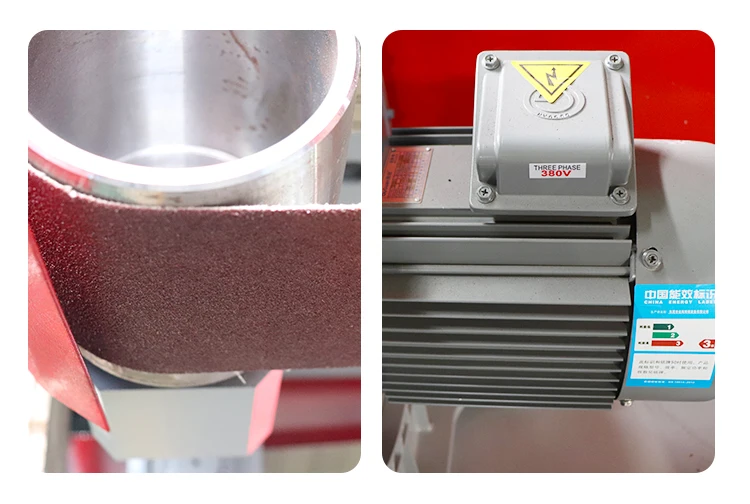

3.Using abrasive belt for grinding, low cost, fast, saving manpower. Smooth finish of the pole body is high after burnishing and grinding. The speed can be adjusted at will.
2.Automatic recovery, environmentally friendly and also can recycle the zinc powder.
3.Using abrasive belt for grinding, low cost, fast, saving manpower. Smooth finish of the pole body is high after burnishing and grinding. The speed can be adjusted at will.
No | Model | Value | Unit | ||
1 | Diameter Of Grinding Steel Tube | Ø350 | MM | ||
2 | Length Of Grinding Steel Tube | 12000 | MM | ||
3 | Steel Tube Run Around Speed | 5-10 | Turn/M | ||
4 | Grinding Steel Tube Run Speed | 1100 | MM/M | ||
5 | Measure | L | 13000 | MM | |
W | 2000 | MM | |||
H | 800 | MM | |||
6 | Weight | 1500 | KG | ||
SN | Name | Spec. | Qty | Supplier |
1 | Sand Belt Motor | 4 KW | 1set | Siemens Beide |
2 | Walking Adjustable Motor | 0.75KW | 1set | Siemens Beide |
3 | Rotating Motor | 0.55 KW | 1set | Siemens Beide |
4 | Dustless Motor | 3 KW | 1set | Shanghai |
5 | Electric Components | 1set | Schneider | |
6 | Reducer | Bwd150 | 1set | Dajiang |
7 | Rotating Reducer | Bwd150 | 1set | Dajiang |
