ONPOW insert key for power switch(LAS1 APY 11Y,22mm,Dia.22mm,CE,ROHS,REECH,IP40,IP65)
ONPOW insert key for power switch(LAS1-APY-11Y,22mm,Dia.22mm,CE,ROHS,REECH,IP40,IP65)

ONPOW insert key for power switch(LAS1 APY 11Y,22mm,Dia.22mm,CE,ROHS,REECH,IP40,IP65)

Share on (1181373451):


Price:

Quantity:


Product Overview

Description







ONPOW :25years only for pushbutton switch and indicator

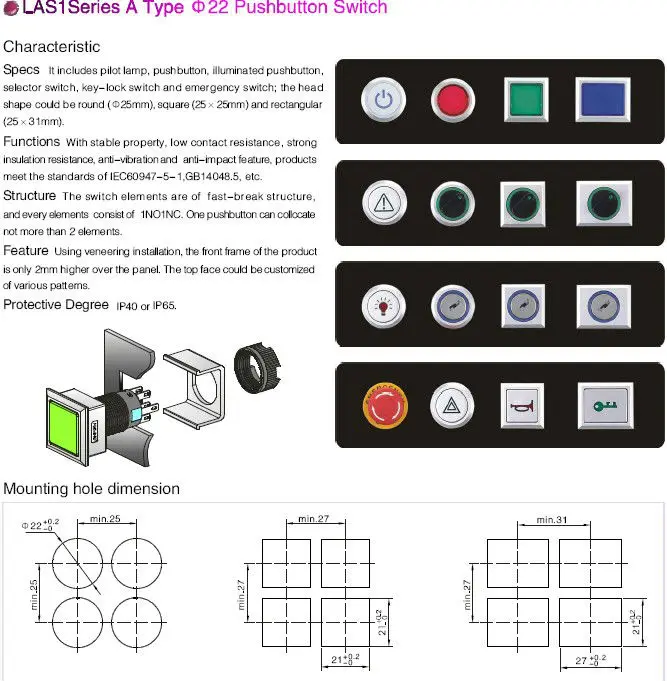

Model: LAS1-A, 22MM,push button switch


22mm Diameter

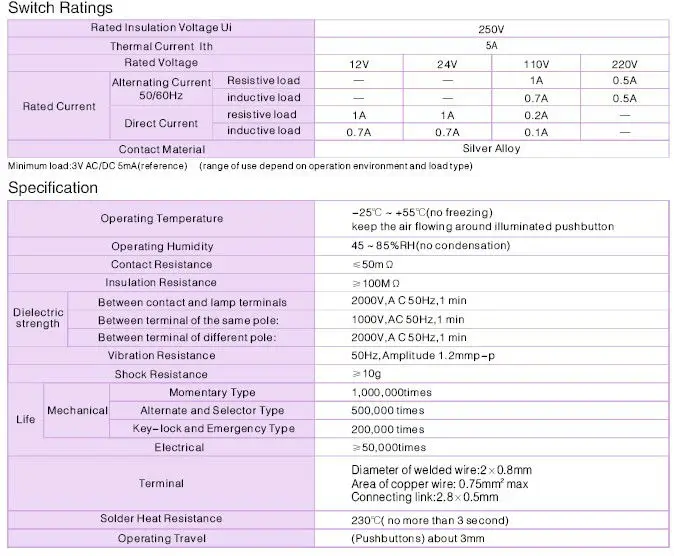

Electrical Data: Ith:3A, Ui:250V

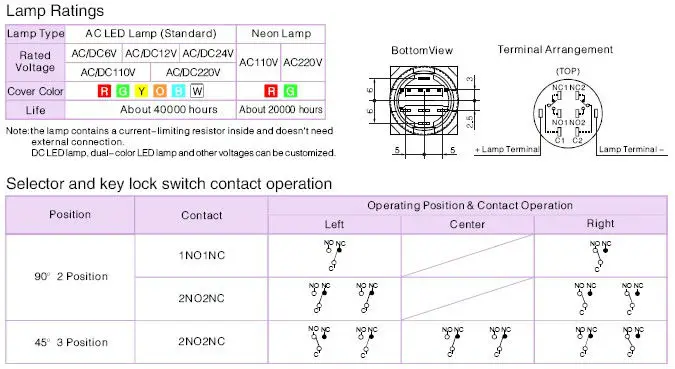

Contact Configuration:1NO1NC,2NO2NC
Operation Type: 2 position and 3 position, maintain and returan.

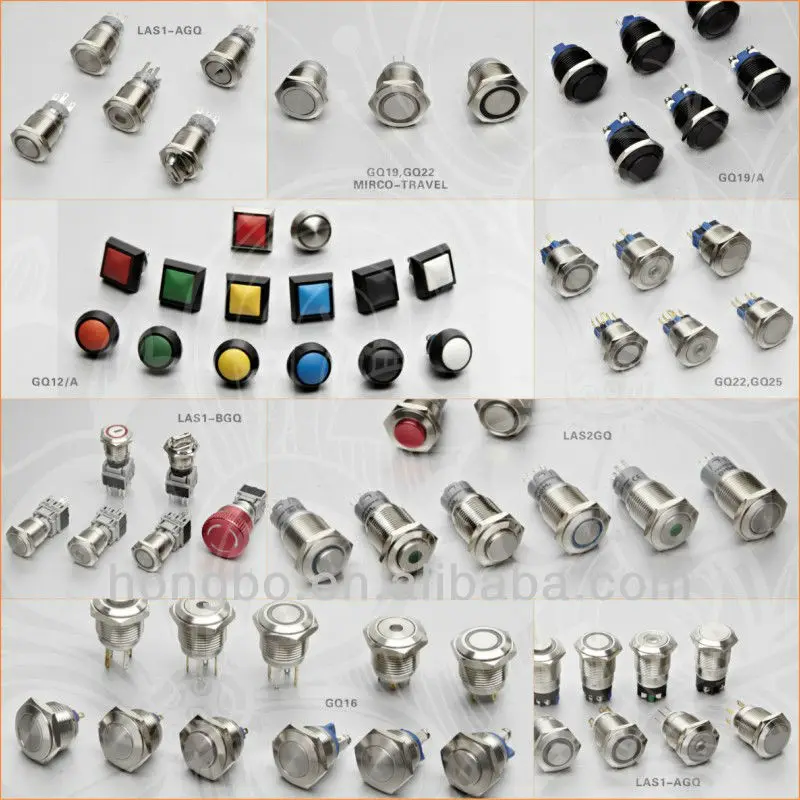

ONPOW other series push button switch and indicator:












Packing information:20pcs/box,500pcs/carton,10KGS/Carton







If you need more informaion pls contact us :





 Puma chen

ONPOW / ONPOW PUSH BUTTON MANUFACTURE CO., LTD.
Address: Sibanqiao Industrial Zone, Xiangyang Town, Yueqing City, Zhejiang Province, China. 325619

Tel: +86-577-62628788     MT: 86-13587700386    //  Fax: +86-577-62623304
Website: www.onpow.com     //hongbo.en.alibaba.com


SKYPE: www.onpow.com


Work time: 8:0-11:30  13:00-17:30(Except Sunday)
