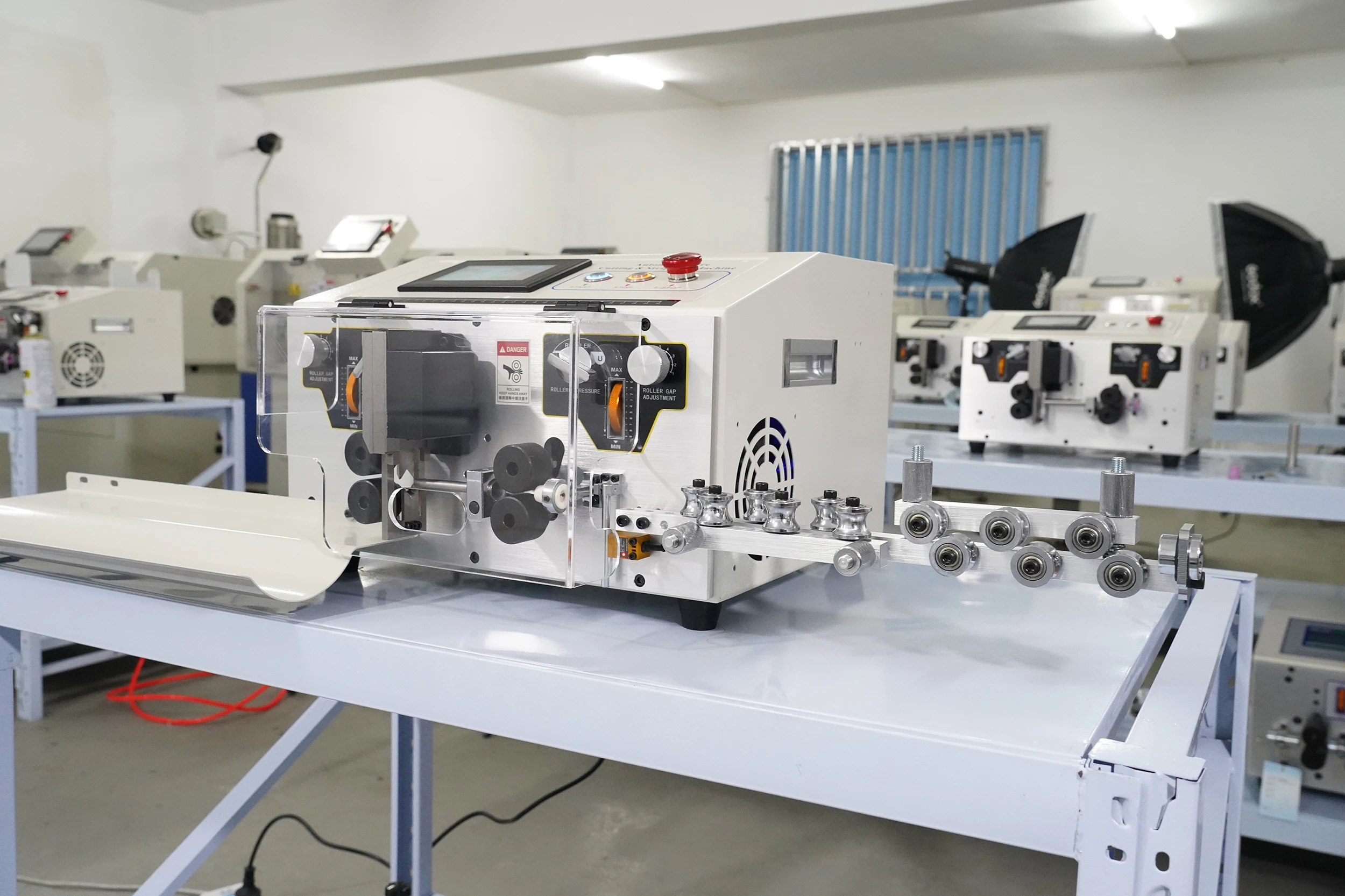

large wooden cable Stripping machine spools for sale BJ 02HS

Product Overview

Description

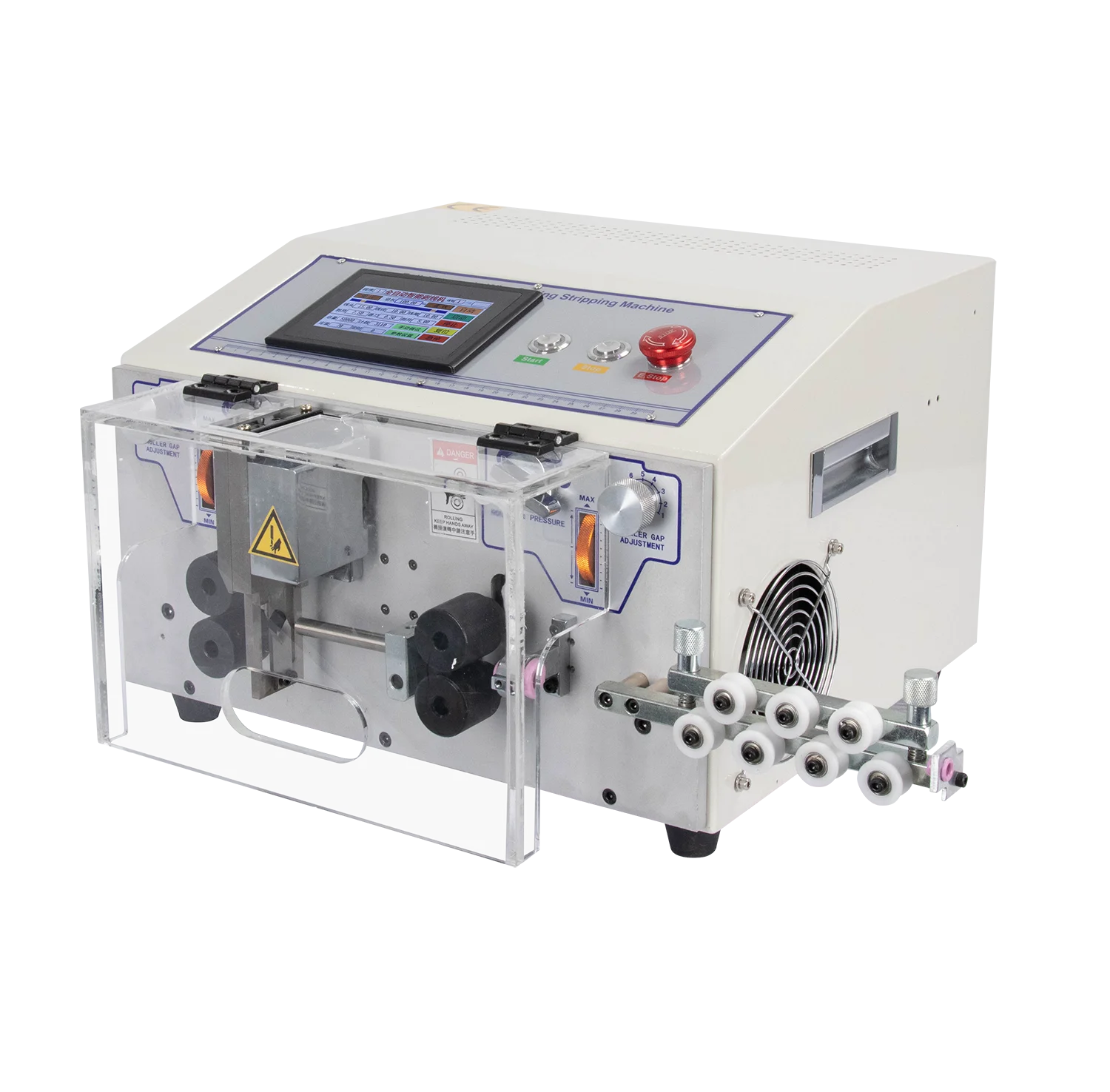

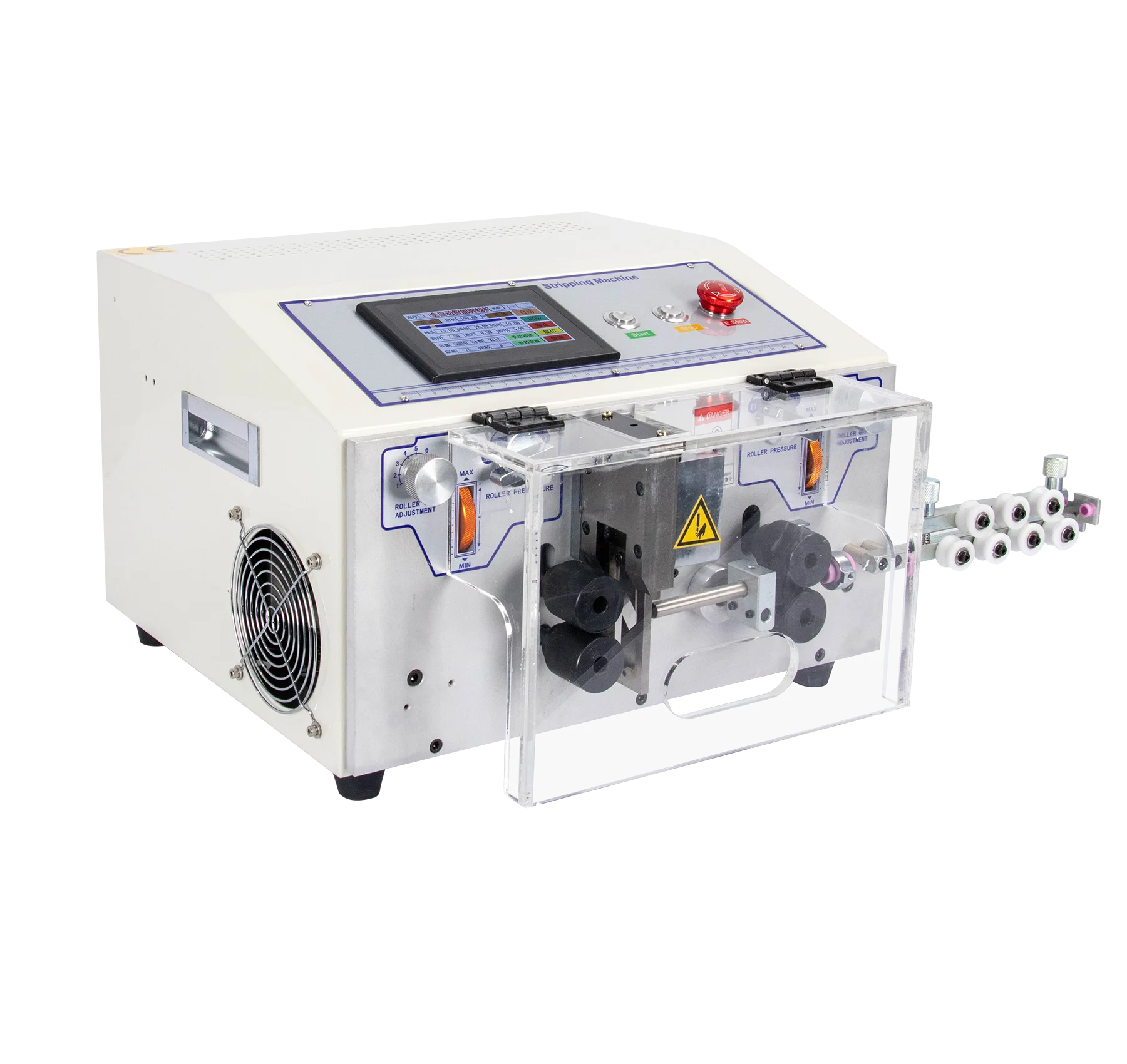

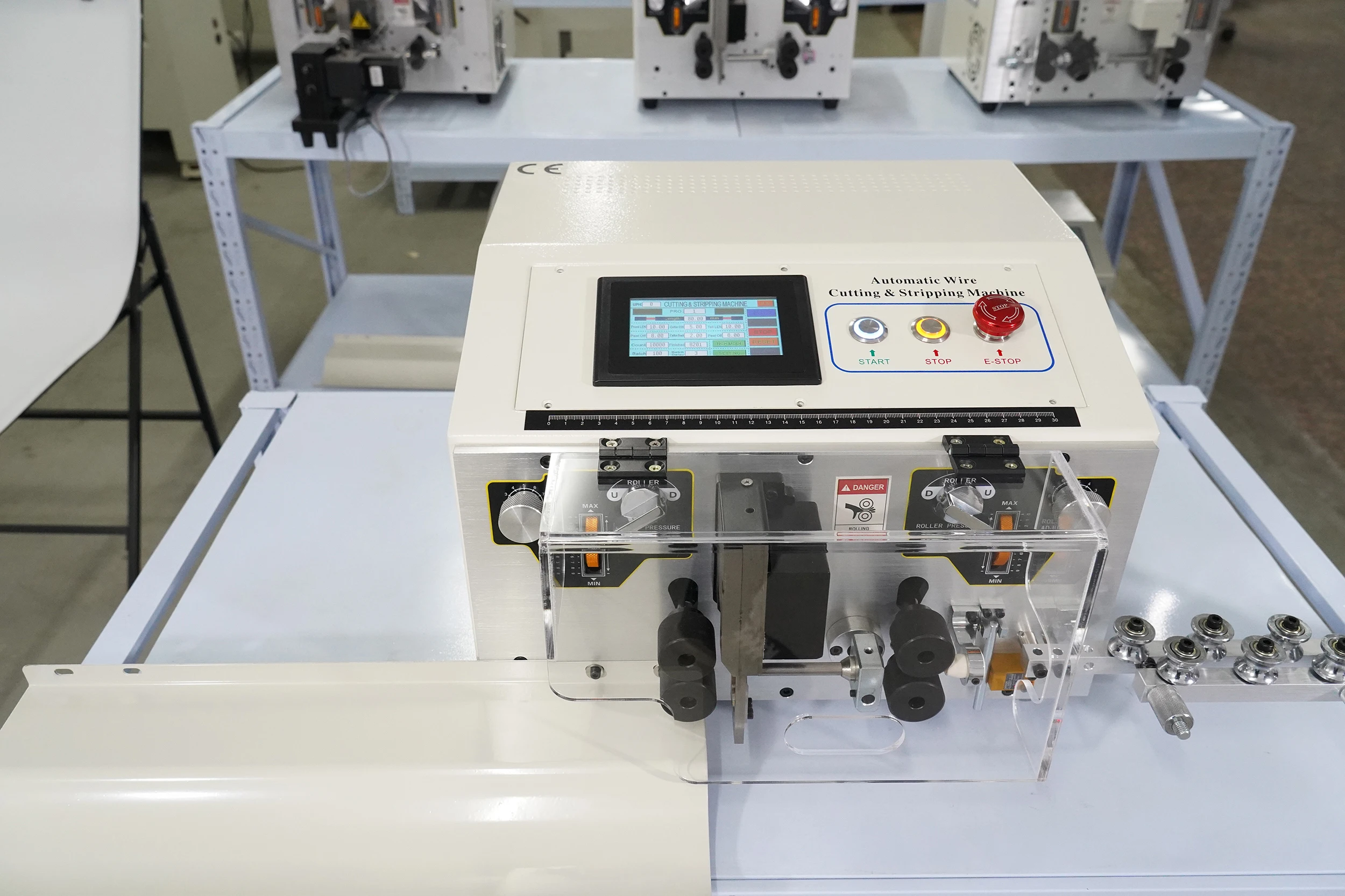

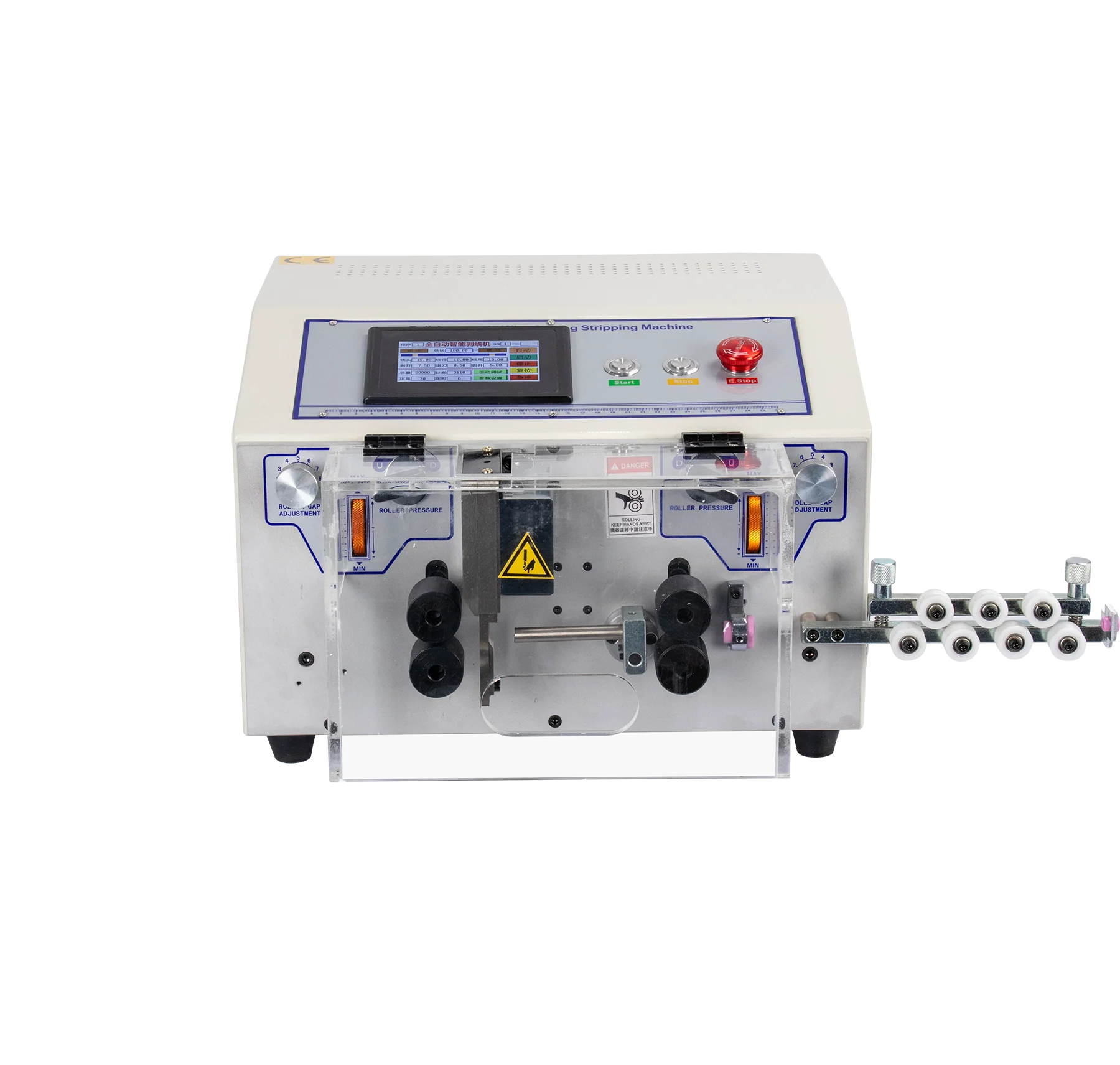

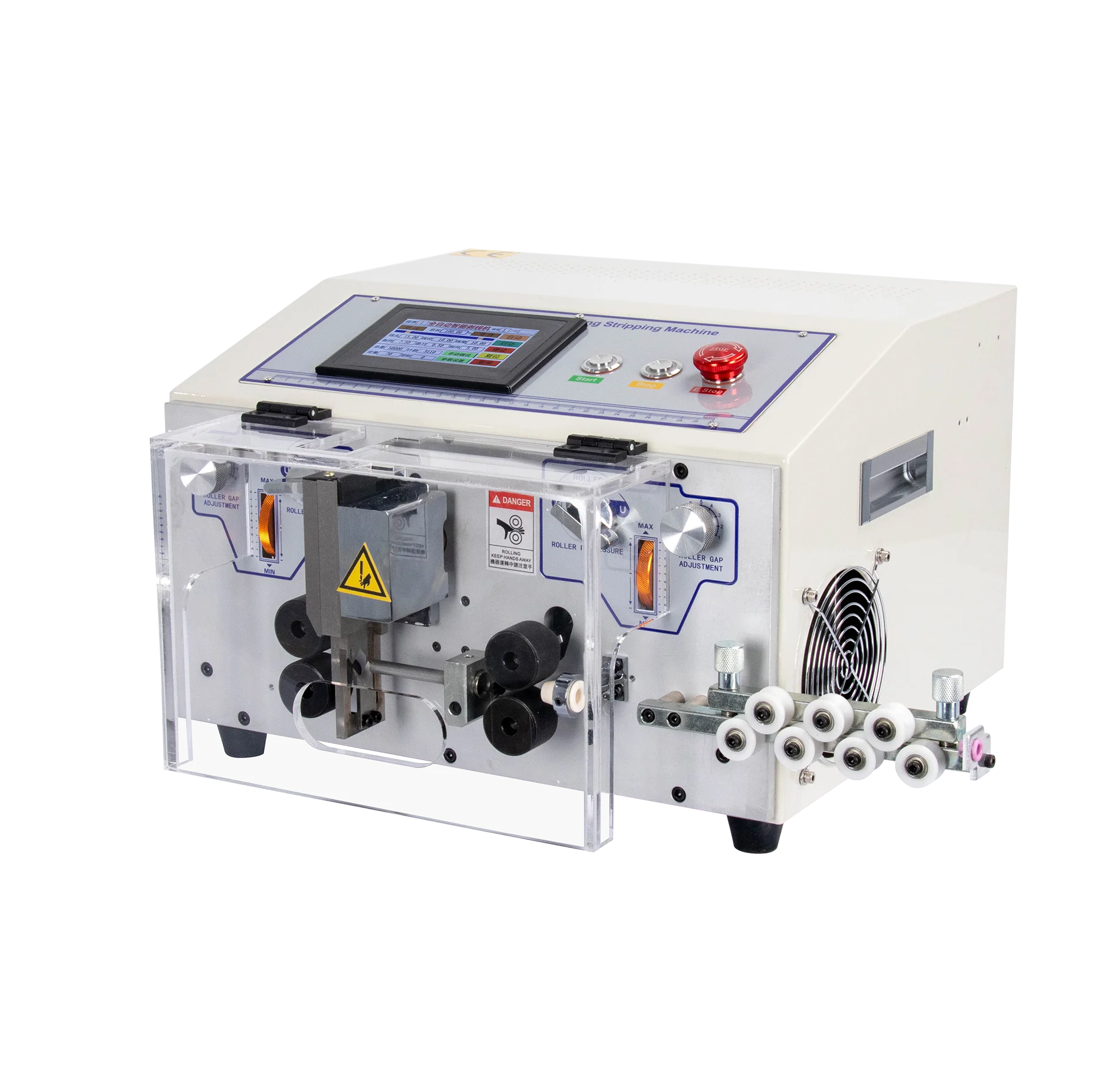

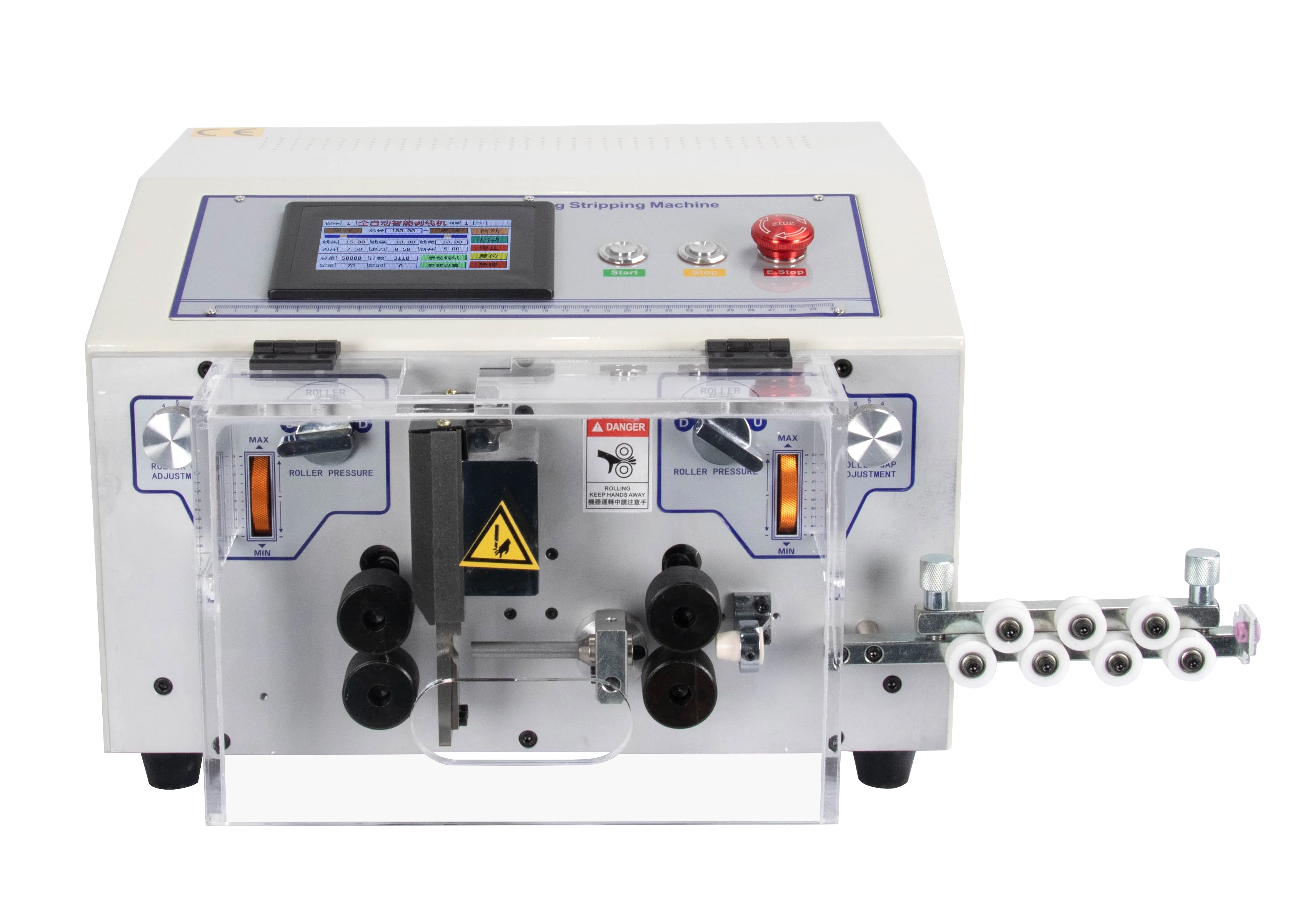

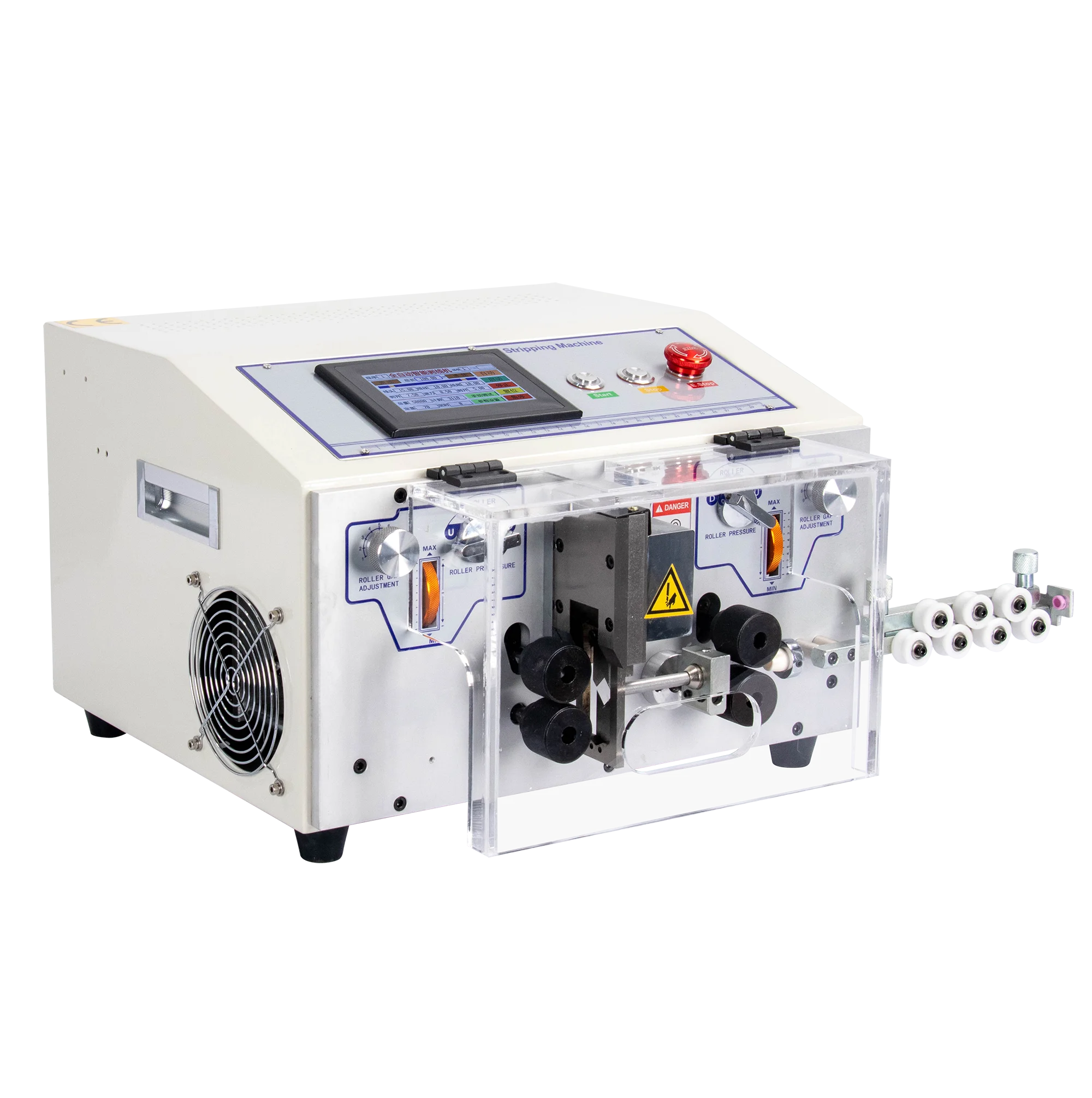

large wooden cable Stripping machine spools for sale

We manufacture wire stripping machine, wire stripper, tape cutting machine, tube cutting machine, label cutting machine, automatic tape & label dispenser, automatic label rewinder,etc. High quality & low price!

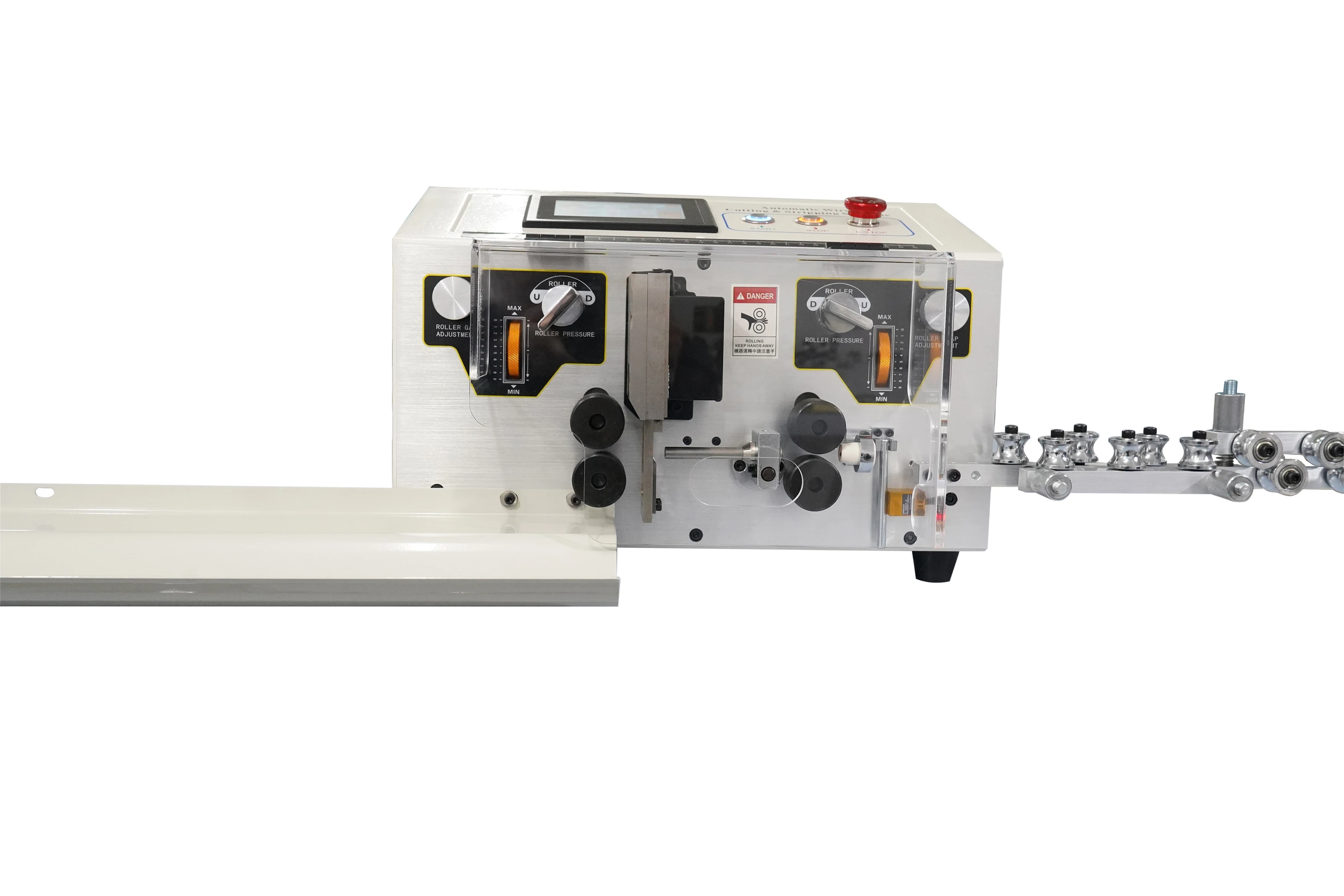

Model:	BJ-02HS FOUR DRIVERS  with LCD display screen & Emergency stop button
Power:	AC220/ 50HZ 110V/60HZ
Power:	Rated 220W
Display:	Full English LCD Display
Cutting length:	1-9999mm
Stripping length:	End of a thread 0-50, line tail 0-50
Motor Step Angle Accuracy:	3-phase 6 shot 1.5/3
Cutting Tolerance:	±(0.002xL) mm or less
Cut the middle of stripping:	11
Core cross-section cut-line:	0.2 - 8.0mm2
Conduit diameter:	Φ10

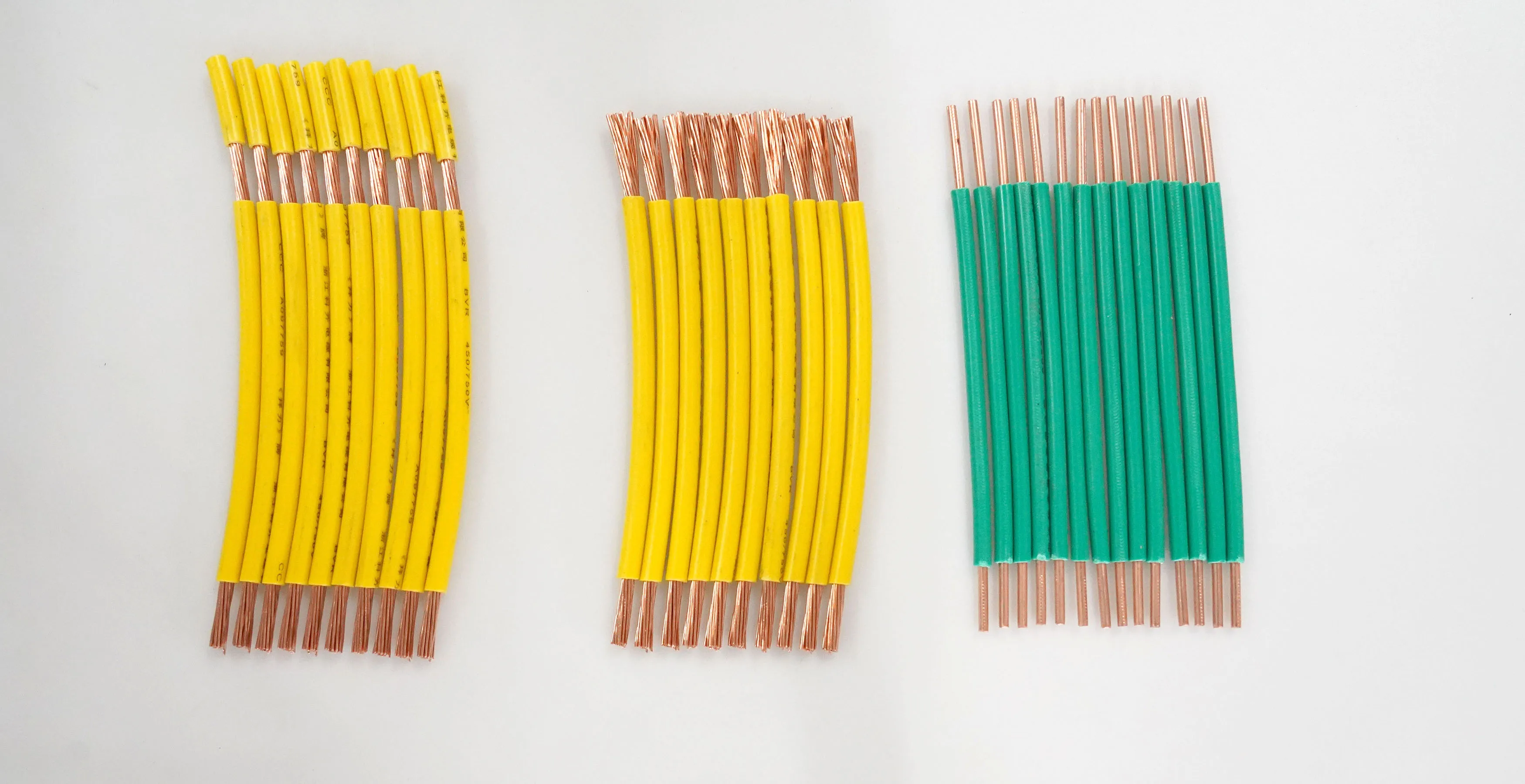

Appropriate wire stripping:	PVC, Teflon, glass and wire
Blade Material:	Hard tungsten steel
Stripper speed (Article / h):	3000~7000pcs/hour
Drive Mode:	Four drives











We Provide

• Best products and factory price.


• On-time delivery and the shortest delivery time.


• 1-year warranty. If our products cannot function properly within 12 months, we'll offer spare parts for free; and you need to pay for the delivery.


• OEM and customized service.


• User manuals will go with relative machines.

Service

• QC: All products will be checked before delivery.


• Compensation: If any unqualified product is found, we'll pay the compensation or send new qualified products to customers.


• Maintenance & Repair: In case of any maintenance or repair need, we'll help to find out the problem and offer relative guidance.


• Operation Guidance: If you have any problem with operation, please feel free to contact us.

Related Wire stripping machines

Model Number	BJ-02B	BJ-02D	BJ-02F	BJ-02MAX
Wire size	0.1~2.5 mm2	0.1- 4.5mm2	0.2 - 8.0 mm2	0.2- 16mm2
Conduit diameter	Φ6	Φ6	Φ10	Φ13
Wire Gauge Range	AWG16 - AWG32	AWG12 - AWG32	AWG8 - AWG32	AWG5-AWG30#
Drive Mode	Four-wheel drive	Four-wheel drive	Four-wheel drive	Four-wheel drive
Weight	35kg	35kg	35kg	35kg

...
