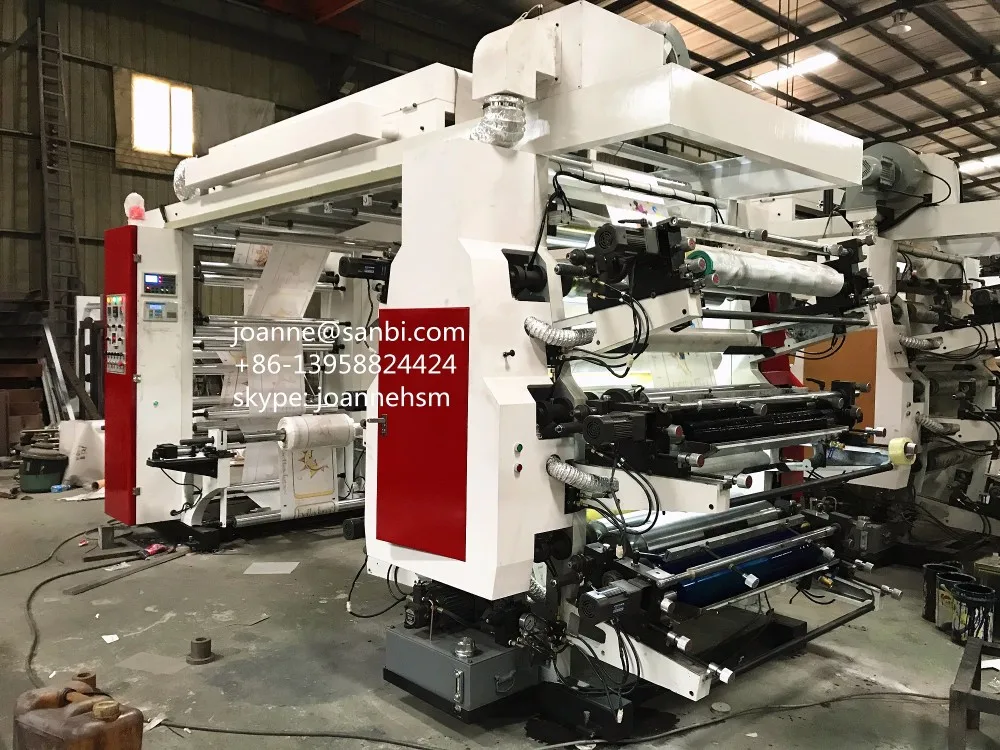

High speed 6 Colors 4 colors HDPE LDPE Paper Flexo flexographic printing machine
- Category: >>>
- Supplier: Zhejiang Bangtai Machine Co. Ltd.
Share on (1185319969):
Product Overview
Description
Product Description
6 COLORS HIGH SPEED FLEXGRAPHIC PRINTING MACHINE
Flexgraphic printing machine, also called aniline press which uses photosensitive resin plate as the printing plate of printing machine. It adopts environmental ink and has advantage of low edition-producing cost, this is an ideal machine for small mass lots, large variety production manufacturer. This machine is suitable for printing such packing materials as HDPE, LDPE polyethylene, polypropylene plastic bag, glass paper and roll paper, etc. And it is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.
Performance and Characteristics:
1. Easy operation, flexible starting, accurate color register.
2. The meter counter can set printing quantity according to the requirements. Stop the machine
Automatically at the set quantity or when the material is cut off.
3. Lift and lower the printing plate cylinder manually, it will automatically stir the printing ink after lifting.
4. The printing ink is spread by the knurled cylinder with even ink colour.
5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6.360 continuous and adjustable longitudinal register device.
7. The imported frequency control of motor speed adapts to different printing speeds.
8. There are Inching / Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
Model | HYT-61000 | HRT-61000 |
Printing color | 6 color. | 6 color. |
Printing width | 960mm | 960mm |
Material width | 1000mm | 1000mm |
Printing material | PE BOPP, OPP PAPER ETC | PE BOPP, OPP PAPER ETC |
Printing length | (repeat) | 190 ~ 1016mm (7.5~ 40) |
Machine speed | 100 m/min | 120 m/min |
Printing speed | 30-70 m/min | 30-100 m/min |
Anilxo roller | 1. Standard : 130-300LPI (Metal anilox roller)6pcs/ 2. optional: 200-800 LPI (ceramic Anilox roller) | 200-800 LPI Ceramic anilox roller(6pcs) |
Inking Way | 1. standard Rubber roller transfer ink 2. Optional : single type doctor blades 6pcs | Chamber type Doctor blade 6PCS |
Register precision | Longitude:±0.20mm Transverse:±0.20mm | Longitude:±0.20mm Transverse:±0.20mm |
Rewind / Unwind Diameter | Φ800-1000mm | Φ800-1000mm |
EPC system | Edge Position Controller 1 PC | Edge Position Controller 1 PC |
Unwinding loading unloading way: | Single unwinding By air shaft , with 5kg magnetic brake | Pneumatic swing arms up and down for loading the material |
Unidirectional bearing | ASNU (Germany) | ASNU (Germany) |
Detailed Images
Machine Parts

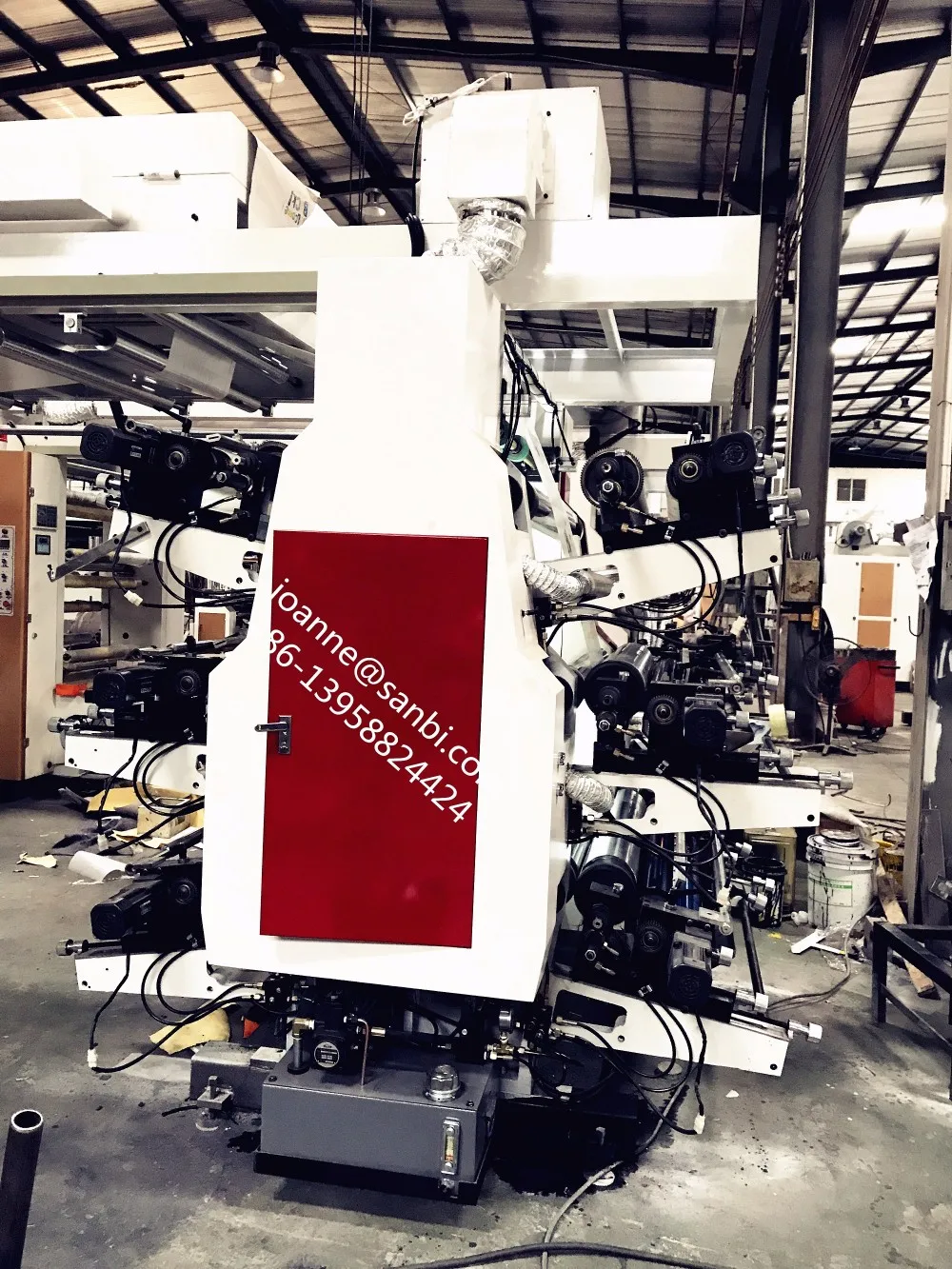

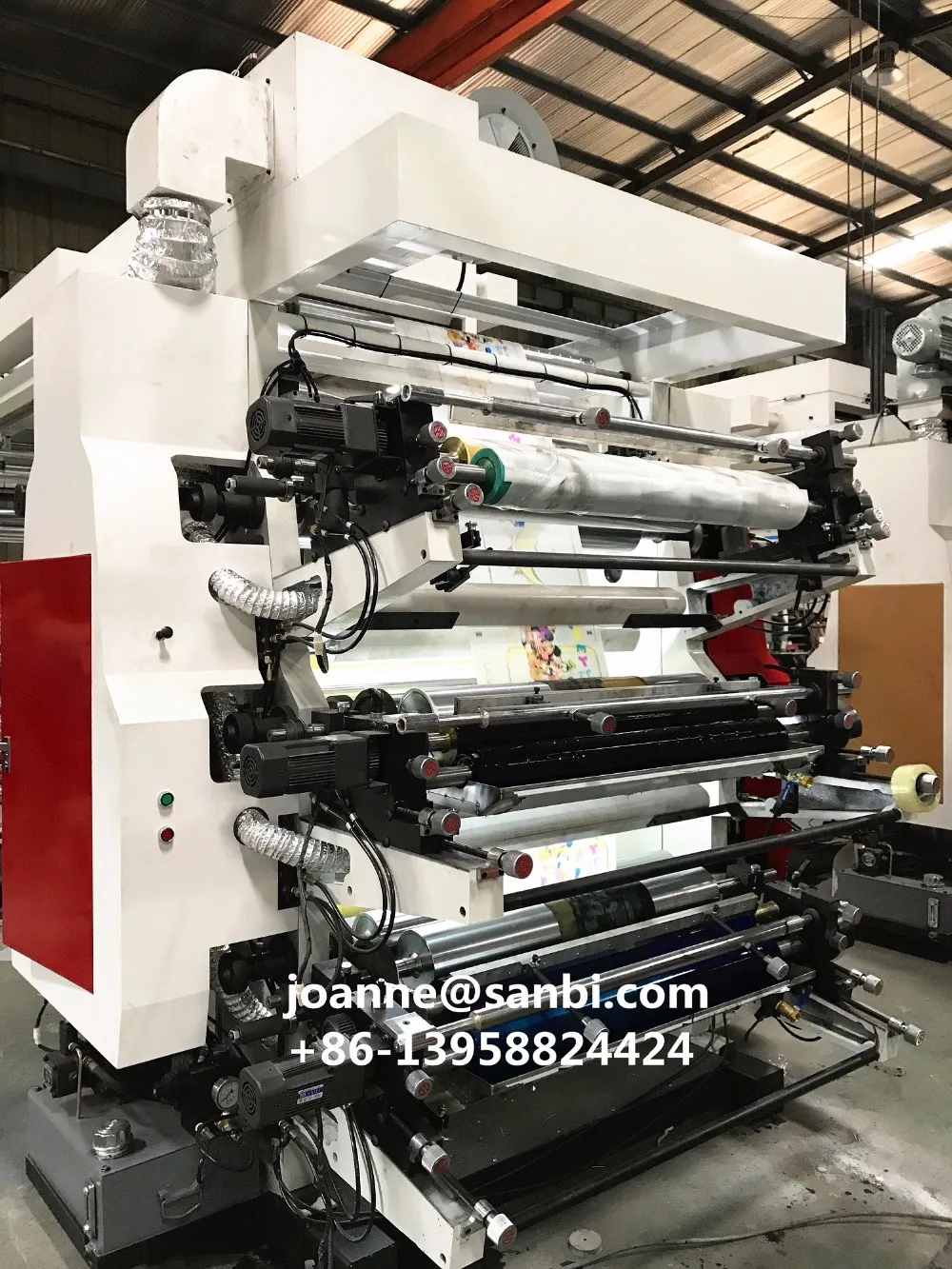

Name: printing unit
Brand: sanbi
Original: China
The machine use hydraulic printing-roll loading system which can automatically load printing rolls and run inks after the machine alarm working signal
machine with ceramic anilox roller and single side doctor blades. can optional chamber docor blades

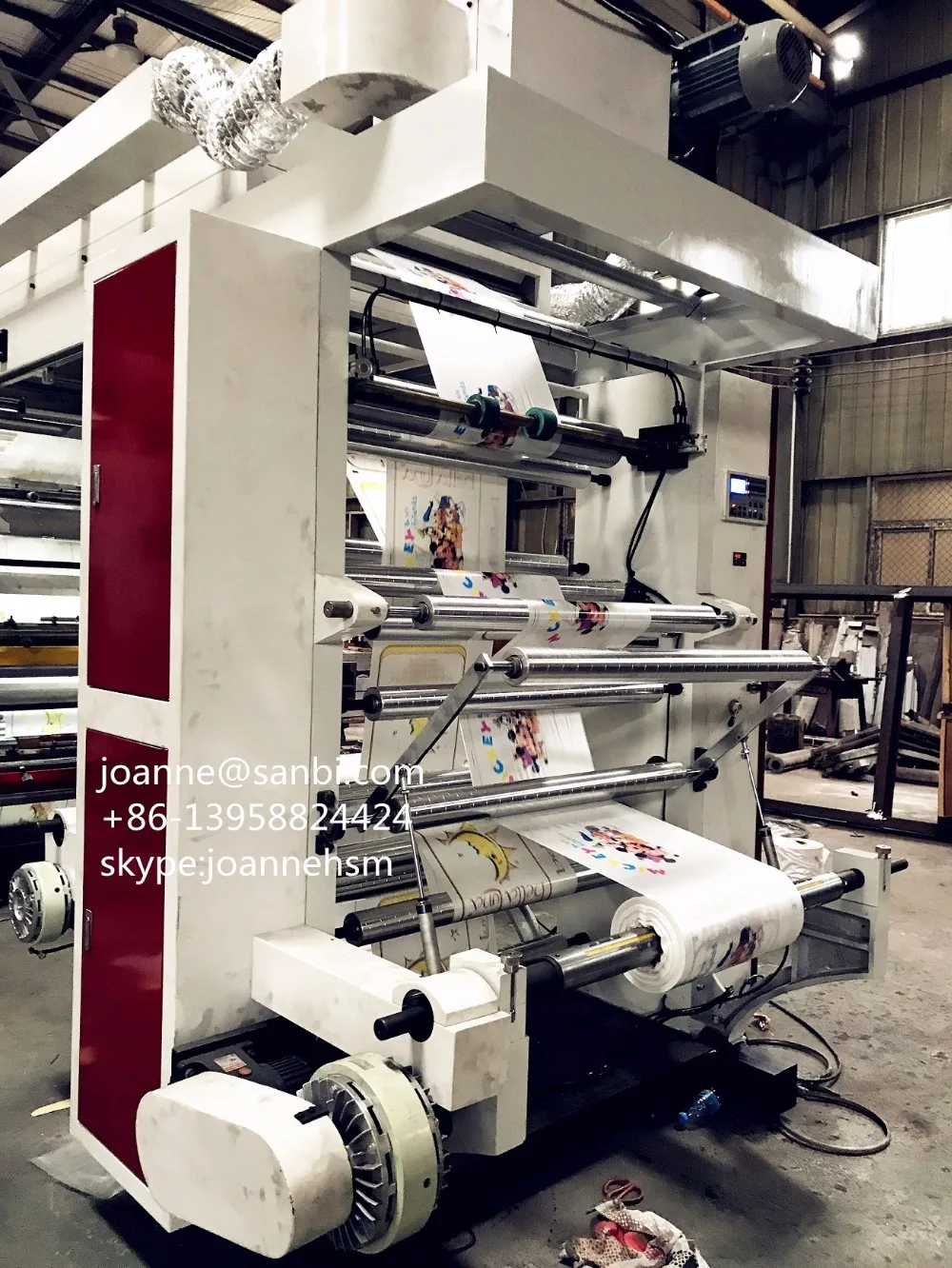

Name: rewinder and unwinder
Brand: sanbi
Original: China
1.\tMachine should have one unwind and rewind
2.\tMaterial holder use air shaft
3.\tUnwind with auto deviation correction system (EPC)
4.\tPowder brakes for unwind system
Machine Parts

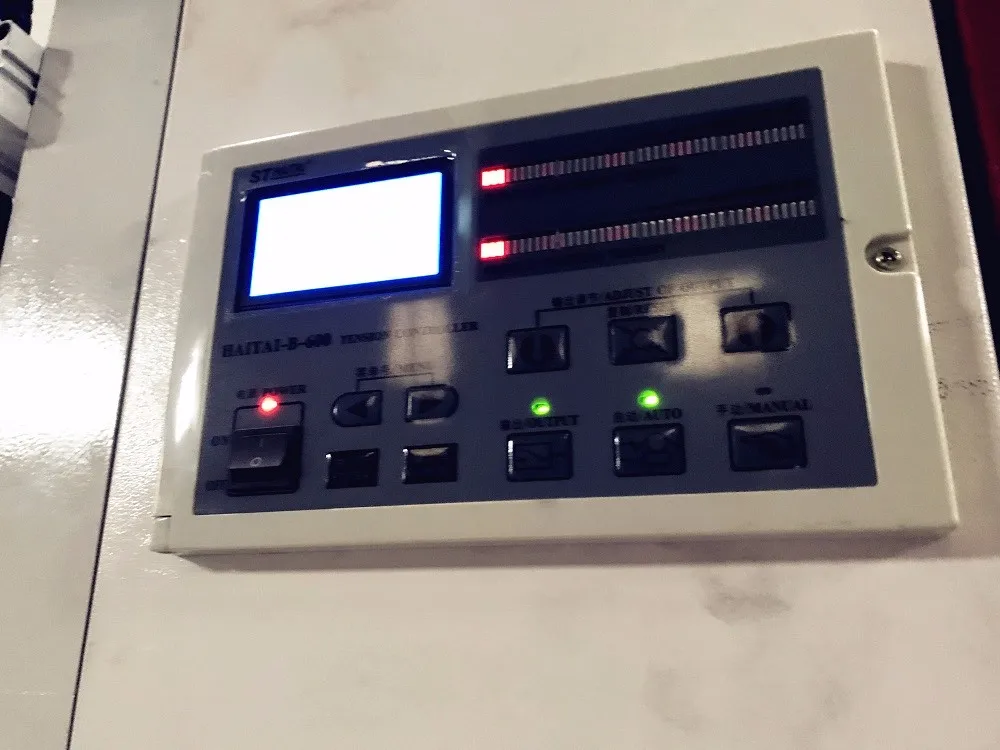

Name: automatic tension
Brand: sanbi
Original: China
1.\tThe operator can preset printing numbers on the auto-counter and the machine will stop at the preset number.
2.\tThe machine will stop at non-feeding.
3.\tTension Control System;Register color by manual
Main Features
Name: Dryer system
Brand: sanbi
Original: China
1.\tWith the air exhaust, blowing and heating settings; the heating system adopts the central thermostatic control system and group management.
2.\tWith the cold air forming device
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging | ||
Size | 7 m×2.3m×2.5m | |
Weight | 4-6 T | |
Packaging Details | The normal package is wooden plate (Size: L*W*H)., delivery by LCL .the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Packaging | ||
Size | 7 m×2.9m×3.3m | |
Weight | 4-6T | |
Packaging Details | The normal package is wooden plate (Size: L*W*H)., delivery by LCL .the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
