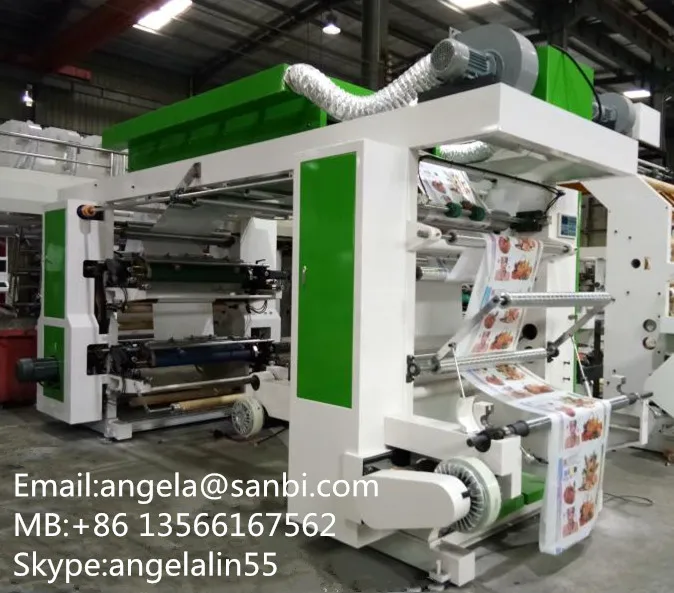

Печатная машина с 4 цветами

Product Overview

Description

4 colour stack printing machine price



Product  Characteristics:

a. Low speed and full load startup; stable running by tension control when increasing and decreasing speed, noise is decreased

b. High dots presentation rate under high speed; clear and vivid stratification of screen printing; strong stereo effect and accurate registering.

c. Aluminum roller adopts the Japan semi-sealing small bearing; flinty oxidation, static and dynamic balancing treatments are conducted; low resistance and small flop.

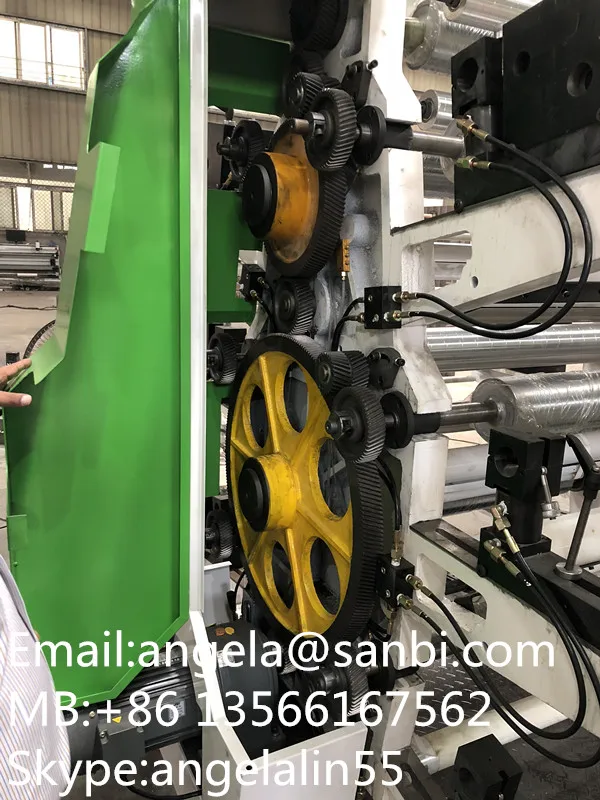

d. The special made modulus angular gears adopted; accurate printing size and full printing specifications (5mm is a spec)

e. With the air exhaust, blowing and heating settings; the heating system adopts the central thermostatic control system and group management, also with the cold air forming devices.

f. Printing rolls should keep moving while machine halted

g. Material holder use air shaft

h. Auto tension control

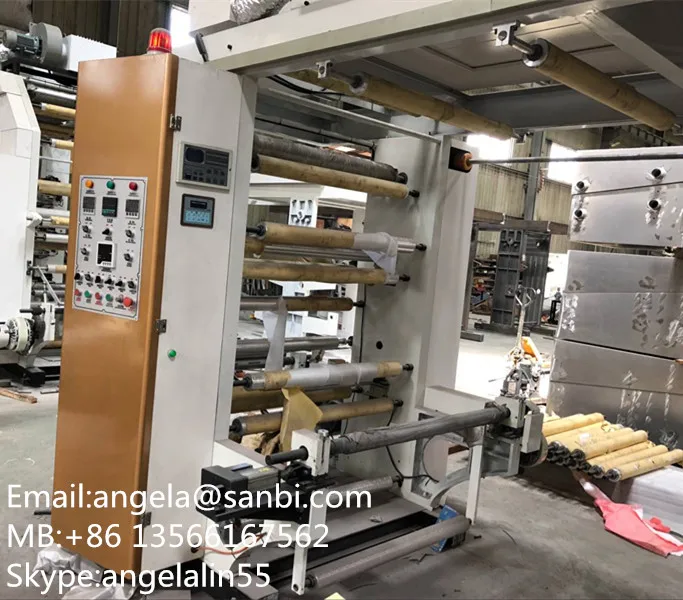

i. Unwind with auto deviation correction system (EPC)

j. EDGE position control

k. Reversible printing 6 color press for6+0, 1+5, 2+4, 3+3.

l. 1 sets of printing cylinder, sizes:   15 inches.



Main Technical Parameter:

Printing  width(mm)	600	800	1000	1200	1400	1600
Printing material(μm)	PVC:35~70μm, OPP:20~70μm, BOPP:18~60μm, PE:35~100μm,
	NY:20~50μm, PET:12~60μm, CPP:20~60μm, Paper:20~150g/m2
Printing color	at your own choice+ 2 special color
Printing length	7.5"~40"(190mm~1000mm)/7.5"~50"(190mm~1270mm)
Printing plate lifting system	Pneumatic press control
Mechanical speed(m/min)	100
Printing speed(m/min)	10~80
Register precision(mm)	Longitude:±0.15mm    Transverse:±0.15mm
Rewinder/Unwinder DIA(mm)	Φ1200
Printing material(μm)	PVC:35~70μm, OPP:20~70μm, BOPP:18~60μm, PE:35~100μm
Material feeding width(mm)	700	900	1100	1300	1500	1700
Master motor(kw)	3.7	3.7	3.7	5.5	5.5	5.5
Rewinder motor(kw)	1.5	1.5	1.5	2.2	2.2	2.2
Electrical heater(kw)	18	22	30	30	38	38
Blower of heater(kw)	3	3	5	5	5	5
Blower of nature wind(kw)	1.1	1.1	1.5	1.5	1.5	1.5
Inking motor(w)	200	200	200	200	200	200
Master frequency converter(kw)	3.7	3.7	3.7	5.5	5.5	5.5
Powder brakes(kg)	5	5	10	10	10	10
Tension sensor(kg)	2~30	2~30	3~50	3~50	3~50	3~50
Master power(kw)	30	36	50	50	62	62
Net Weight(kg)	7850	9700	10300	10800	11300	11800
Dimension(L*W*H)(m)	4.8*1.9*3.75	5.2*2.3*3.8	5.2*2.5*3.85	5.2*2.8*3.85	6.5*3.0*3.9	6.5*3.2*3.9

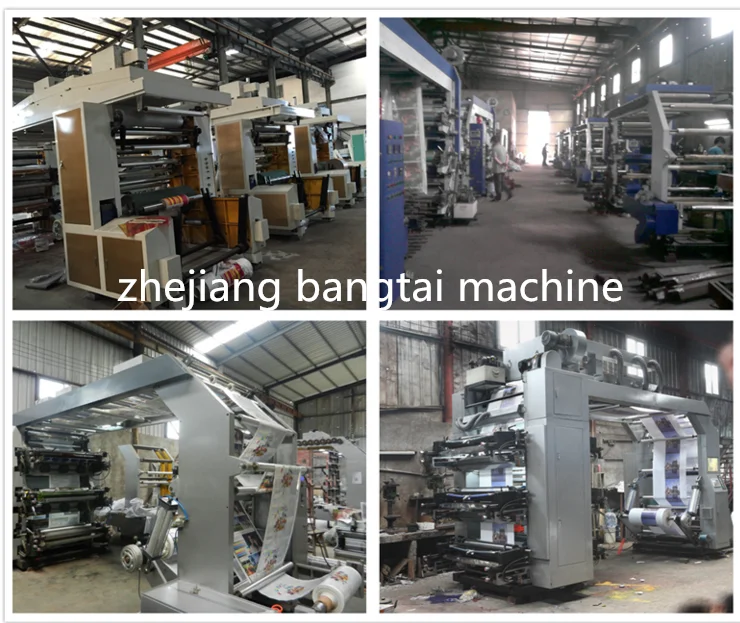

Company picture :

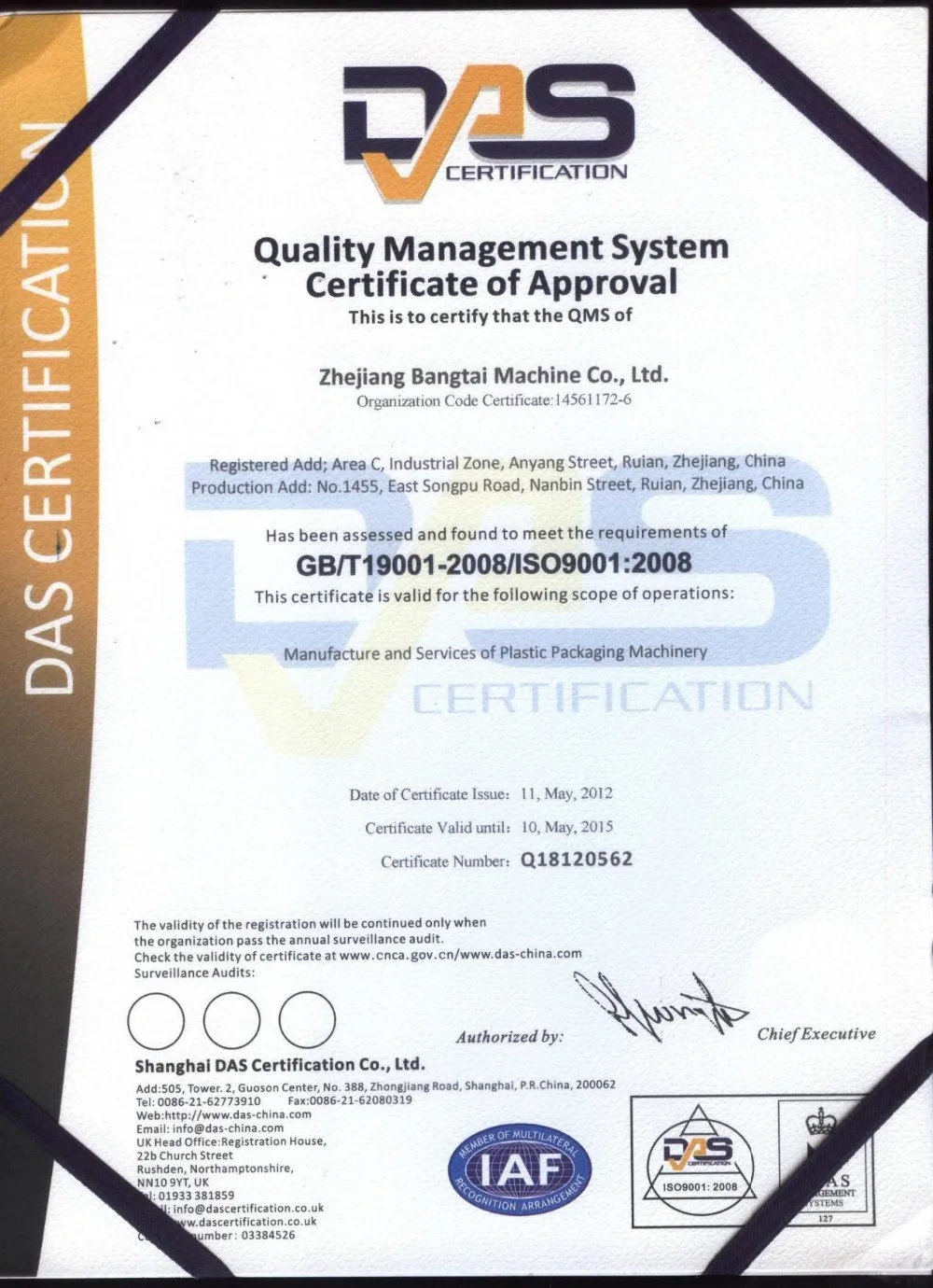

Certificate
