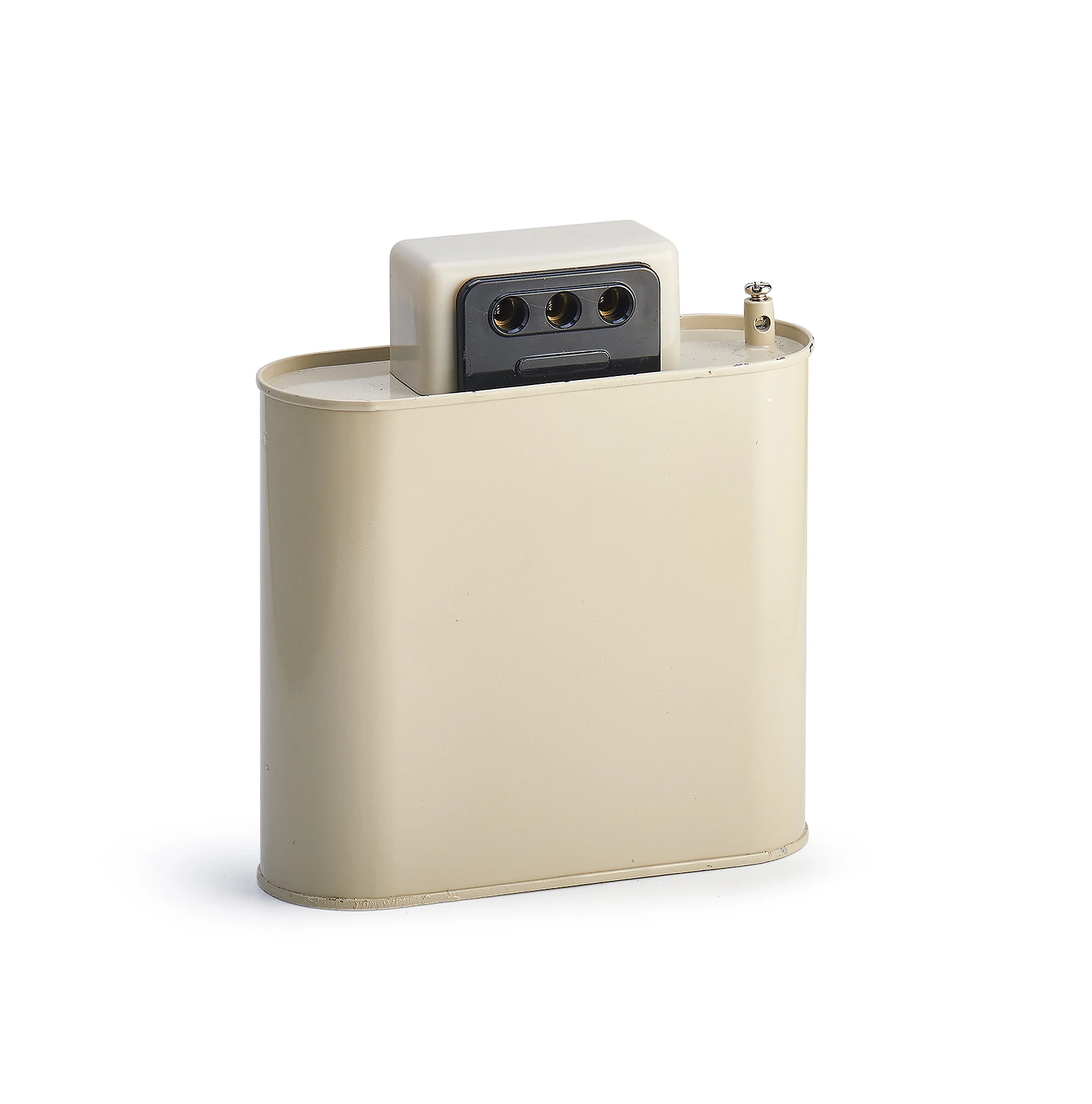

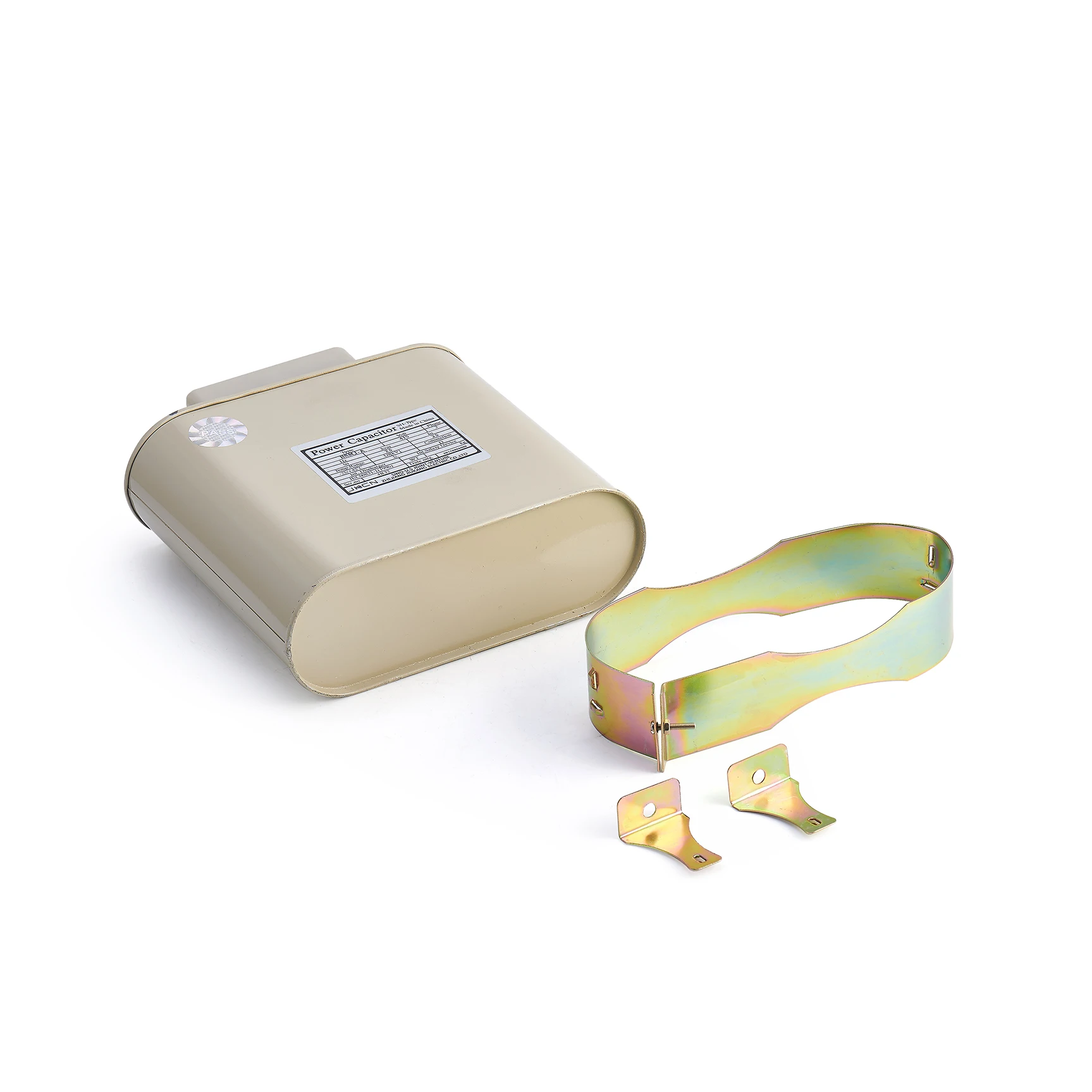

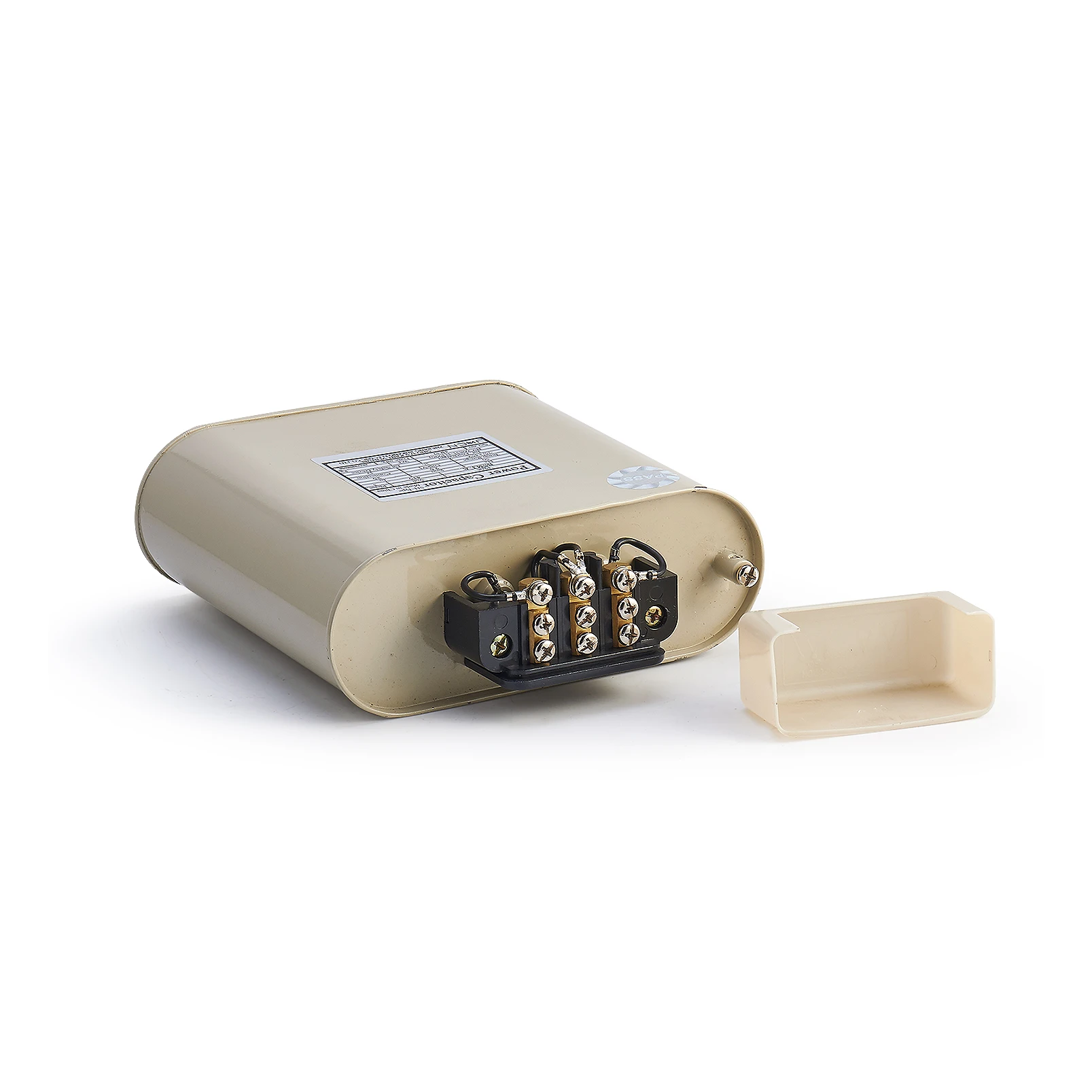

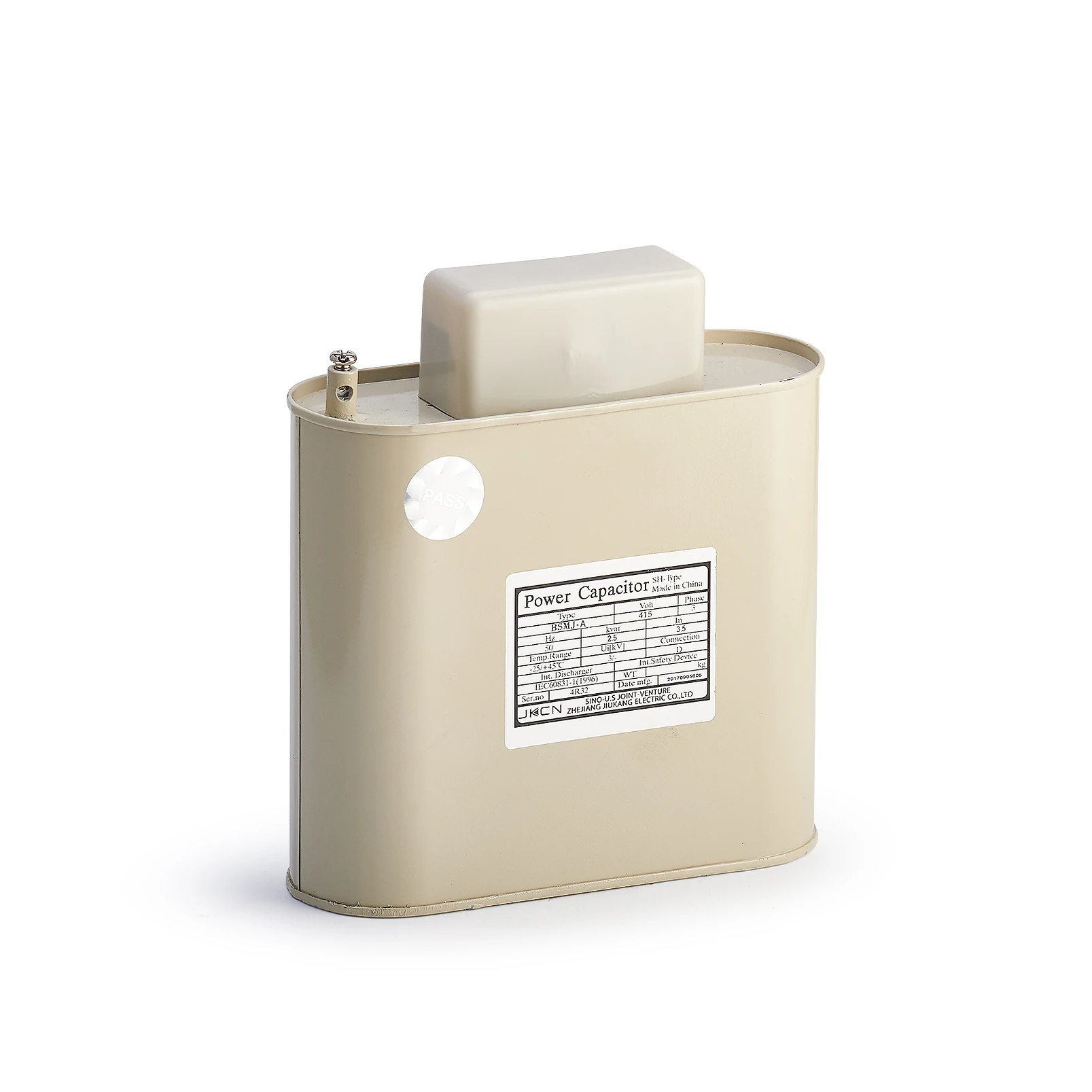

Made in China BSMJ Series power factor correction capacitor
- Category: >>>
- Supplier: Zhejiang Jiukang Electric Co. Ltd.
Share on (1185865581):
Product Overview
Description
About Us
1. With more than 21 years' experience in manufacture, the quality of our products is always reliable.
2. Our products have been exported to many countries , enjoy a good reputation and wide popularity.
3. Every business is very vital to us, and we focus on providing our customers with best service.
4. Professional and energetic technical and sales team, aiming at providing a full suit of serices.
5. Advanced equipments, and a good , safe production environment.
|
product description
1. General Description of Power Factor Correction Capacitor
JKCN Brand of self-healing type low voltage shunt capacitor, made of the advanced metallized film, is produced strictly in accordance with the National
Standard and IEC Standard by the introduced advanced foreign techniques and equipment. The device is mainly suitable for low voltage electric
net work to improve power factor, reduce reactive loss, and better the voltage quality.
2. Main Features of Power Factor Correction Capacitor
1. Small volume and light weight: It is only 1/4 and 1/5 of the weight and volume of the outdated products respectively.
2. Low loss: With the actual loss less than 0.1%, the capacitor, itself, has low consumption of energy, little radiation, low temperature rise, long
service life, and good energy, conservation feecet.
3. Excellent self -healing performance: When a part of the inolation is fed through due to the over voltage, it is capable of self-heaing so as to continue
the normal operation, therefore there liability is in proved greatly.
4. Safety: Equipped with self-discharging resistant and safety devices inside, it is safe and reliable.
5. Without oil leakage: In order to avoid oil leakage during operation so as to protect the environment, it employs the microrystlline wax as the
Impregnant , which remains solid atordinary temperature and has a drip melting point higher than70°C
3. Scope of Application of Power Factor Correction Capacitor
The product complies with IEC 30-1998 standard.
Place for installation: Indoor
Ambient temperature: -40°C~+45°C
Capacity error: -5%~+10%
Withstand voltage: Withstanding 700VAC for 2~5s between terminals
and 3000VAC for 10s between the whole terminals and the outer casing
Loss rate: below 0.12%
Allowable over voltage:
Below the rated voltage of 110% (Within 8 hours every 24 hours)
Below the rated voltage of 115% (Within 8 minutes every 24 hours)
Below the rated voltage of 120% (Within 5 minutes and less than two time
evert month)
Below the rated voltage of 130% (Within 1 minute and less than two time
evert month)
Allowable over current: Below the rated voltage of 130%
Insulating impedance: All terminals and the outer casing are above 300MΩ
(500VDC for one minute)
Internal discharge resistance: The internal protector reduces the voltage
to below 75V in three minutes.
4. Main Technical Characteristics of Power Factor Correction Capacitor
| 1.Service Condition: | -25°C/+45°C Humidity≤90%RH Altitude≤2000m |
| 2. Rated voltage: | 250VAC, 400VAC,525VAC,690VAC,750VAC,1050VAC |
| 3.Rated output: | 10-80kvar |
| 4.Capacitance Tolerance: | 0- +15% |
| 5. Loss Angle Tangent(Power Frequency Rated Voltage): | tgδ≤0.01 at 20°C |
| 6.Withstand voltage: | Capable of withstanding 1.75 times of rated voltage between poles for 10s, R≥ 1000MΩ. |
| 7. Max allowable voltage: | 1.10 times of the rated voltage. |
| 8. Max allowable current: | 1.30 times of the rated current. |
| 9. Self-discharging characteristics: | Apply √2 Un DC voltage to the device and switch off the power supply for 3m, and then the residual voltage is 50V or less. 10. |
| 10. Standards: | In conformity with GB 12747-2004, IEC 831-1988. |
| 11. Rated frequency | 50Hz or 60Hz |
5. Main Size of Power Factor Correction Capacitor
| Model BSMJ-C/D | Rated Voltage(KV) | Rated Output (kvar) | Total Capacitance (uf) | Rated Current (A) | Dimension L*W*H(mm) |
| 0.4-12.5-3 | 0.4 | 12.5 | 248.8 | 18.0 | 280*60*130 |
| 0.4-15-3 | 0.4 | 15 | 298.56 | 21.7 | 280*60*150 |
| 0.4-20-3 | 0.4 | 20 | 398.08 | 28.9 | 280*60*200 |
| 0.4-25-3 | 0.4 | 25 | 497.61 | 36.1 | 280*60*250 |
| 0.4-30-3 | 0.4 | 30 | 597.13 | 43.3 | 280*60*250 |
| 0.4-40-3 | 0.4 | 40 | 796.17 | 57.7 | 300*120*230 |
| 0.4-50-3 | 0.4 | 50 | 995.22 | 72.2 | 300*120*235 |
| 0.4-60-3 | 0.4 | 60 | 1194.26 | 86.6 | 300*120*250 |
| 0.4-70-3 | 0.4 | 70 | 1393.31 | 101.0 | 300*120*280 |
| 0.4-80-3 | 0.4 | 80 | 1592.35 | 115.5 | 300*120*280 |
| 0.45-12.5-3 | 0.45 | 12.5 | 196.58 | 16 | 280*60*130 |
| 0.45-15-3 | 0.45 | 15 | 236.0 | 19.2 | 280*60*150 |
| 0.45-20-3 | 0.45 | 20 | 314.5 | 25.7 | 280*60*200 |
| 0.45-25-3 | 0.45 | 25 | 393.17 | 32.07 | 280*60*250 |
| 0.45-30-3 | 0.45 | 30 | 471.8 | 38.5 | 280*60*250 |
| 0.45-40-3 | 0.45 | 40 | 628.8 | 51.3 | 300*120*230 |
| 0.45-50-3 | 0.45 | 50 | 786.0 | 64.2 | 300*120*235 |
| 0.45-60-3 | 0.45 | 60 | 943.6 | 76.9 | 300*120*250 |
| 0.45-70-3 | 0.45 | 70 | 1100.8 | 89.8 | 300*120*280 |
| 0.45-80-3 | 0.45 | 80 | 1258.1 | 102.6 | 300*120*280 |
Above size is just for your reference, we can also make as you request.

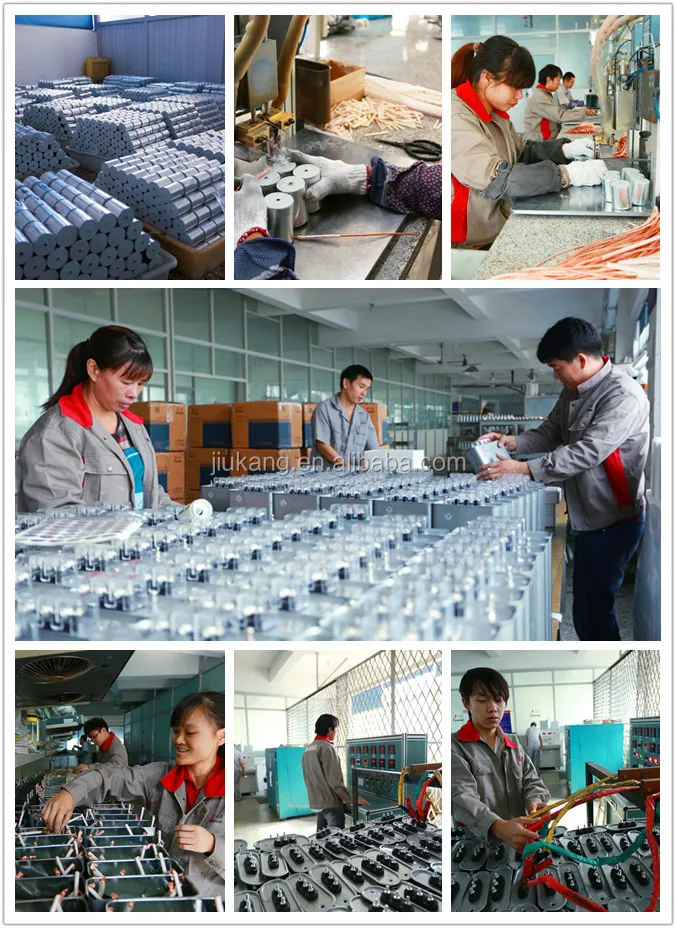

6. Product Flow of Power Factor Correction Capacitor
1. Every step , we try to do best to ensure the quality of our products
2. Select good films and materials, professional operations to maintain the good performance of all materials.
3. Every product is seriously tested before we sent it to you.

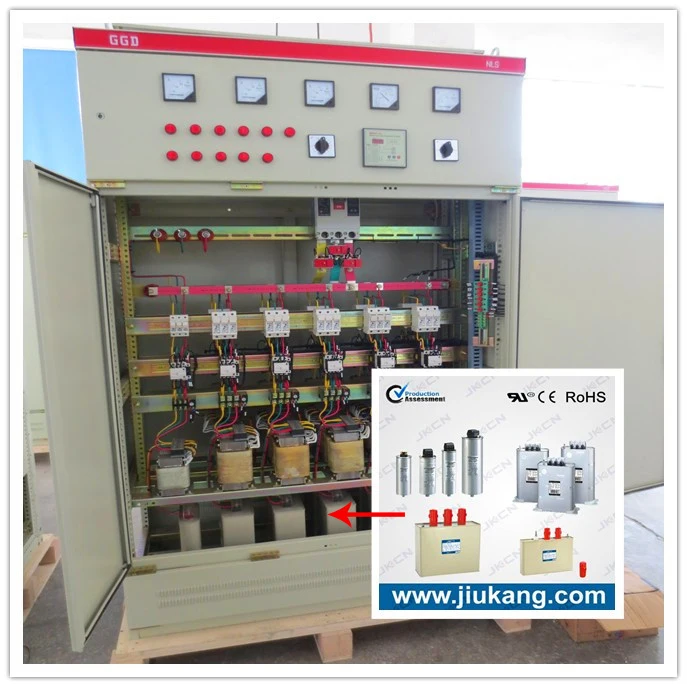

7. Application of Power Factor Correction Capacitor
Low voltage Power Capacitor can be used to Capacitor bank (reactive power compensation)
and other electrical equipment.
8. More Related Products

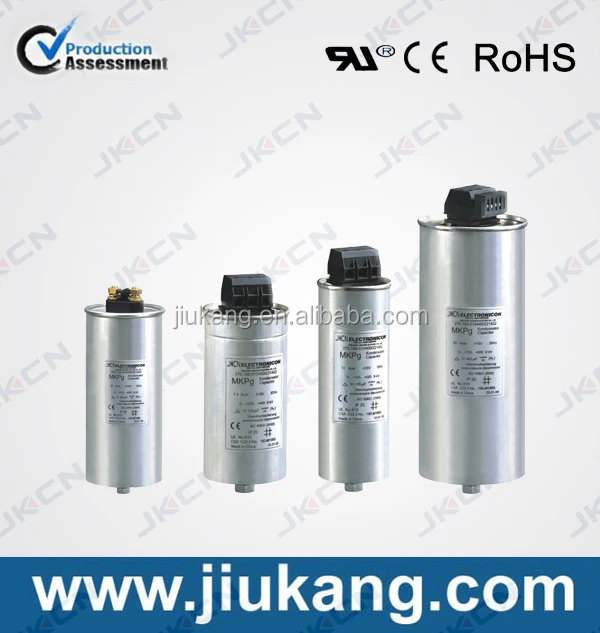

Capacitor Series :
Packaging & Shipping

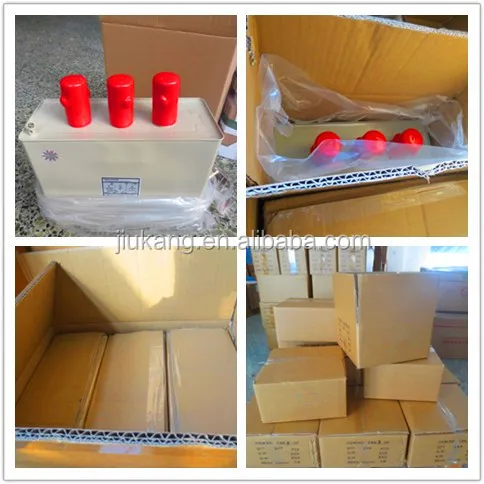

The packaging of Power Factor Correction Capacitor : export standard cartons, as for some special requirements , you can tell in advance.
Company Profile
Established in 1993, Zhejiang Jiukang Electric Co.,Ltd now occupied factory area 168000sq.m. Main products cover CBB60 series Motor Running capacitor, CBB61 fan capacitor , CBB65 Air conditioner capacitor , CD60 motor start capacitor, AC contactors , AC controller, Float Switch , TBB series Power Factor Correction unit etc. Our company has already passed the ISO9001 Quality Management System Certification, ISO 14000 Environment Management System etc.

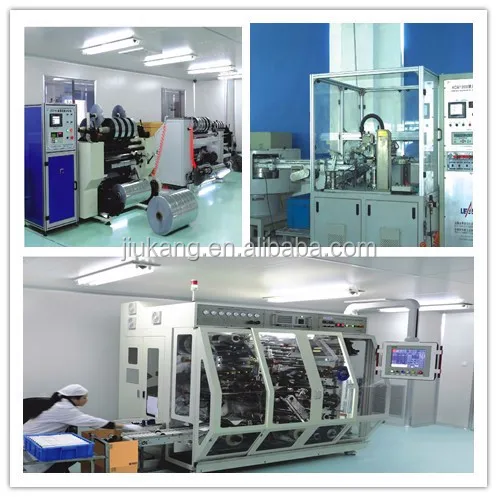

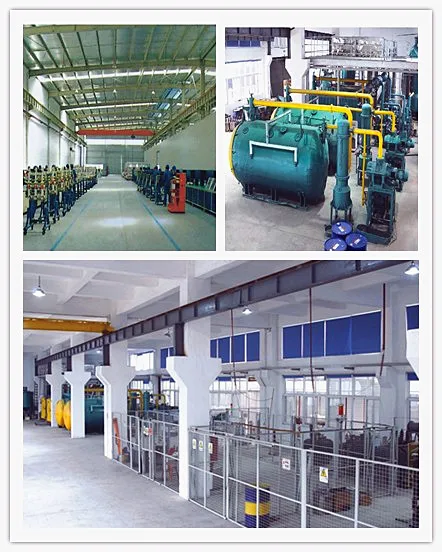

Our workshops:
We have dustlessness worshops and avanced machines exported from Germany, Korea, Taiwan etc.
We believe that good machine is the premise of good quality.

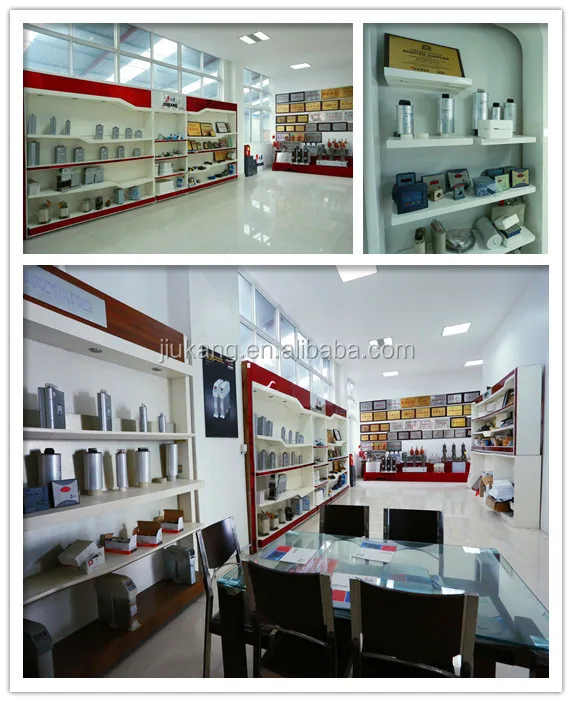

Our Sample Room :
Our Sales Team :
For more information, pls find the video of our company , pls visit our website : //jiukang.en.alibaba.com/company_profile.html

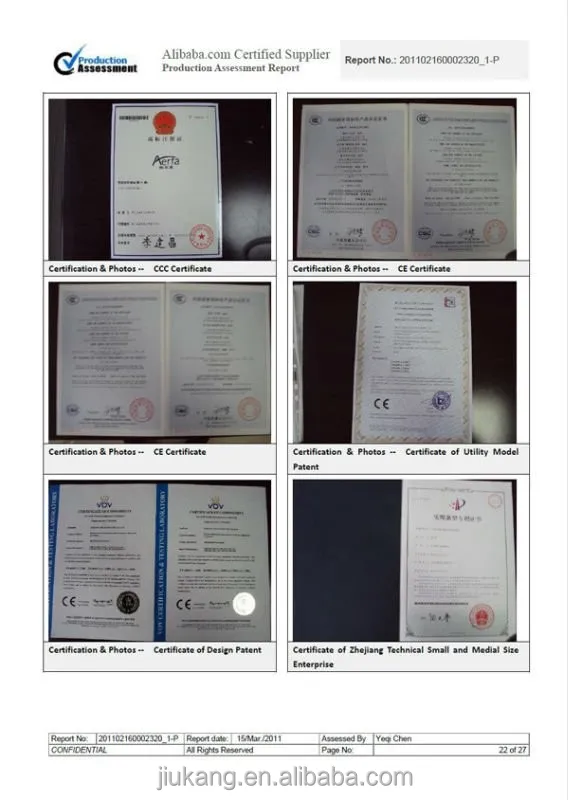

Certifications

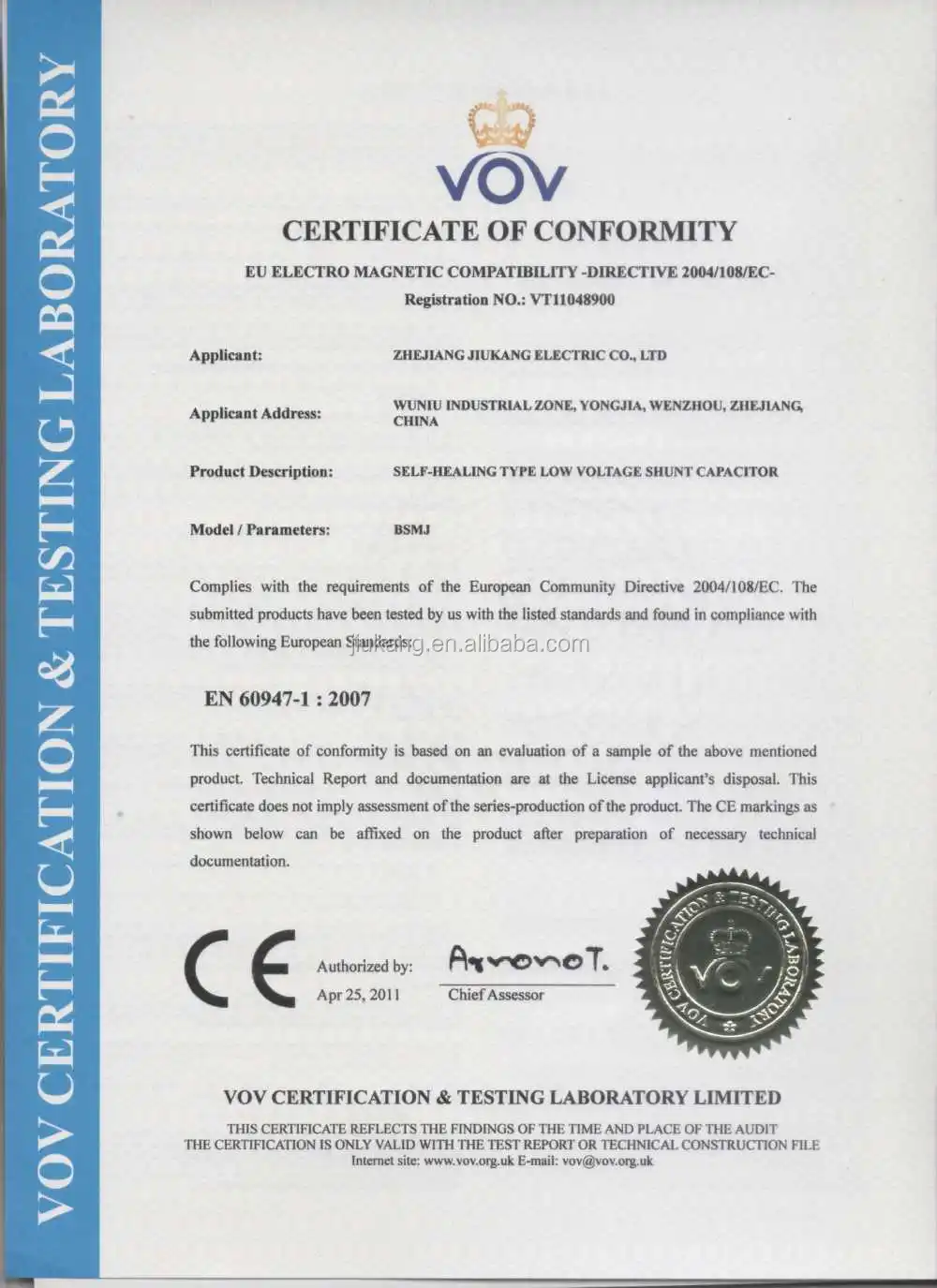

CE certification of BSMJ Series Power Factor Correction Capacitor
