Product Overview

Description

Dynamic ECG Systems



<Model No.: TLC5000>





Product Feature

Dynamic ECG Systems TLC5000 contain recorder & analysis software.

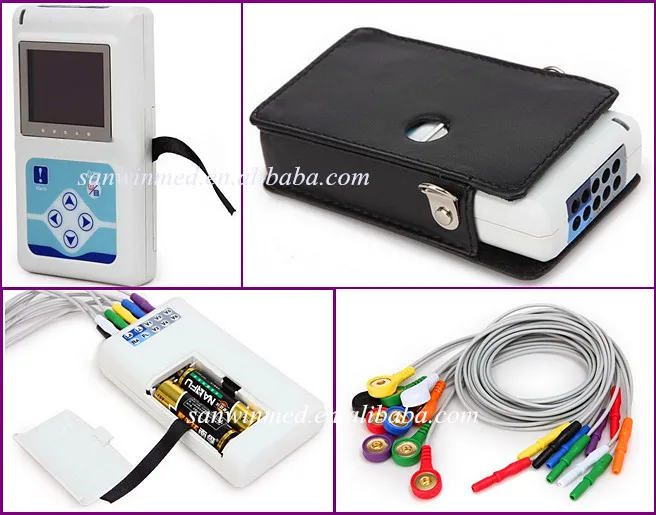

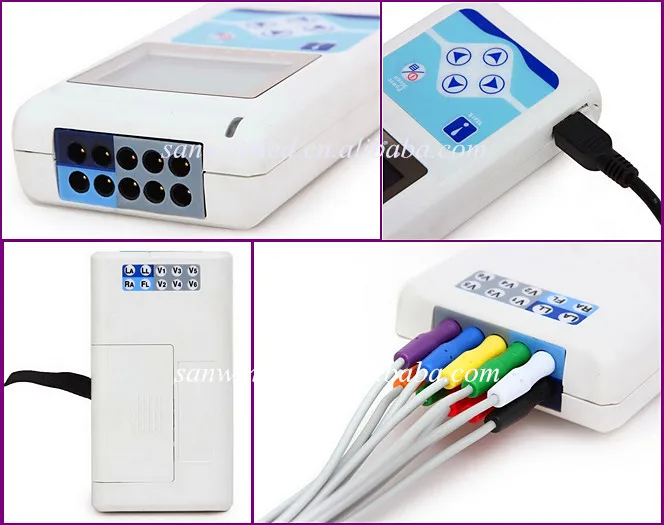

Recorder is an easy- to -use unit, which collects 12-lead ECG waveform synchronously and records continuously for 24 hours. In addition, it also reviews ECG waveform.



It is easy for you to use analysis software which plays back ECG waveform stored in ambulatory recorder and achieves kinds of analysis functions, such as arrhythmia, HRVA, QTDA, TWA, etc.





Main features

1---With advanced design and technology, the recorder can work stably, dependable and durable.

2---Be provided with the capability of anti-jamming and shock-pro.

3--- Small volume with OLED screen. The resolution is 160*128.

4---Be provided with functions of waveform preview, record review and event marking.

5---Accurate record of the start time of the data sampled owing to the real time clock of itself.

6---Avoid damage owing to the repeating inserting and pulling out by using the inbuilt TF card to storage the data.

7---The maximum capability can be 2GB, so the original data can be saved perfectly by no compression.

8---The average review time of single case can be less than 40 seconds by using interface of USB 2.0.

9---Record waveform details inextenso by the design of high precision and sampling frequency.

10---Record the state of pacemaker exactly by higher sampling frequency.

11---International standard of 12 leads. Record 24-hour DECG with the same standard of the ECG.

12---12 channels











Software functions

1.---Quick and accurate analysis system.

2.---The 12-lead synchro analysis, to find accurate, QRS search can be more exactly.

3.---There are more than 10 templates as atrial premature beat module, ventricular premature beat module, long interval module, atrial flutter module, atrial fibrillation module etc. and multiplicate User-defined templates could almost identify every kind of pathologic waveforms

4.---Flexible analysis channel selection function, can choose any channel as the mainly analysis the channel.

5.---Flexible atrial fibrillation analysis, so that physicians can use full, segmented automatic, manual analysis of atrial fibrillation, make the analysis more quickly and accurately

6.---Powerful pacemaker analysis, on the AAI, VVI, DDD etc. All pacemaker analysis.

7.---Many pacing modules have been added

8.---Fast review analysis function, can be any period of time the review single lead or all leads electrocardiogram

9.---Analysis of heart rate variability with short-range 5 minutes and long-range 1 hour and 24 hours analysis of heart rate variability

10.---One-stop printing operation, report printing process is convenient and quick

11.---Perfect function of case management

12.---Advanced ST segment analysis and myocardial ischemia total load, can for the ST abnormal analysis according to the whole and event, make the doctor can comprehensive adjustment myocardial ischemia

13.---Unique “Sleep breath pause syndrom analysis” can predict sleep breath pause risk

14.---”HRT” analysis can predict the risk of death in patients with myocardial infarction.

15.---"T Wave Alternation" analysis is a important index to predict malignant arrhythmia and sudden cardiac death.

16.---With QT discrete degree analysis, ventricular late potential analysis, vector ECG analysis, time vector analysis and so on many kinds of additional analysis functions, make analysis report more reference value.

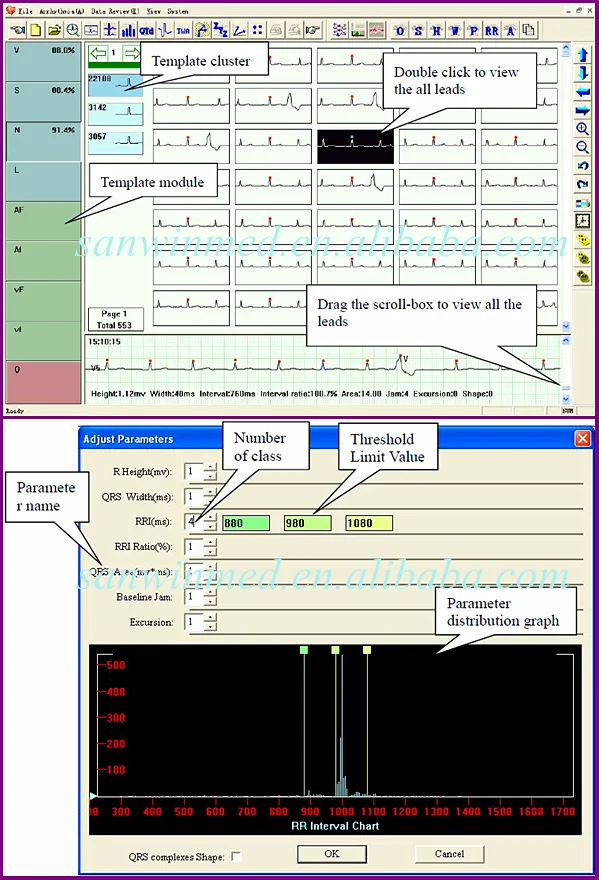

Operation Interface for Analysis software









Technical Specification

Number of channels		12 channels
Sampling accuracy		12 bit
Record time		24 hours
Power		2 AA size batteries
Interface		USB2.0
Scale voltage		1mV±5%
Standard Sensitivity		10mm/mV±5%
Noise level		≤30μV p-p
CMRR		≥60dB
Low -frequency characteristics		Time constant≥3.2s
Scan speed		25mm/s±5%
Enduring polarization voltage		±300mV
Least measure signal		50 µV p-p
Product safety type		Type B (Internally powered)
Size		111mm (L) *60mm (W) *25mm (H)
Net Weight		105g (Without battery)
Environment Condition
Operation Environment			Transport and Storage Environment
Environment Temperature	10℃~45℃		-40℃~+55℃
Relative Humidity	≤85%		≤85%
Power Supply	DC 3V
Atmospheric Pressure	86 kPa~106 kPa		86 kPa~106kPa

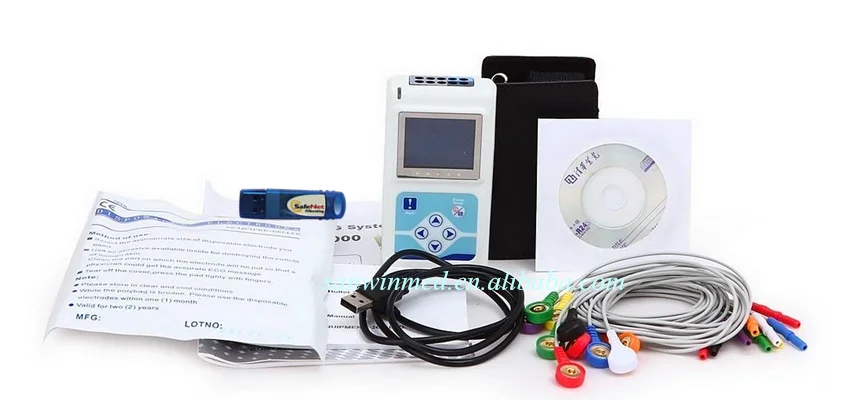

Accessories

--USB data line                         --A CD (analysis software)

--ECG Leads                            --An User manual

--Carry case                              --Electrode patch                  --Dongle





Certification

CE ISO
